Model DANA Series
Dana Style Cabinets

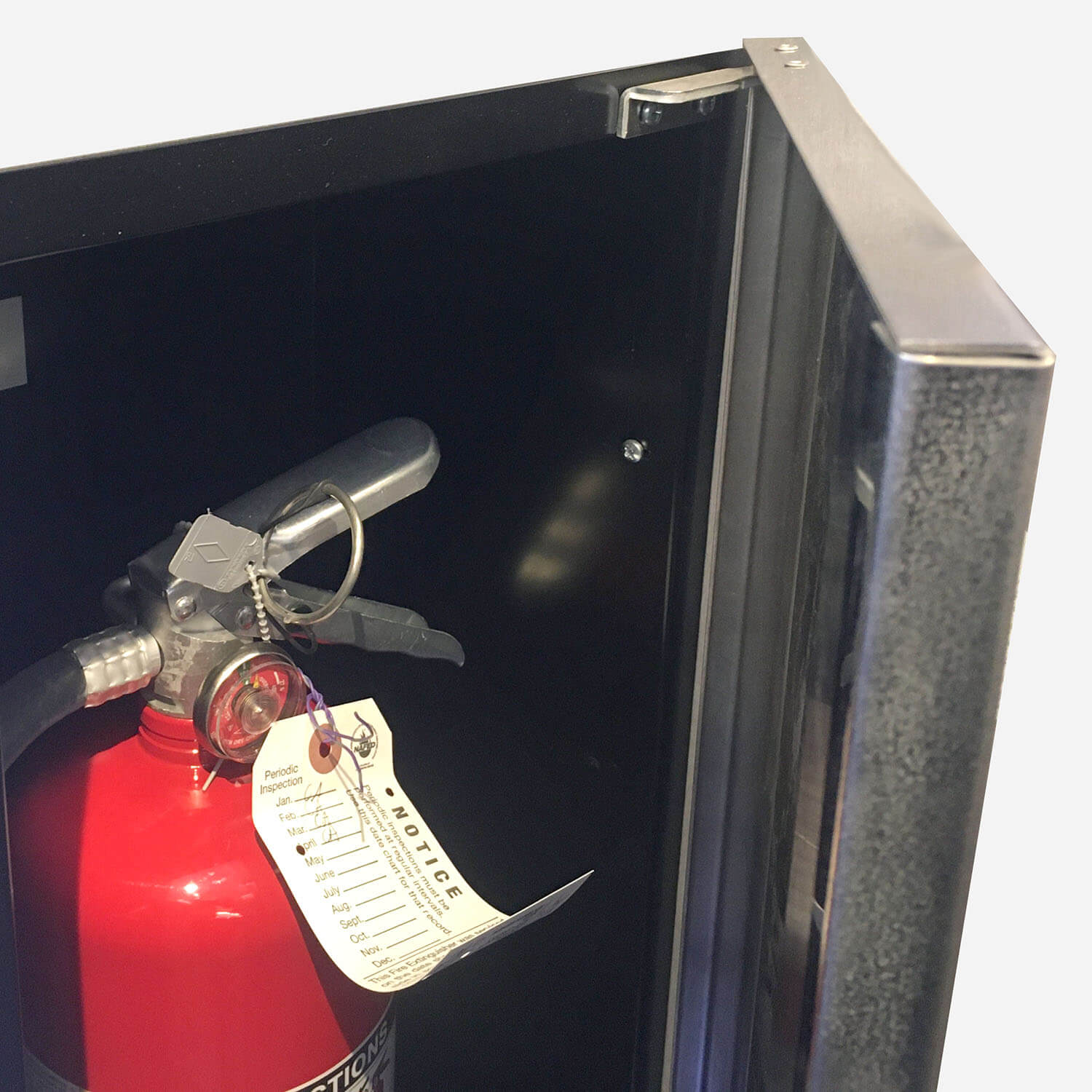

Refined Look with Concealed Hinges and Handles

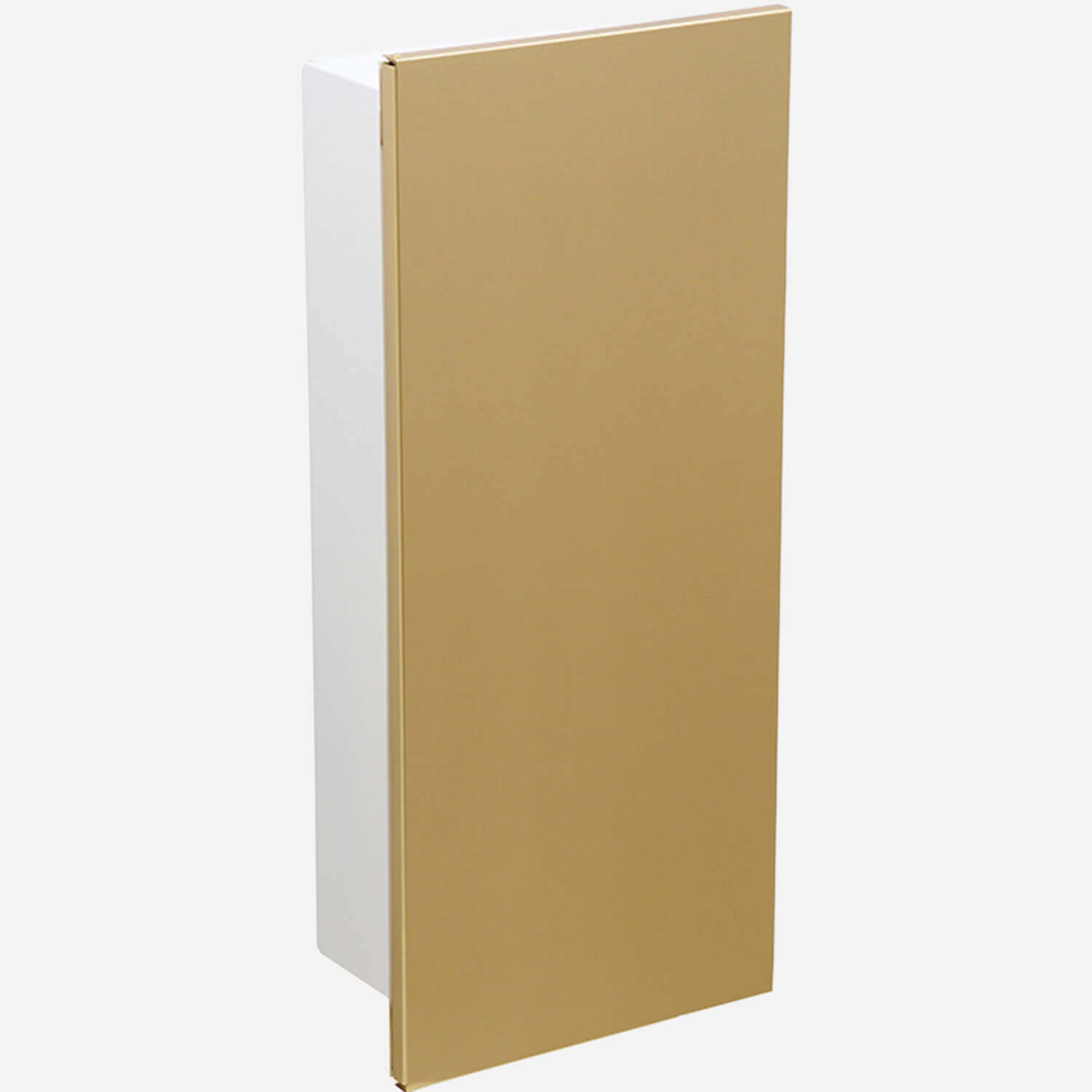

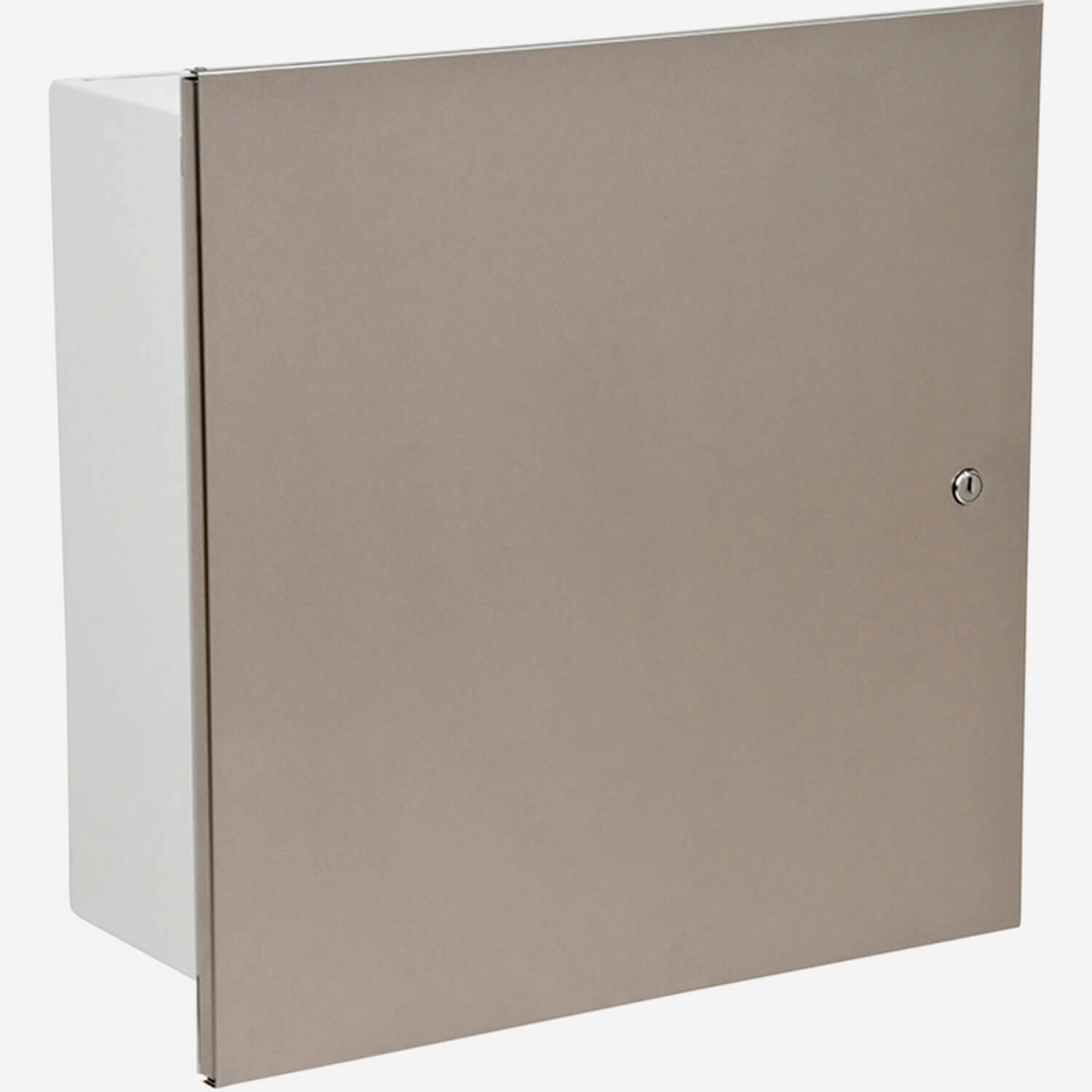

DANA STYLE CABINETS manufactured of Galvannealed Steel, with components powder-coated with an electrostatically-applied, thermally-fused, recoatable white polyester finish. All glass door styles provided with clear tempered safety Glass. Wall mounting and size of cabinet as selected by model number.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Dana Style Cabinets [1302-DANA | for Hose Rack Assembly and Extinguisher; 1704-DANA | for Extinguisher; 1706-DANA | for Extinguisher; 1810-DANA | for Valve; 1870-DANA | for Valve and Extinguisher] | 0 | 622 KB |
Specifications
| Material | Galvannealed Steel |
| Cabinet Style | Dana |
| Door Style | -DV | Duo-Vertical Panel w/ Tempered Safety Glass, -DVL | Duo-Vertical Panel with Lock, TSG & Break Rite® Handle, -F | Flush Solid Metal, -FS | Flush Solid Metal w/ Lock |
| Door/Frame Finish | -AL | Aluminum (Clear Anodized Finish - STD), -AL | Aluminum (Duranodic Finish - Light), -AL | Aluminum (Duranodic Finish - Medium), -AL | Aluminum (Duranodic Finish - Dark), -SS | Stainless Steel (304 with #4 Finish - STD), -SS | Stainless Steel (304 with #6 Dull Satin Finish), -SS | Stainless Steel (304 with #8 Mirror Finish), -PB | Brass (Polished Finish - STD), -BZ | Bronze (Call for options), -RED | Red Powder Coat on Steel |
| Mounting | Recessed |
| Options | -FRC | UL Fire Rated, Custom Color |
| Inside Box Dimension | 30 x 30 x 8-5/8", 9 x 24 x 6-3/8", 12 x 27 x 8-5/8", 18 x 18 x 8-5/8", 14 x 40 x 8-5/8" |
Models
1302-DANA | Application - Hose Rack Assembly and Extinguisher (inside box 30 x 30 x 8-5/8") 1704-DANA | Application - Fire Extinguisher (inside box 9 x 24 x 6-3/8") 1706-DANA | Application - Fire Extinguisher (inside box 12 x 27 x 8-5/8") 1810-DANA | Application - 2-1/2" Fire Dept Valve (inside box 18 x 18 x 8-5/8") 1870-DANA | Application - 2-1/2" Fire Dept Valve and Extinguisher (14 x 40 x 8-5/8")
