Member of Morris Group International

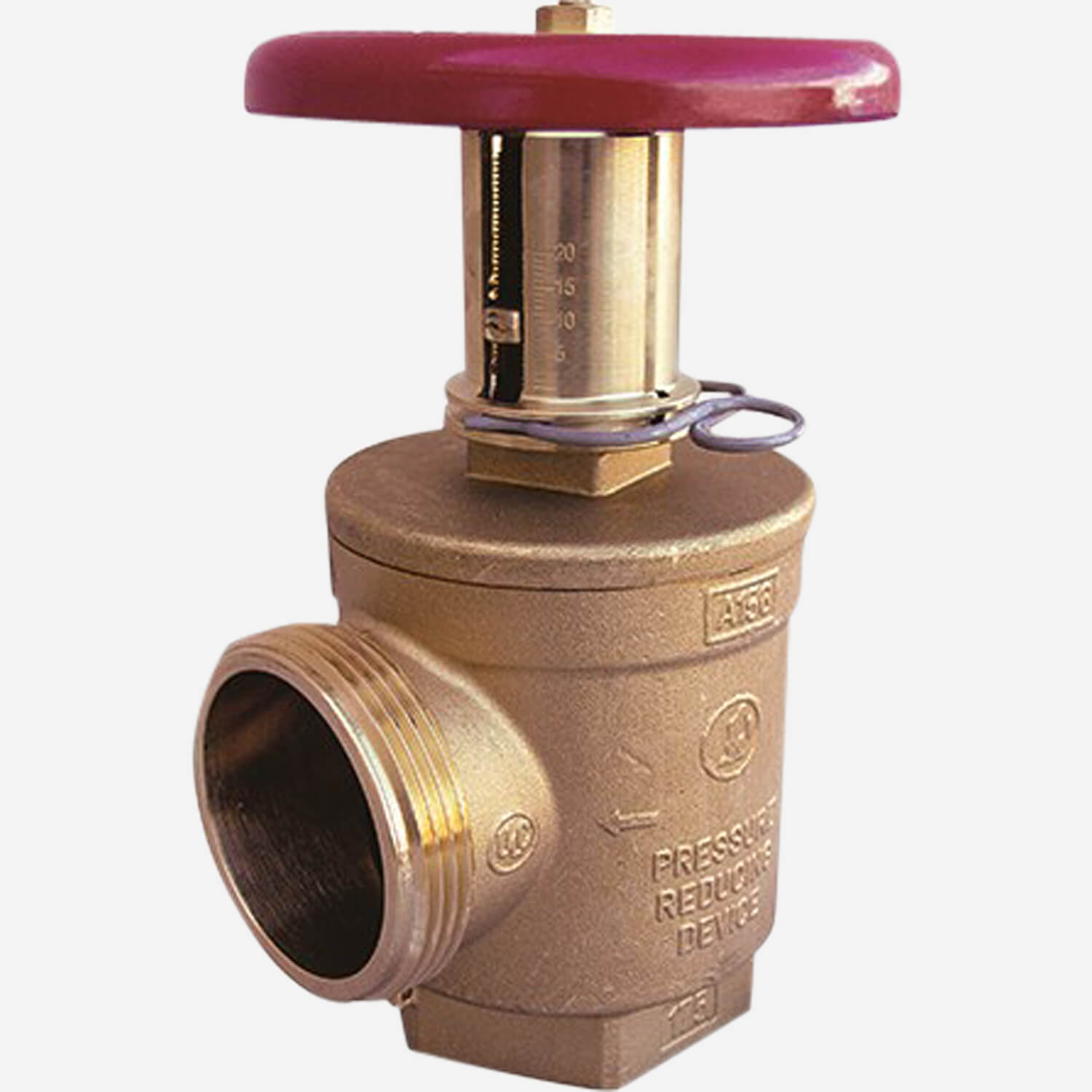

Model 4080 and 4085
Adjustable Pressure Restricting Angle Hose Valve - Female x Male
For Use with a Fire Hose Rack Assembly or as a Fire Department Outlet Connection - Female x Male
This Adjustable Pressure Restricting Angle Hose Valve is used with a fire hose rack assembly or as a fire dept outlet connection. Water pressure is controlled by adjustable flow restriction. If full flow is required the restriction may be overridden. The valve is constructed from cast brass and features a red handwheel with a pressure restricting feature. The valve has a 1.5” (Model 4080) or 2.5” (Model 4085) female NPT inlet and male hose thread outlet and is rated for 175 PSI/12 bars.Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Adjustable Pressure Restricting Hose Valve [1-1/2" Inlet, 1-1/2" Male Outlet 4080, 4080-P, 4080-PR; 2-1/2" Inlet, 2-1/2" Male Outlet 4085, 4085-PR; 1-1/2" Female Inlet/Outlet 4090, 4090-P, 4090-PR; 2-1/2" Female Inlet/Outlet 4095, 4095-P, 4095-PR] | 0 | 800 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 9 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB |
Specifications
| Material | Cast Brass Valve, Red Powder Coat Aluminum Hand Wheel |
| Optional Finish | -B | Polished Brass, -C | Rough Chrome, -D | Polished Chrome |
| Body Type | Angle |
| Pressure | 175 PSI |
| UL Models | All models in this series |
| Thread | Must be specified by customer |
| Inlet | 1.5" Female NPT, 2.5" Female NPT |
| Outlet | 1.5" Male Hose Thread, 2.5" Male Hose Thread |
| Handle Type | Wheel Handle |
| UL | UL Listed |
Models
4080 | 1-1/2" Female NPT x 1-1/2" Male Hose Thread, Buy American 4080-P | 1-1/2" Female NPT x 1-1/2" Male Hose Thread, Domestic Manufactured 4080-PR | 1-1/2" Female NPT x 1-1/2" Male Hose Thread
4085 | 2-1/2" Female NPT x 2-1/2" Male Hose Thread, Buy American 4085-P | 2-1/2" Female NPT x 2-1/2" Male Hose Thread, Domestic Manufactured 4085-PR | 2-1/2" Female NPT x 2-1/2" Male Hose Thread
OPTIONAL CAPS 4615 | 1-1/2" Cap with Chain 4625 | 2-1/2" Cap with Chain
OPTIONAL VALVE FLANGES 4711 | 1-1/2" Flange 3" Overall Diameter 4712 | 2-1/2" Flange 6-1/2" Overall Diameter
