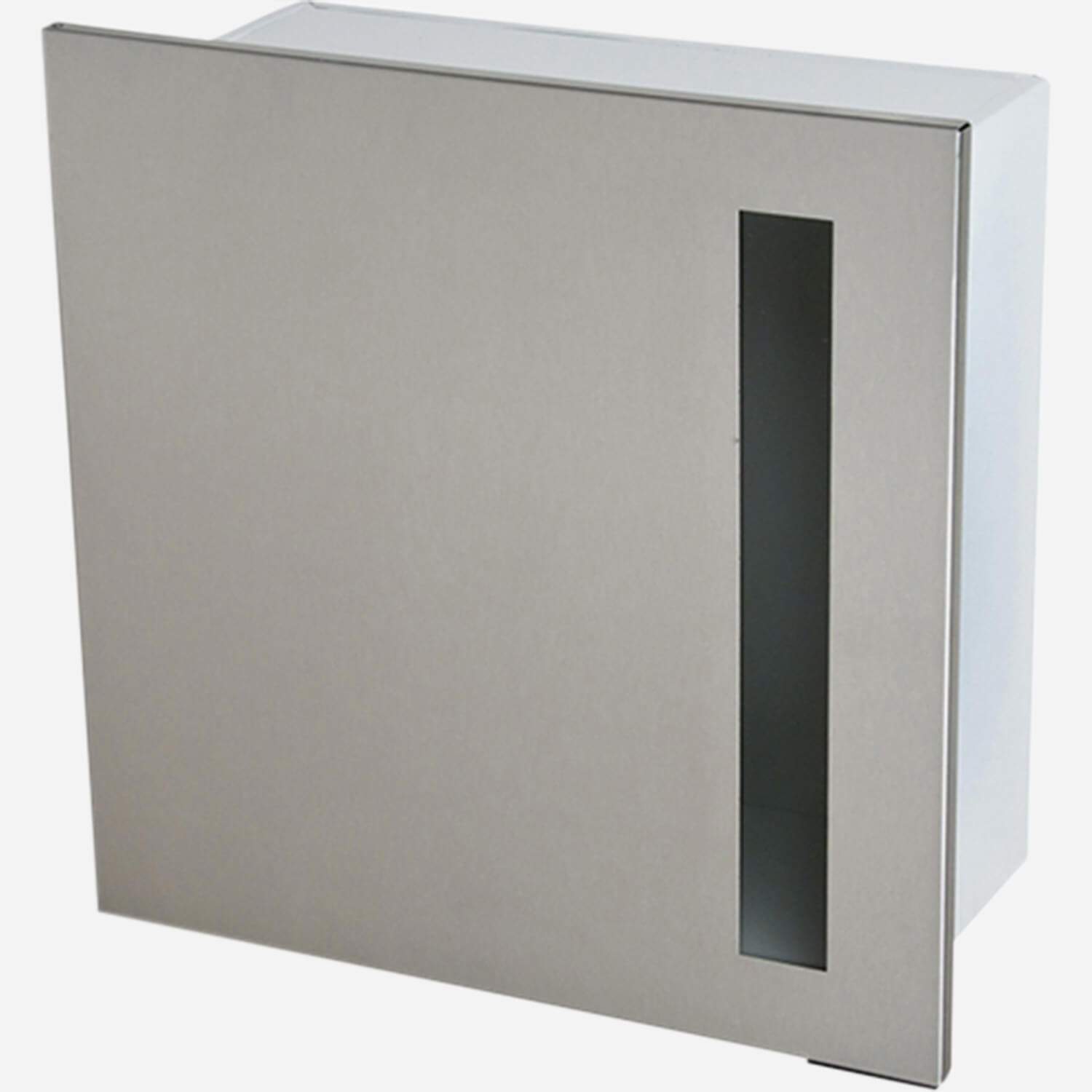

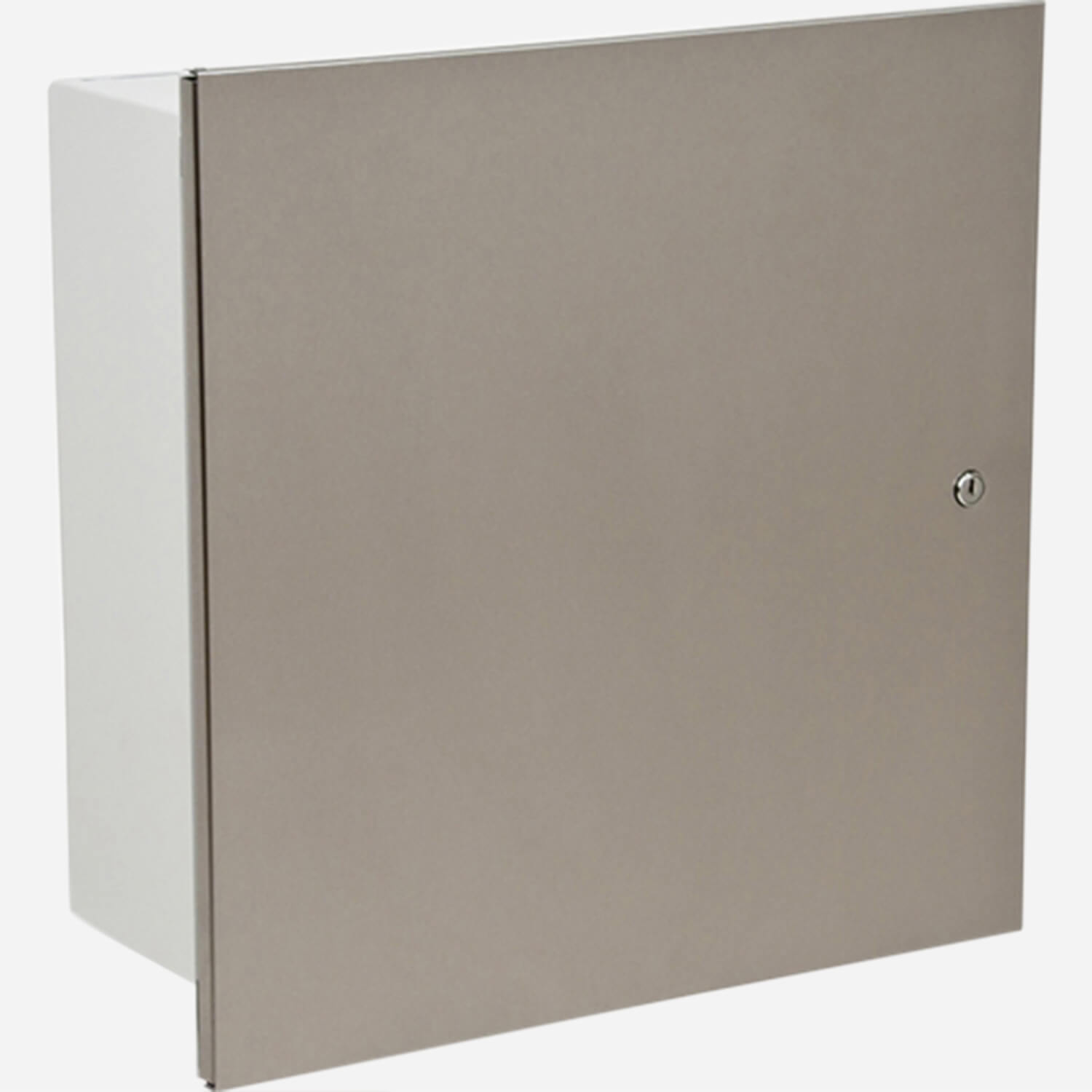

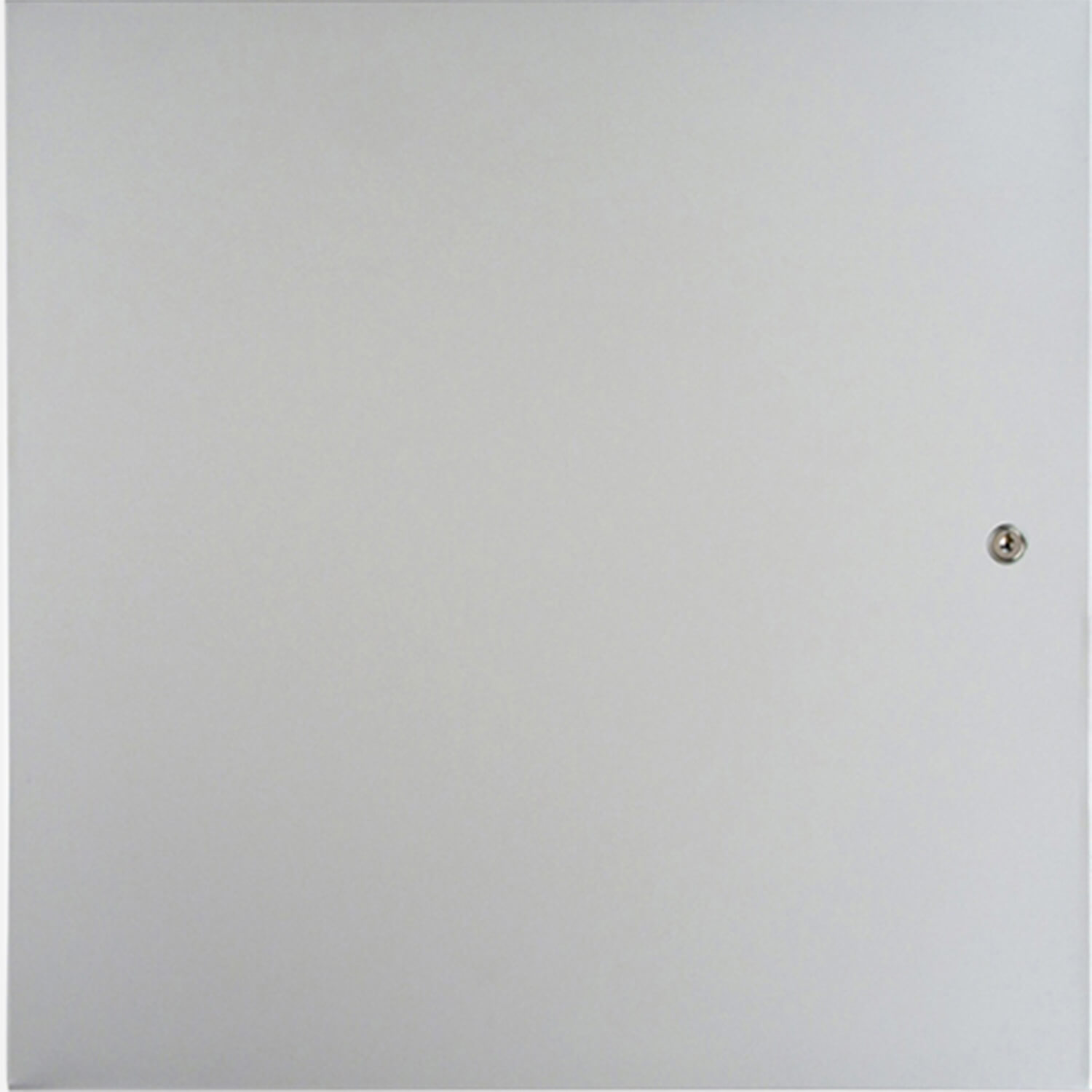

Model FRC8220 thru FRC8260
Fire Rated Dana Valve Cabinet
The Dana Series Cabinets feature a trimless look designed to effortlessly blend into its surround environment or styled to stand out. The cabinets are configured for a fire department valve. Cabinet is UL Classified per the standard for UL 1479 - Penetration Firestop Systems UL File no. R15411; Fire Rating: 2 Hours. The box is constructed from cold rolled steel with an electrostatically applied thermally-fused polyester coating with recoatable white finish and a concealed hinge. The door and frame are constructed from materials as follows: Model FRC8220: Galvannealed steel with recoatable white polyester finish; Model FRC8240: Aluminum with clear anodized finish; Model FRC8260: #304 Stainless steel with #4 finish; Model FRC8280: Polished Brass with clear polyester coated finish.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Fire Rated Dana Valve Cabinet [FRC8220, FRC8240, FRC8260, FRC8280]; Fire Rated Dana Valve & Fire Extinguisher Cabinet [FRC8225, FRC8245, FRC8265, FRC8285] | 0 | 641 KB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB | ||
| | Brochure Architectural Fire Cabinets - Includes Alta 7000 Series, Buena 7100 Series, Dana 7200 Series, Loma 7300 Series; Extinguisher/ Valve Cabinets Alta 8000 Series, Buena 8100 Series, Dana 8200 Series, Loma 8300 Series | 0 | 3 MB |
Specifications
| Material | 22 Gauge Steel Box, Fire Insulation Material |
| Lettering | FIRE DEPT VALVE |
| Cabinet Style | Dana |
| Fire Rated | Fire Rated |
| Mounting | Recessed |
| Inside Box Dimension | 18 x 18 x 8" |
| Capacity | 2.5" Fire Dept Valve |
