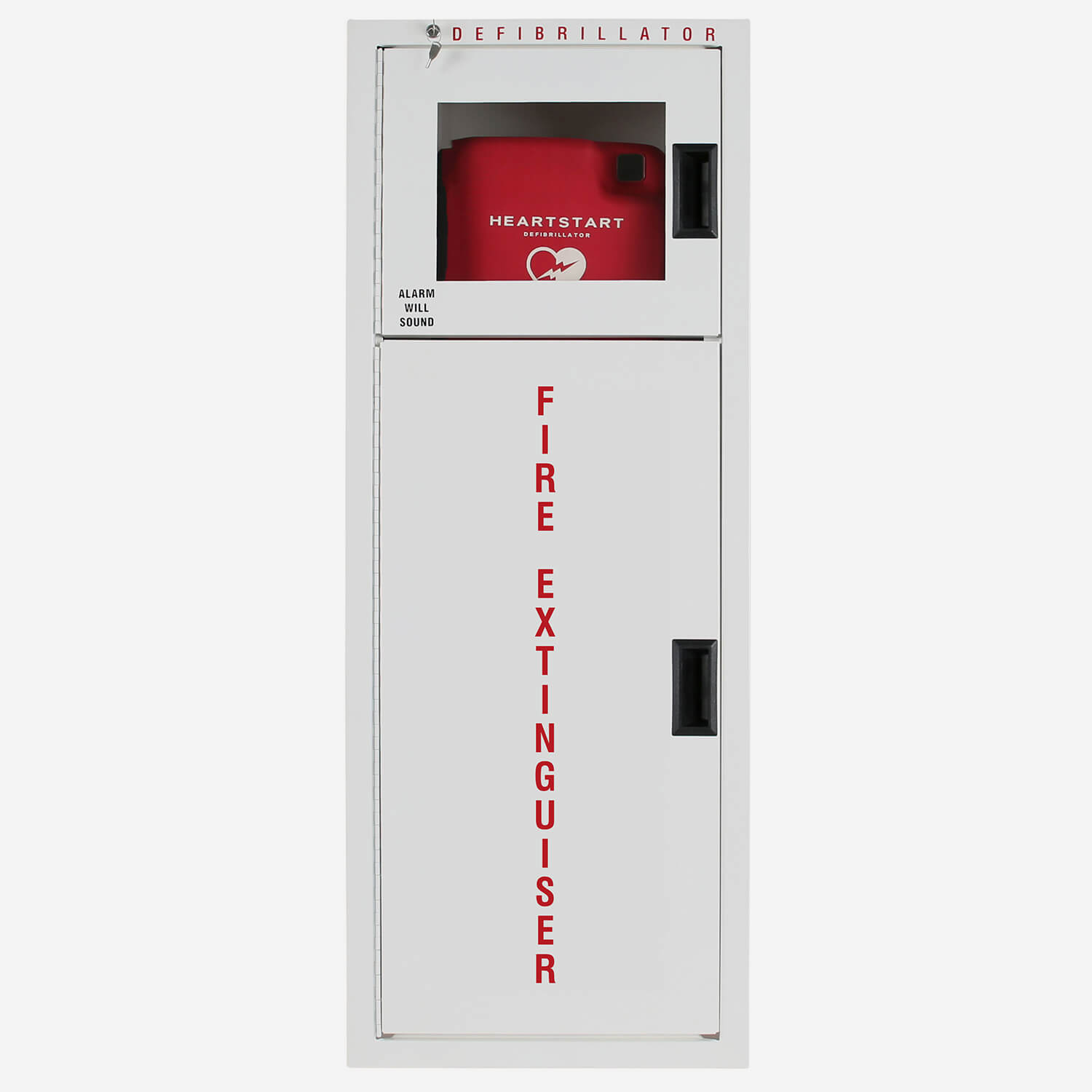

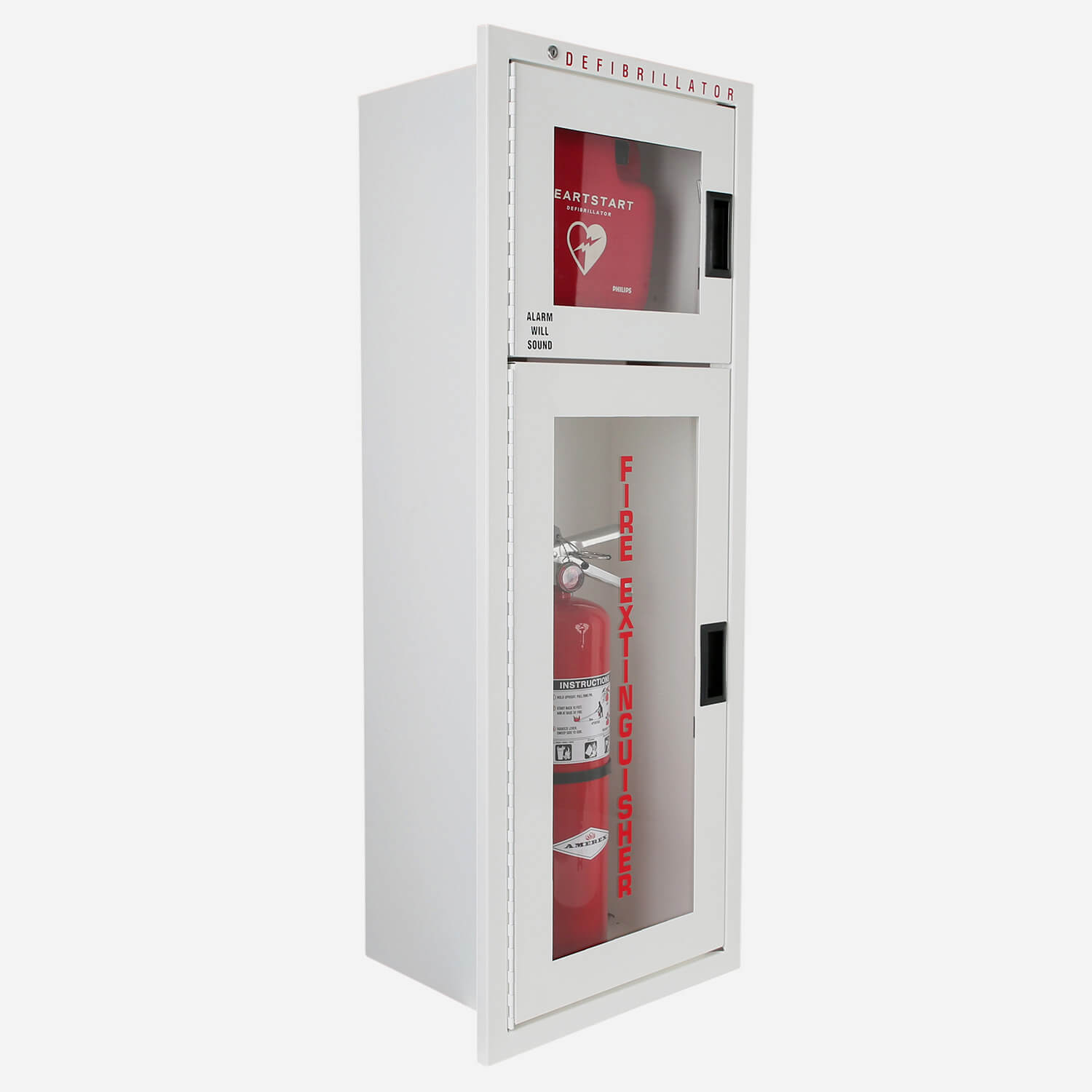

Fire-Rated Recessed Automated External Defibrillator and Fire Extinguisher Cabinet

AED CABINETS are fabricated of Galvannealed Steel 20 gauge recessed box; 22 gauge tubular steel door with 20 gauge frame and continuous steel hinge. All components are powdercoated with an electrostatically-applied, thermally fused, recoatable white polyester finish.

Clear acrylic glazing door panels provided. Flush pull handle unlatches the door to open.

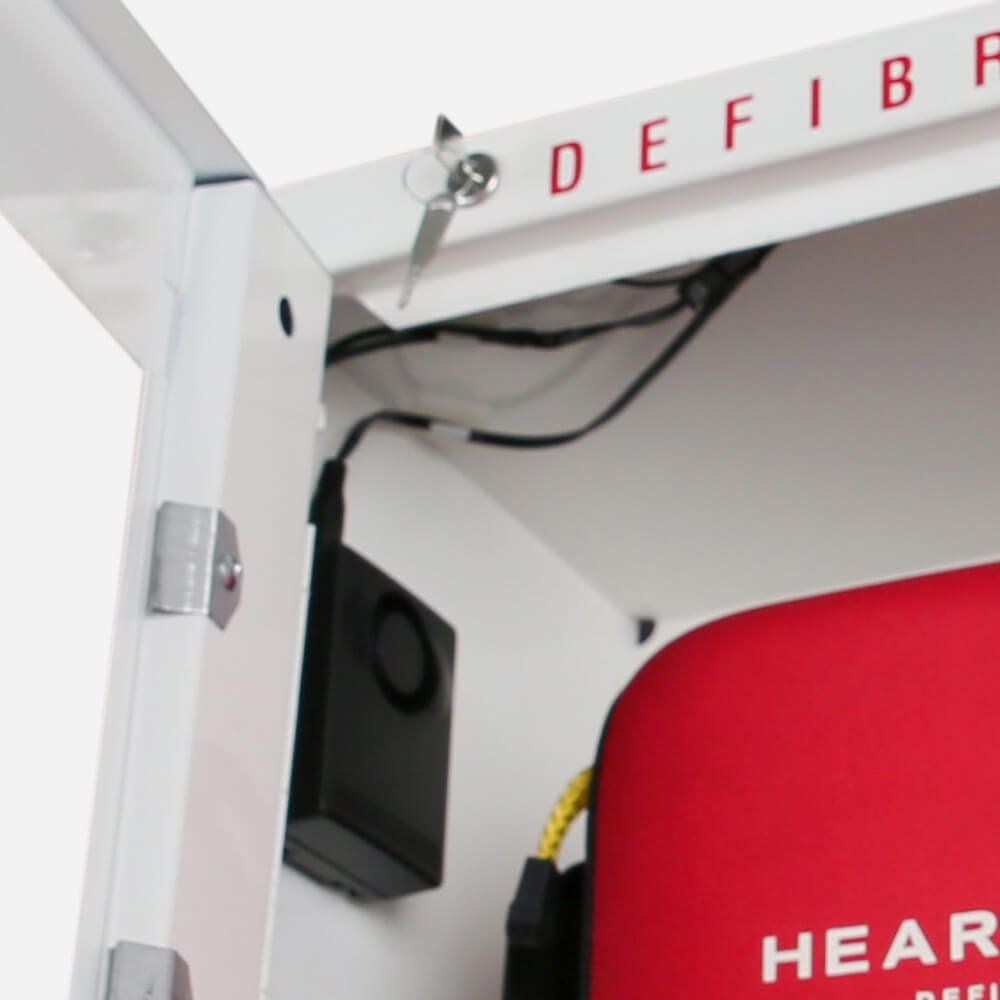

A 120 dB alarm with on/off keyed switch to discourage meddling is provided. Alarm indicates there is an emergency and someone is removing the AED.

Black die cut lettering ALARM WILL SOUND and red die cut lettering DEFIBRILLATOR; Red die cut lettering FIRE EXTINGUISHER

FIRE RATED

Potter Roemer proudly manufactures fire-rated cabinets for use in fire-rated assemblies. Underwriters Laboratories, Inc. has classified and listed Potter Roemer's fire-rated option for 1-hour and 2-hour combustible and non-combustible wall systems. The fire-rated option eliminates the costly need to line the wall opening with fire-rated material. It also provides the specifier with assurance that the wall penetration will maintain its integrity and meet building code specifications.

All boxes for Potter Roemer FRC cabinets have a double-wall of steel. The space between the double walls is lined with a fire-rated insulation material. FRC cabinets are available for those designed for recessed and semi-recessed applications.

• Underwriters Laboratories Classified listing rated for 1 and 2 hour wall system UL Classified No. 7N43 ANSI/UL 1479
• Galvannealed steel construction - Galvannealed steel is the result of galvanizing a sheet of steel, then annealing it. Its harder, more brittle surface accepts paint more easily, with no pre-treatment required. The excellent corrosion resistance that results when the alloyed coating is painted is useful in many applications that demand long service life.
• Corrosion-resistant polyester powder-coated finish
• ADA compliant

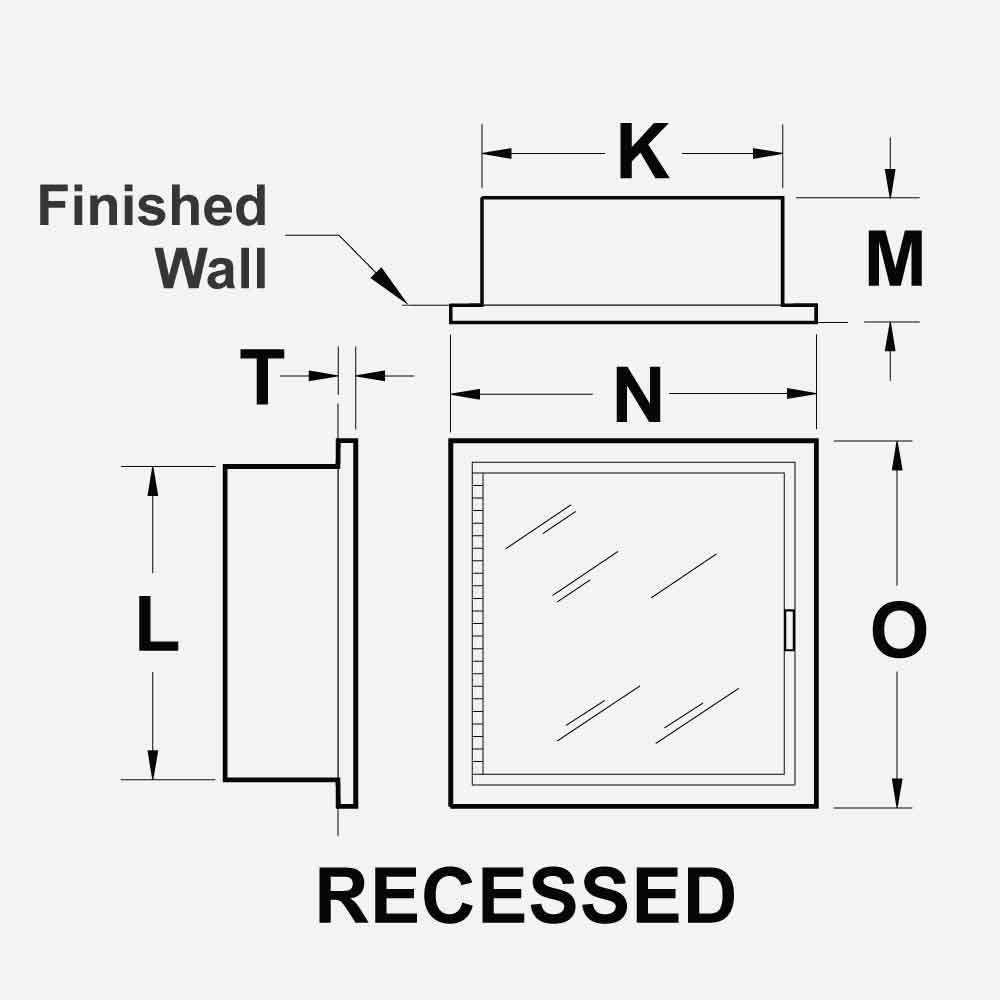

RECESSED cabinets include:

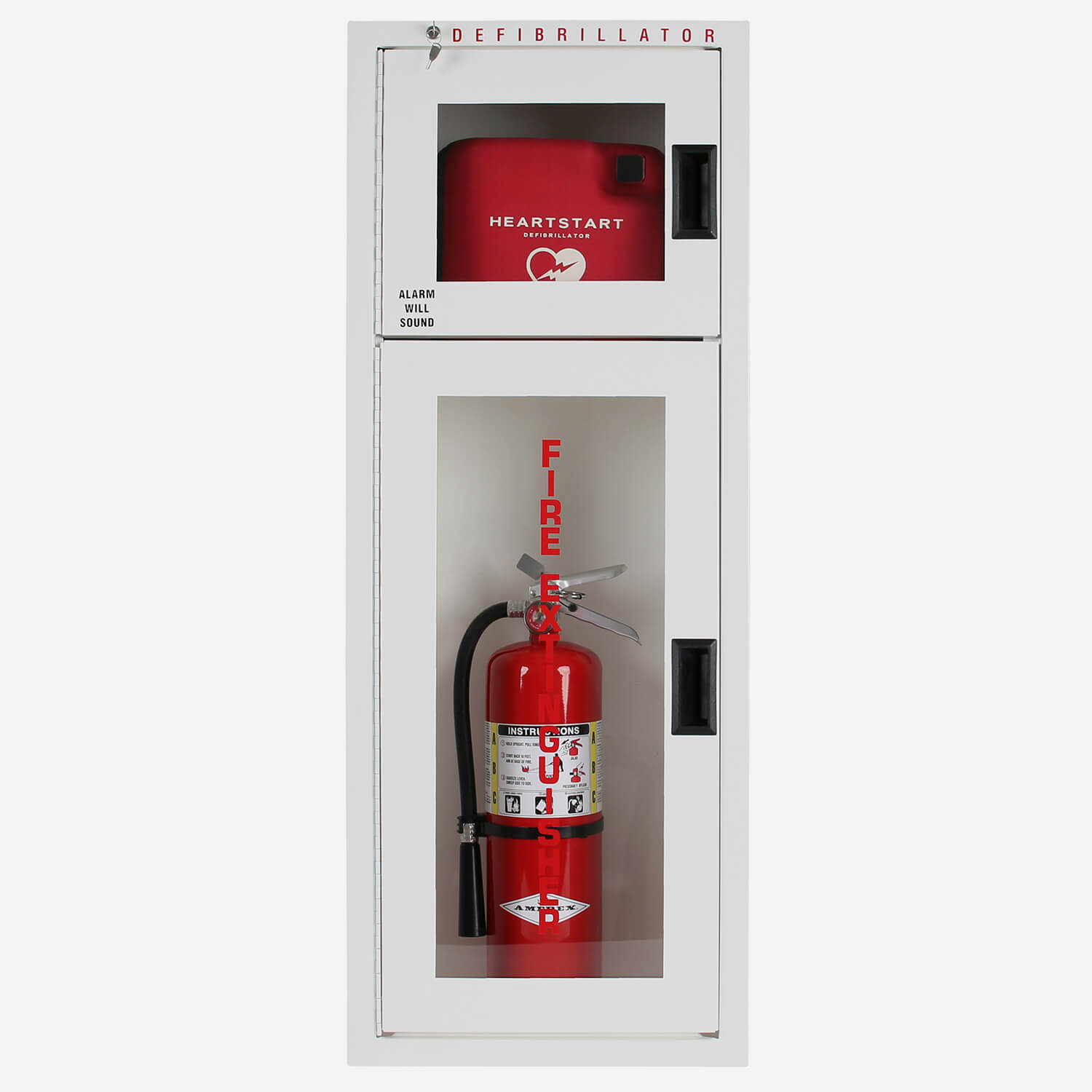

9220 Defibrillator and Fire Extinguisher Cabinet
Section to house an AED and up to a 20 lbs dry chemical fire extinguisher or a 2-1/2 gallon pressurized water fire extinguisher
Inside Cabinet Size: 14" side-to-side x 40" height x 8" front to back
Trim: 3/8"
