Fire Rated Semi-Recessed Alta Valve & Fire Extinguisher Cabinet
Model FRC8027 thru FRC8067
Submittal
Submittal FRC8000 Series Cabinet (pdf)



Model FRC8027 thru FRC8067
Fire Rated Semi-Recessed Alta Valve & Fire Extinguisher Cabinet

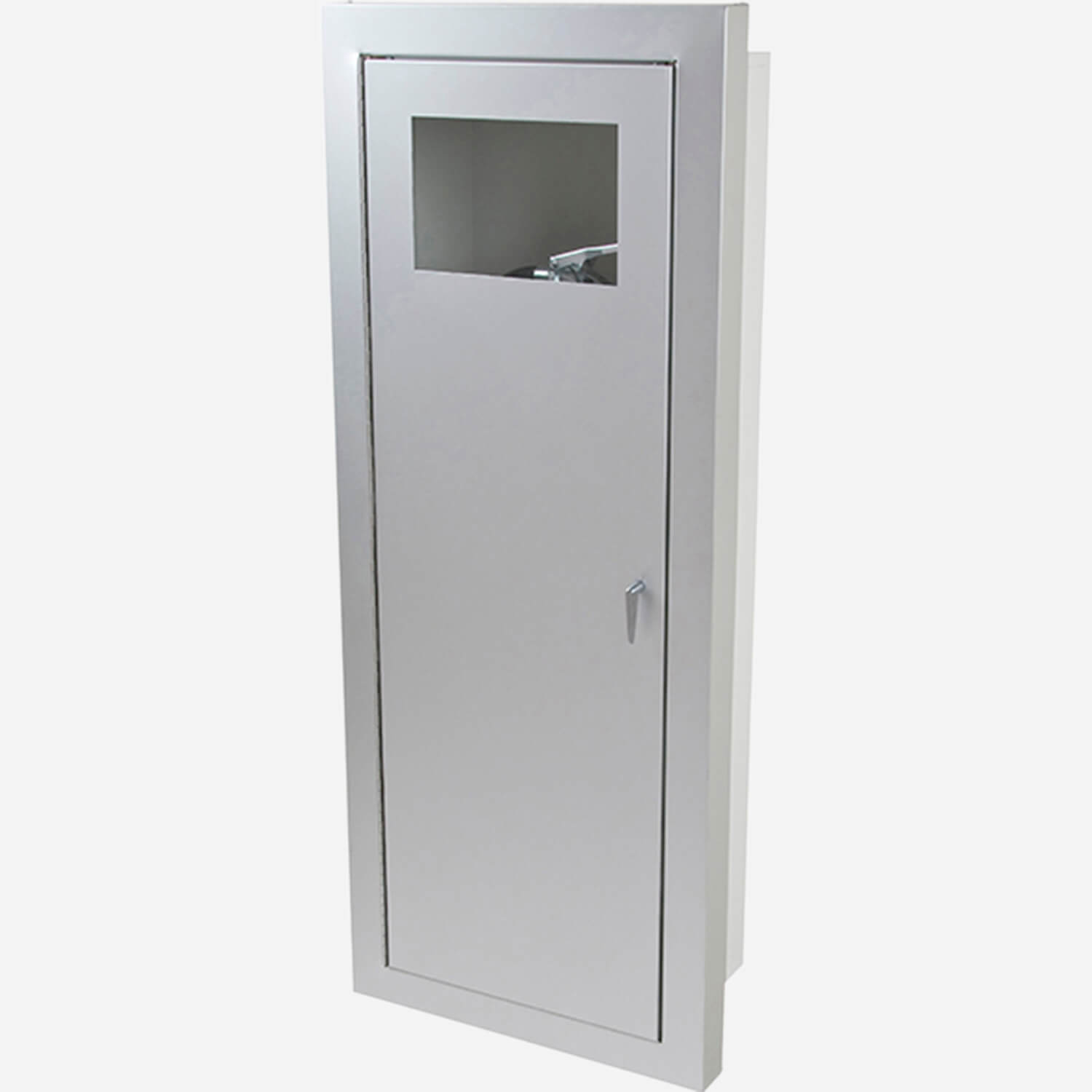

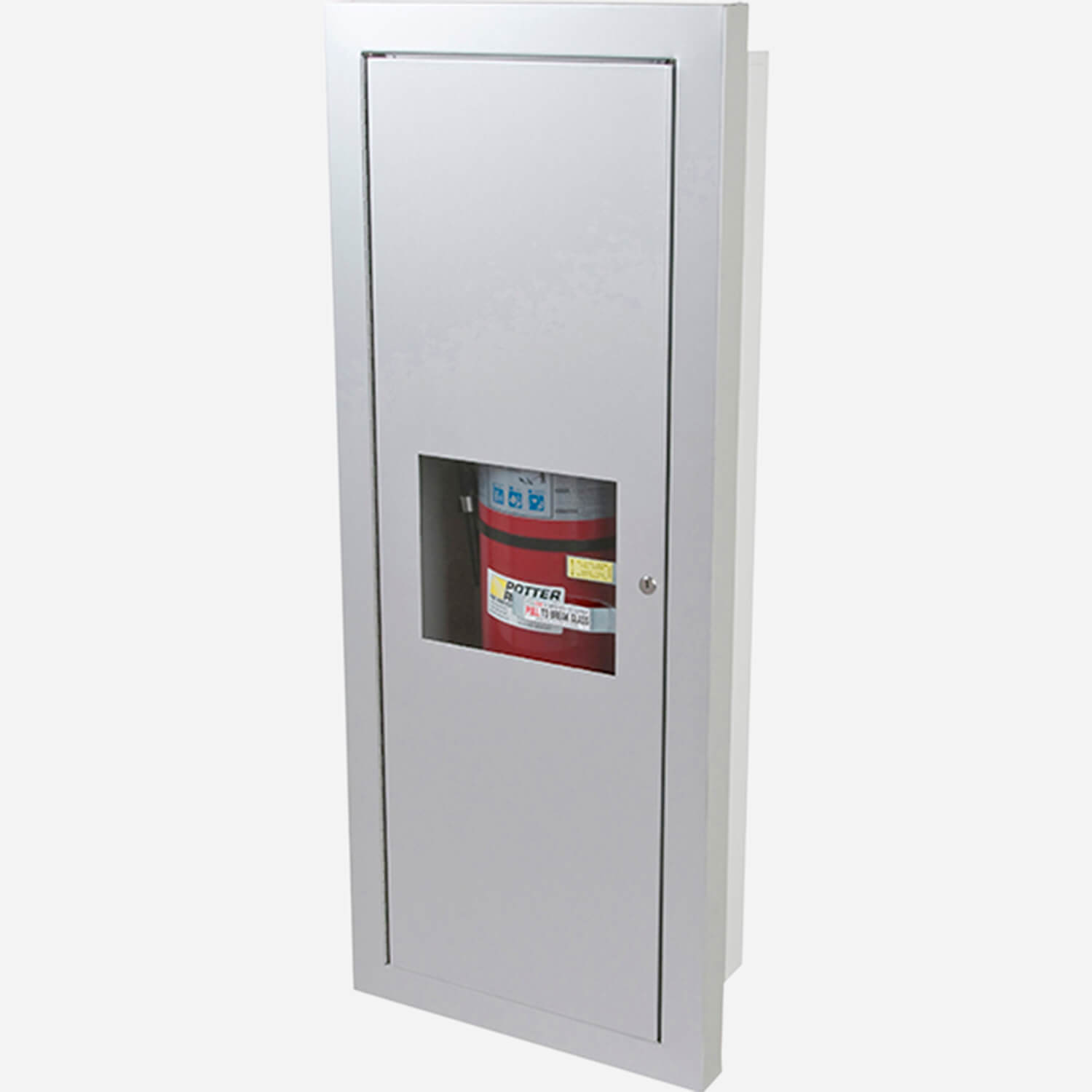

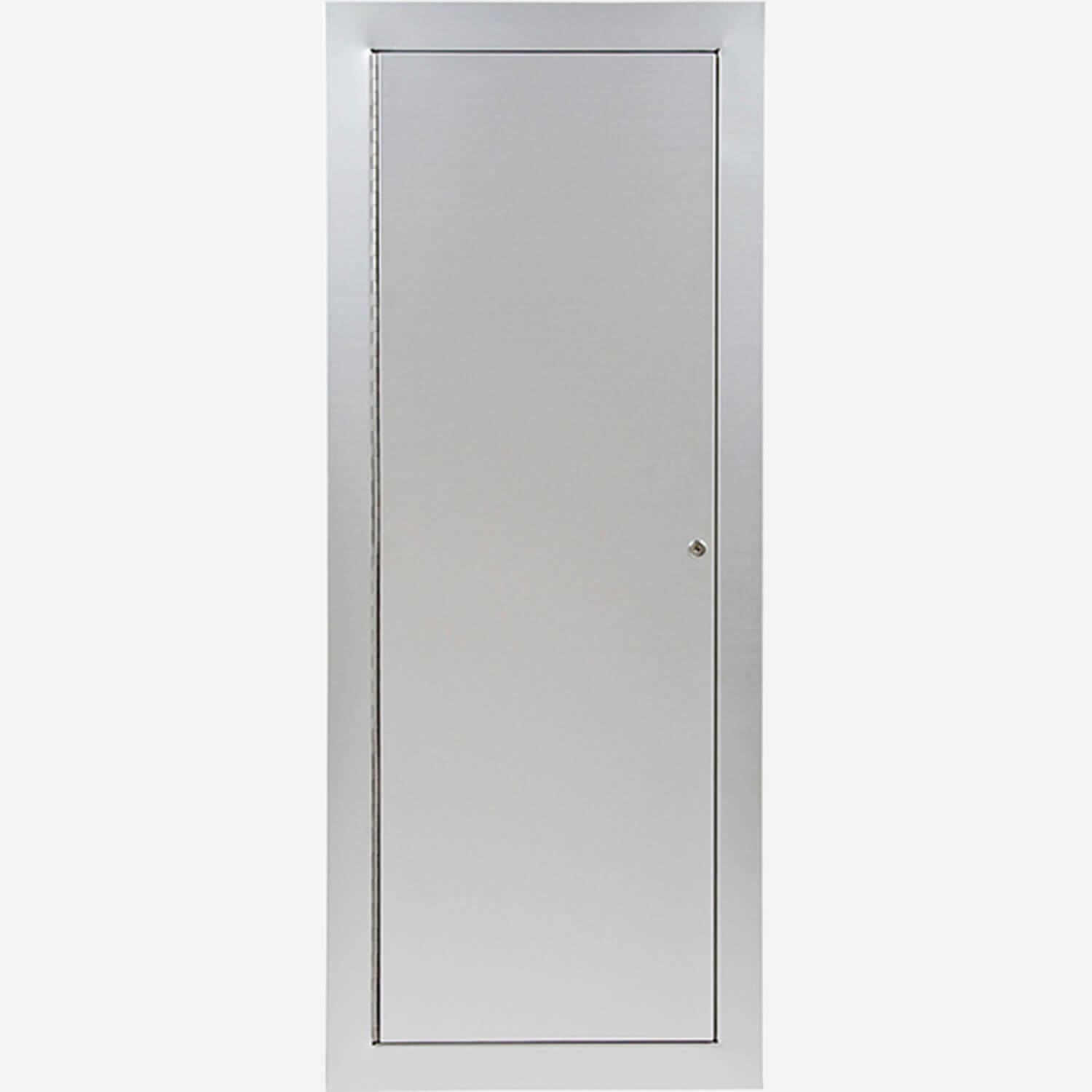

These tall semi-recessed fire-rated Alta Valve Cabinets are designed to hold a 2-1/2" Angle Valve and fire extinguisher up to 20 lbs. The box is constructed from galvannealed Steel with an electrostatically applied thermally-fused polyester coating with recoatable white finish and continuous hinge. A shelf separates the extinguisher and valve sections. The door and frame are constructed from materials as follows: Model 8027: galvannealed steel with recoatable white polyester finish; Model 8047: Aluminum with clear anodized finish; Model 8067: #304 Stainless steel with #4 finish.
CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
![]() | ![]() | Fire-Rated Alva Valve Cabinet, UL Classfied, 7N43 [8" Deep Box. Steel FRC8020, FRC8021, FRC8022, FRC8025, FRC8026, FRC8027; Aluminum FRC8040, FRC8041, FRC8042, FRC8045, FRC8046, FRC8047; Stainless Steel FRC8060, FRC8061, FRC8062, FRC8065, FRC8066, FRC8067; Brass FRC8080, FRC8081, FRC8082, FRC8085, FRC8086, FRC8087] Also available with 10" Box (Suffix -10) | 766 KB | ||
![]() | ![]() | MGI Brands Flyer (pdf) | 718 KB | ||
![]() | ![]() | Brochure Architectural Fire Cabinets - Includes Alta 7000 Series, Buena 7100 Series, Dana 7200 Series, Loma 7300 Series; Extinguisher/ Valve Cabinets Alta 8000 Series, Buena 8100 Series, Dana 8200 Series, Loma 8300 Series | 3 MB | ||
![]() | ![]() | Potter Roemer Architectural Fire Extiguisher Cabinets & Valve Cabinets (Alta, Buena, Dana, Loma) vs J-L Industries, Larsen's Manufacturing (updated 2026) | 113 KB |
Can't find what you are looking for? Get in touch
Specifications
Shows specifications for standard configuration. Configuration options may change specifications.
| Material | 22 Gauge Steel Box, Fire Insulation Material |
| Lettering | FIRE EXTINGUISHER, FIRE DEPT VALVE |
Related Figure Numbers
Model | Description |
|---|---|
| FRC8027 | Steel Door & Frame |
| FRC8047 | Aluminum Door & Frame |
| FRC8067 | Stainless Steel Door & Frame |
