Model FRC8127 thru FRC8187
Fire Rated Semi-Recessed Buena Fire Valve - Extinguisher Cabinet

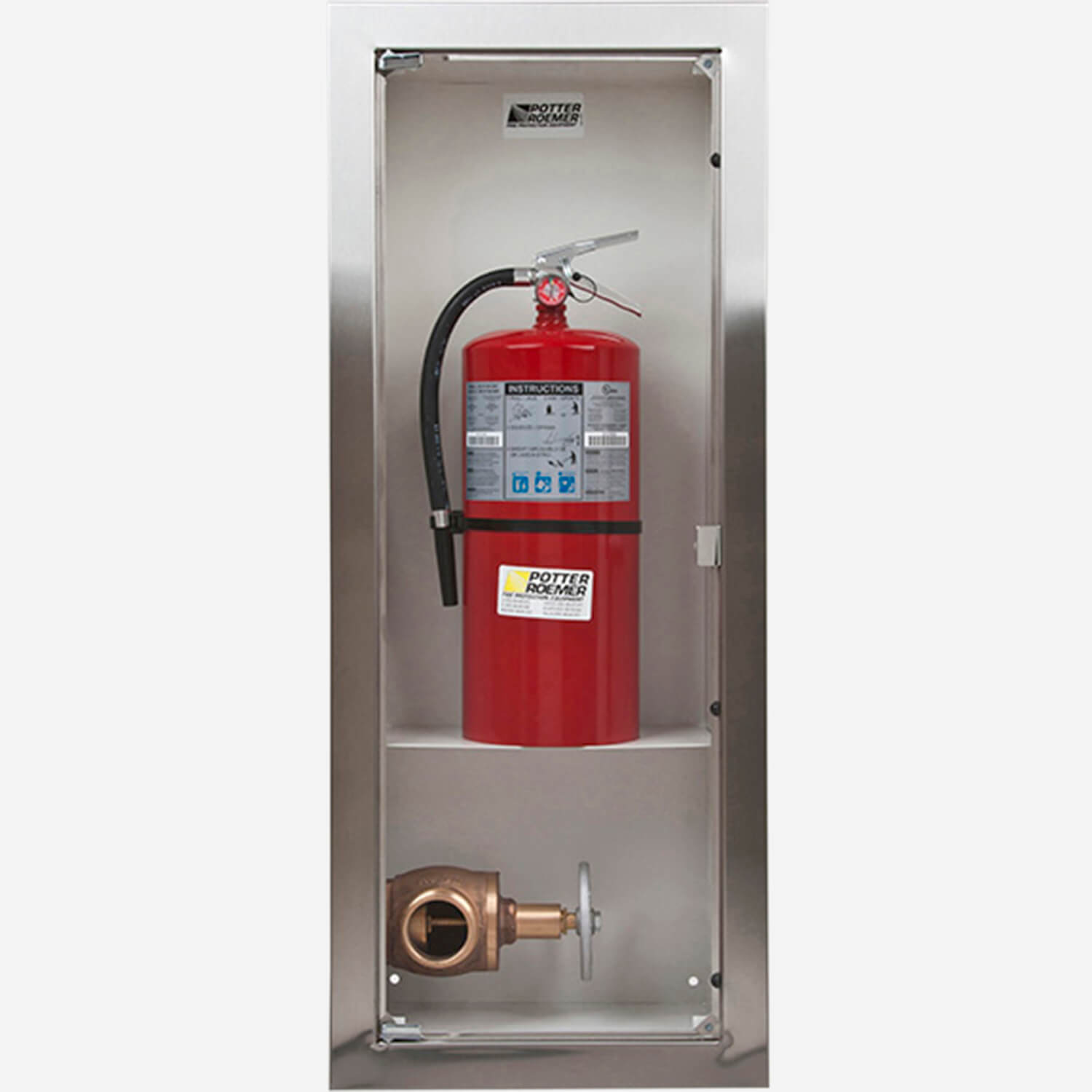

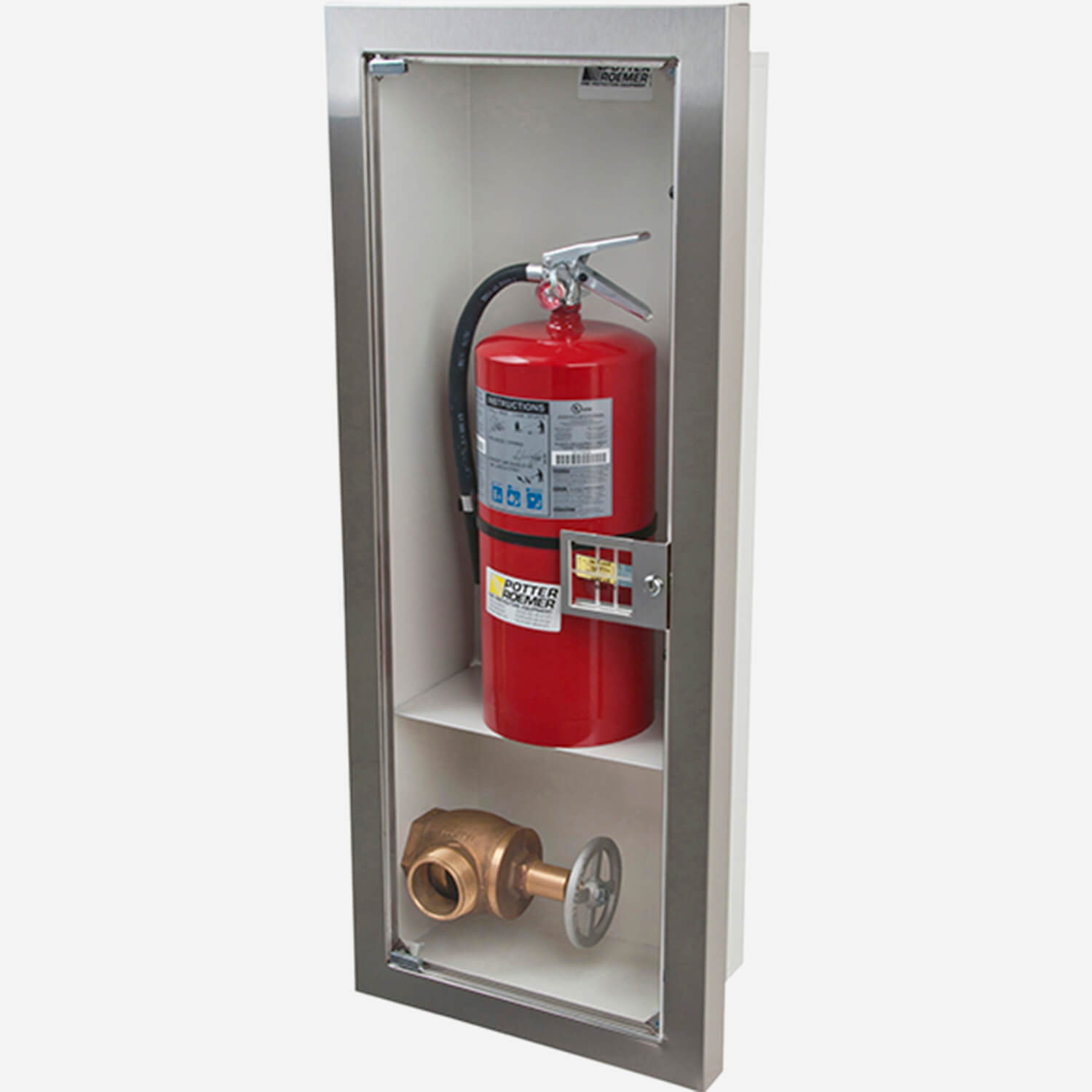

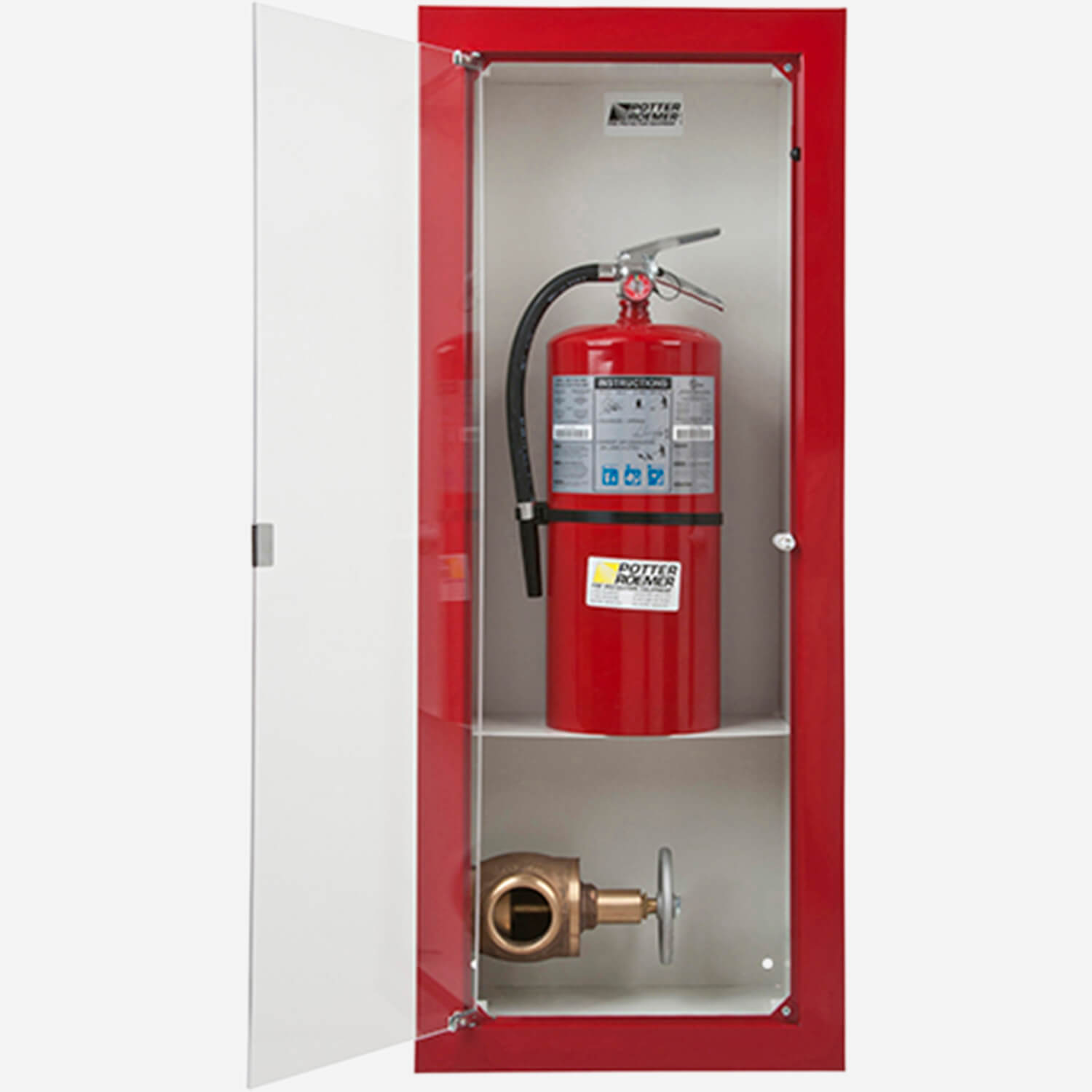

These are Potter Roemer Fire Rated Buena Style Fire Valve - Extinguisher Cabinets configured for Semi-Recessed mount with a 2 inches (50.8 mm) thick trim protruding from the wall. The cabinet is designed to accommodate a 2-1/2 inch angled Fire Dept. Valve and a Dry Chemical Fire Extinguisher of up 20 lbs (9.07 kg) capacity. The FRC cabinets are covered by an external steel fire protection box with a layer of fire-rated insulation material. Cabinet is UL Classified per the standard for UL 1479 - Penetration Firestop Systems. UL File no. R15411; Fire Rating: 2 Hours.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Fire Rated Buena Style Fire Dept Valve Cabinet Model FRC8120-FRC8127: Steel Frame Model FRC8140-FRC8147: Aluminum Frame Model FRC8160-FRC8167: Stainless Steel Frame Model FRC8180-FRC8187: Brass Frame | 0 | 807 KB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB | ||
| | Brochure Architectural Fire Cabinets - Includes Alta 7000 Series, Buena 7100 Series, Dana 7200 Series, Loma 7300 Series; Extinguisher/ Valve Cabinets Alta 8000 Series, Buena 8100 Series, Dana 8200 Series, Loma 8300 Series | 0 | 3 MB |
Specifications
| Material | 22 Gauge Steel Box, Fire Insulation Material |
| Lettering | FIRE EXTINGUISHER, FIRE DEPT VALVE |
