Model FRC8126 thru FRC8186

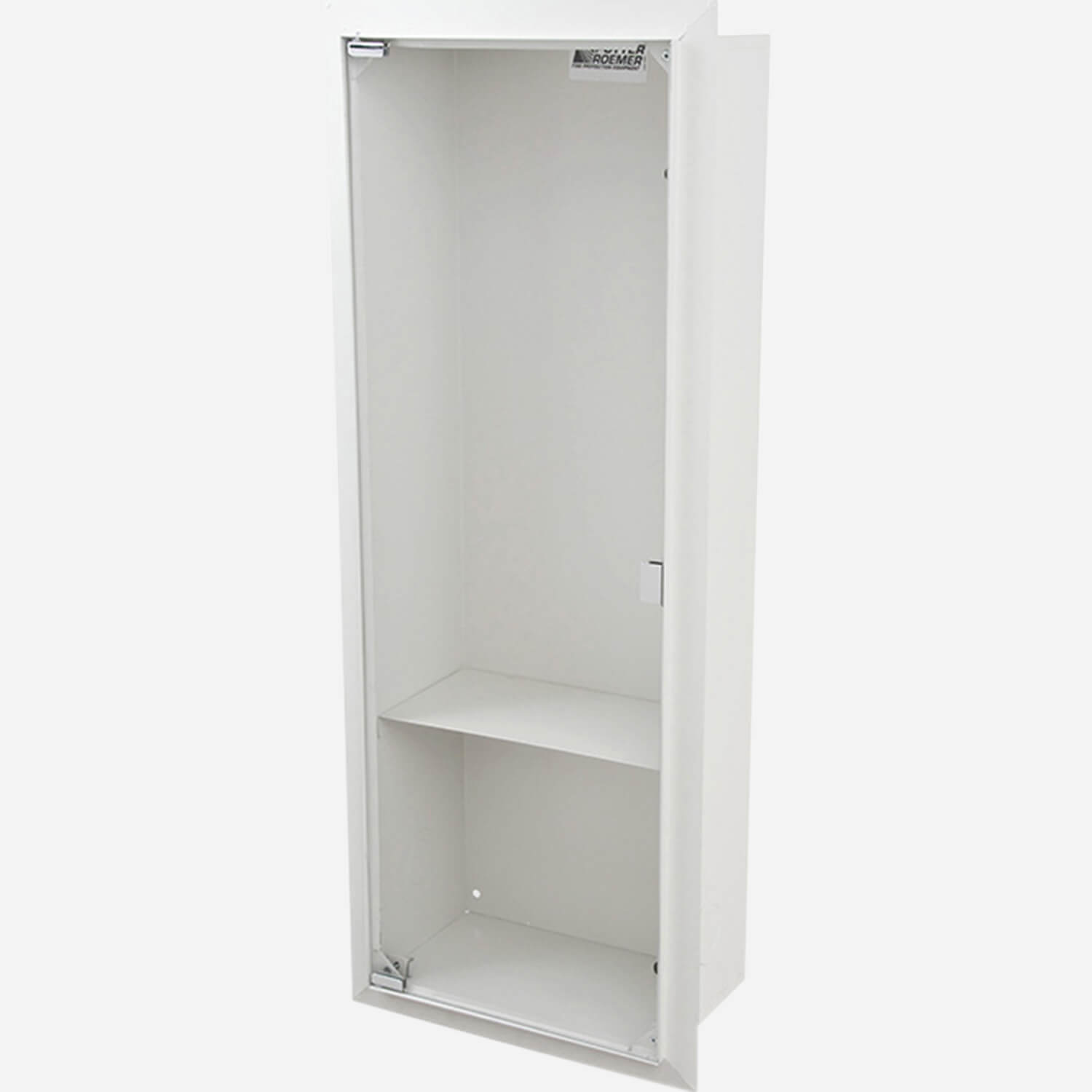

Fire Rated Trimless Buena Fire Valve - Extinguisher Cabinet

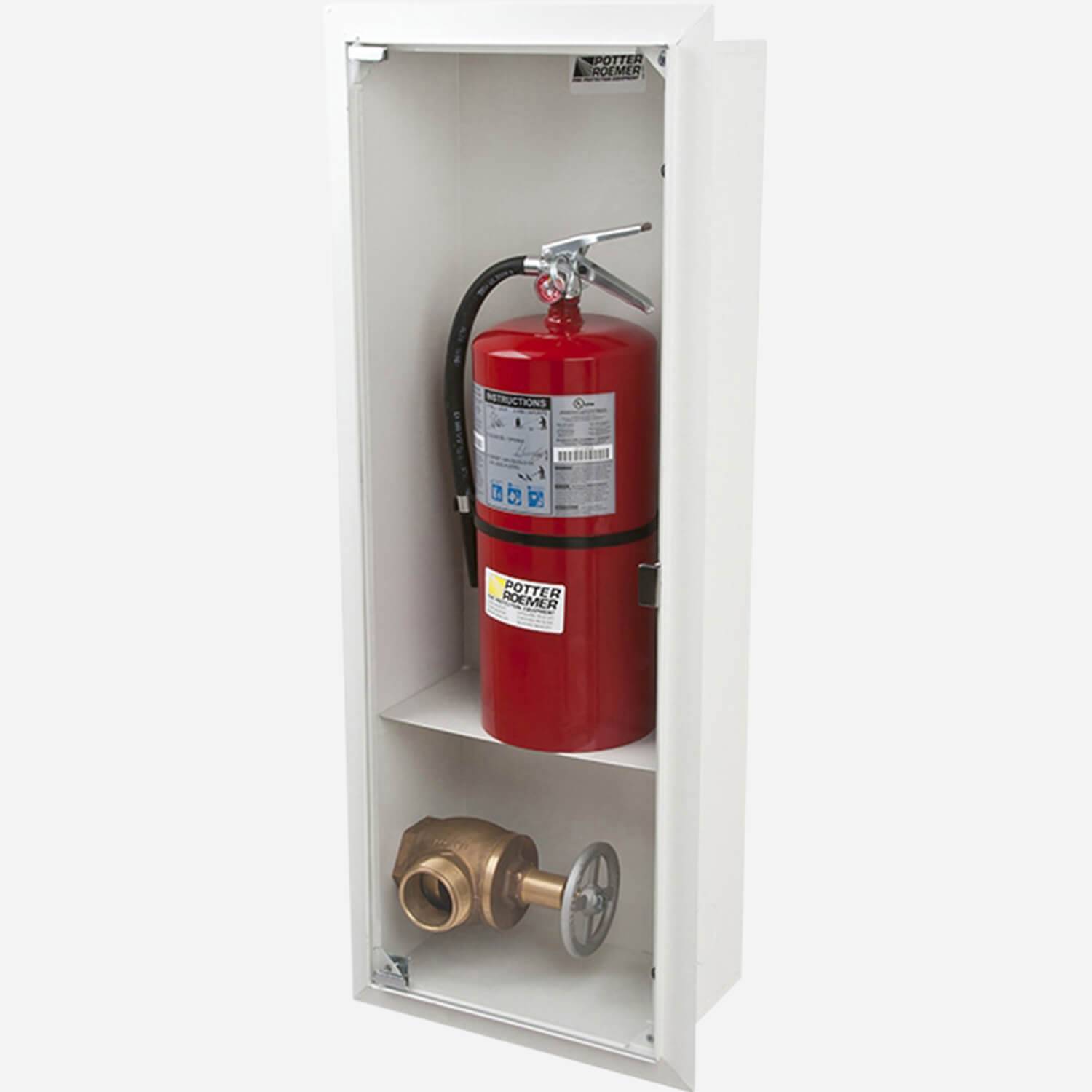

These are Potter Roemer Fire Rated Buena Style Fire Valve - Extinguisher Cabinets configured for Trimless mount. The cabinet is designed to accommodate a 2-1/2 inch angled Fire Dept. Valve and a Dry Chemical Fire Extinguisher of up 20 lbs (9.07 kg) capacity. SPECIAL INSTALLATION INSTRUCTIONS FOR TRIMLESS CABINETS Trimless cabinets MUST BE installed PRIOR to finished wall surface. The trimless frame will be drywalled over (5/8 inch or 15.875 mm thickness recommended) to effect a finished surface. Only the door and hinge will be visible after wall is finished. The FRC cabinets are covered by an external steel fire protection box with a layer of fire-rated insulation material. Cabinet is UL Classified per the standard for UL 1479 - Penetration Firestop Systems. UL File no. R15411; Fire Rating: 2 Hours.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Fire Rated Buena Style Fire Dept Valve Cabinet Model FRC8120-FRC8127: Steel Frame Model FRC8140-FRC8147: Aluminum Frame Model FRC8160-FRC8167: Stainless Steel Frame Model FRC8180-FRC8187: Brass Frame | 0 | 807 KB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB | ||
| | Brochure Architectural Fire Cabinets - Includes Alta 7000 Series, Buena 7100 Series, Dana 7200 Series, Loma 7300 Series; Extinguisher/ Valve Cabinets Alta 8000 Series, Buena 8100 Series, Dana 8200 Series, Loma 8300 Series | 0 | 3 MB |
Specifications
| Material | 22 Gauge Steel Box, Fire Insulation Material |
| Lettering | FIRE EXTINGUISHER, FIRE DEPT VALVE |
| Mounting | Trimless |
