Model FRC7007 thru FRC7085
Fire Rated Recessed Alta Fire Extinguisher Cabinets

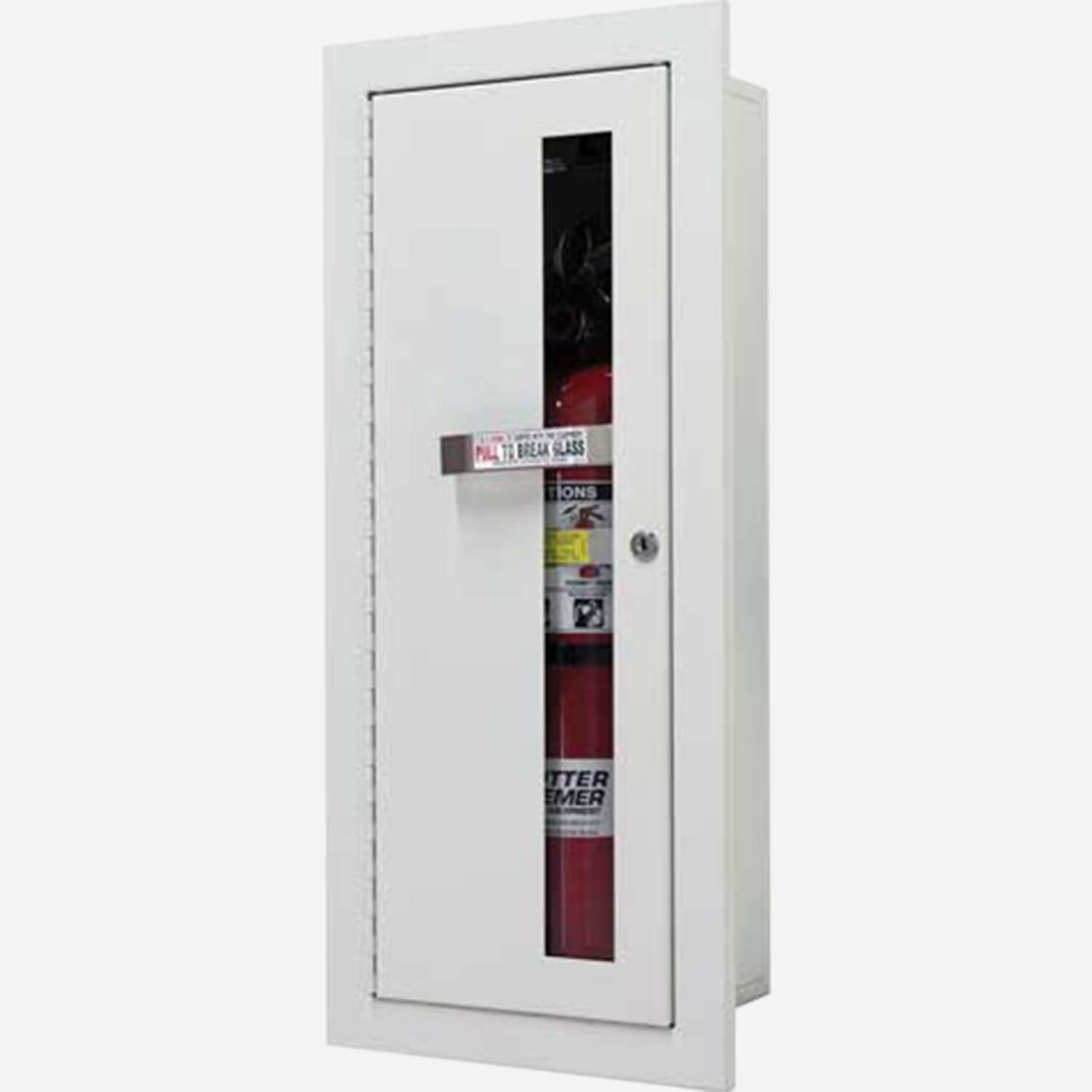

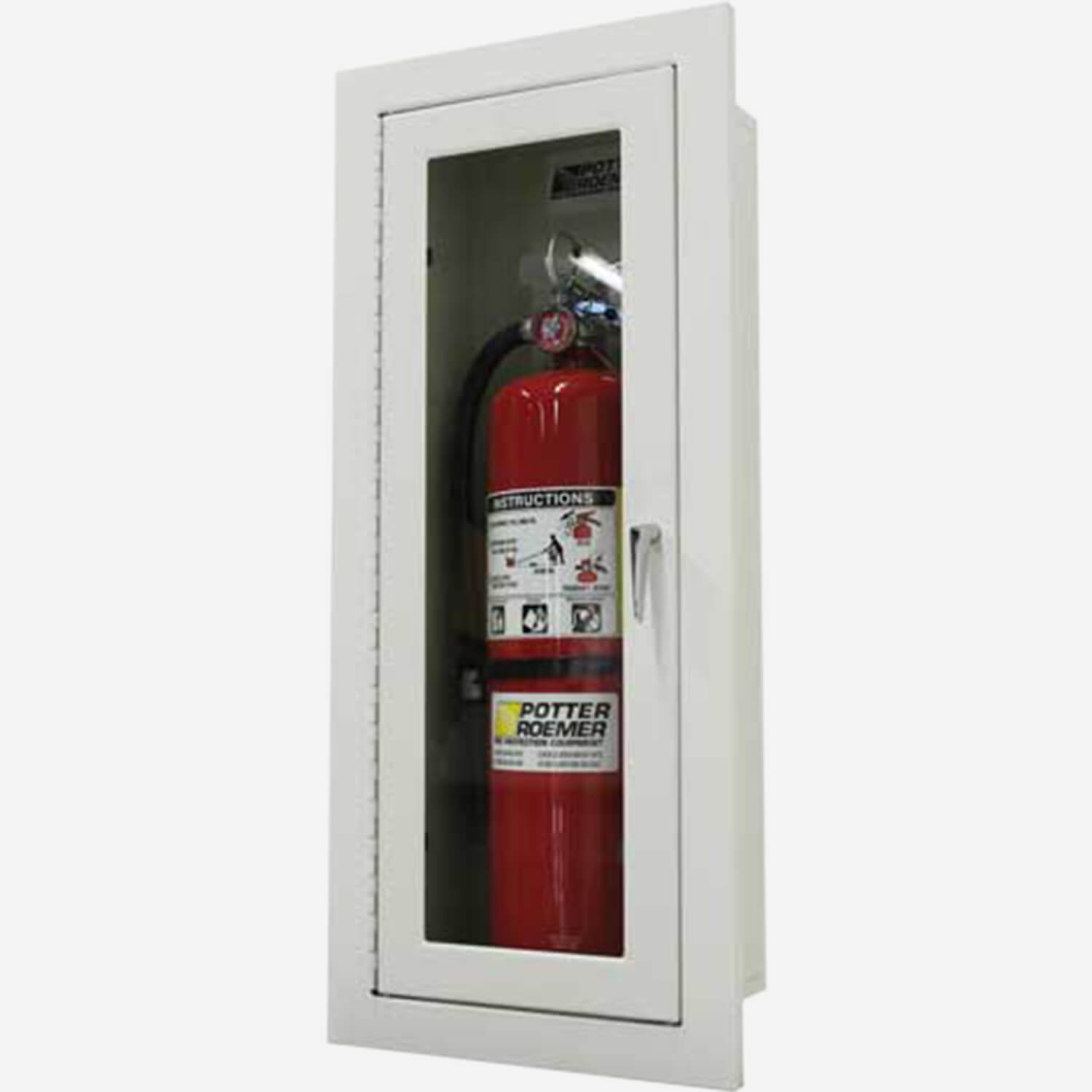

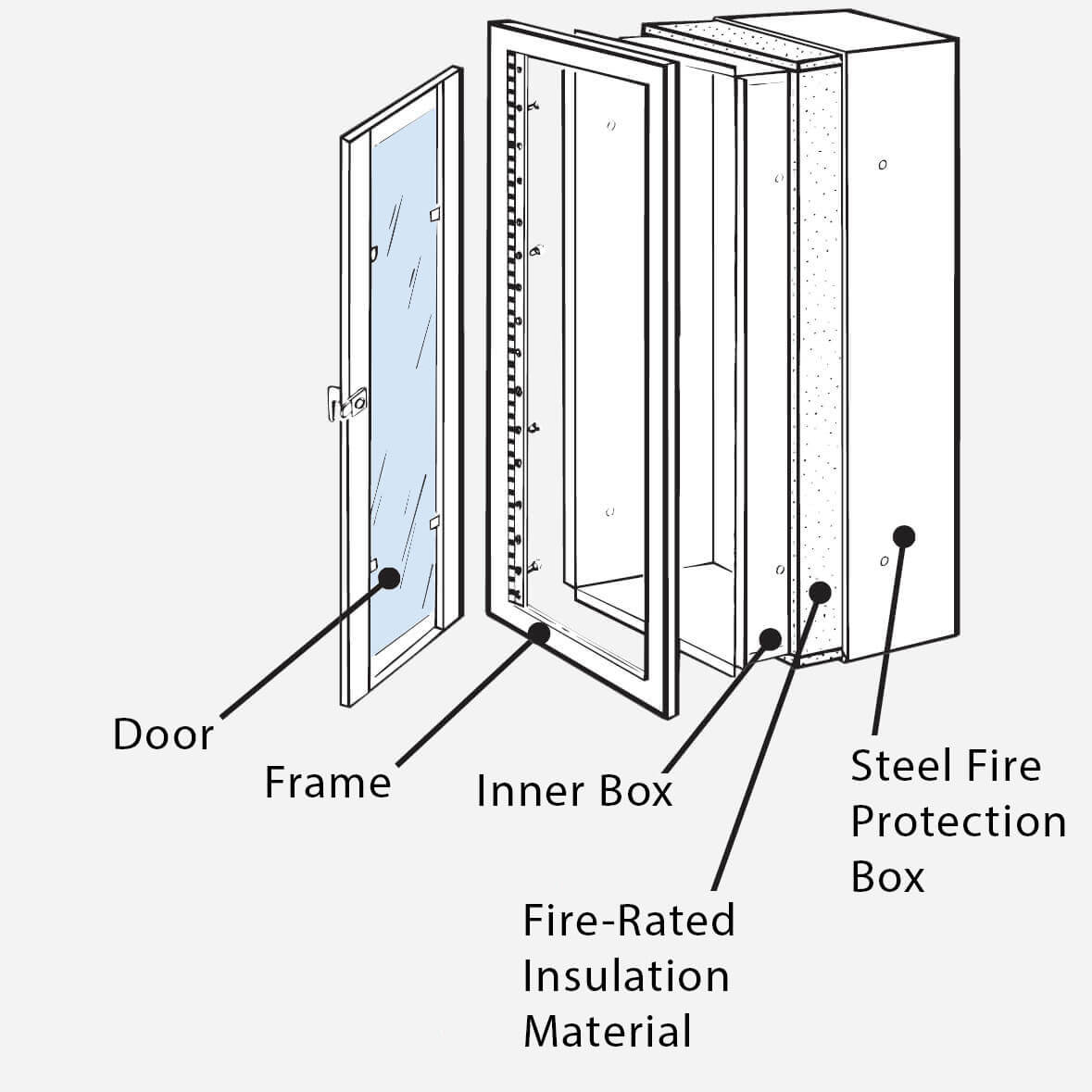

This fire-rated recessed fire extinguisher cabinet is constructed from cold rolled steel with fire insulation material and an electrostatically applied thermally-fused polyester coating with recoatable white finish. The door has a continuous hinge.
Cabinet is UL Classified per the standard for UL 1479 - Penetration Firestop Systems UL File no. R15411; Fire Rating: 2 Hours
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Alta Style Fire Extinguisher Cabinets, Fire Rated UL Classified, 7N43 [Models FRC7007-FRC7028 | Steel - Galvanneal steel with recoatable white polyester finish; Models FRC7030-FRC7048: Aluminum - Clear anodized finish; Models FRC7050-FRC7068 | Stainless Steel - #304 Stainless steel with #4 finish; Models FRC7070-FRC7088 | Brass - Polished finish, clear polyester coated] | 0 | 235 KB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB | ||
| | Brochure Architectural Fire Cabinets - Includes Alta 7000 Series, Buena 7100 Series, Dana 7200 Series, Loma 7300 Series; Extinguisher/ Valve Cabinets Alta 8000 Series, Buena 8100 Series, Dana 8200 Series, Loma 8300 Series | 0 | 3 MB |
Specifications
| Material | 22 Gauge Steel Box, Fire Insulation Material |
| Lettering | FIRE EXTINGUISHER (see options) |
| Cabinet Style | Alta |
| Mounting | Recessed |
| Fire Rated | Fire Rated |
| UL | UL Classified |
Models

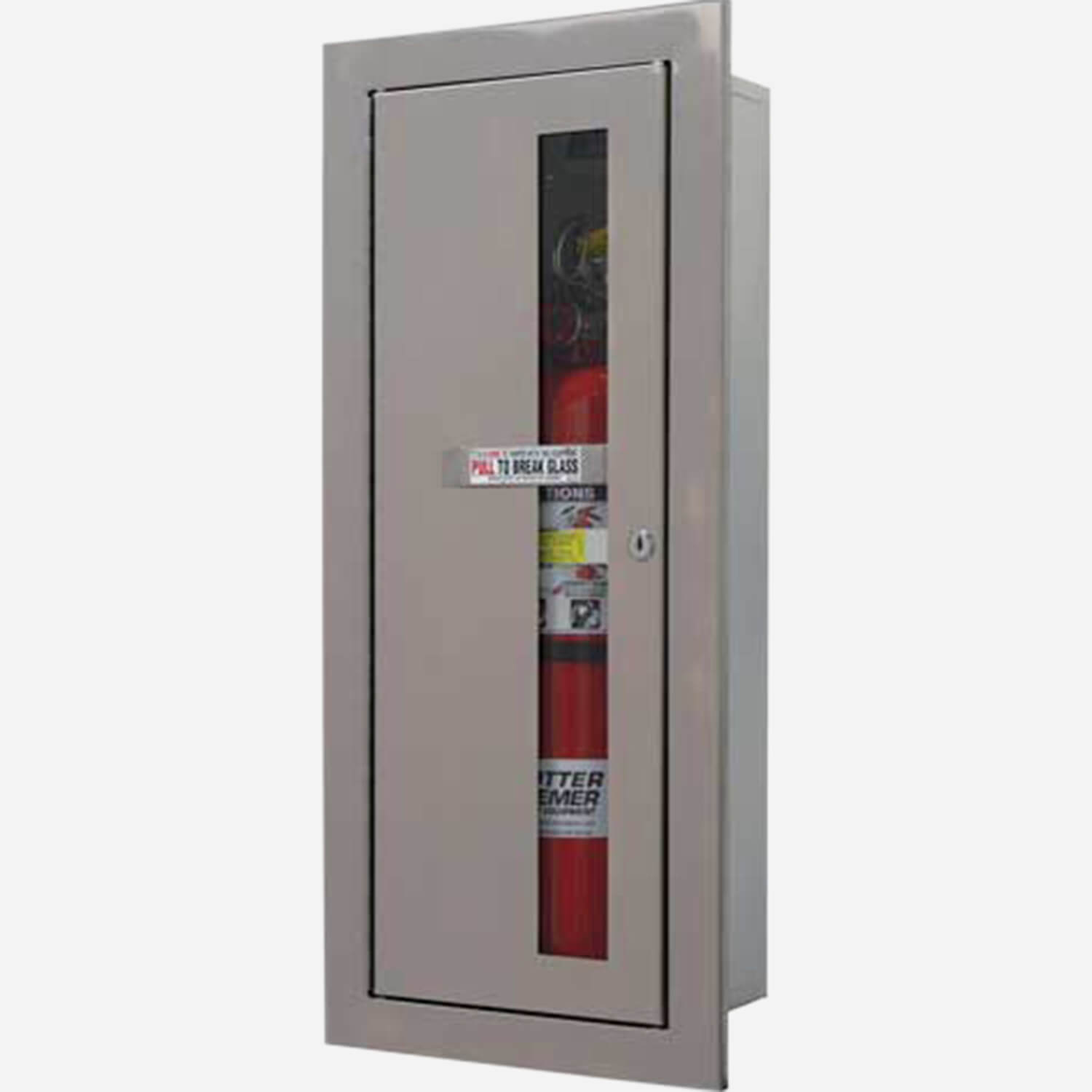

The door and frame are constructed from materials as follows: Model FRC7007-FRC7025 |Galvannealed steel with recoatable white polyester finish; Model FRC7030-FRC7045 | Aluminum with clear anodized finish; Model FRC7050-FRC7065 | #304 Stainless steel with #4 finish; Model FRC7070-FRC7085 | Polished Brass with clear polyester coated finish.
