Model 7007 thru 7085

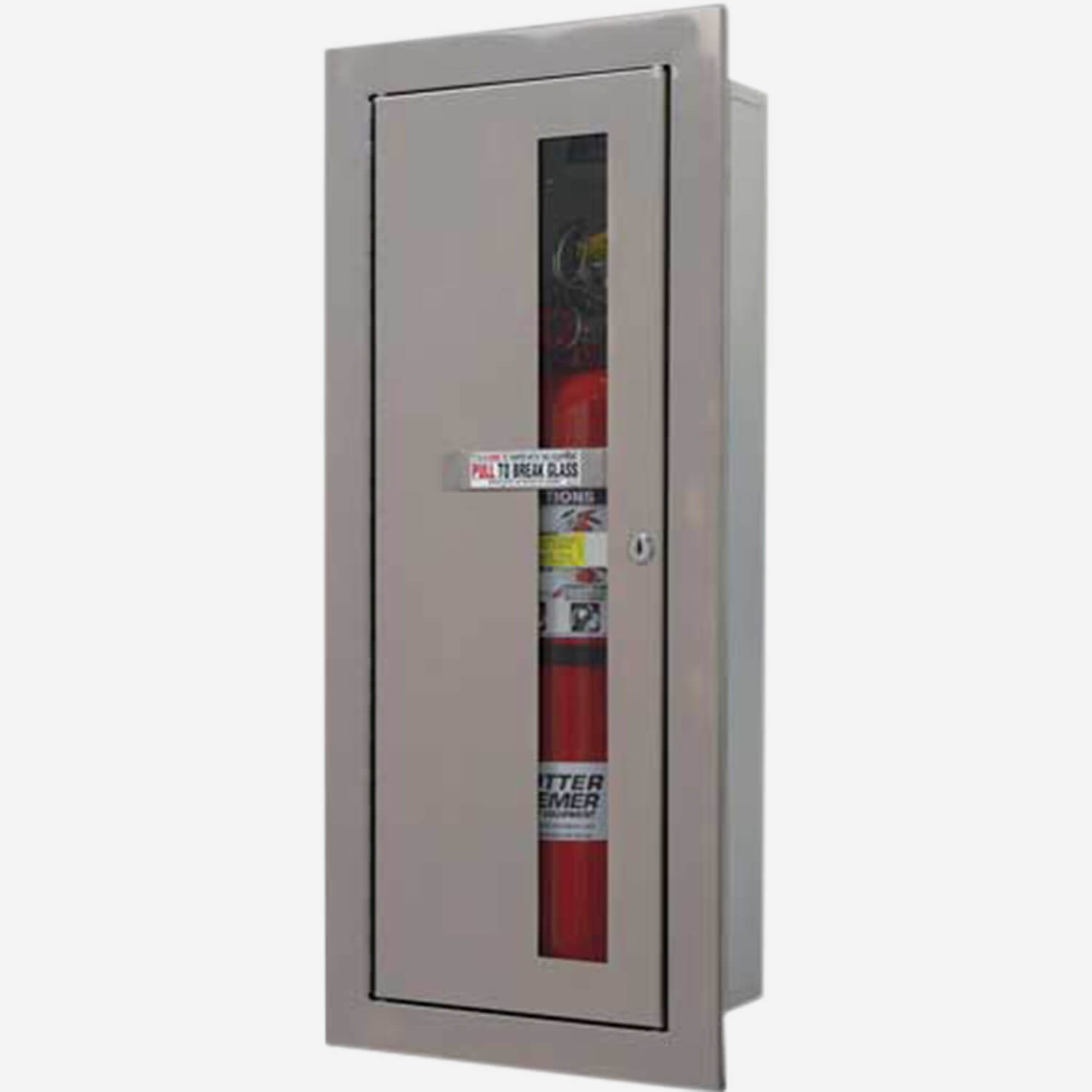

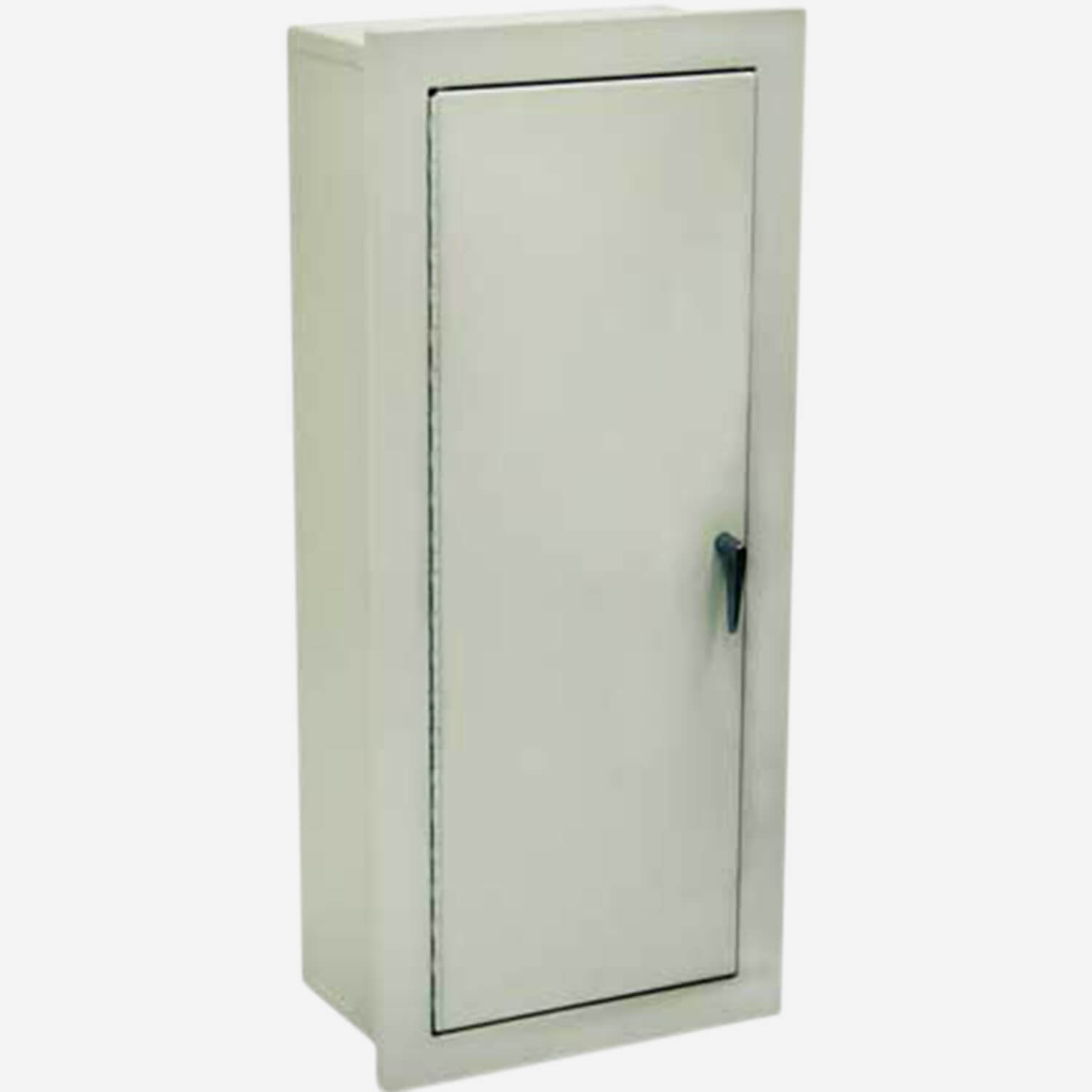

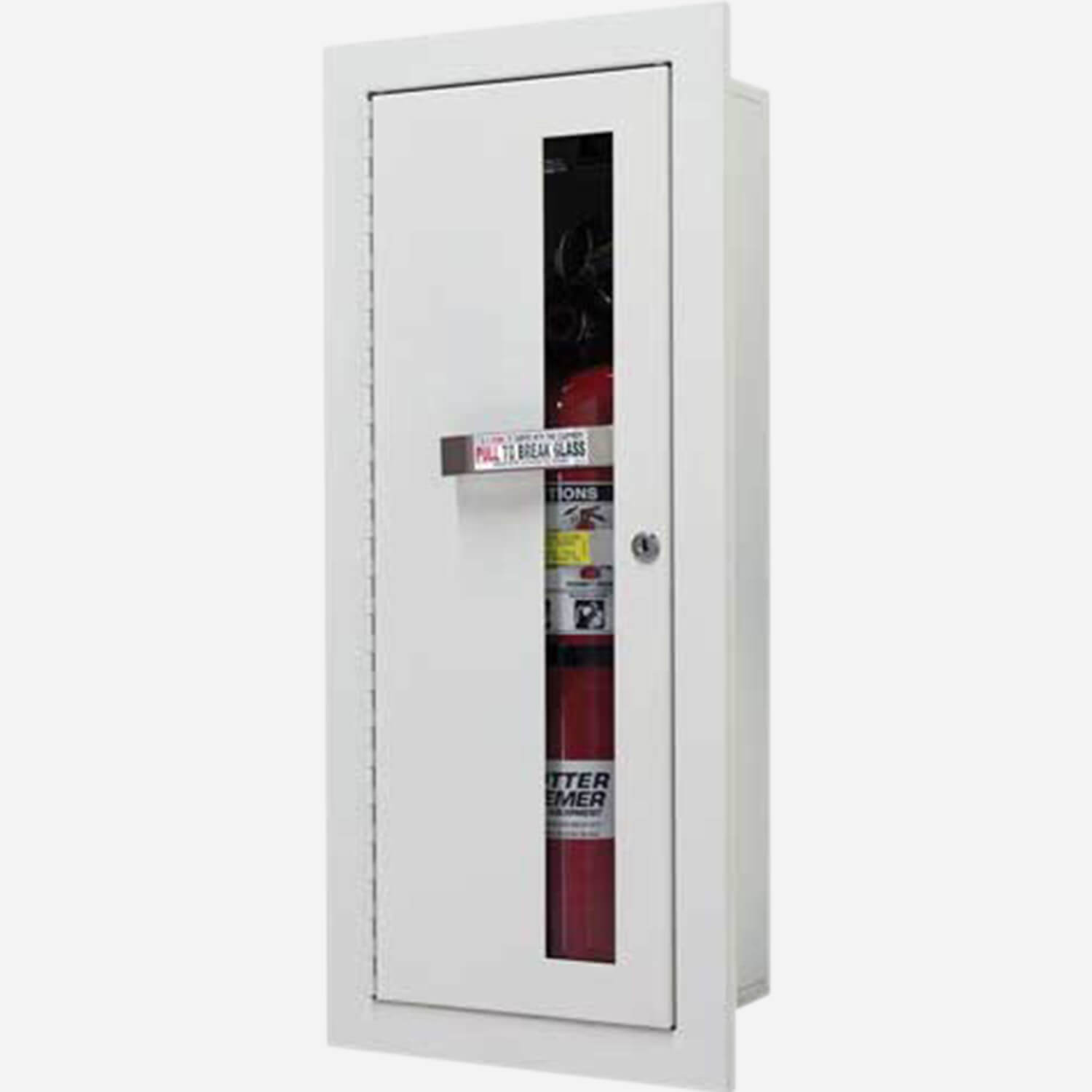

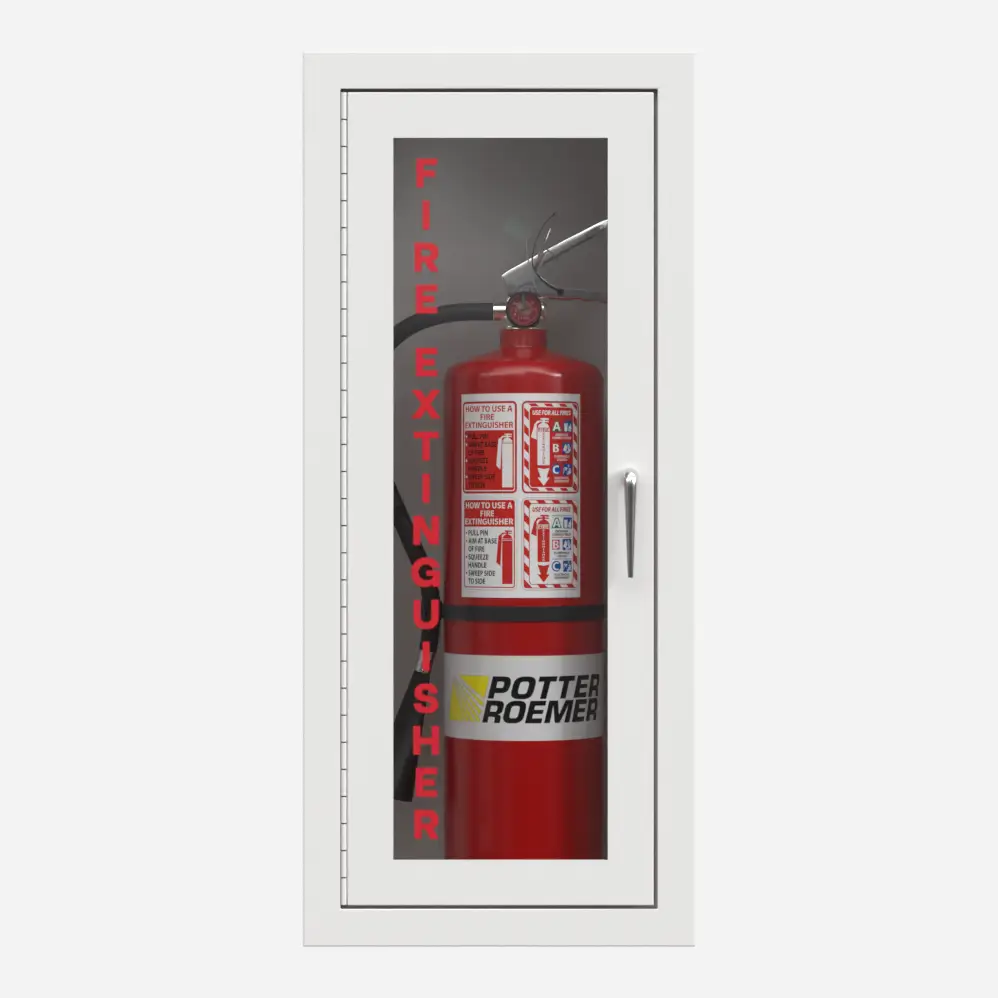

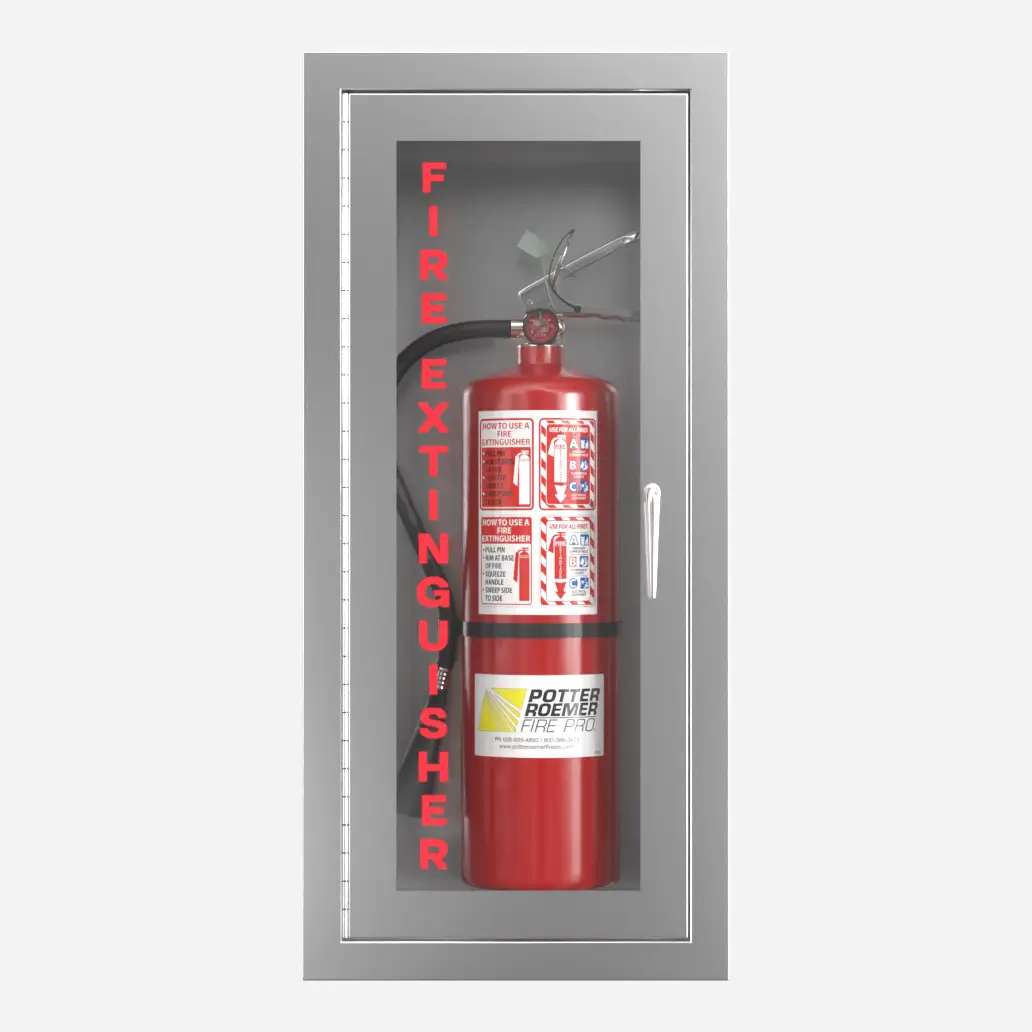

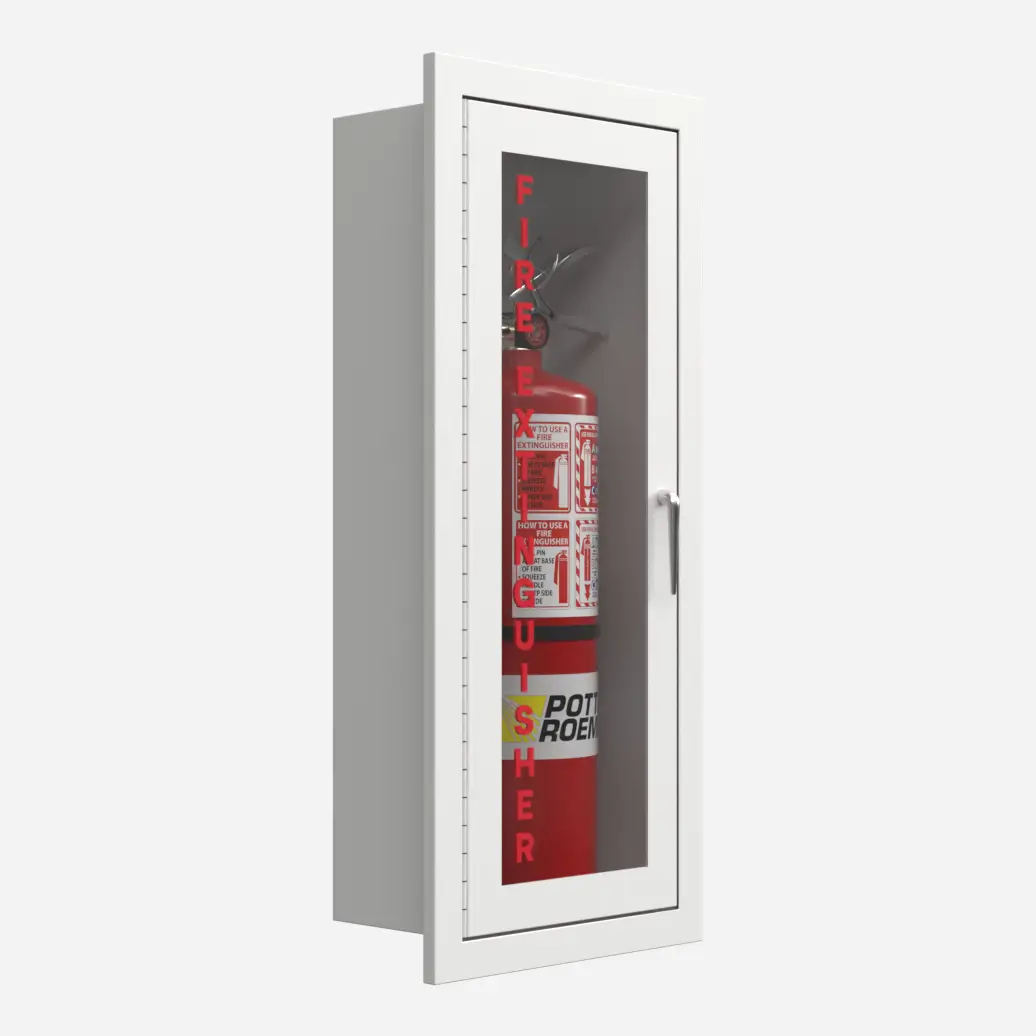

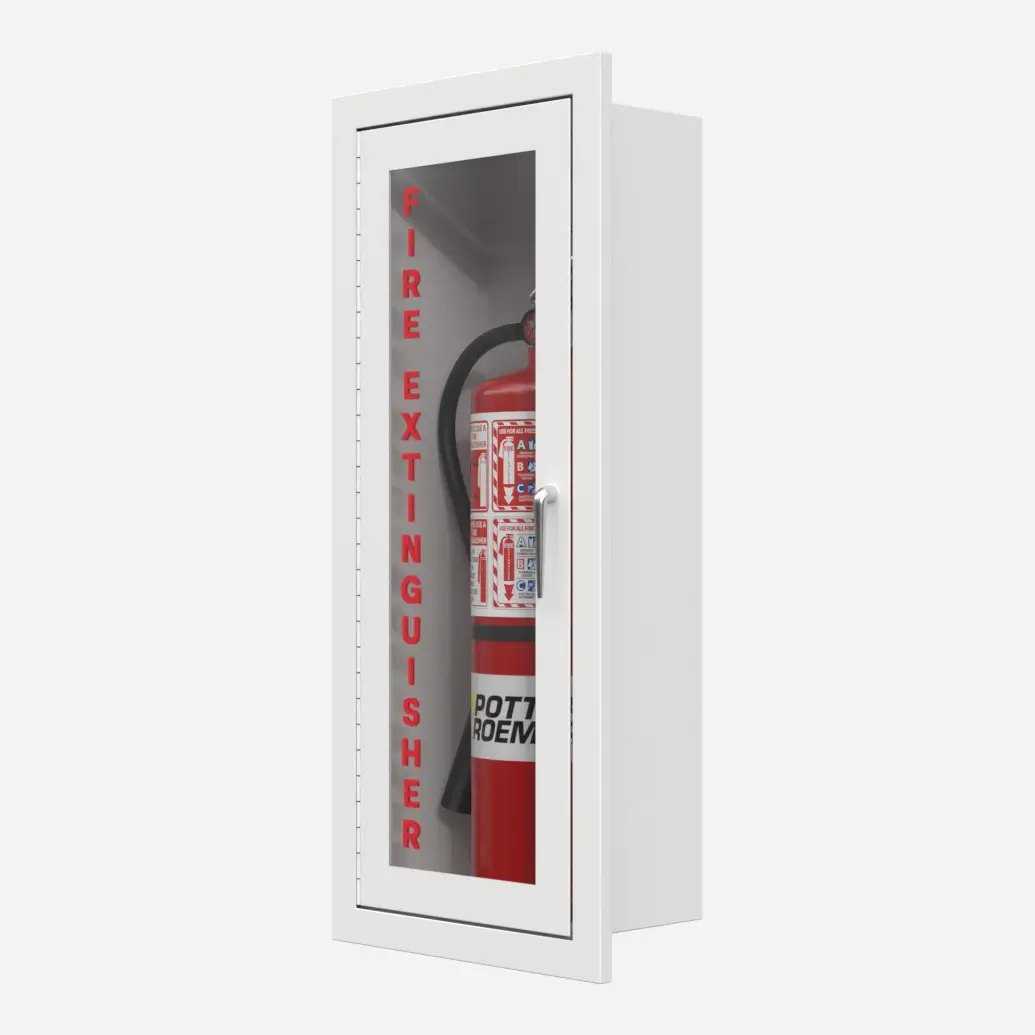

Recessed Alta Fire Extinguisher Cabinets

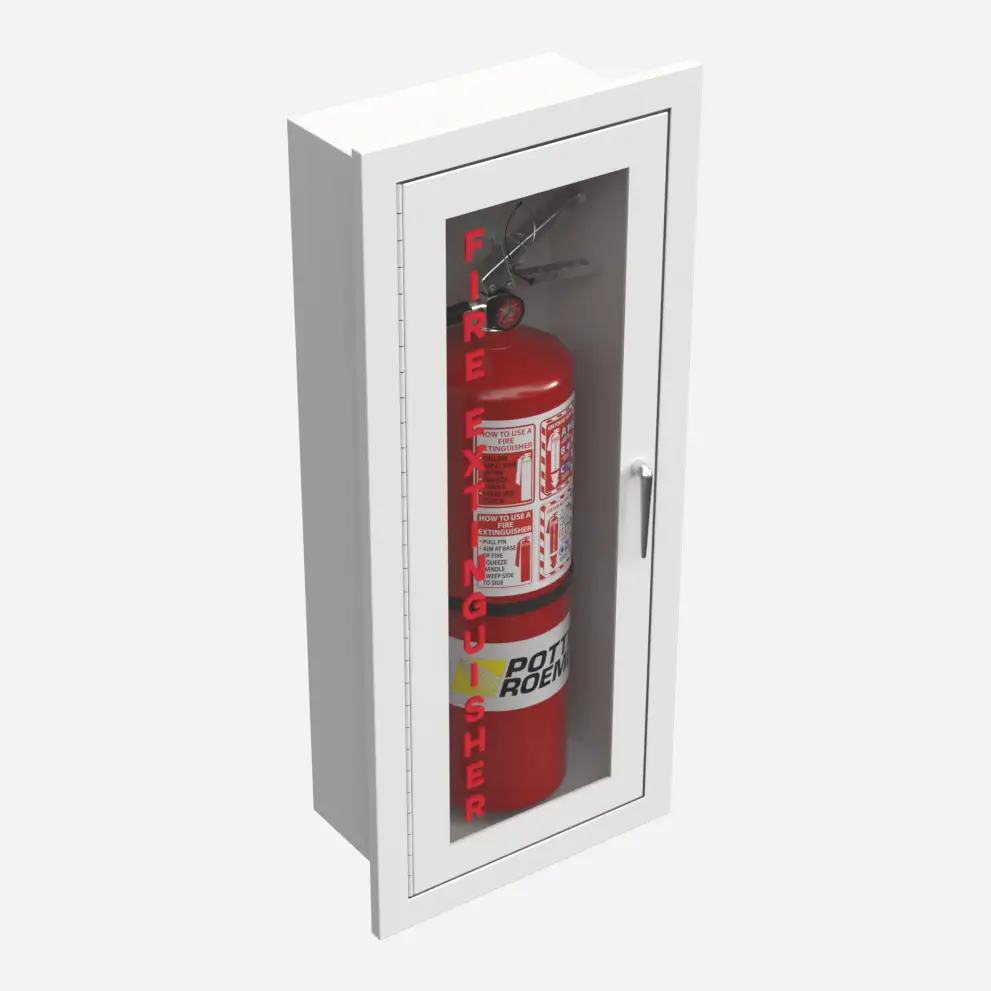

This recessed fire extinguisher cabinet is constructed from galvannealed steel with an electrostatically applied thermally-fused polyester coating with recoatable white finish and a continuous hinge.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Alta Style Fire Extinguisher Cabinets [ Models 7007-7029 | Steel - Galvanneal steel with recoatable white polyester finish; Models 7030-7049 | Aluminum - Clear anodized finish; Models 7050-7069 | Stainless Steel - #304 Stainless steel with #4 finish; Model 7070-7089: Brass - Polished finish, clear polyester coated] | 0 | 236 KB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB | ||
| | Brochure Architectural Fire Cabinets - Includes Alta 7000 Series, Buena 7100 Series, Dana 7200 Series, Loma 7300 Series; Extinguisher/ Valve Cabinets Alta 8000 Series, Buena 8100 Series, Dana 8200 Series, Loma 8300 Series | 0 | 3 MB |
Specifications
| Material | Galvannealed Steel |
| Lettering | FIRE EXTINGUISHER (see options) |
| ADA Models | All models in this series |
| Accessibilty | ADA Compliant |
| Inside Box Dimension | 9 x 18 x 5", 9 x 24 x 5", 9 x 24 x 5.75", 12 x 27 x 8" |
| Capacity | 3305-PK, 3310-PK, 3260, 3320-PK, 3262, 3002, 3005, 3005-3, 3302, 3010, 3405, 3020, 3202, 3410 |
| Mounting | Recessed |

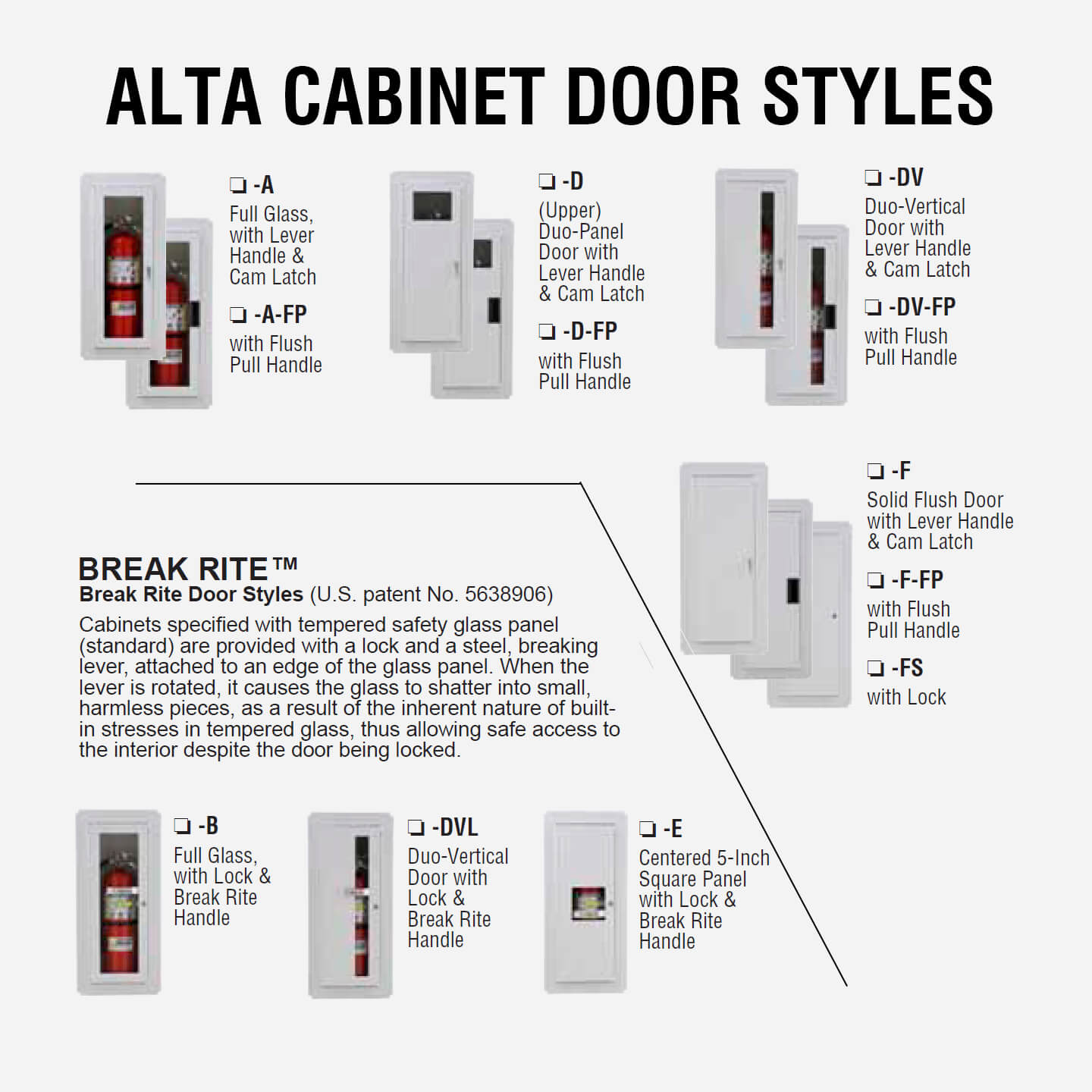

| Door Style | -D-FP |Duo-Panel w/Tempered Safety Glass & Flush Pull Handle, -F | Flush Solid Metal, -A-FP | Full Glass w/ Tempered Safety Glass & Flush Pull Handle, -DV-FP | Duo-Vertical Panel w/ Tempered Safety Glass & Flush Pull Handle, -F-FP | Flush Solid Metal & Flush Pull Handle, -1 | Glazing - Bronze Tempered Safety Glass, -2 | Glazing - Smoke Tempered Safety Glass, -4 | Glazing - Obscure Tempered Safety Glass, -6 | Clear Acrylic 0.125" Thick, -7 | Bronze Acrylic 0.125" Thick, -8 | White Acrylic 0.125" Thick, -9 | Smoke Acrylic 0.125" Thick, -10 | Red Acrylic 0.125" Thick, -B | Break-Glass w/lock & Break Rite® Handle, -A | Full Glass w/ Tempered Safety Glass, -D | Duo-Panel w/ Tempered Safety Glass, -DV | Duo-Vertical Panel w/ Tempered Safety Glass, -DVL | Duo-Vertical Panel with Lock, TSG & Break Rite® Handle, -E | Tempered Safety Glass (25 sq. in.) w/ Break Rite® Handle, -FS | Flush Solid Metal w/ Lock |
| Cabinet Style | Alta |
| Door/Frame Finish | -AL | Aluminum (Clear Anodized Finish - STD), -PB | Brass (Polished Finish - STD), -SS | Stainless Steel (304 with #4 Finish - STD) |
| Fire Rated | Not necessary |
Models

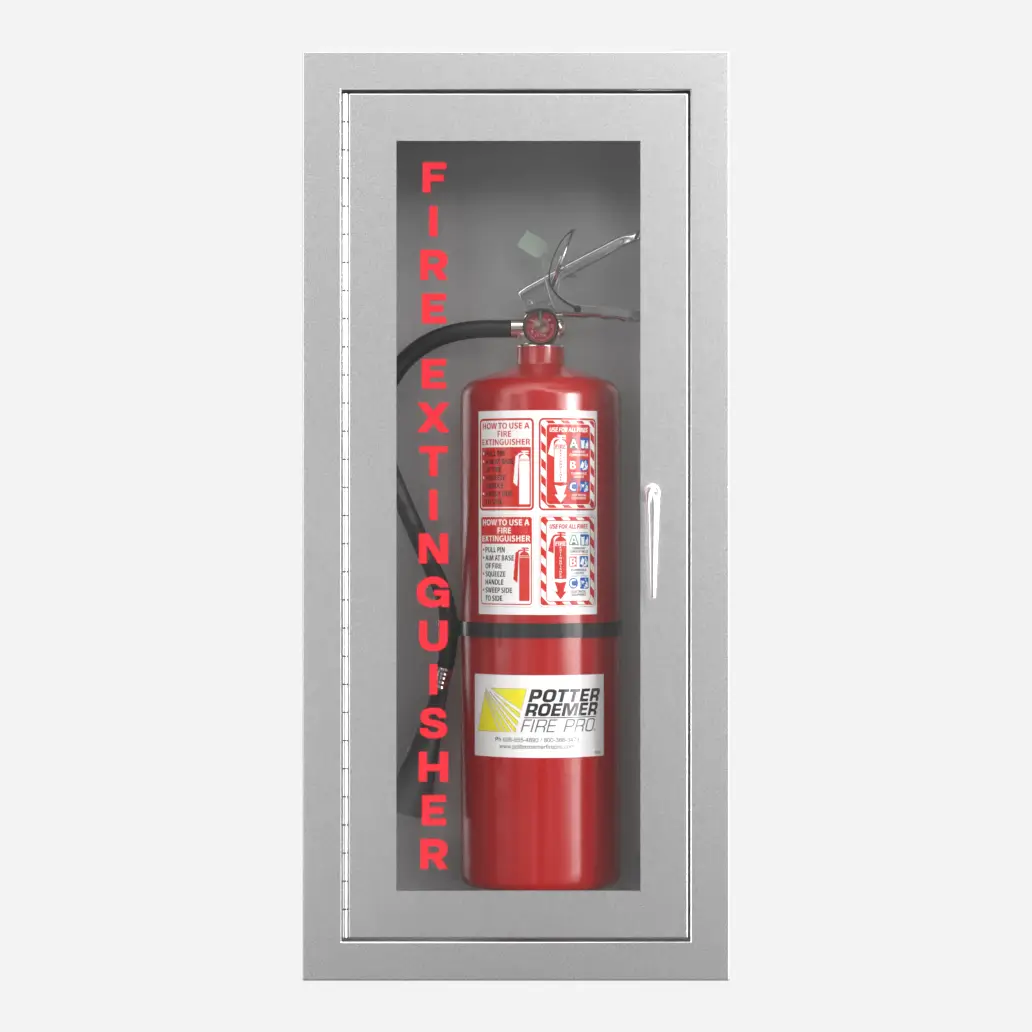

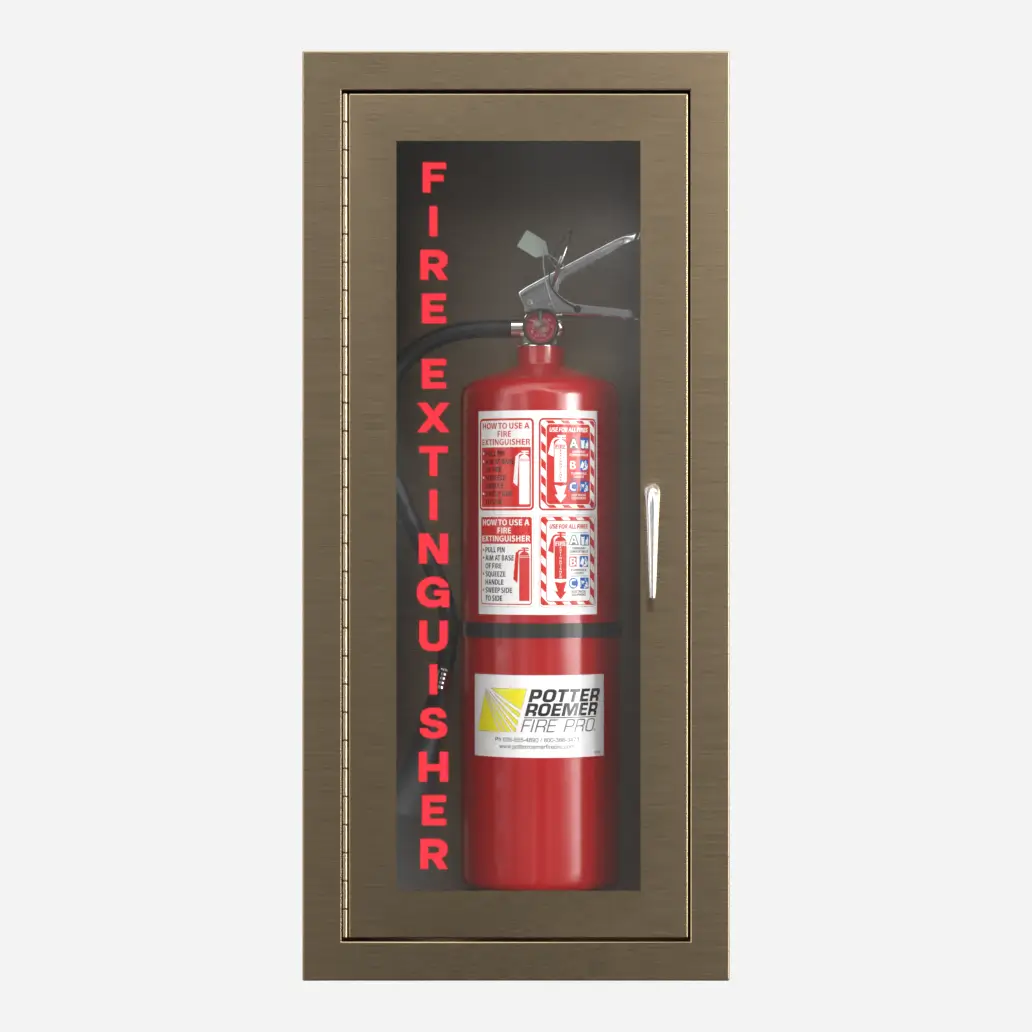

The door and frame are constructed from materials as follows: Model 7007, 7010, 7020, 7025 | Galvannealed steel with recoatable white polyester finish; Model 7037, 7030, 7040, 7045 | Aluminum with clear anodized finish; Model 7057, 7050, 7060, 7065 | #304 Stainless steel with #4 finish; Model 7077, 7070, 7080, 7085 | Polished Brass with clear polyester coated finish.
