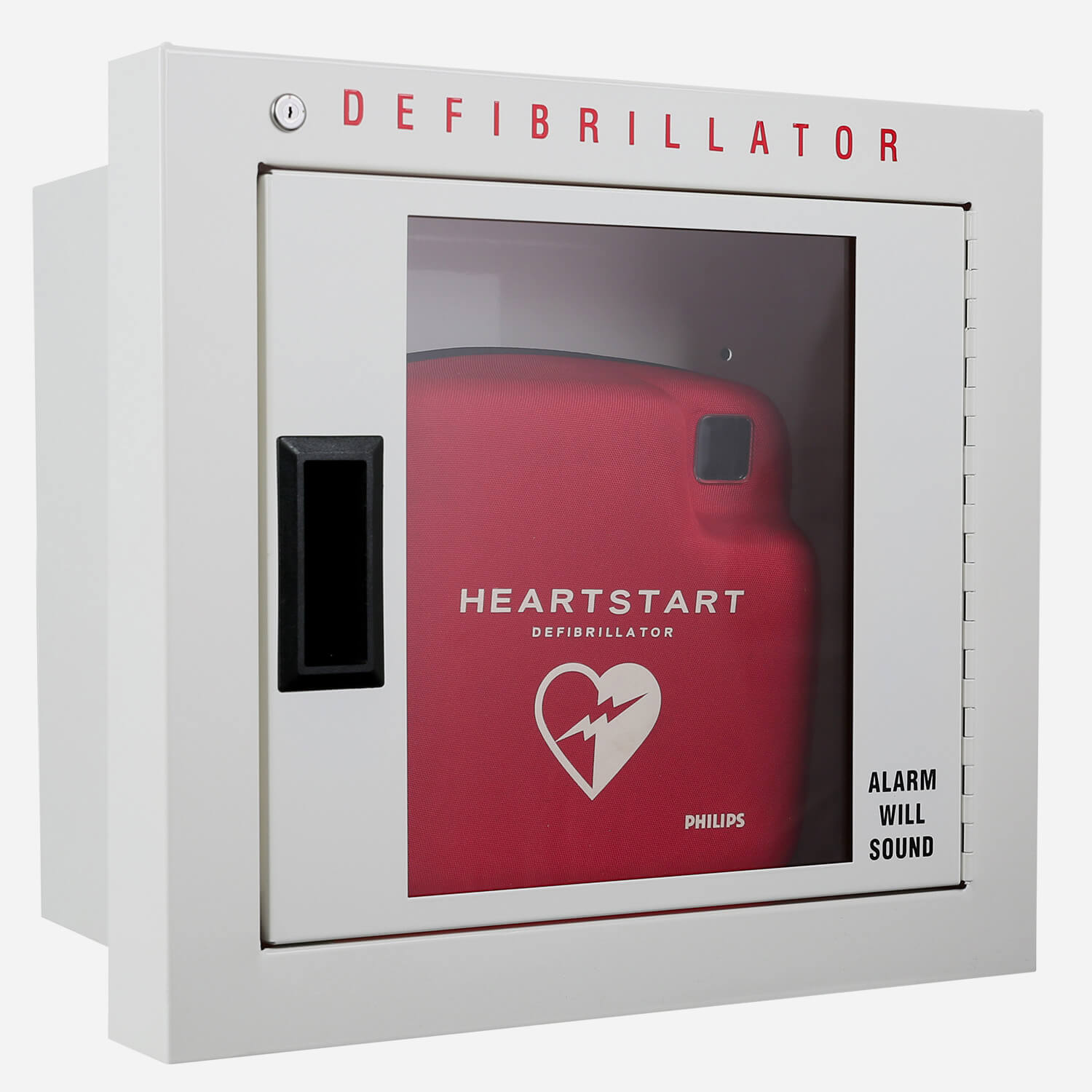

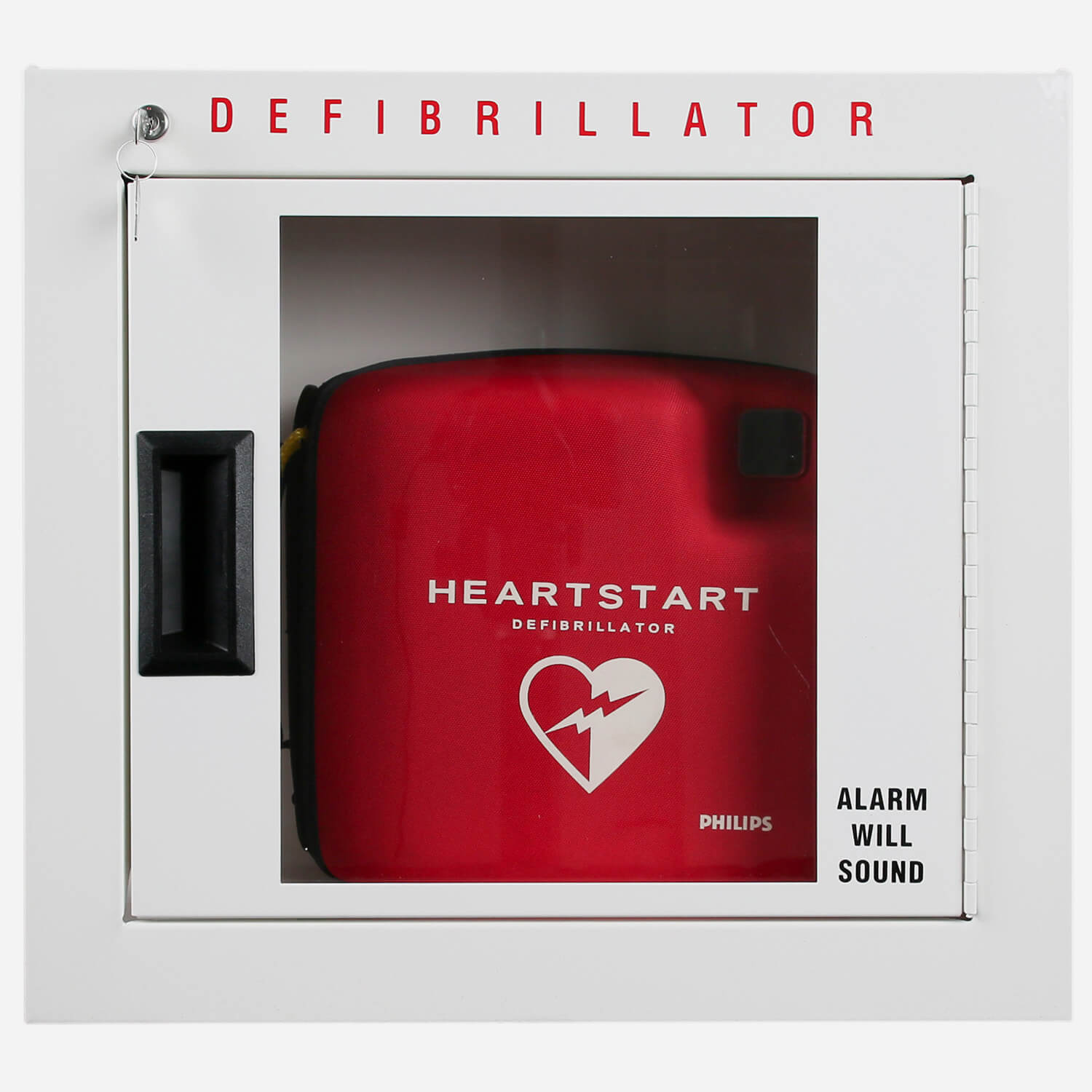

Semi-Recessed Automated External Defibrillator Cabinet
AED CABINETS are fabricated of Galvannealed Steel 20 gauge recessed box; 22 gauge tubular steel door with 20 gauge frame and continuous steel hinge. All components are powdercoated with an electrostatically-applied, thermally fused, recoatable white polyester finish.
Clear acrylic glazing door panels provided. Flush pull handle unlatches the door to open.
A 120 dB alarm with on/off keyed switch to discourage meddling is provided. Alarm indicates there is an emergency and someone is removing the AED.
Black die cut lettering ALARM WILL SOUND and red die cut lettering DEFIBRILLATOR.
SEMI-RECESSED cabinets include:9022 Defibrillator Cabinet Inside Cabinet Size: 14-1/4" side-to-side x 14" height x 6" front-to-back Trim: 2" 9023 Defibrillator Cabinet Inside Cabinet Size: 14-1/4" side-to-side x 14" height x 6" front-to-back Trim: 3" 9122 Defibrillator Cabinet Only: Inside Cabinet Size: 17-1/2" side-to-side x 17-1/2" height x 7" front-to-back Trim: 2" 9123 Defibrillator Cabinet Only: Inside Cabinet Size: 17-1/2" side-to-side x 17-1/2" height x 7" front-to-back Trim: 3"
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Automated External Defibrillator Cabinets [AED Cabinet only 9020, 9120, 9022, 9122, 9023, 9123, 9024, 9124; With Section for Extinguisher 9220, 9222, 9223, 9224] Galvanneeled Steel Construction; Also available with Aluminum or Stainless Steel Frame/Door | 0 | 3 MB | ||
| | Automated External Defibrillator Cabinet Flyer | 0 | 2 MB |
Specifications
| Material | Galvannealed Steel |
| Cabinet Style | Alta |
| Inside Box Dimension | 14.25 x 14 x 6", 17.5 x 17.5 x 7" |
| Capacity | Defibrillator |
| Options | -LT LED Alarm Lights, -SB Siren Strobe 120 dB Alarm |
| Lettering | DEFIBRILLATOR, ALARM WILL SOUND |
| Accessibilty | ADA Compliant |
| Door Style | -F | Flush Solid Metal, -AT | Full Tempered Safety Glass, -A | Full Clear Acrylic Panel(s) with Flush Pull Handle(s) |
| Door/Frame Finish | -AL | Aluminum (Clear Anodized Finish - STD), -SS | Stainless Steel (304 with #4 Finish - STD) |
| Mounting | Semi-Recessed |
Models

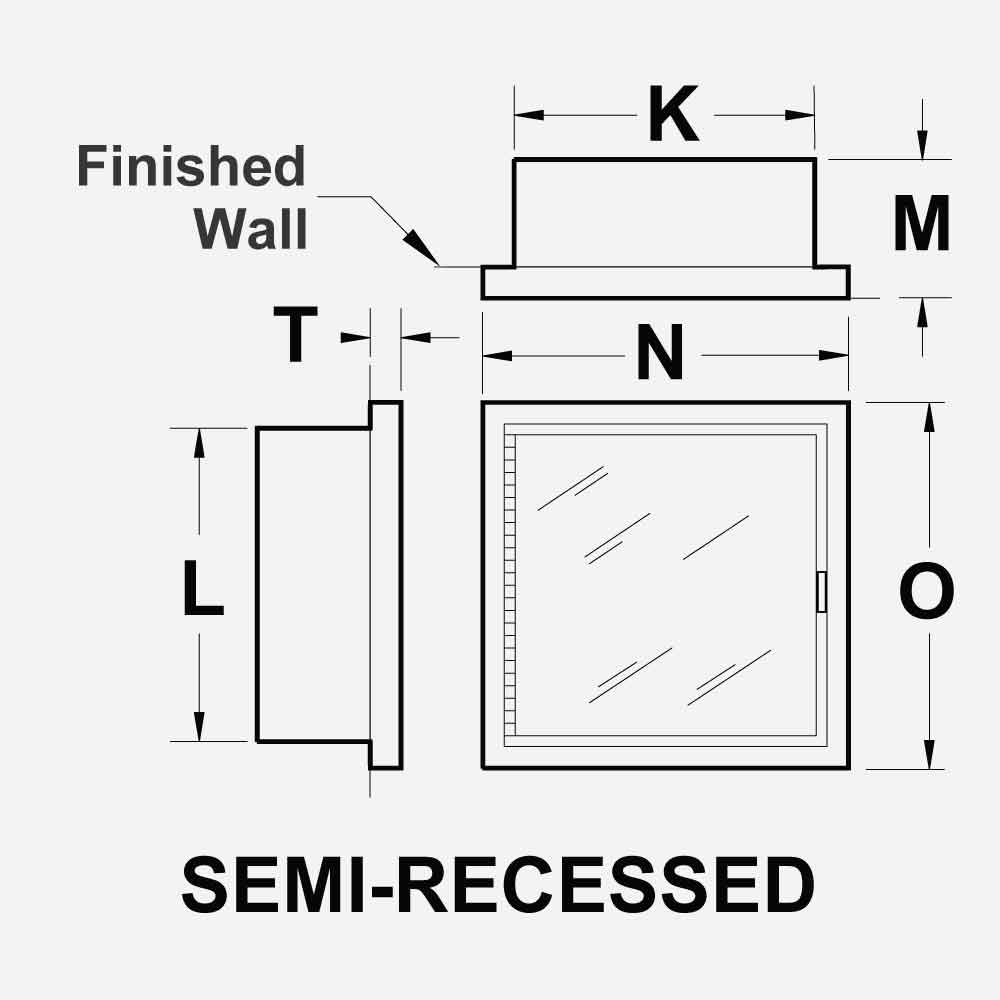

9022 Semi-Recessed Trim: 2"Inside Box Dimension Side-to-Side: 14-1/4" Height: 14" Front-to-Back: 6" Outside Frame Dimension Side-to-Side: 17-3/4" Height: 18" Wall Opening Side-to-Side: 15-1/4" Height:15" Front-to-Back: 4-3/4"Optional Frame/Door9042 | Aluminium 9062 | Stainless Steel
9023 Semi-Recessed Trim: 3"Inside Box Dimension Side-to-Side: 14-1/4" Height: 14" Front-to-Back: 6" Outside Frame Dimension Side-to-Side: 17-3/4" Height: 18" Wall Opening Side-to-Side: 15-1/4" Height:15" Front-to-Back: 3-3/4"Frame/Door9043 | Aluminium 9063 | Stainless Steel
9122 Semi-Recessed Trim: 2"Inside Box Dimension Side-to-Side: 17-1/2" Height: 17-1/2 Front-to-Back: 7" Outside Frame Dimension Side-to-Side: 21" Height: 21" Wall Opening Side-to-Side: 18-1/2" Height: 18-1/2" Front-to-Back: 5-1/2"Optional Frame/Door9142 | Aluminium 9162 | Stainless Steel
9123 Semi-Recessed Trim: 3"Inside Box Dimension Side-to-Side: 17-1/2" Height: 17-1/2 Front-to-Back: 7" Outside Frame Dimension Side-to-Side: 21" Height: 21" Wall Opening Side-to-Side: 18-1/2" Height: 18-1/2" Front-to-Back: 4-1/2"Frame/Door9143 | Aluminium 9163 | Stainless Steel
