Semi-Recessed Automated External Defibrillator and Fire Extinguisher Cabinet
AED CABINETS are fabricated of Galvannealed Steel 20 gauge recessed box; 22 gauge tubular steel door with 20 gauge frame and continuous steel hinge. All components are powdercoated with an electrostatically-applied, thermally fused, recoatable white polyester finish.
Clear acrylic glazing door panels provided. Flush pull handle unlatches the door to open.

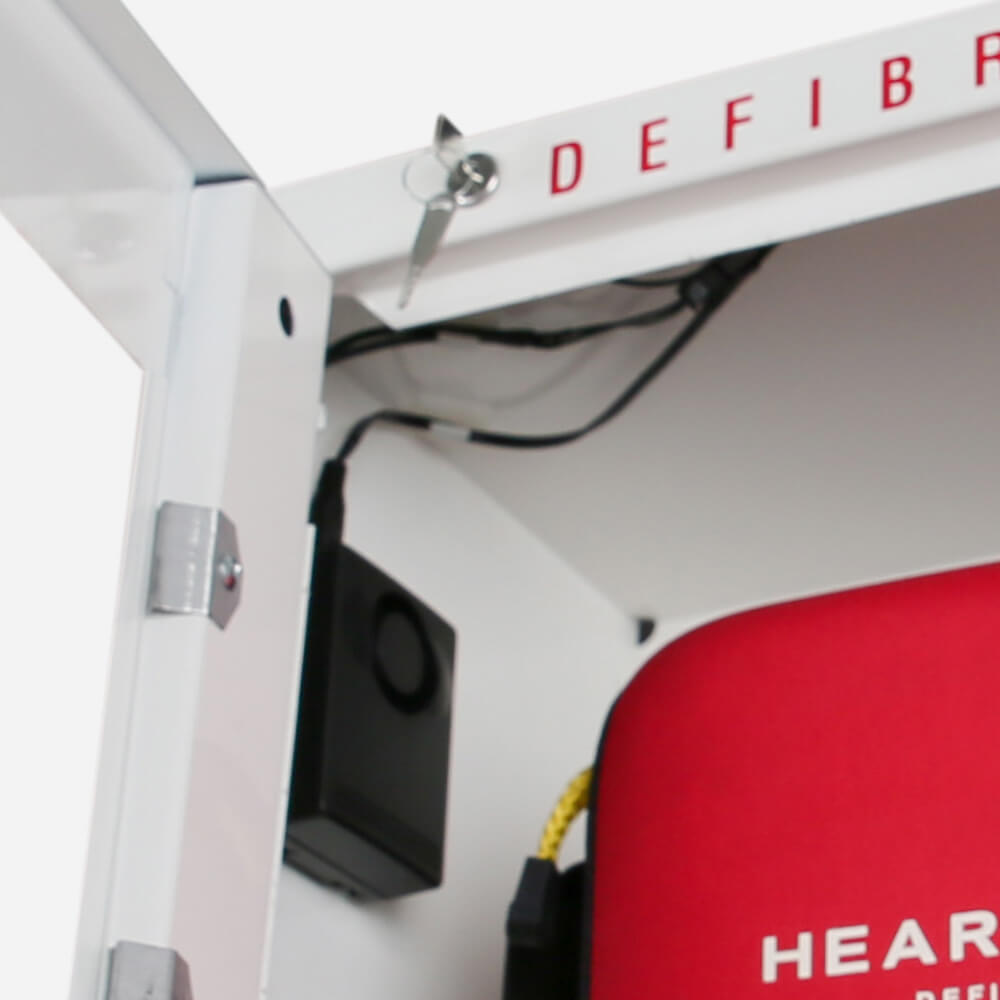

A 120 dB alarm with on/off keyed switch to discourage meddling is provided. Alarm indicates there is an emergency and someone is removing the AED.
Black die cut lettering ALARM WILL SOUND and red die cut lettering DEFIBRILLATOR; Red die cut lettering FIRE EXTINGUISHER
SEMI-RECESSED cabinets include:9222 Defibrillator and Fire Extinguisher CabinetSection to house a AED and up to a 20 lbs dry chemical fire extinguisher or a 2-1/2 gallon pressurized water fire extinguisher Inside Cabinet Size: 14" side-to-side x 40" height x 8" front to back Trim: 2"9223 Defibrillator and Fire Extinguisher Cabinet Section to house a AED and up to a 20 lbs dry chemical fire extinguisher or a 2-1/2 gallon pressurized water fire extinguisher Inside Cabinet Size: 14" side-to-side x 40" height x 8" front to back Trim: 3"
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Automated External Defibrillator Cabinets [AED Cabinet only 9020, 9120, 9022, 9122, 9023, 9123, 9024, 9124; With Section for Extinguisher 9220, 9222, 9223, 9224] Galvanneeled Steel Construction; Also available with Aluminum or Stainless Steel Frame/Door | 0 | 3 MB |
Specifications
| Cabinet Style | Alta |
| Material | Galvannealed Steel |
| Mounting | Semi-Recessed |
| Inside Box Dimension | 14 x 40 x 8" |

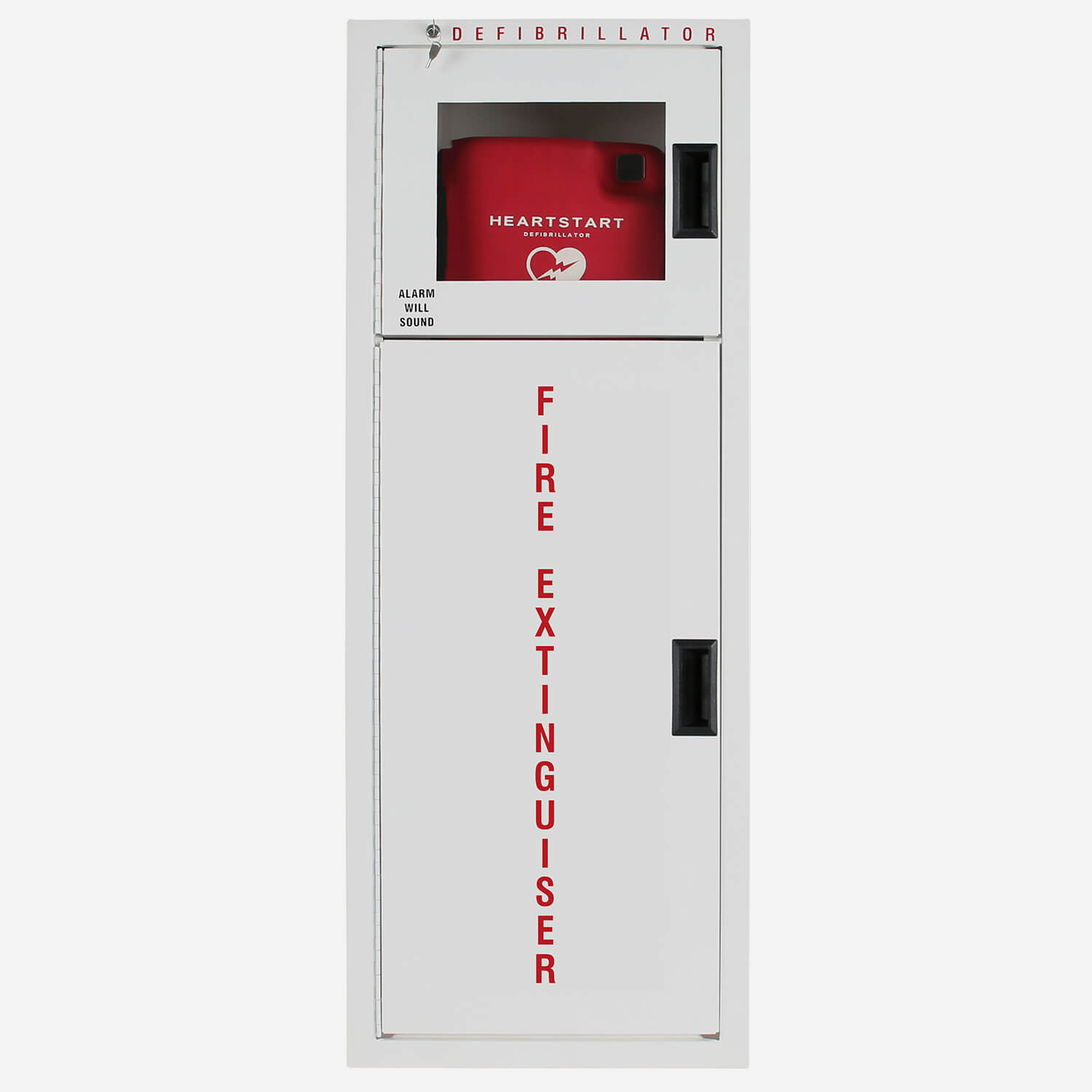

| Door Style | -F | Flush Solid Metal, -AT | Full Tempered Safety Glass, -A | Full Clear Acrylic Panel(s) with Flush Pull Handle(s), -A-FP | Clear Acrylic Glazing for AED Door/Solid Metal for Extinguisher Door, Flush Pull Handles |
| Lettering | ALARM WILL SOUND, FIRE EXTINGUISHER, DEFIBRILLATOR |
| Capacity | Defibrillator, 2.5 Gallon Pressurized Water Fire Extinguisher, 20 Lbs Dry Chemical Extinguisher |
| Options | -LT LED Alarm Lights, -SB Siren Strobe 120 dB Alarm |
| Accessibilty | ADA Compliant |
| Door/Frame Finish | -AL | Aluminum (Clear Anodized Finish - STD), -SS | Stainless Steel (304 with #4 Finish - STD) |
Models

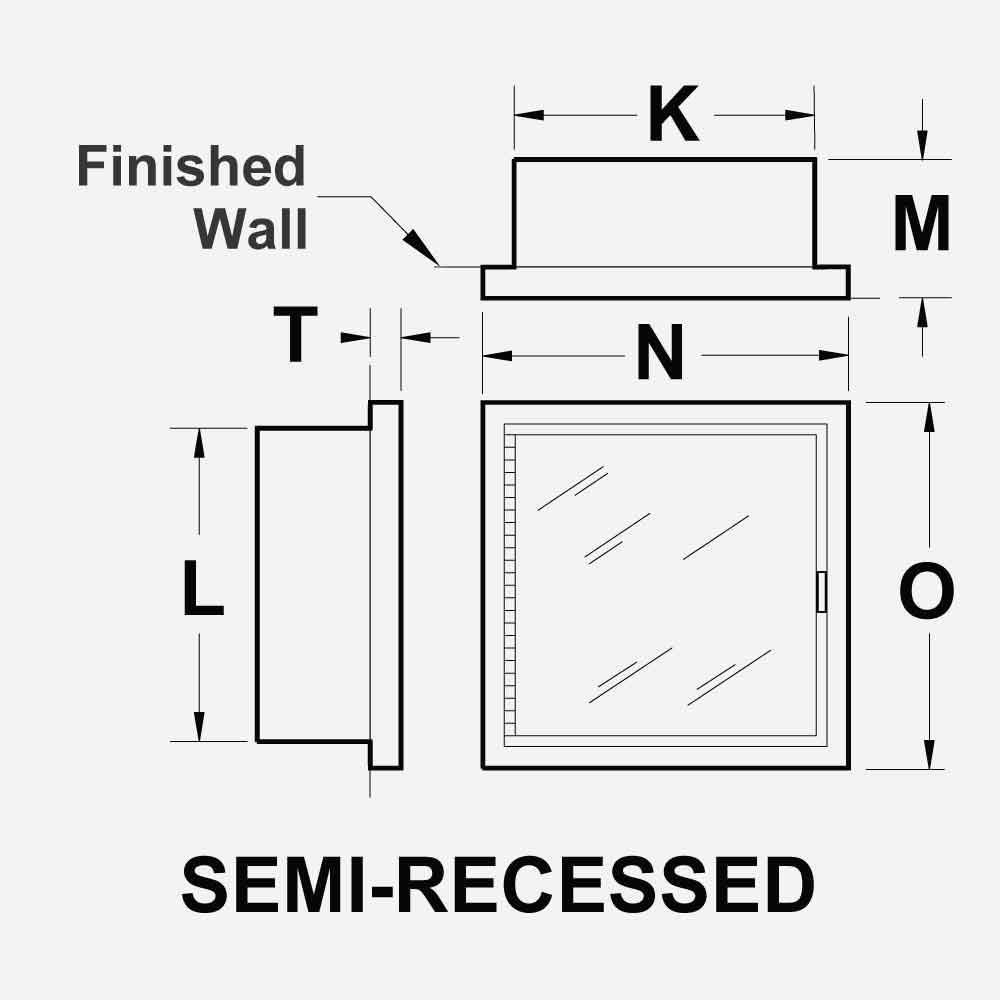

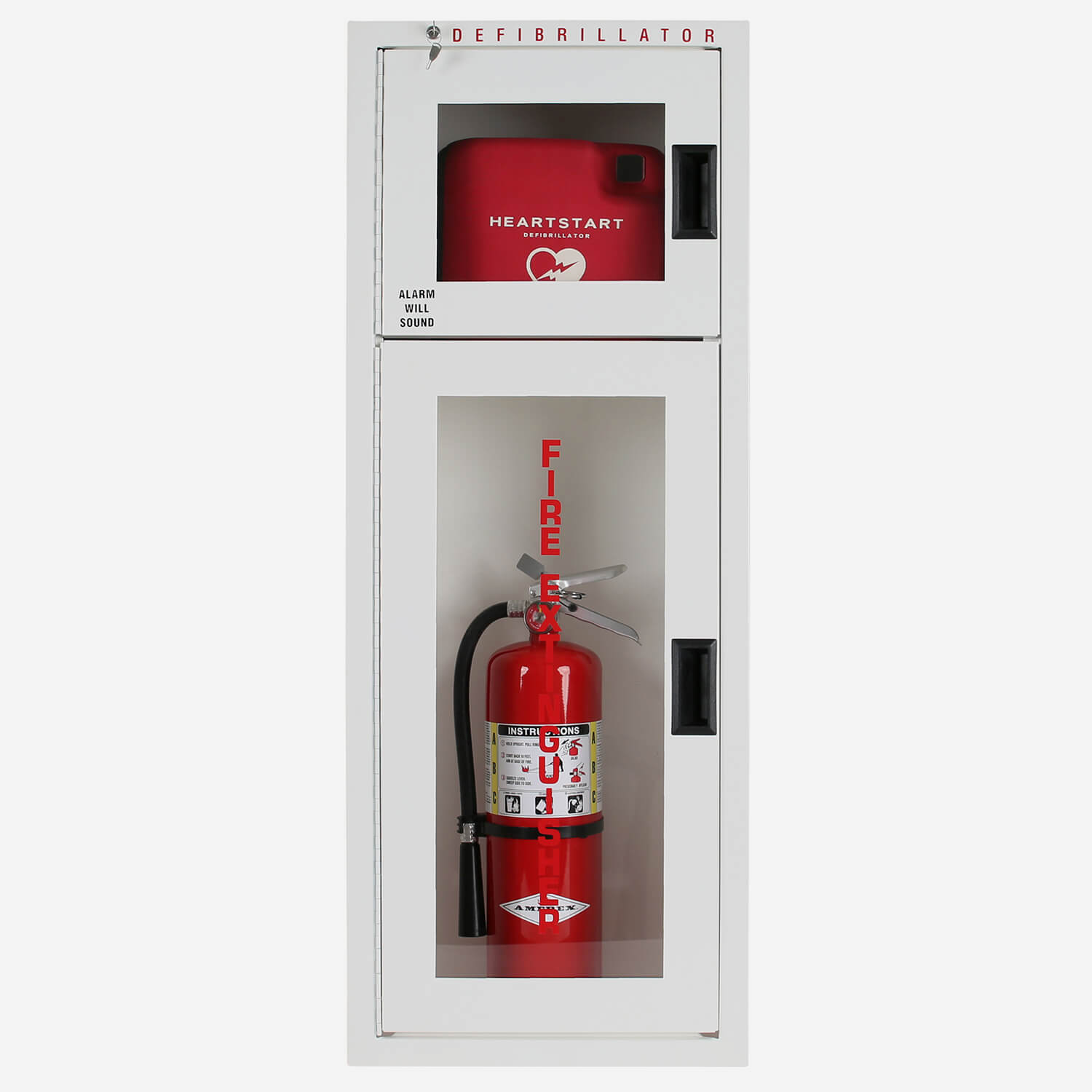

9222 Semi-Recessed Cabinet Trim: 2"Inside Box Dimension Side-to-Side: 14" Height: 40" Front-to-Back: 8" Outside Frame Dimension Side-to-Side: 17-3/4" Height: 43-3/4" Wall Opening Side-to-Side: 15" Height: 41" Front-to-Back: 6-1/2"Optional Frame/Door9242 | Aluminimum 9262 | Stainless Steel
9223 Trim: 3"Inside Box Dimension Side-to-Side: 14" Height: 40" Front-to-Back: 8" Outside Frame Dimension Side-to-Side: 17-3/4" Height: 43-3/4" Wall Opening Side-to-Side: 15" Height: 41" Front-to-Back: 5-1/2"Frame/Door9243 | Aluminimum 9263 | Stainless Steel
