Model 7108 thru 7188

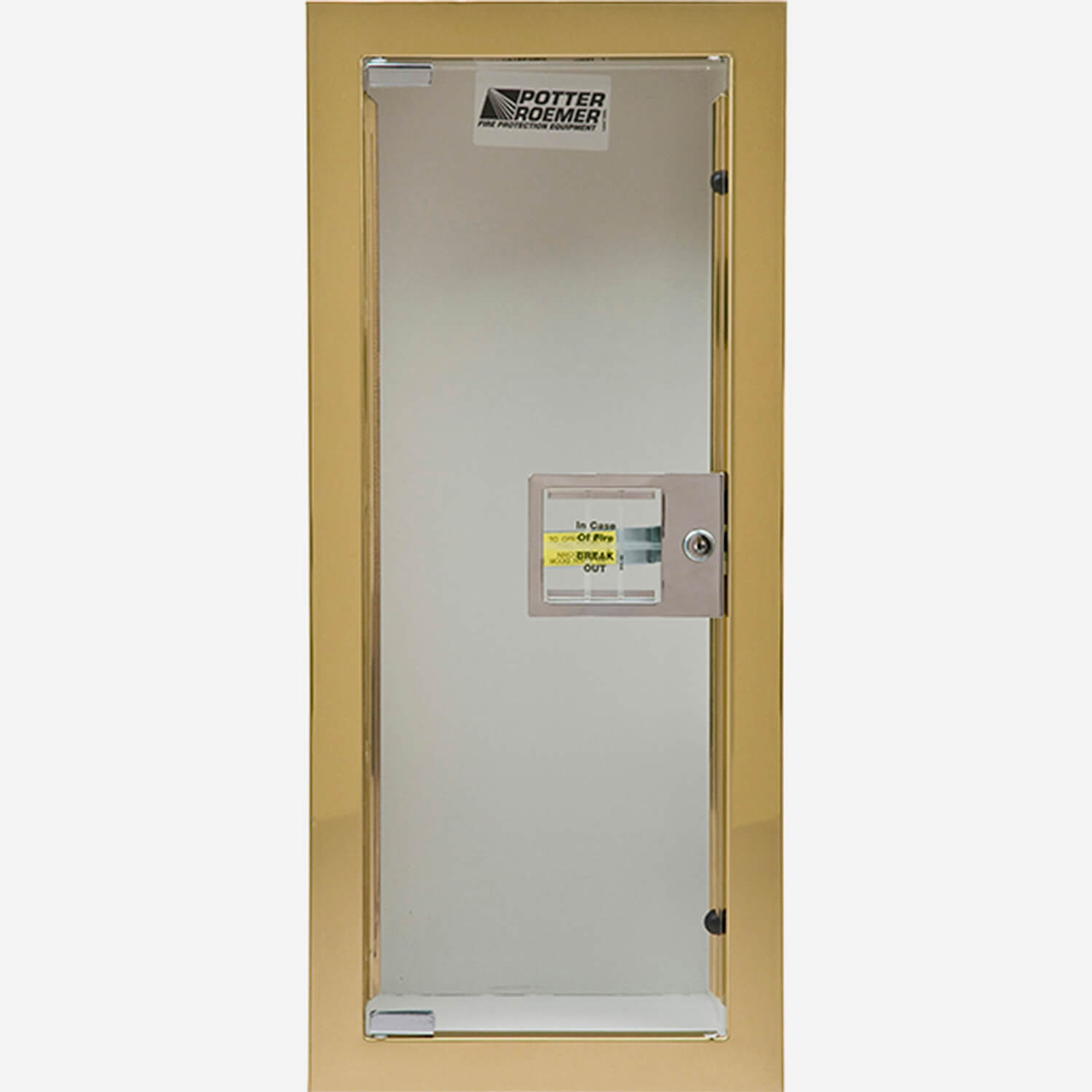

Semi-Recessed Buena Fire Extinguisher Cabinet
These are Potter Roemer Buena Style Fire Extinguisher Cabinets configured for a Semi-Recessed mount with a 2 to 5 inches (50.8 to 127 mm) thick trim protruding from the wall.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Buena Style Fire Extinguisher Cabinet [ Models 7107-7129 | Steel Frame; Models 7130-7149 | Aluminum Frame; Models 7150-7169 | Stainless Steel Frame; Models 7170-7189 | Brass Frame] | 0 | 252 KB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB | ||
| | Brochure Architectural Fire Cabinets - Includes Alta 7000 Series, Buena 7100 Series, Dana 7200 Series, Loma 7300 Series; Extinguisher/ Valve Cabinets Alta 8000 Series, Buena 8100 Series, Dana 8200 Series, Loma 8300 Series | 0 | 3 MB |
Specifications
| Material | 22 Gauge Steel Box |
| Lettering | FIRE EXTINGUISHER (see options) |
| ADA Models | All models in this series |
| Accessibilty | ADA Compliant |
| Inside Box Dimension | 9 x 18 x 5", 9 x 24 x 5", 9 x 24 x 5.75", 12 x 27 x 8" |
| Capacity | 3002, 3005, 3005-3, 3302, 3305, 3305-3, 3006, 3010, 3306, 3310, 3405, 3020, 3202, 3320, 3410 |
| Mounting | Semi-Recessed |
| Door Style | -A | Full Acrylic Door with Magnetic Catch, -E | Full Acrylic Door with Scored Insert & Cylinder Lock, -16 | Clear Acrylic 0.25" Thick, -17 | Bronze Acrylic 0.25" Thick, -18 | White Acrylic 0.25" Thick, -19 | Smoke Acrylic 0.25" Thick, -20 | Red Acrylic 0.25" Thick |
| Cabinet Style | Buena |
