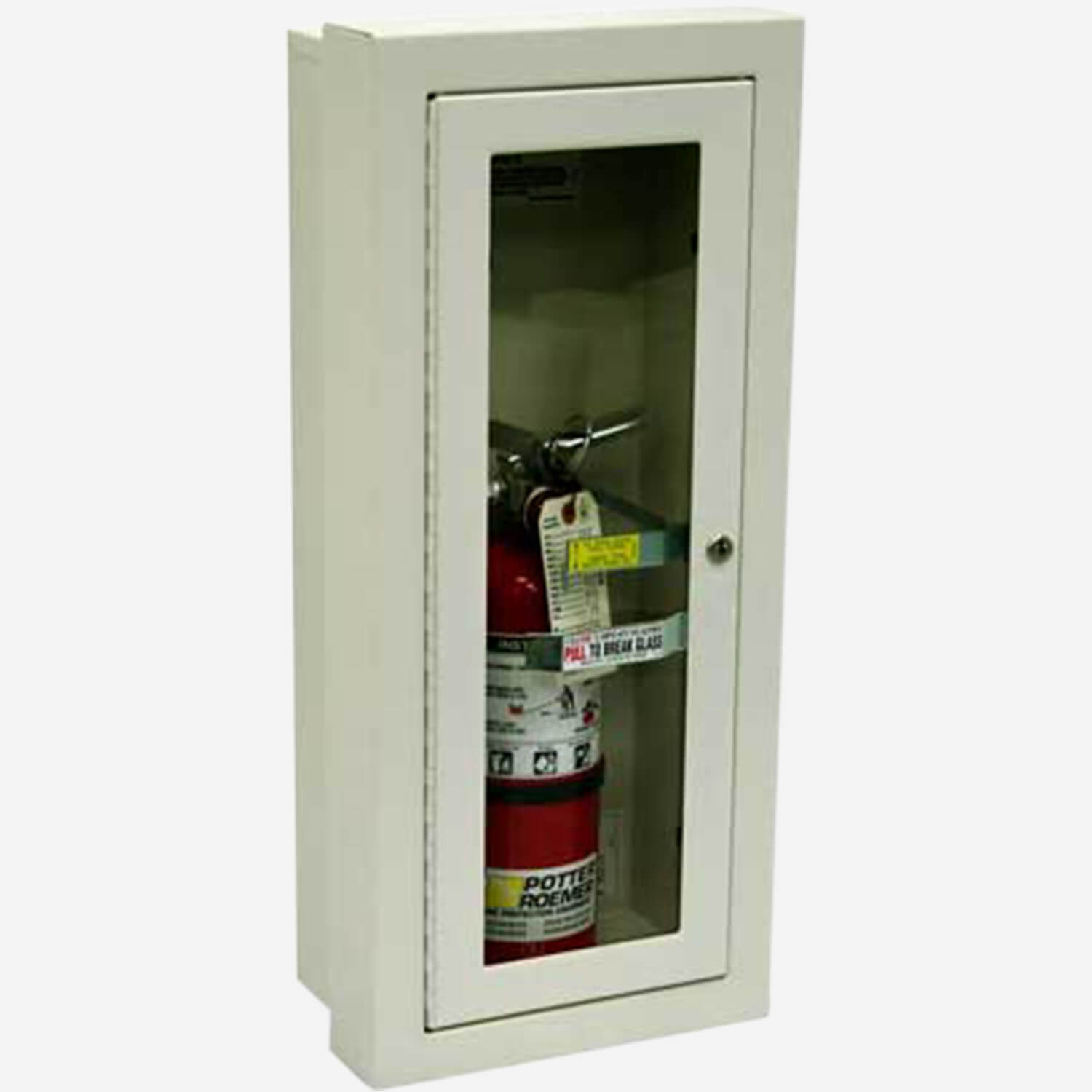

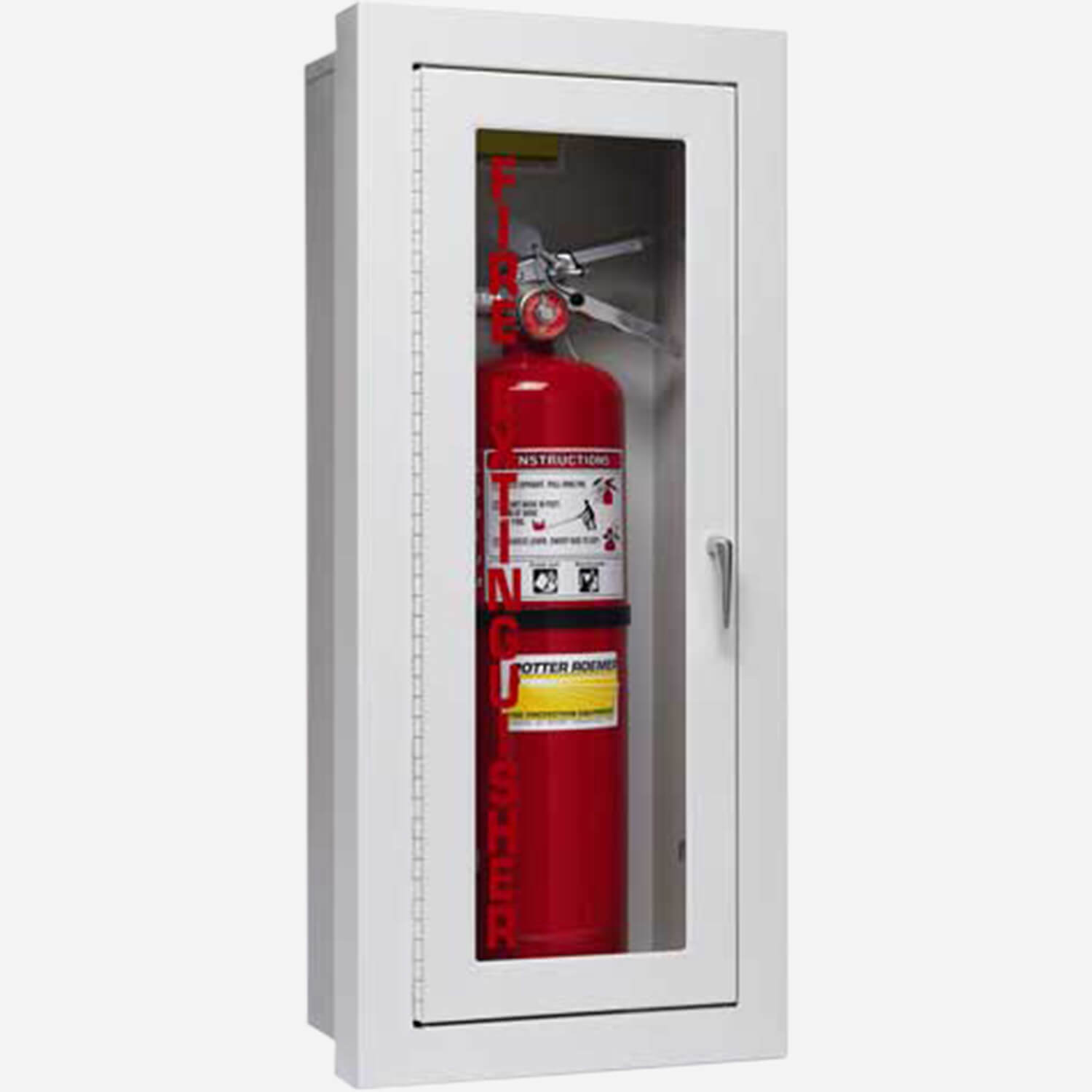

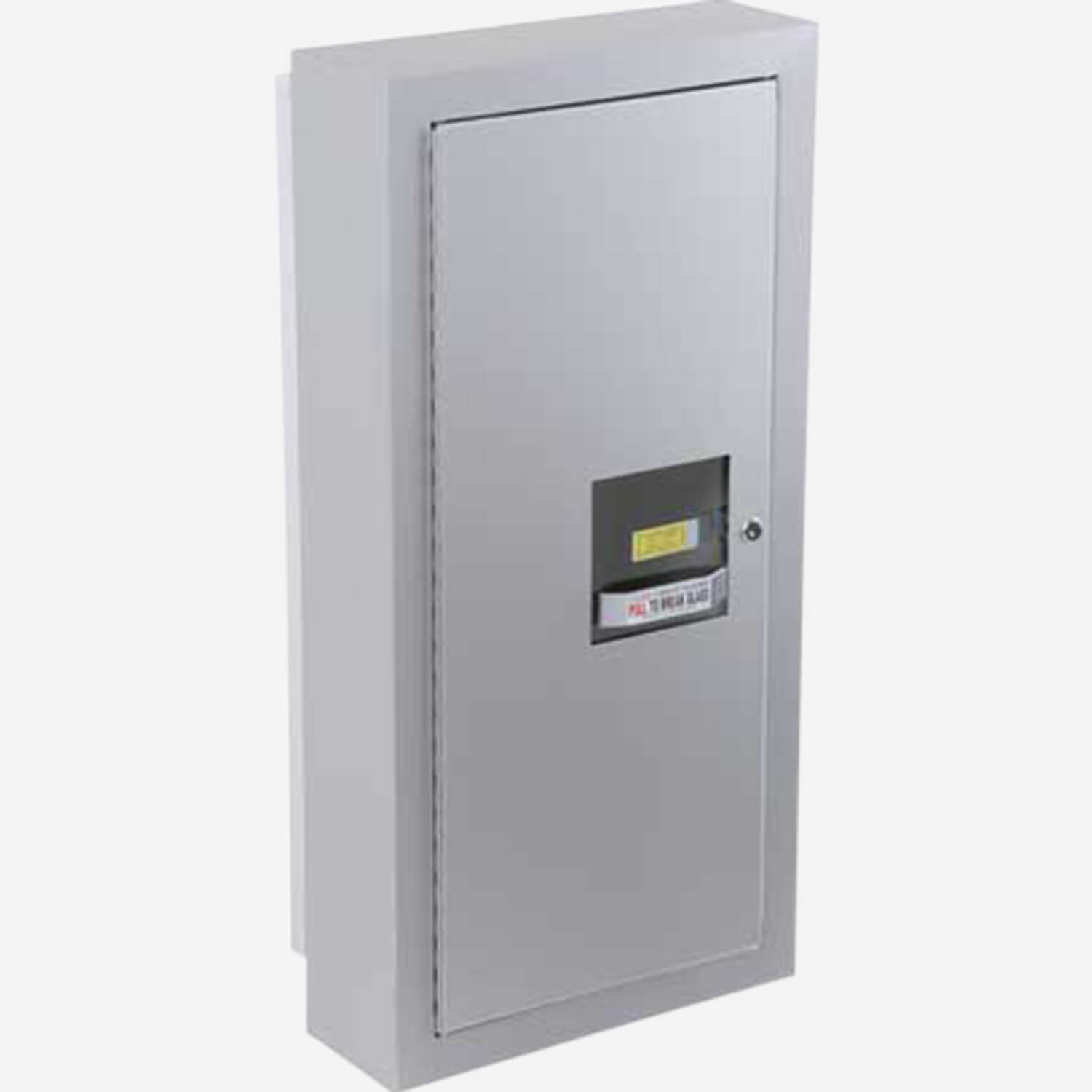

Fire Rated Semi-Recessed Alta Fire Extinguisher Cabinets
Model FRC7008 thru FRC7088
Submittal
Submittal FRC7000 Series Cabinets (pdf)




Model FRC7008 thru FRC7088
Fire Rated Semi-Recessed Alta Fire Extinguisher Cabinets

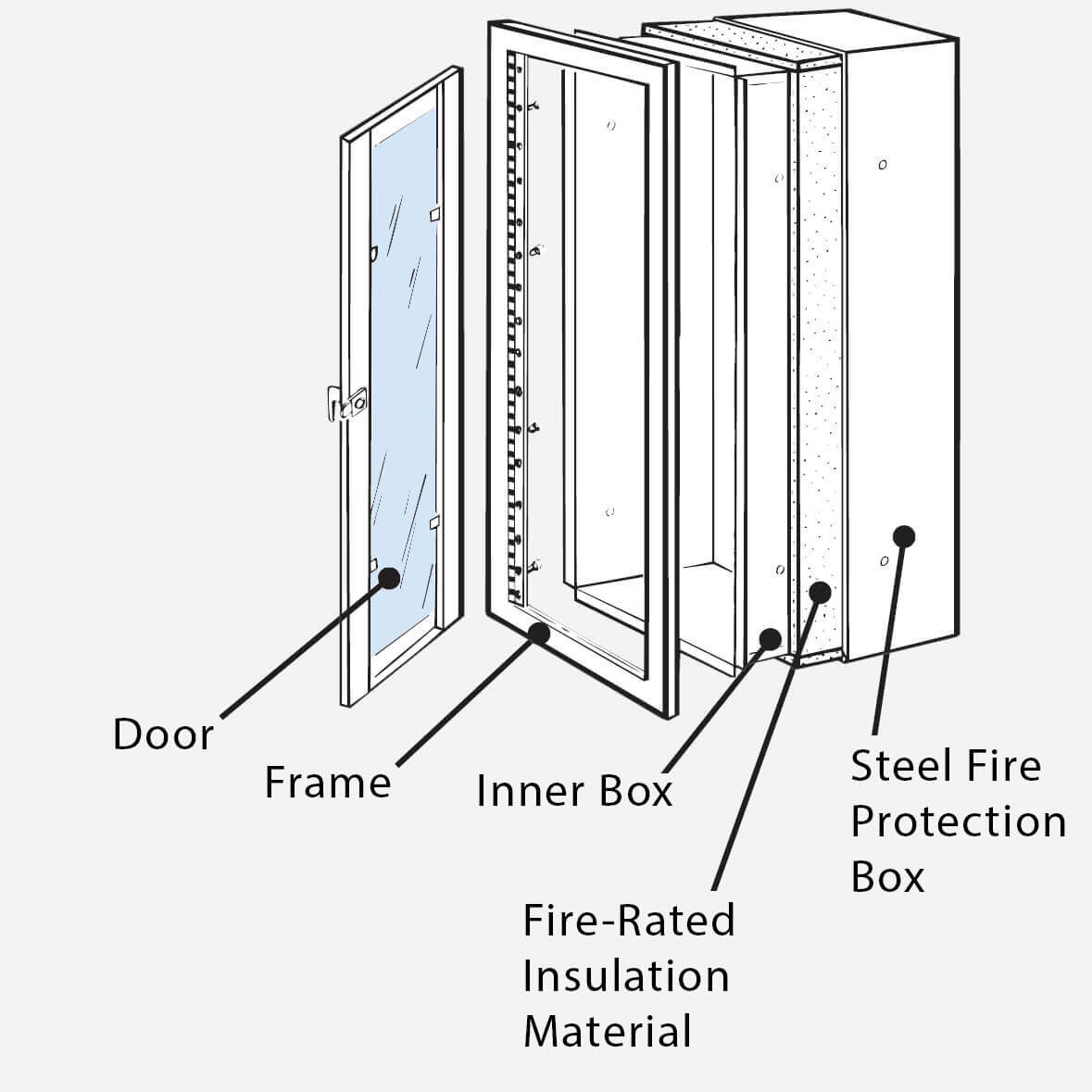

This fire-rated semi-recessed fire extinguisher cabinet is constructed from cold rolled steel with fire insulation material and an electrostatically applied thermally-fused polyester coating with recoatable white finish. The door has a continuous hinge. The door and frame are constructed from materials as follows: Model FRC7008-FRC7028: Galvannealed steel with recoatable white polyester finish; Model FRC7032- FRC7048: Aluminum with clear anodized finish; Model FRC7052- FRC7068: #304 Stainless steel with #4 finish; Model FRC7072- FRC7088: Polished Brass with clear polyester coated finish.
CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
![]() | ![]() | Alta Style Fire Extinguisher Cabinets, Fire Rated UL Classified, 7N43 [Models FRC7007-FRC7028 | Steel - Galvanneal steel with recoatable white polyester finish; Models FRC7030-FRC7048: Aluminum - Clear anodized finish; Models FRC7050-FRC7068 | Stainless Steel - #304 Stainless steel with #4 finish; Models FRC7070-FRC7088 | Brass - Polished finish, clear polyester coated] | 235 KB | ||
![]() | ![]() | MGI Brands Flyer (pdf) | 718 KB | ||
![]() | ![]() | Brochure Architectural Fire Cabinets - Includes Alta 7000 Series, Buena 7100 Series, Dana 7200 Series, Loma 7300 Series; Extinguisher/ Valve Cabinets Alta 8000 Series, Buena 8100 Series, Dana 8200 Series, Loma 8300 Series | 3 MB | ||
![]() | ![]() | Potter Roemer Architectural Fire Extiguisher Cabinets & Valve Cabinets (Alta, Buena, Dana, Loma) vs J-L Industries, Larsen's Manufacturing (updated 2026) | 113 KB |
Can't find what you are looking for? Get in touch
Specifications
Shows specifications for standard configuration. Configuration options may change specifications.
| Material | 22 Gauge Steel Box, Fire Insulation Material |
| Lettering | FIRE EXTINGUISHER (see options) |
Related Figure Numbers
Model | Description |
|---|---|
| FRC7008 | 2" Trim 9 x 18 x 5" Inside Box Steel Door & Frame |
| FRC7012 | 2" Trim 9 x 24 x 5" Inside Box Steel Door & Frame |
| FRC7022 | 2" Trim 9 x 24 x 5.75" Inside Box Steel Door & Frame |
| FRC7028 | 5" Trim 12 x 27 x 8" Inside Box Steel Door & Frame |
| FRC7032 | 2" Trim 9 x 24 x 5" Inside Box Aluminum Door & Frame |
| FRC7038 | 2" Trim 9 x 18 x 5" Inside Box Aluminum Door & Frame |
| FRC7042 | 2" Trim 9 x 24 x 5.75" Inside Box Aluminum Door & Frame |
| FRC7048 | 5" Trim 12 x 27 x 8" Inside Box Aluminum Door & Frame |
| FRC7052 | 2" Trim 9 x 24 x 5" Inside Box Stainless Steel Door & Frame |
| FRC7058 | 2" Trim 9 x 18 x 5" Inside Box Stainless Steel Door & Frame |
| FRC7062 | 2" Trim 9 x 24 x 5.75" Inside Box Stainless Steel Door & Frame |
| FRC7068 | 5" Trim 12 x 27 x 8" Inside Box Stainless Steel Door & Frame |
| FRC7072 | 2" Trim 9 x 24 x 5" Inside Box Brass Door & Frame |
| FRC7078 | 2" Trim 9 x 18 x 5" Inside Box Brass Door & Frame |
| FRC7082 | 2" Trim 9 x 24 x 5.75" Inside Box Brass Door & Frame |
| FRC7088 | 5" Trim 12 x 27 x 8" Inside Box Brass Door & Frame |
