Semi-Recessed Alta Fire Extinguisher Cabinets

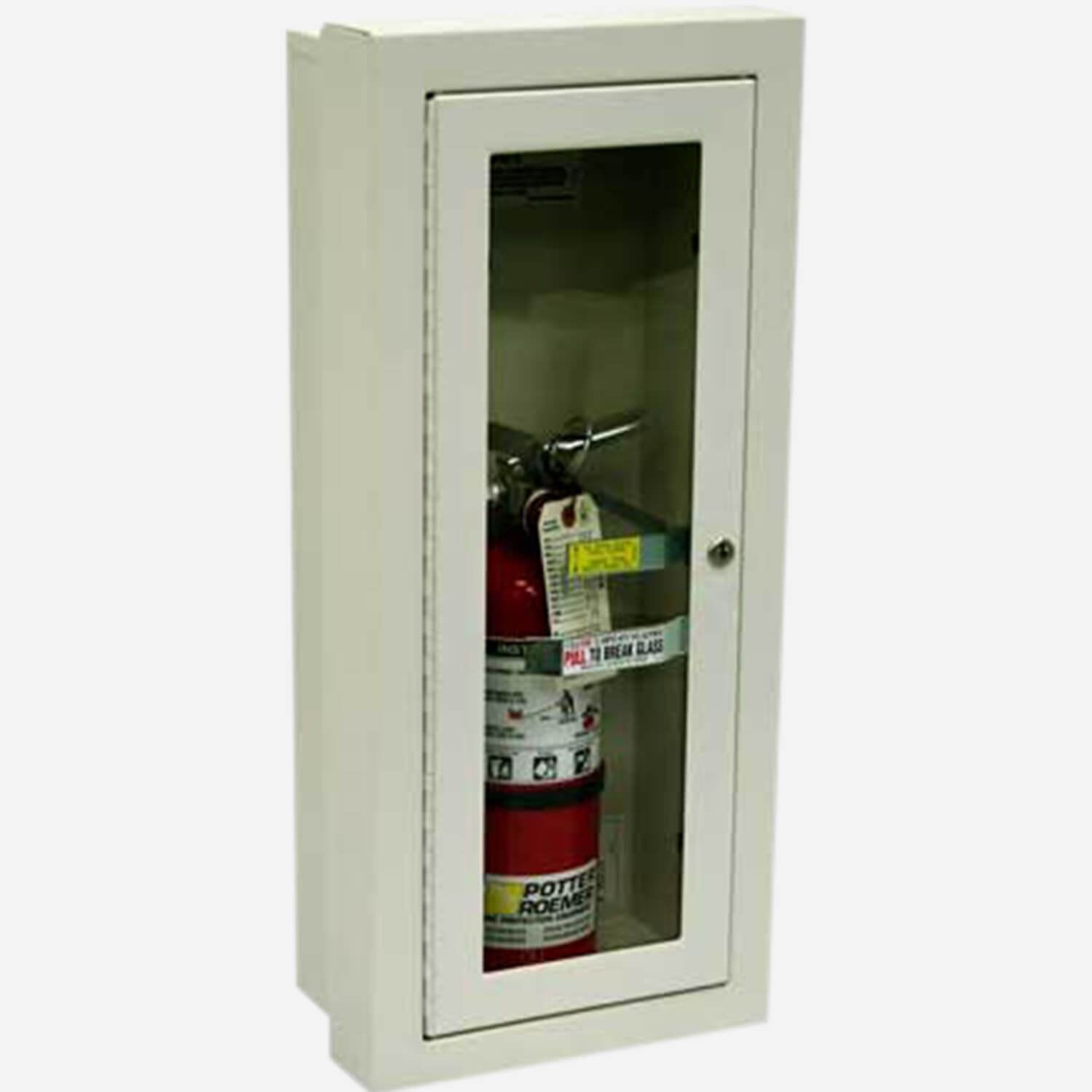

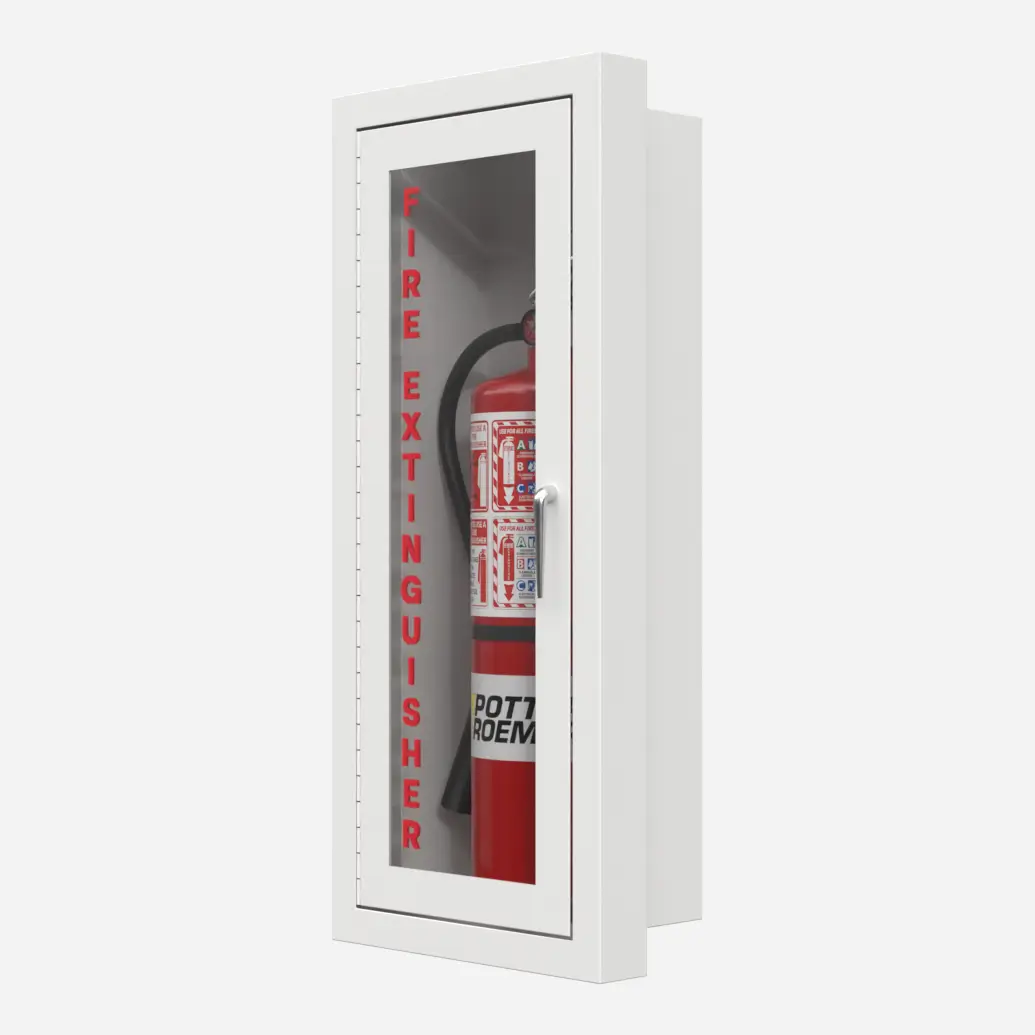

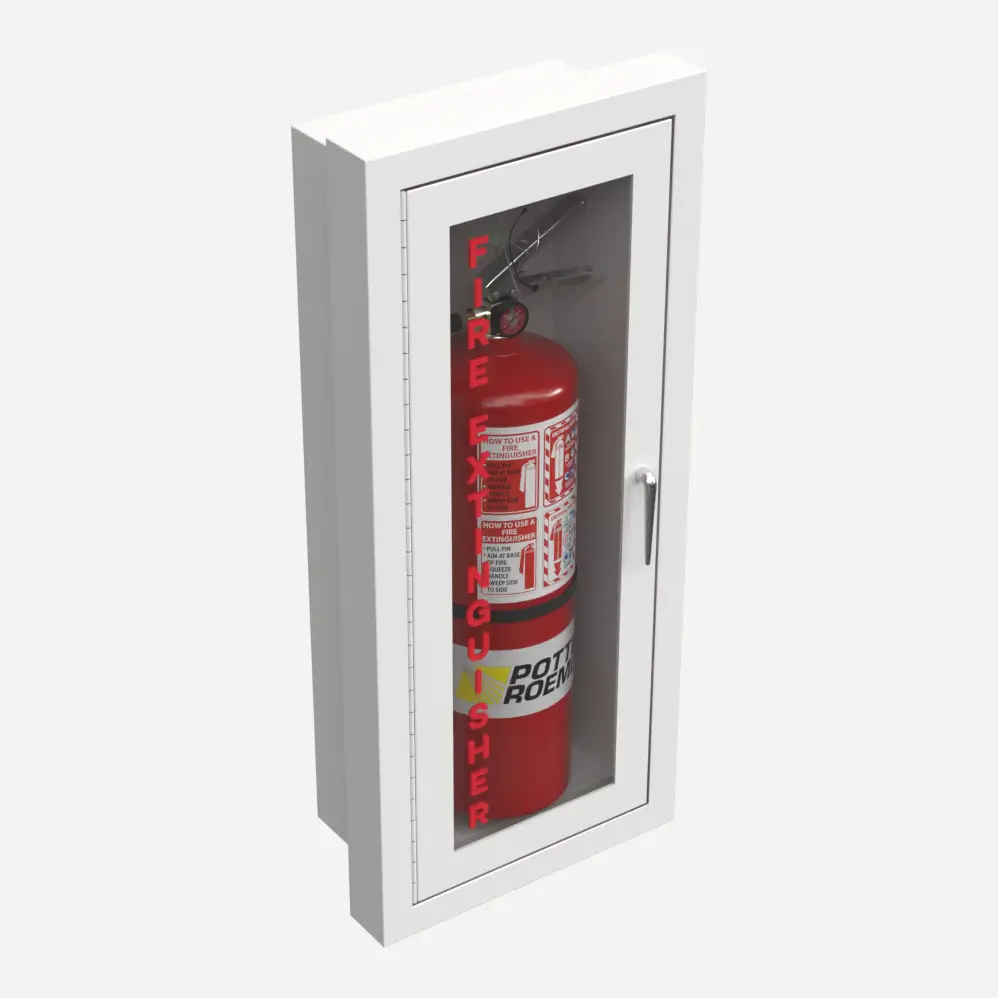

This semi-recessed fire extinguisher cabinet is constructed from galvannealed steel with an electrostatically applied thermally-fused polyester coating with recoatable white finish and a continuous hinge.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Alta Style Fire Extinguisher Cabinets [ Models 7007-7029 | Steel - Galvanneal steel with recoatable white polyester finish; Models 7030-7049 | Aluminum - Clear anodized finish; Models 7050-7069 | Stainless Steel - #304 Stainless steel with #4 finish; Model 7070-7089: Brass - Polished finish, clear polyester coated] | 0 | 236 KB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB | ||
| | Brochure Architectural Fire Cabinets - Includes Alta 7000 Series, Buena 7100 Series, Dana 7200 Series, Loma 7300 Series; Extinguisher/ Valve Cabinets Alta 8000 Series, Buena 8100 Series, Dana 8200 Series, Loma 8300 Series | 0 | 3 MB |
Specifications
| Material | Galvannealed Steel |
| Accessibilty | ADA Compliant |
| ADA Models | All models in this series |
| Inside Box Dimension | 9 x 18 x 5", 9 x 24 x 5", 9 x 24 x 5.75", 12 x 27 x 8" |
| Lettering | FIRE EXTINGUISHER (see options) |
| Mounting | Semi-Recessed |
| Cabinet Style | Alta |
| Door/Frame Finish | -AL | Aluminum (Clear Anodized Finish - STD), -PB | Brass (Polished Finish - STD), -SS | Stainless Steel (304 with #4 Finish - STD) |
| Capacity | 3002, 3005, 3005-3, 3010, 3020, 3202, 3260, 3262, 3302, 3305-PK, 3320-PK, 3405, 3410 |

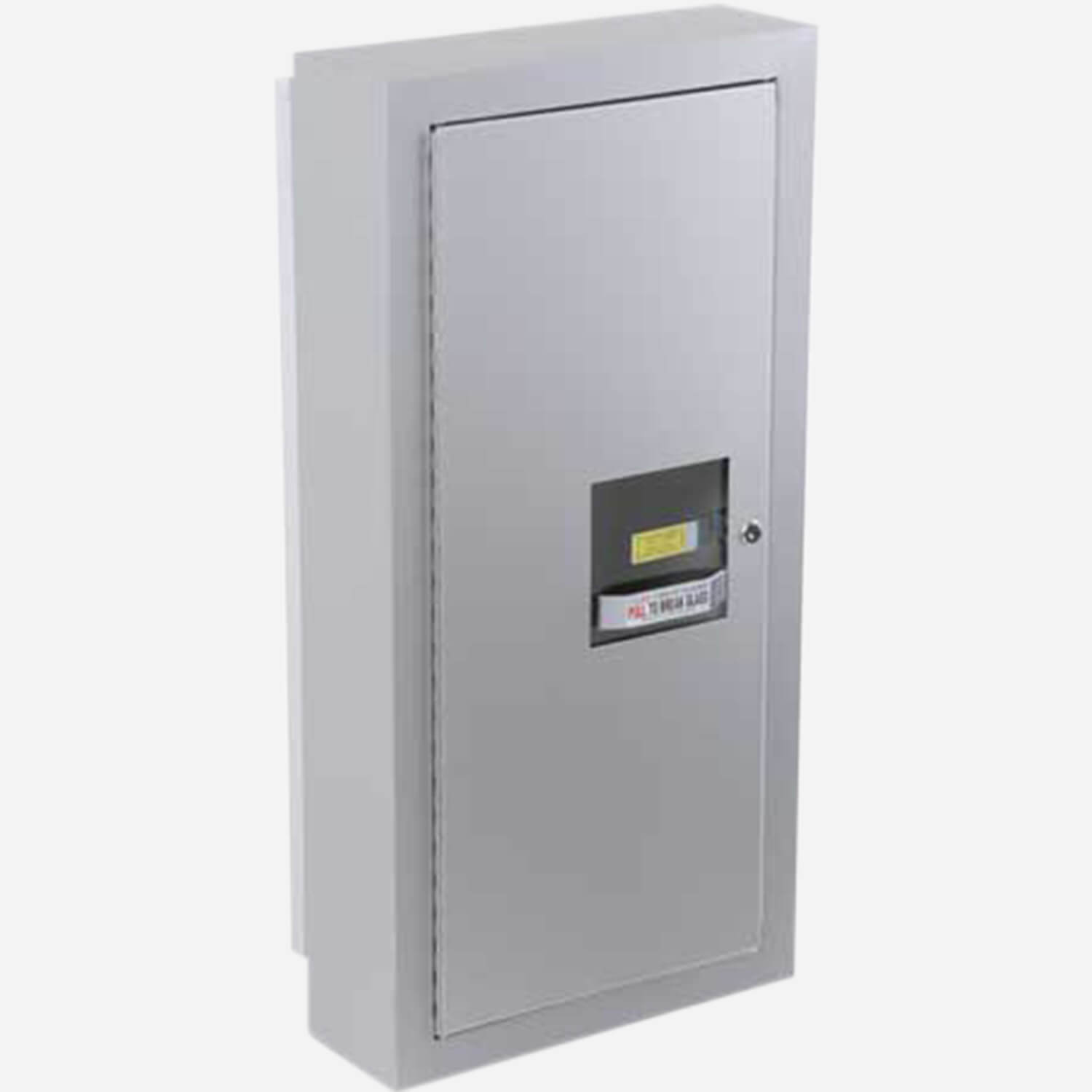

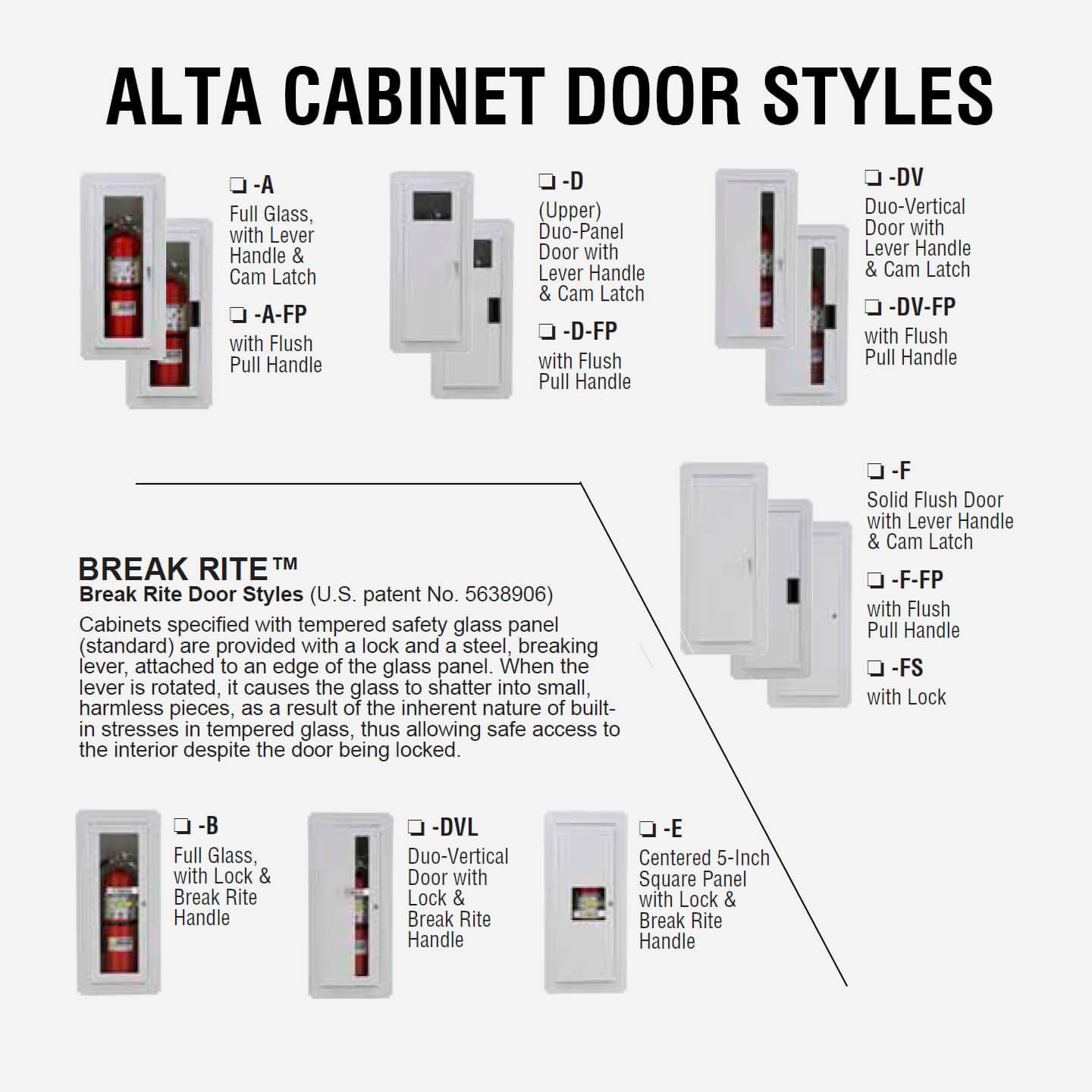

| Door Style | -A-FP | Full Glass w/ Tempered Safety Glass & Flush Pull Handle, -A | Full Glass w/ Tempered Safety Glass, -B | Break-Glass w/lock & Break Rite® Handle, -D | Duo-Panel w/ Tempered Safety Glass, -D-FP |Duo-Panel w/Tempered Safety Glass & Flush Pull Handle, -DV | Duo-Vertical Panel w/ Tempered Safety Glass, -DV-FP | Duo-Vertical Panel w/ Tempered Safety Glass & Flush Pull Handle, -DVL | Duo-Vertical Panel with Lock, TSG & Break Rite® Handle, -E | Tempered Safety Glass (25 sq. in.) w/ Break Rite® Handle, -F | Flush Solid Metal, -F-FP | Flush Solid Metal & Flush Pull Handle, -FS | Flush Solid Metal w/ Lock |
| Fire Rated | Not necessary |
Models
The box of the cabinet is manufactured of Galvannealed Steel with an electrostatically applied, thermally-fused polyester coating with recoatable white finish. The door and frame are constructed from materials as follows:

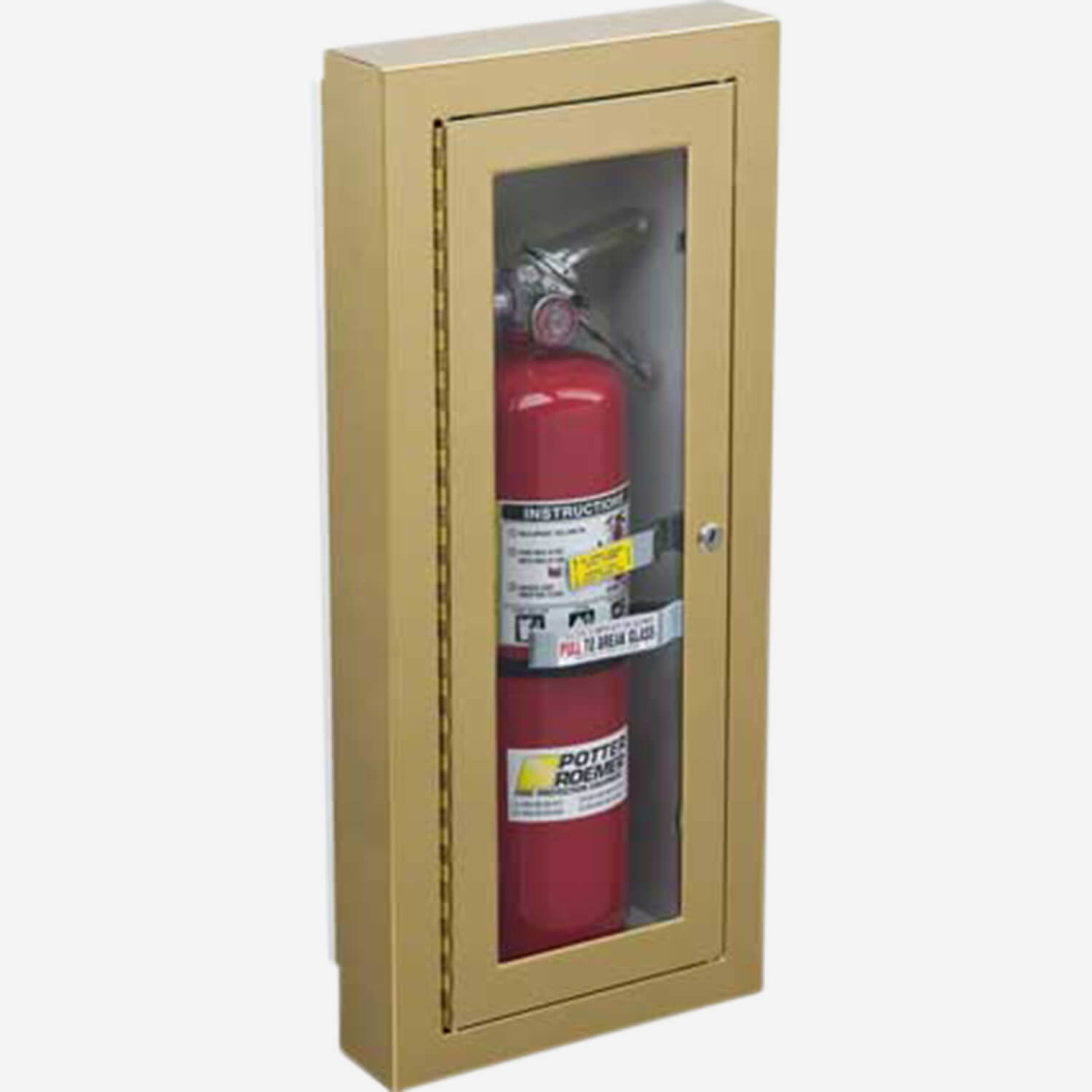

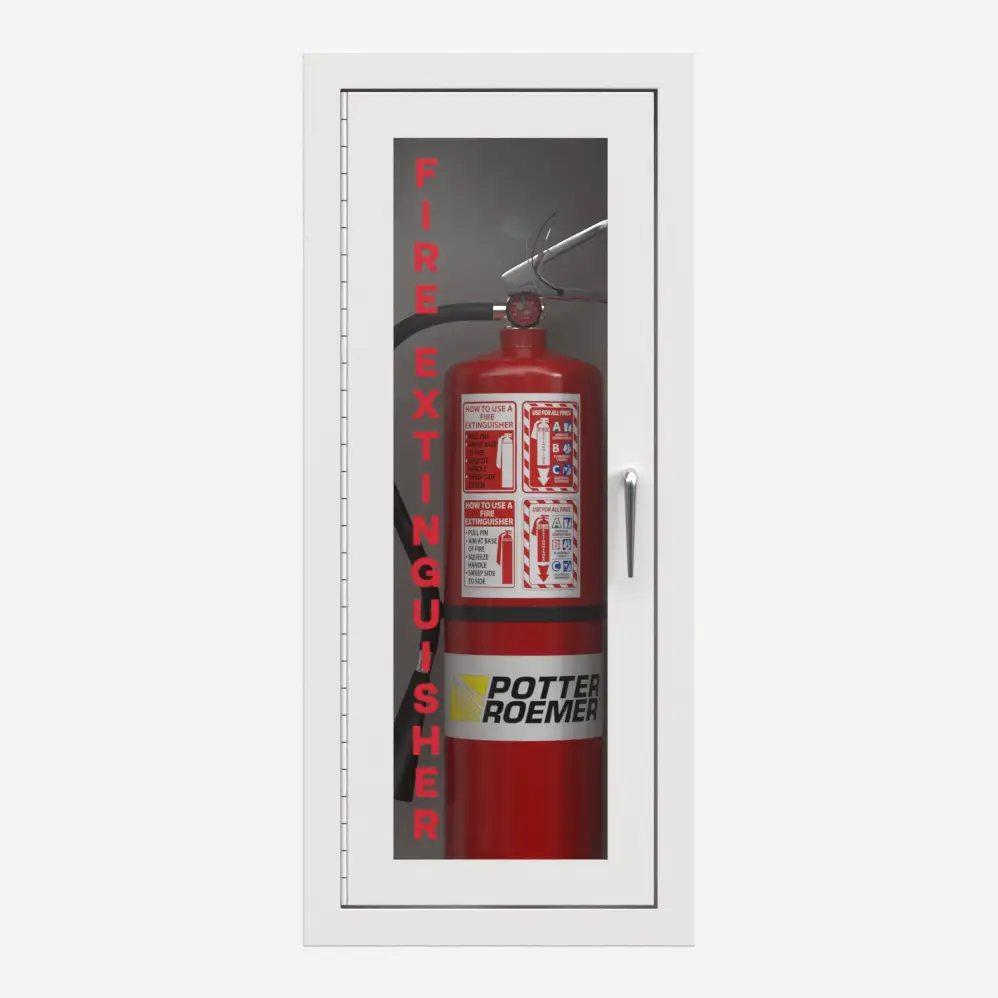

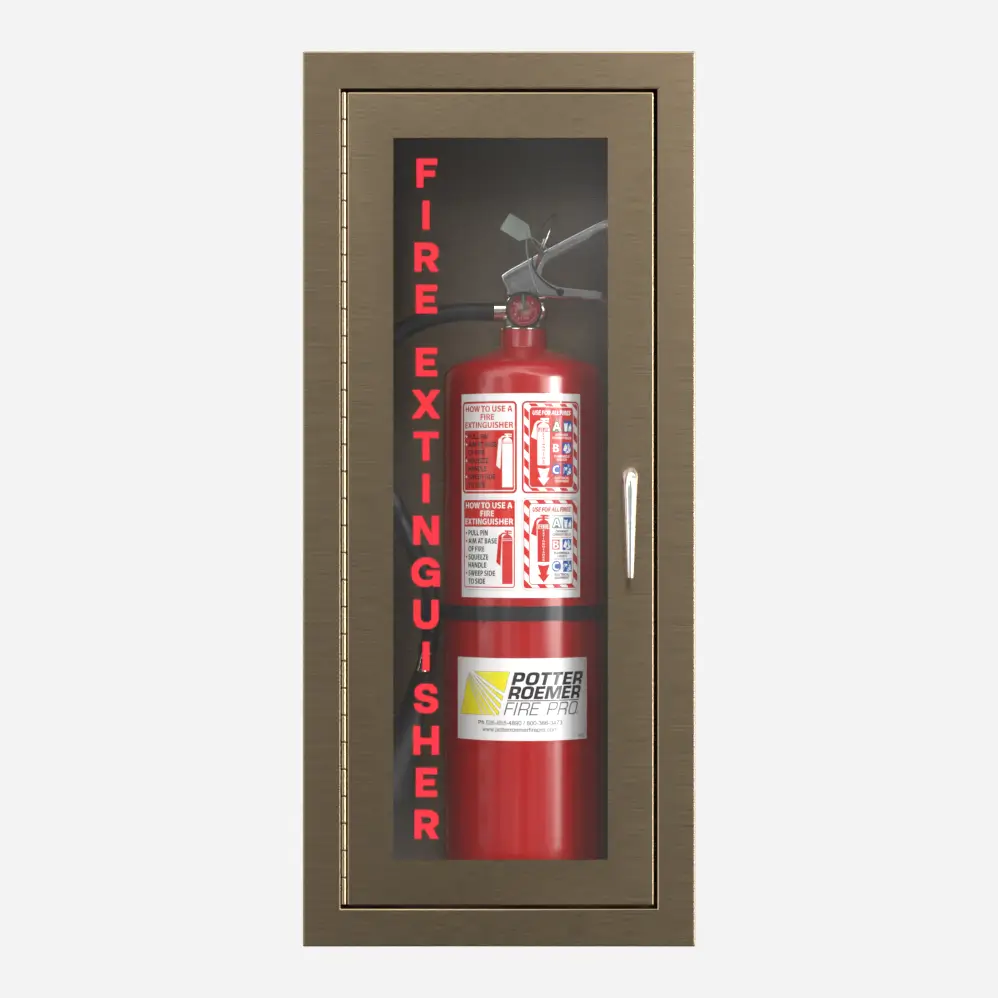

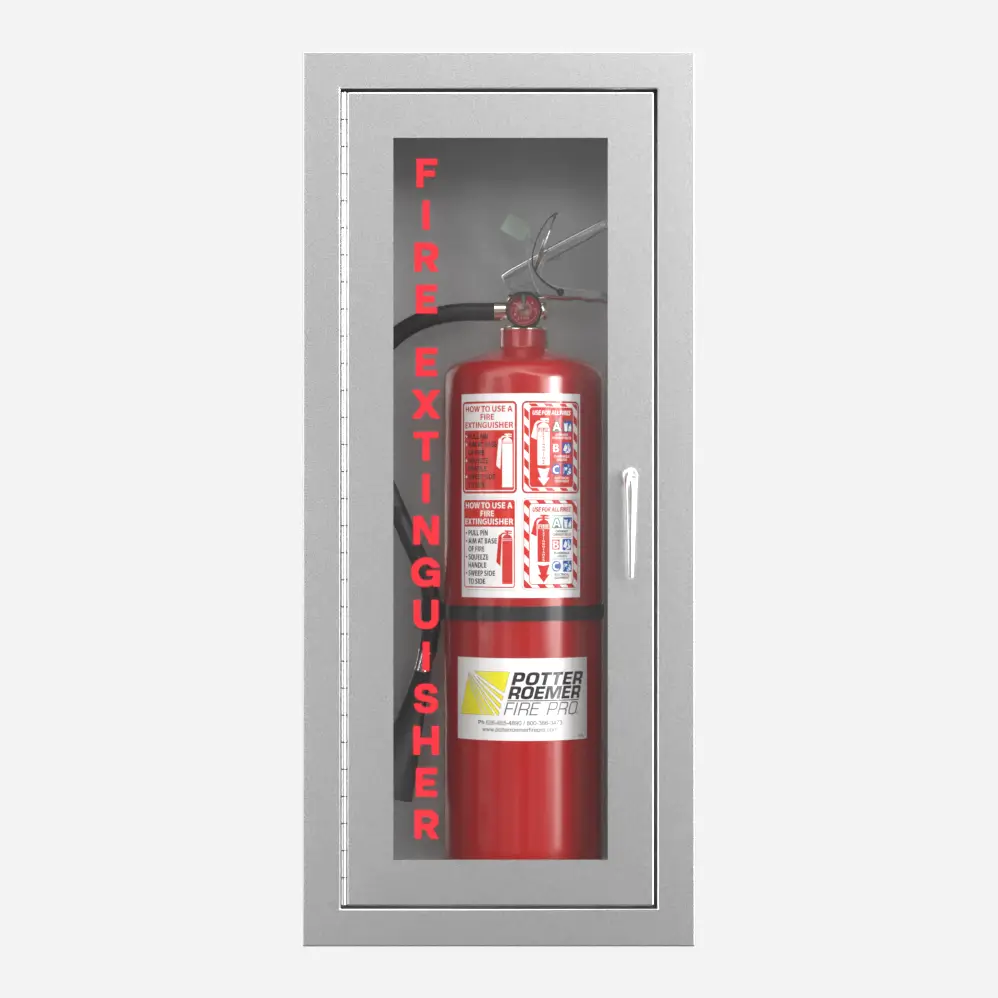

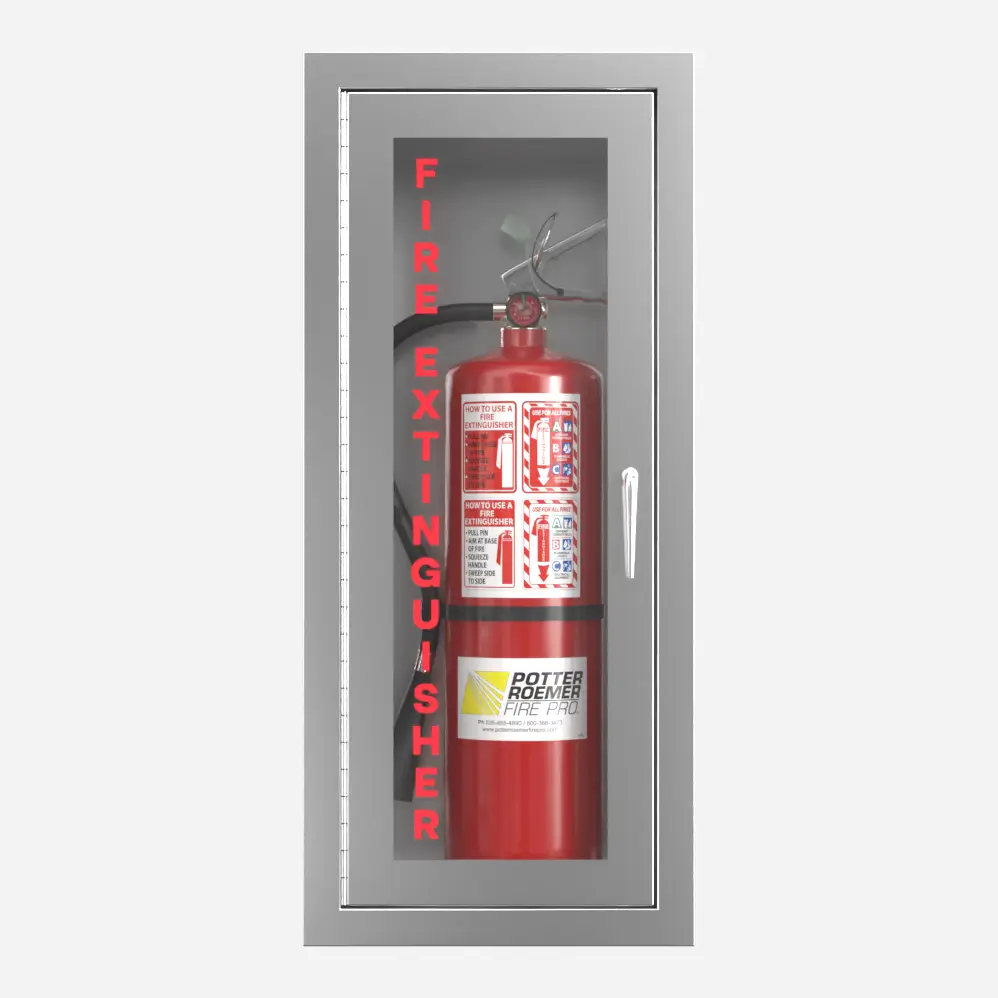

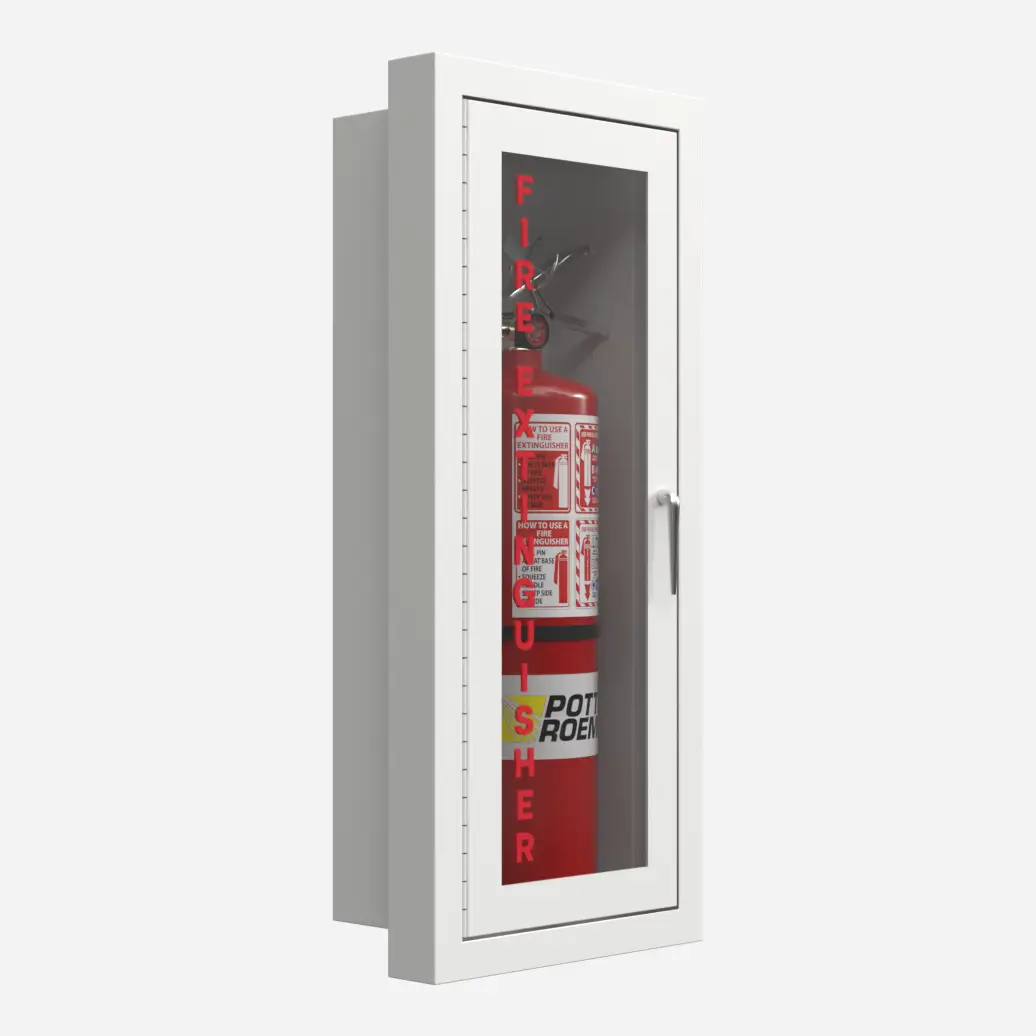

Model 7008, 7012, 7022, 7027, 7028 | Galvannealed steel with recoatable white polyester finish Model 7038, 7032, 7042, 7047, 7048 | Aluminum with clear anodized finish Model 7058, 7052, 7062, 7067, 7068 | #304 Stainless steel with #4 finish Model 7078, 7072, 7082, 7087, 7088 | Polished brass with a clear polyester coated finish
