Model 7013 thru 7083
Rolled Radius 3" Trim Semi-Recessed Alta Fire Extinguisher Cabinets

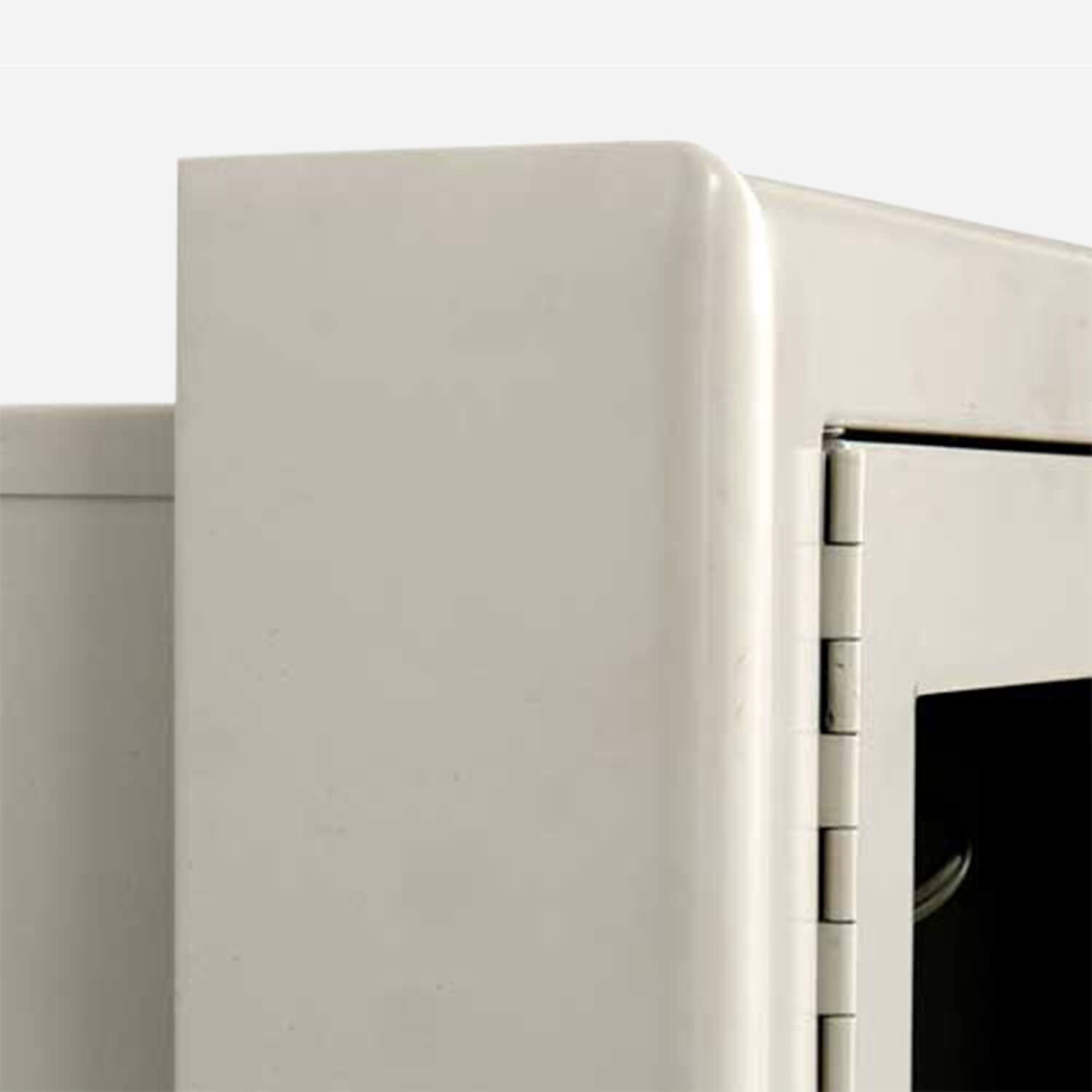

This Alta semi-recessed fire extinguisher cabinet has a 3" (76.2 mm) trim with a rolled radius. The box is manufactured from Galvannealed Steel with an electrostatically applied, thermally-fused polyester coating with recoatable white finish. The door hinge is continuous hinge type.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Alta Style Fire Extinguisher Cabinets [ Models 7007-7029 | Steel - Galvanneal steel with recoatable white polyester finish; Models 7030-7049 | Aluminum - Clear anodized finish; Models 7050-7069 | Stainless Steel - #304 Stainless steel with #4 finish; Model 7070-7089: Brass - Polished finish, clear polyester coated] | 0 | 236 KB | ||
| | 0 | 803 KB | |||
| | MGI Brands Flyer (pdf) | 0 | 718 KB | ||
| | Brochure Architectural Fire Cabinets - Includes Alta 7000 Series, Buena 7100 Series, Dana 7200 Series, Loma 7300 Series; Extinguisher/ Valve Cabinets Alta 8000 Series, Buena 8100 Series, Dana 8200 Series, Loma 8300 Series | 0 | 3 MB |
Specifications
| Material | Galvannealed Steel |
| Lettering | FIRE EXTINGUISHER (see options) |
| Cabinet Style | Alta |
| Inside Box Dimension | 9 x 24 x 5", 9 x 24 x 5.75" |
| Door/Frame Finish | -SS | Stainless Steel (304 with #4 Finish - STD), -PB | Brass (Polished Finish - STD), -AL | Aluminum (Clear Anodized Finish - STD) |
| Capacity | 3002, 3005, 3005-3, 3305-PK, 3302, 3010, 3310-PK, 3405 |

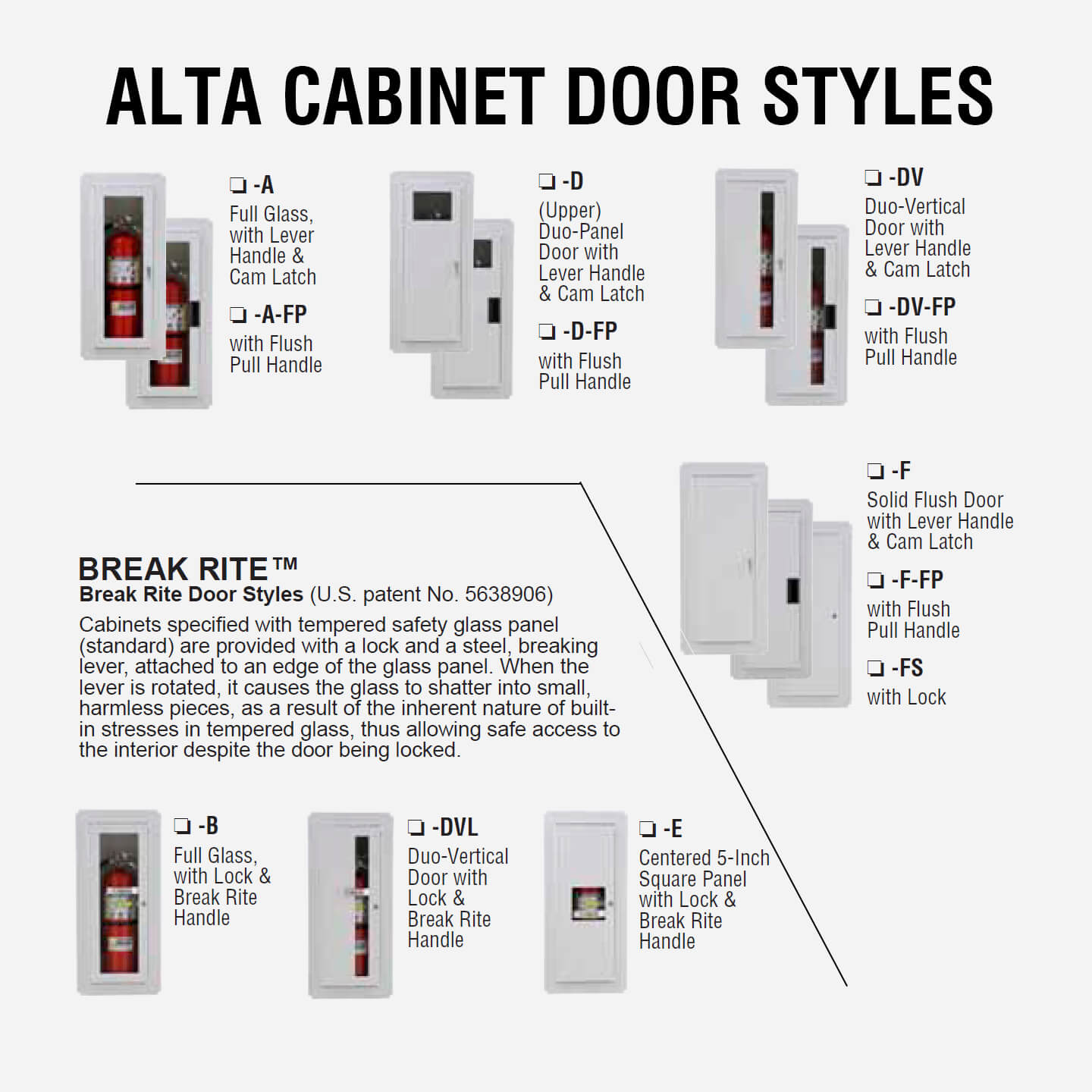

| Door Style | -A-FP | Full Glass w/ Tempered Safety Glass & Flush Pull Handle, -B | Break-Glass w/lock & Break Rite® Handle, -D | Duo-Panel w/ Tempered Safety Glass, -D-FP |Duo-Panel w/Tempered Safety Glass & Flush Pull Handle, -DV | Duo-Vertical Panel w/ Tempered Safety Glass, -DV-FP | Duo-Vertical Panel w/ Tempered Safety Glass & Flush Pull Handle, -DVL | Duo-Vertical Panel with Lock, TSG & Break Rite® Handle, -E | Tempered Safety Glass (25 sq. in.) w/ Break Rite® Handle, -F | Flush Solid Metal, -F-FP | Flush Solid Metal & Flush Pull Handle, -FS | Flush Solid Metal w/ Lock, -A | Full Glass w/ Tempered Safety Glass |
| Fire Rated | Not necessary |
Models
The box of the cabinet is manufactured of Galvannealed Steel with an electrostatically applied, thermally-fused polyester coating with recoatable white finish. The door and frame are constructed from materials as follows:

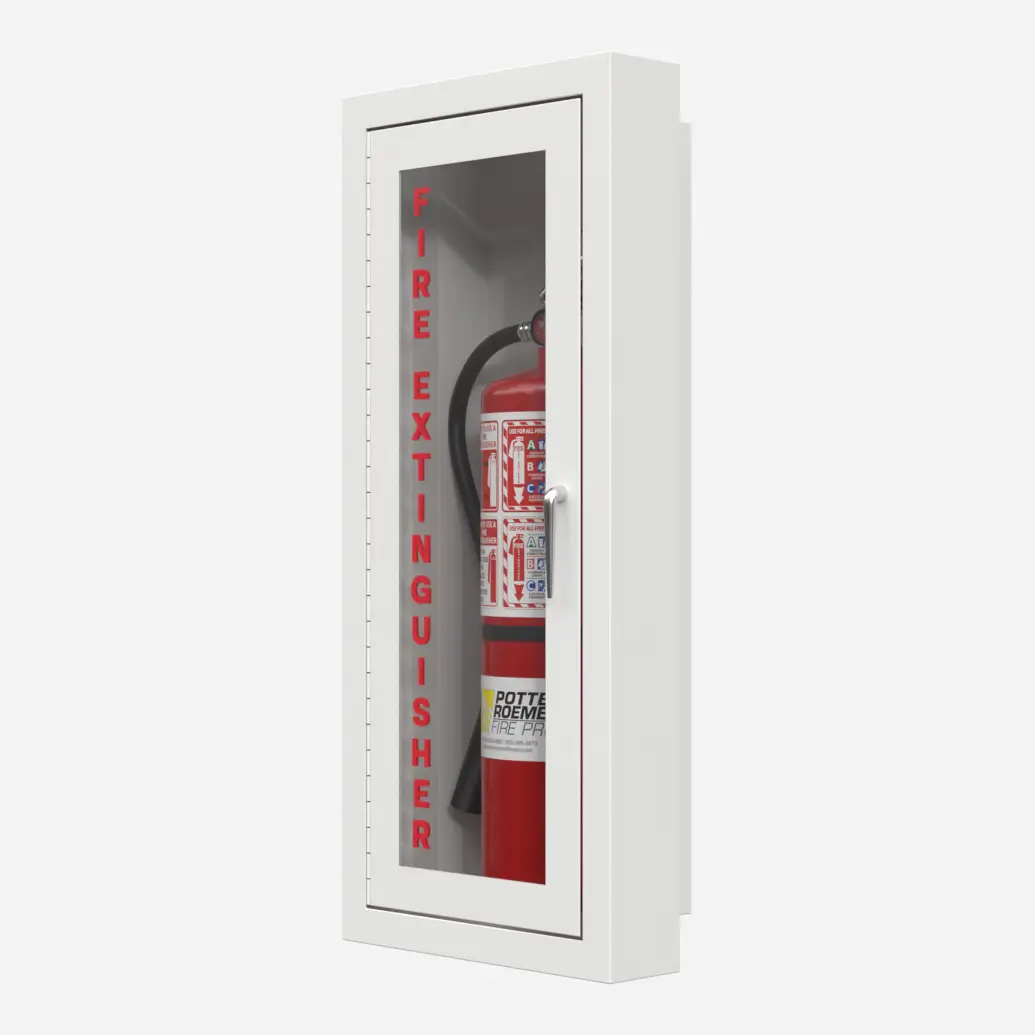

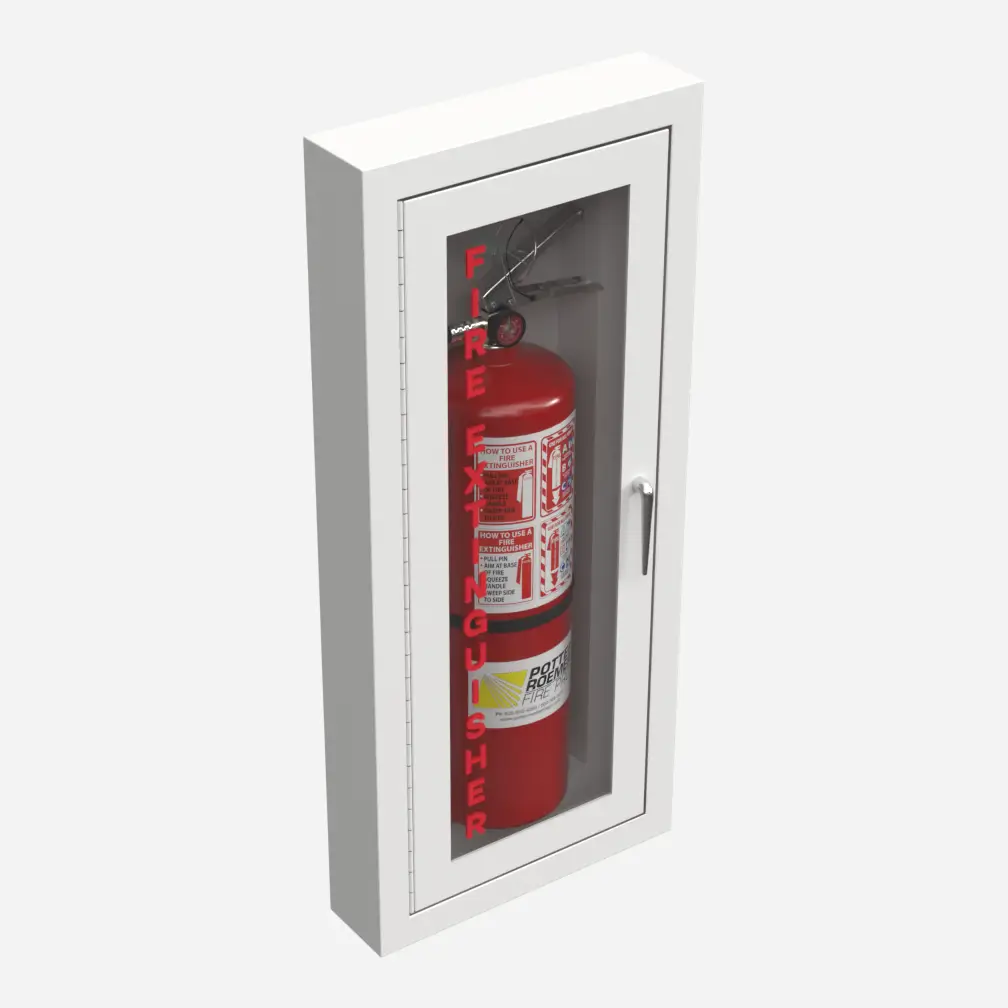

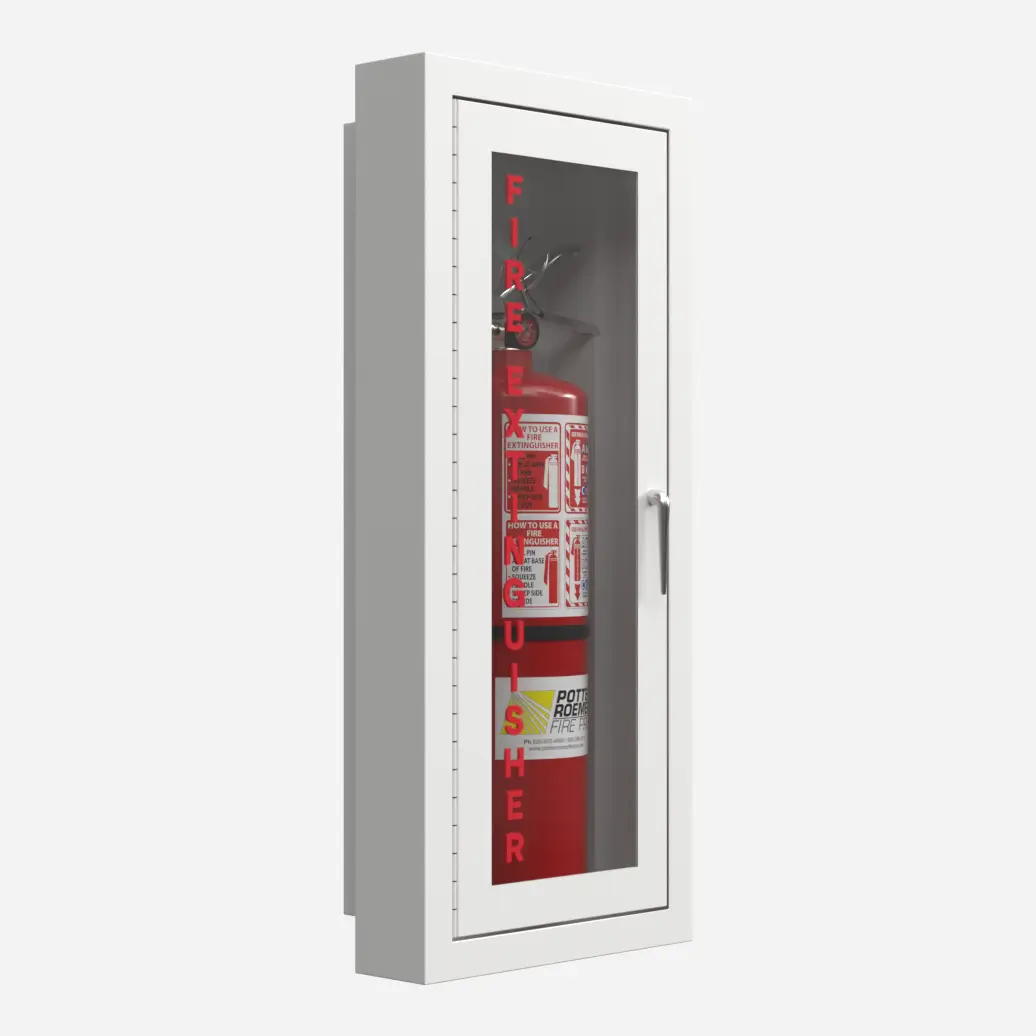

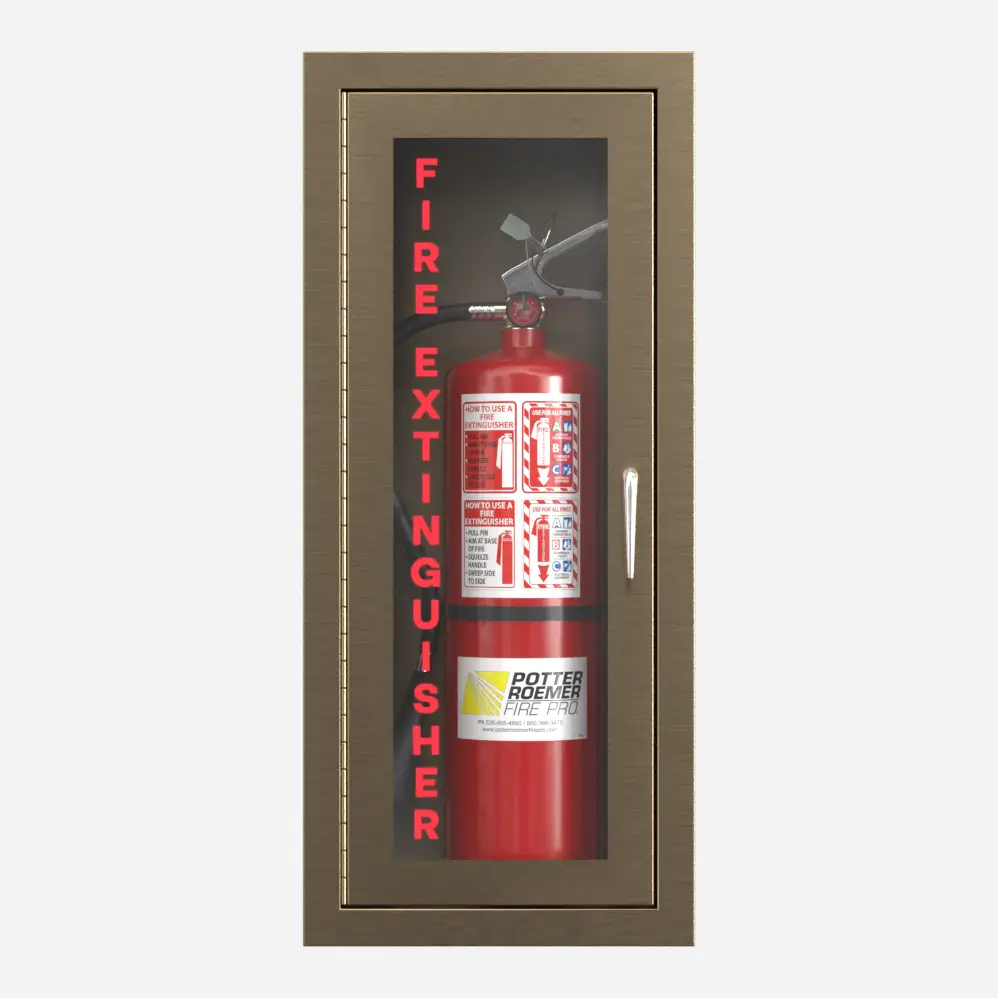

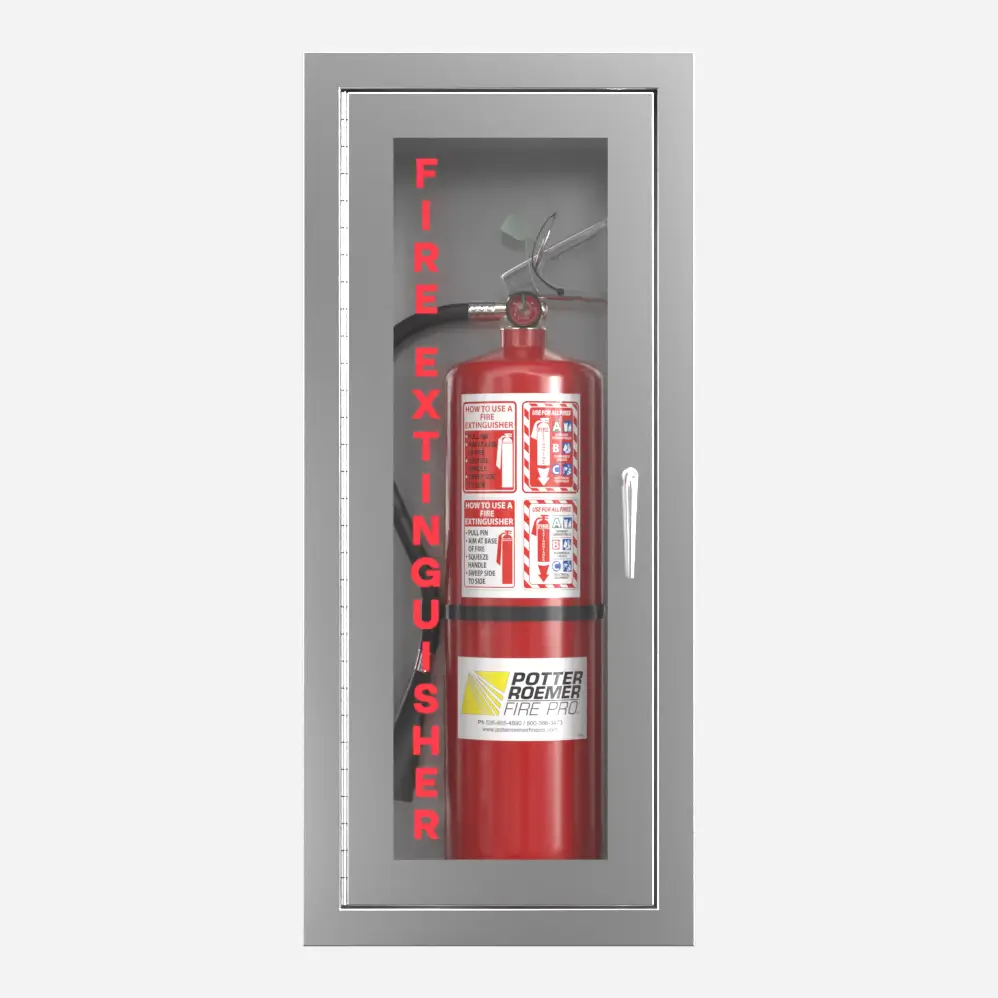

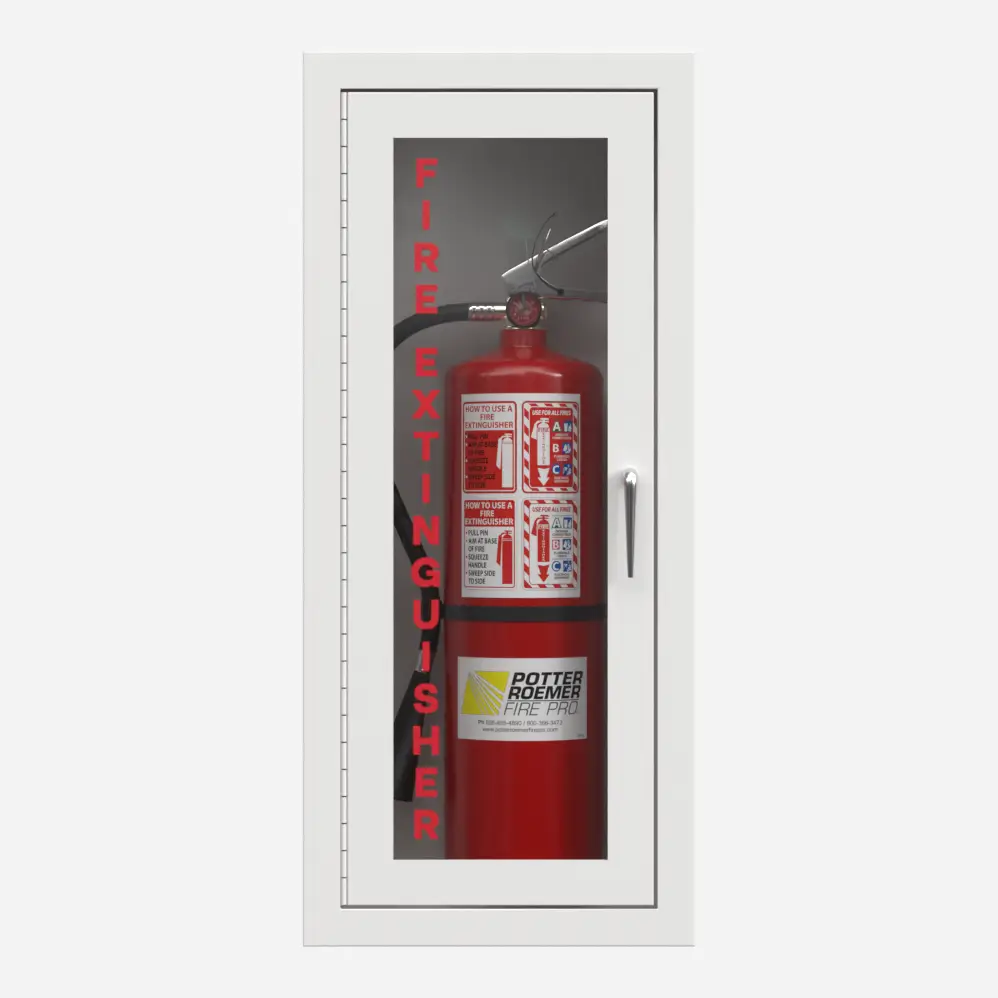

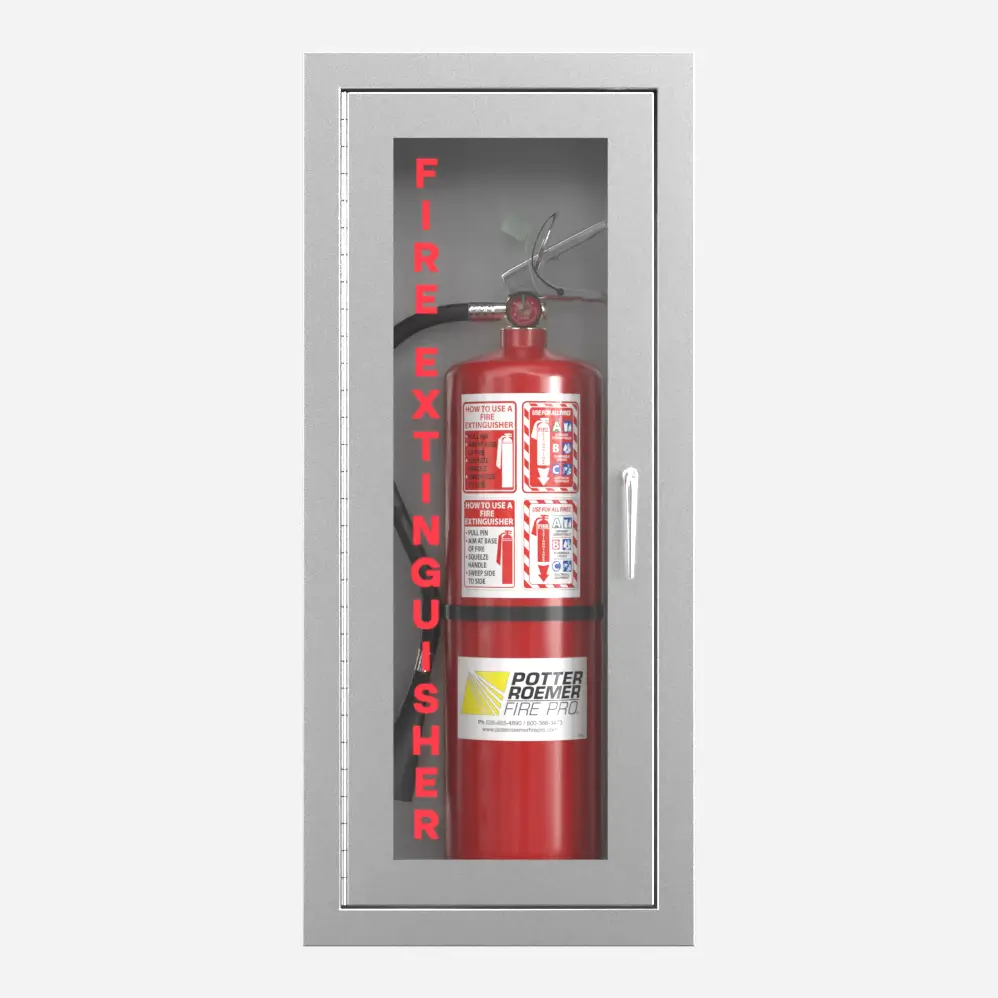

Models 7013 and 7023 | Galvannealed steel with recoatable white polyester finishModels 7033 and 7043 | Aluminum with clear anodized finishModels 7053 and 7063 | #304 Stainless steel with #4 finishModels 7073 and 7083 | Polished brass with a clear polyester coated finish
