Surface Alta Valve Cabinet
Model 8024 thru 8084
Submittal
Submittal 8000 Series Cabinet


Model 8024 thru 8084
Surface Alta Valve Cabinet

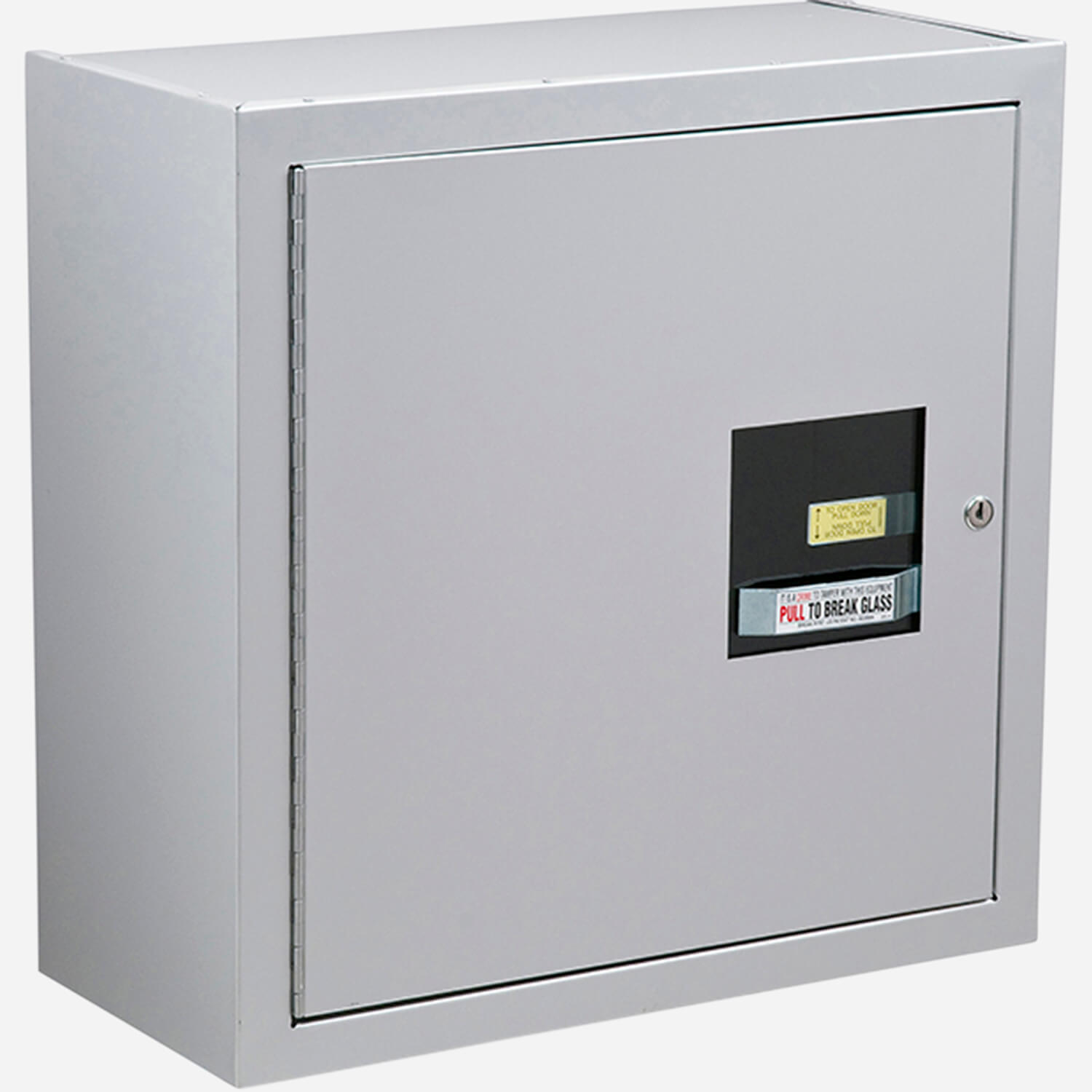

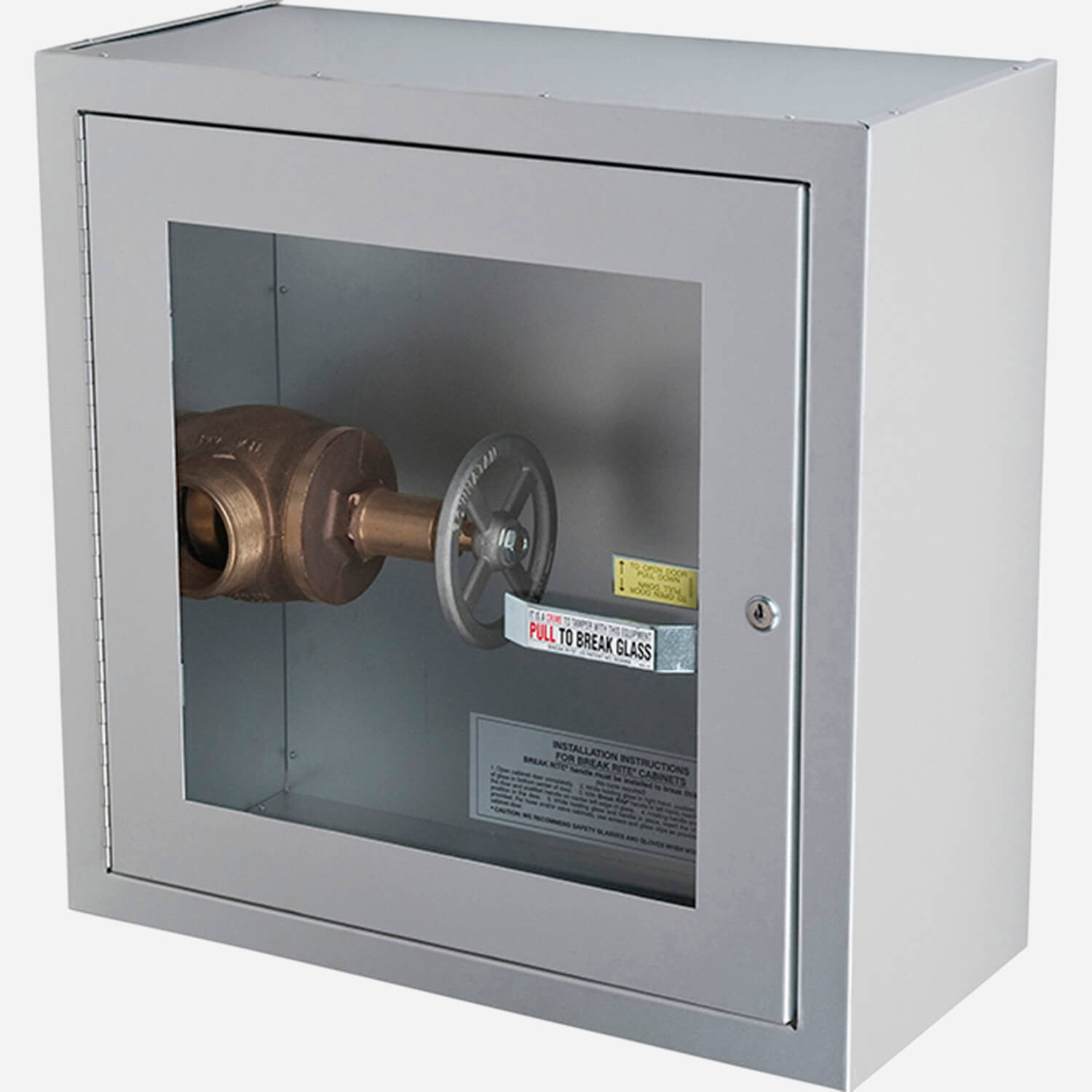

These Alta Valve Cabinets are designed to mount on the finished wall and hold a 2-1/2" Angle Valve. The box is constructed from galvannealed steel with an electrostatically applied thermally-fused polyester coating with recoatable white finish and continuous hinge. The door and frame are constructed from materials as follows: Model 8024: galvannealed steel with recoatable white polyester finish; Model 8044: Aluminum with clear anodized finish; Model 8064: #304 Stainless steel with #4 finish; Model 8084: Polished brass with a clear finish.
CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
![]() | ![]() | 8020, 8025, 8040, 8045, 8060, 8065, 8080, 8085 Rec.; 8022, 8027, 8042, 8047, 8062, 8067, 8082, 8087 Semi-Rec.; 8021, 8026, 8041, 8046, 8061, 8066, 8081, 8086 Trimless; 8024, 8029, 8044, 8049, 8064, 8069, 8084, 8089 Surface Cabinets | 877 KB | ||
![]() | ![]() | MGI Brands Flyer (pdf) | 718 KB | ||
![]() | ![]() | Brochure Architectural Fire Cabinets - Includes Alta 7000 Series, Buena 7100 Series, Dana 7200 Series, Loma 7300 Series; Extinguisher/ Valve Cabinets Alta 8000 Series, Buena 8100 Series, Dana 8200 Series, Loma 8300 Series | 3 MB |
Can't find what you are looking for? Get in touch
Specifications
Shows specifications for standard configuration. Configuration options may change specifications.
| Cabinet Style | Alta |
| Material | Galvannealed Steel, Aluminum, Stainless Steel, Brass |
| Mounting | Surface |
| Lettering | FIRE DEPT VALVE |
Related Figure Numbers
Model | Description |
|---|---|
| 8024 | White Galvannealed Steel Surface Mount Cabinet |
| 8044 | Aluminum Surface Mount Cabinet |
| 8064 | Stainless Steel Surface Mount Cabinet |
| 8084 | Brass Surface Mount Cabinet |
