Surface Buena Valve Cabinet

Name: Surface Buena Valve Cabinet
Brand: Potter Roemer
SKU: 8124 thru 8184

Contact a Representative

Model 8124 thru 8184

Submittal

Submittal 8100 Series Cabinet (pdf)

Model 8124 thru 8184

Surface Buena Valve Cabinet

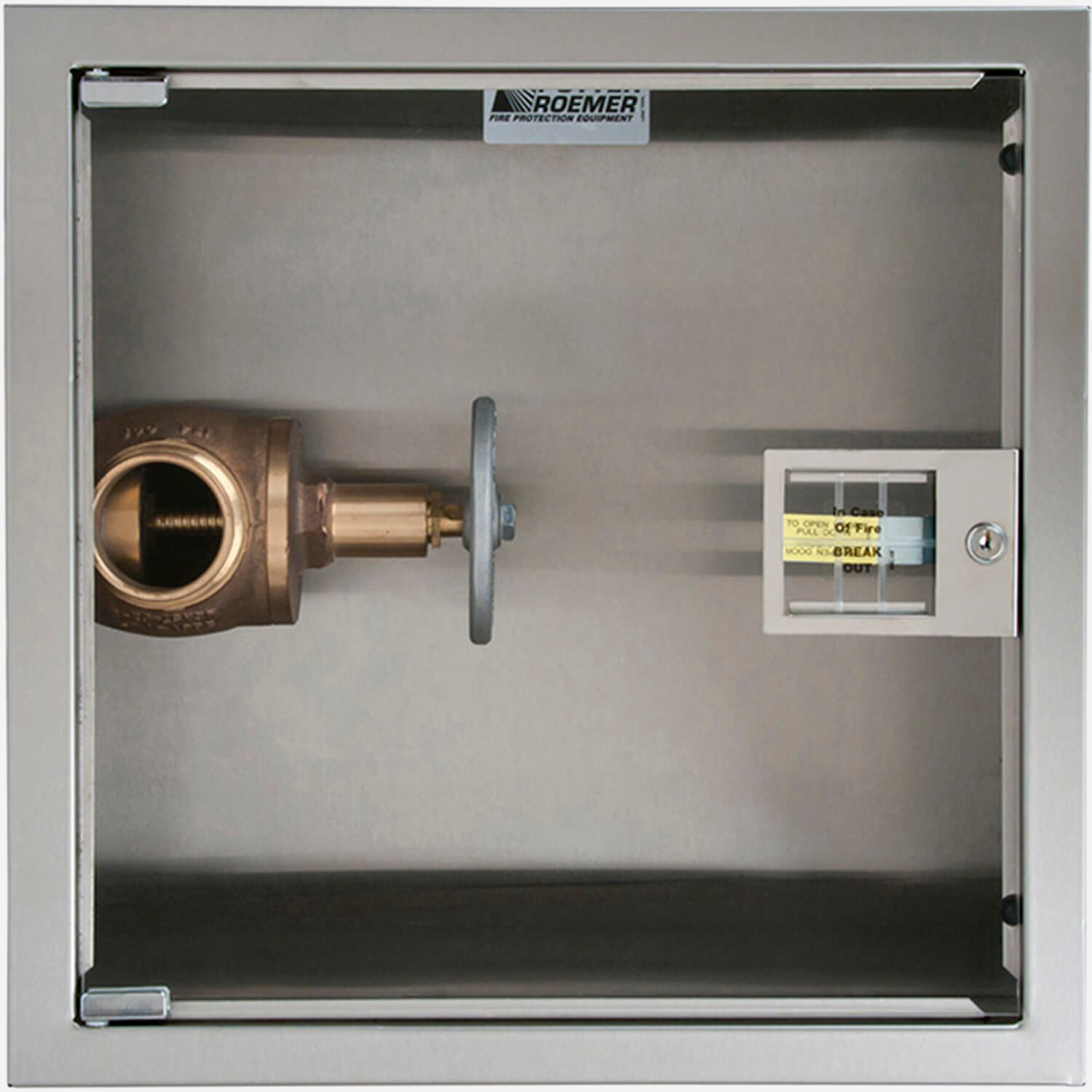

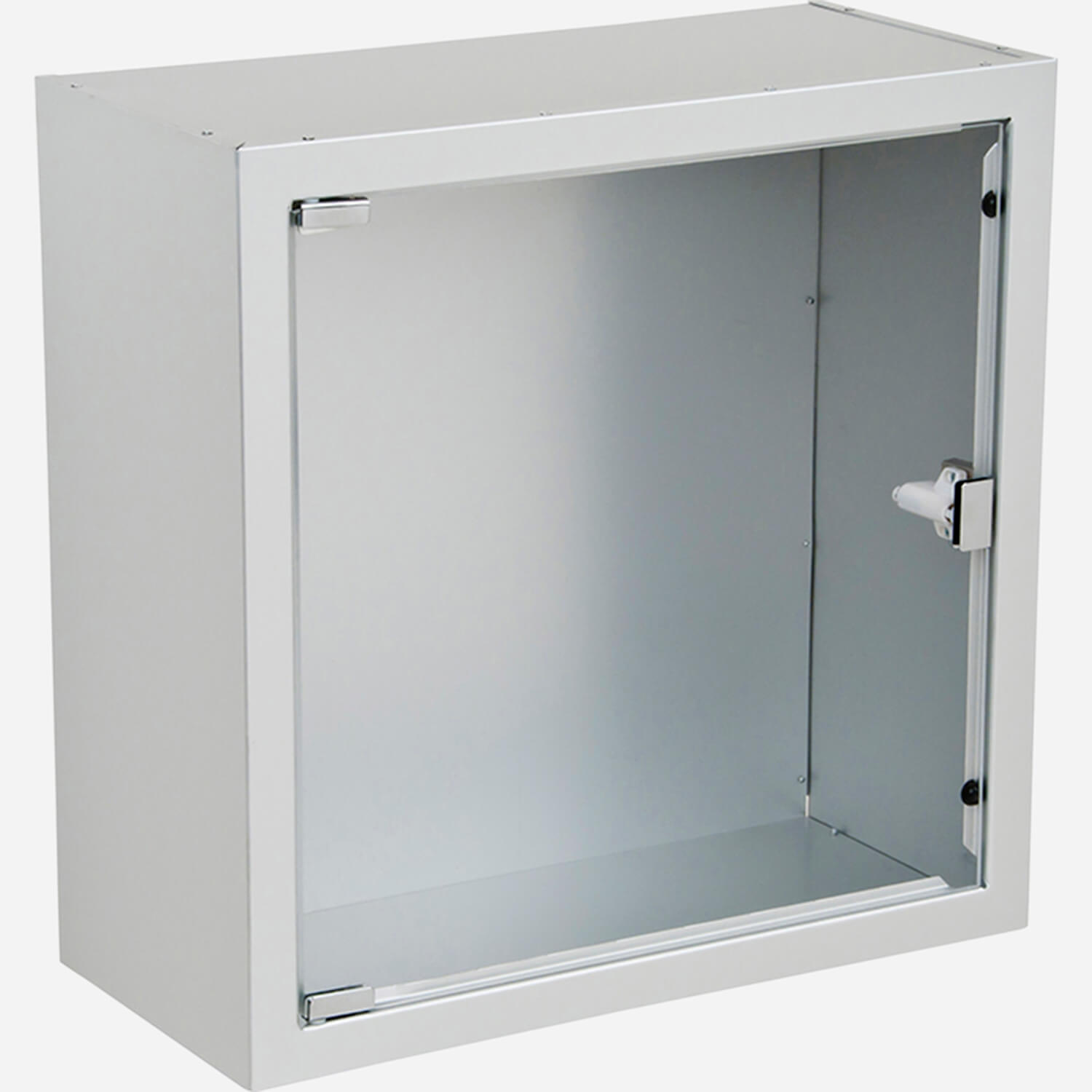

These are Potter Roemer Buena Style Fire Dept. Valve Cabinets configured for Surface mount typically where recessed installation is not possible. The cabinet is designed to accommodate a 2-1/2 inch angled Fire Dept Valve (not supplied).

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Submittals	Submittal 8100 Series Cabinet (pdf)	Buena Style Fire Dept Valve Cabinet Model 8120-8129: Steel Frame Model 8140-8149: Aluminum Frame Model 8160-8169: Stainless Steel Frame Model 8160-8189: Brass Frame	1 MB
Brochures/Flyers	MGI Brands Flyer (pdf)	MGI Brands Flyer (pdf)	718 KB
Brochures/Flyers	Architectural Brochure (pdf)	Brochure Architectural Fire Cabinets - Includes Alta 7000 Series, Buena 7100 Series, Dana 7200 Series, Loma 7300 Series; Extinguisher/ Valve Cabinets Alta 8000 Series, Buena 8100 Series, Dana 8200 Series, Loma 8300 Series	3 MB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Material	22 Gauge Steel Box
Optional Finish	Aluminum, Stainless Steel, Brass
Lettering	FIRE DEPT VALVE

Related Figure Numbers

Model	Description
8124	20 x 20 x 9-1/4" Inside Steel Box; Steel Frame; Acrylic Door
8144	20 x 20 x 9-1/4" Inside Steel Box; Aluminum Frame; Acrylic Door
8164	20 x 20 x 9-1/4" Inside Steel Box; Stainless Steel Frame; Acrylic Door
