Surface Automated External Defibrillator Cabinet

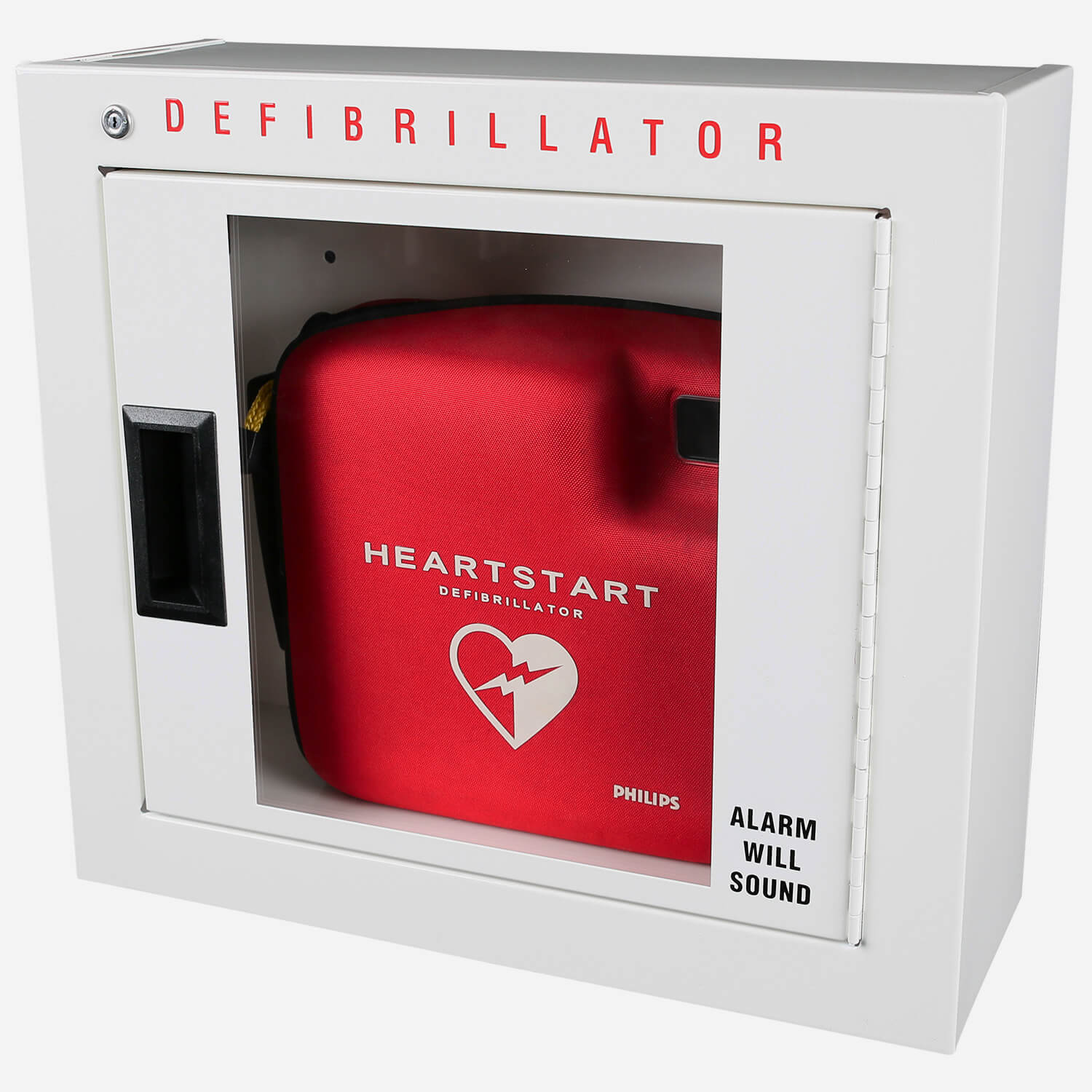

AED CABINETS are fabricated of Galvannealed Steel 18 gauge box; 22 gauge tubular steel door and continuous steel hinge. All components are powdercoated with an electrostatically-applied, thermally fused, recoatable white polyester finish.

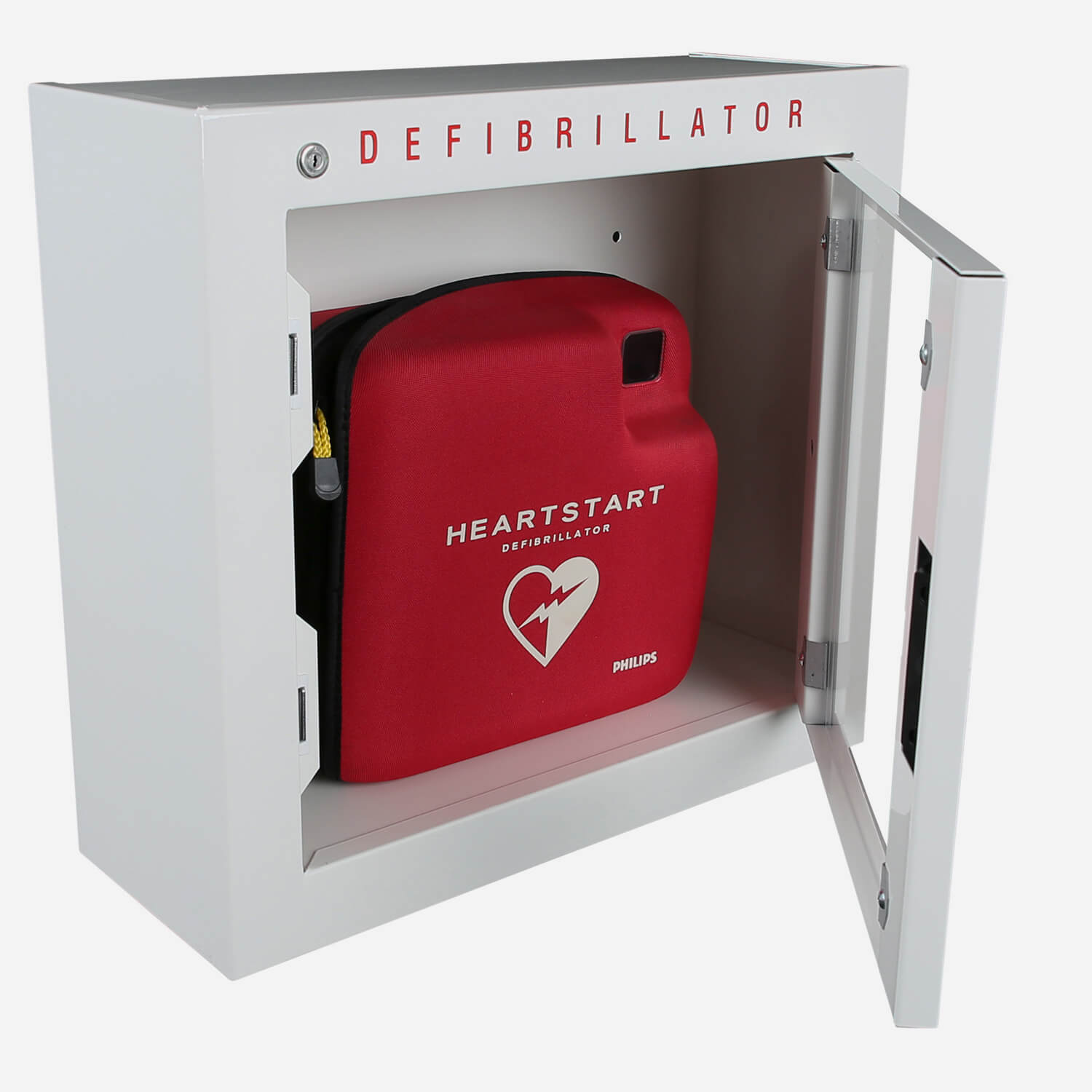

Clear acrylic glazing door panels provided. Flush pull handle unlatches the door to open.

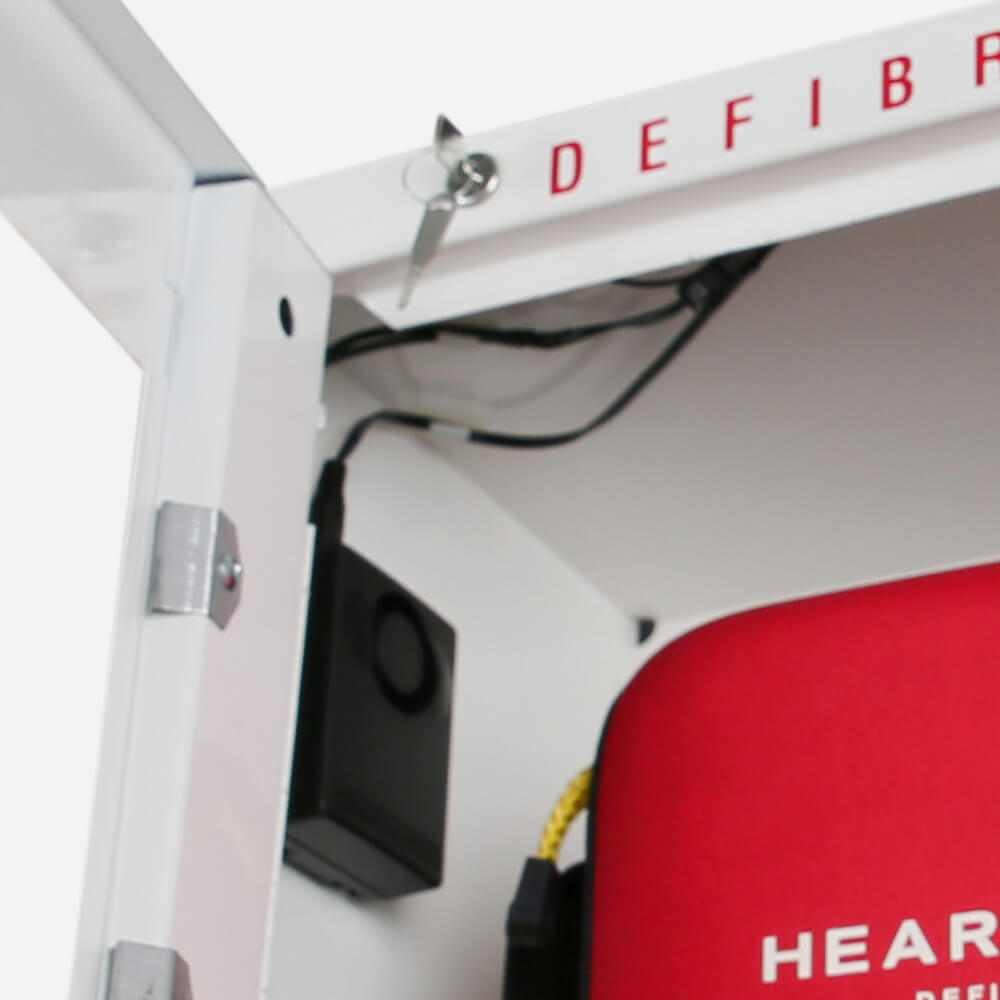

A 120 dB alarm with on/off keyed switch to discourage meddling is provided. Alarm indicates there is an emergency and someone is removing the AED.

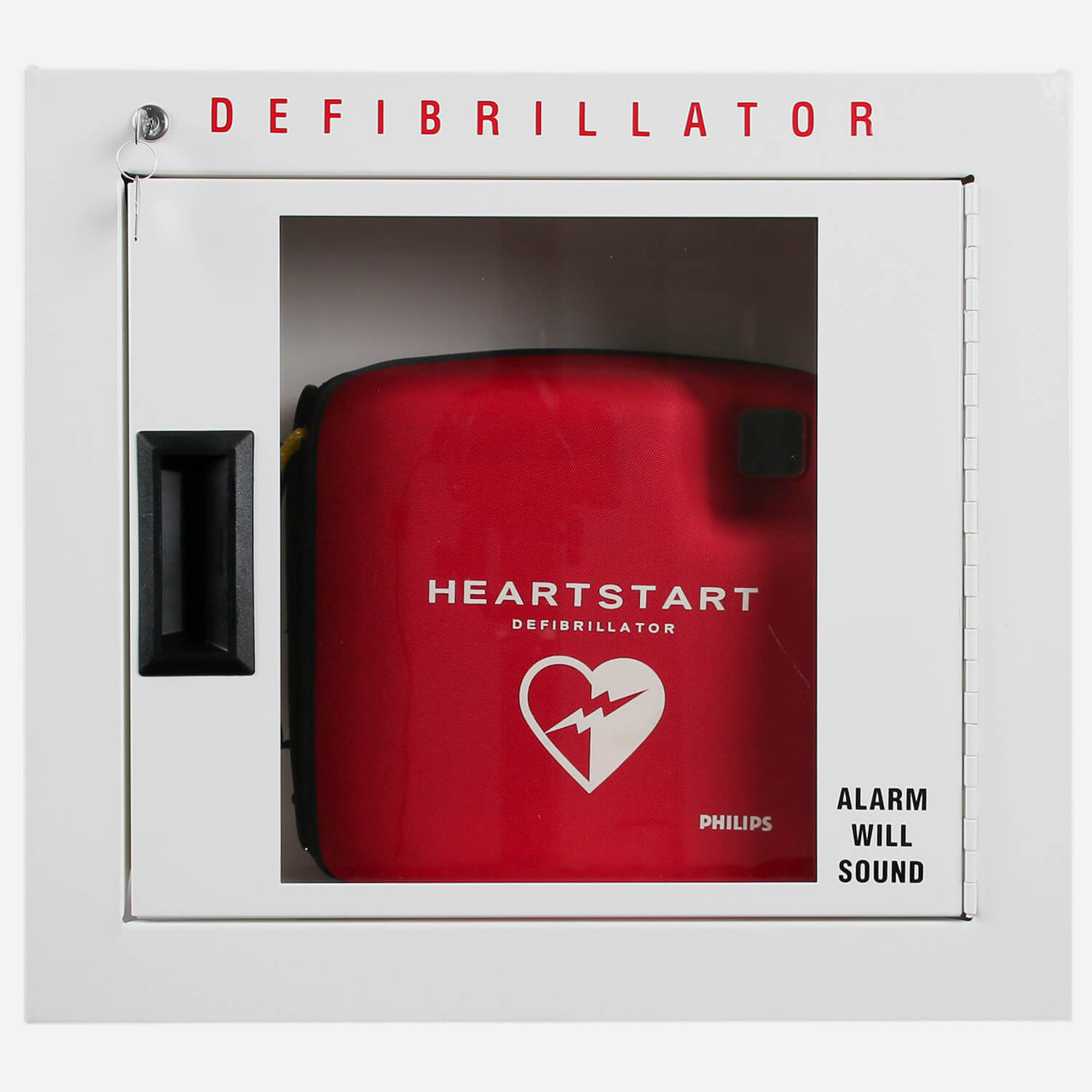

Black die cut lettering ALARM WILL SOUND and red die cut lettering DEFIBRILLATOR.
SURFACE cabinets include:9024 Defibrillator Cabinet Cabinet Size: 17" side-to-side x 17.25" height x 6" front-to-back 9124 Defibrillator Cabinet Only: Cabinet Size: 18" side-to-side x 18" height x 7" front-to-back
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Automated External Defibrillator Cabinets [AED Cabinet only 9020, 9120, 9022, 9122, 9023, 9123, 9024, 9124; With Section for Extinguisher 9220, 9222, 9223, 9224] Galvanneeled Steel Construction; Also available with Aluminum or Stainless Steel Frame/Door | 0 | 3 MB | ||
| | Automated External Defibrillator Cabinet Flyer | 0 | 2 MB |
Specifications
| Cabinet Style | Alta |
| Material | Galvannealed Steel |
| Mounting | Surface |
| Inside Box Dimension | 17 x 17.25 x 6", 18 x 18 x 7" |
| Capacity | Defibrillator |
| Options | -LT LED Alarm Lights, -SB Siren Strobe 120 dB Alarm |
| Lettering | DEFIBRILLATOR, ALARM WILL SOUND |
| Door Style | -A | Full Clear Acrylic Panel(s) with Flush Pull Handle(s), -F | Flush Solid Metal, -AT | Full Tempered Safety Glass |
| Optional Finish | Aluminum, Stainless Steel |
Models

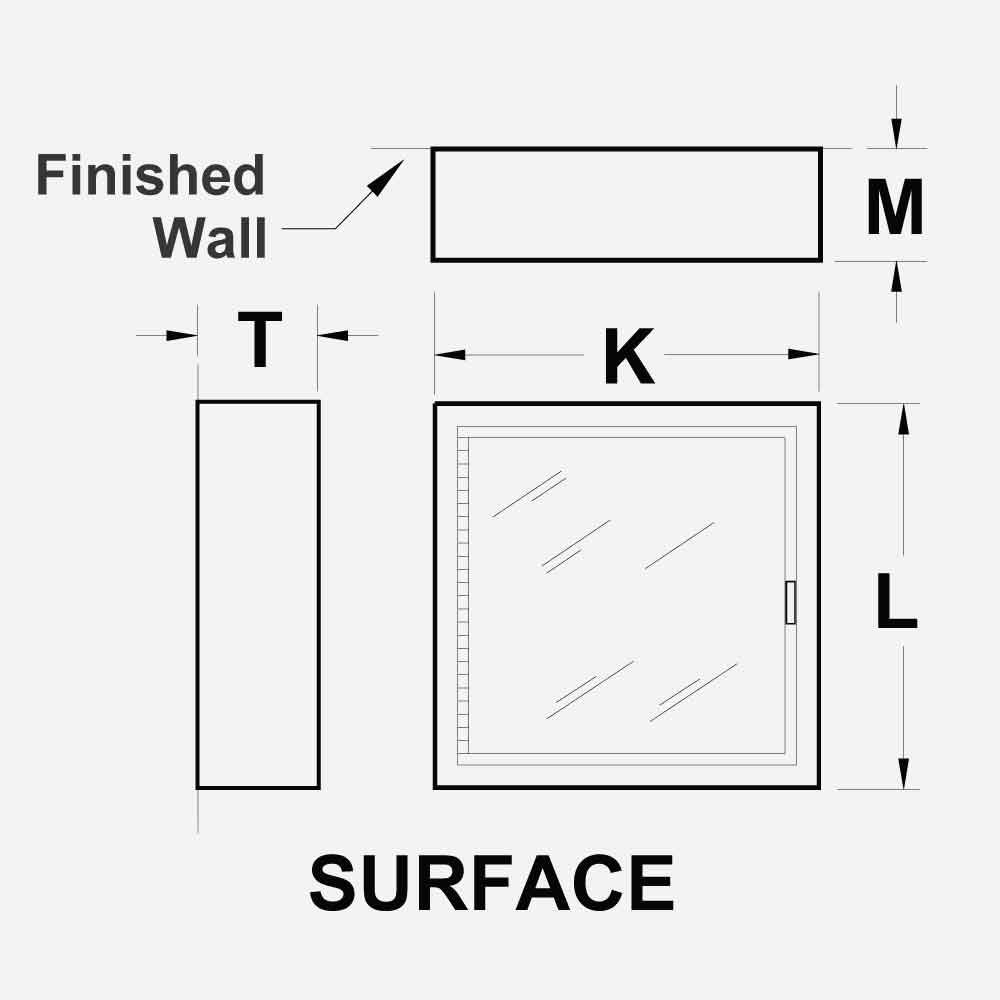

9024 Surface Mount Cabinet Box Dimension Side-to-Side: 17" Height: 17-1/4" Front-to-Back: 6" Outside Frame Dimension Side-to-Side: 17" Height: 17-1/4"" Optional Finish9044 | Aluminium 9064 | Stainless Steel
9124 Surface Mount Cabinet Box Dimension Side-to-Side: 18" Height: 18" Front-to-Back: 7" Outside Frame Dimension Side-to-Side: 18" Height: 18" Optional Finish9144 | Aluminium 9164 | Stainless Steel
