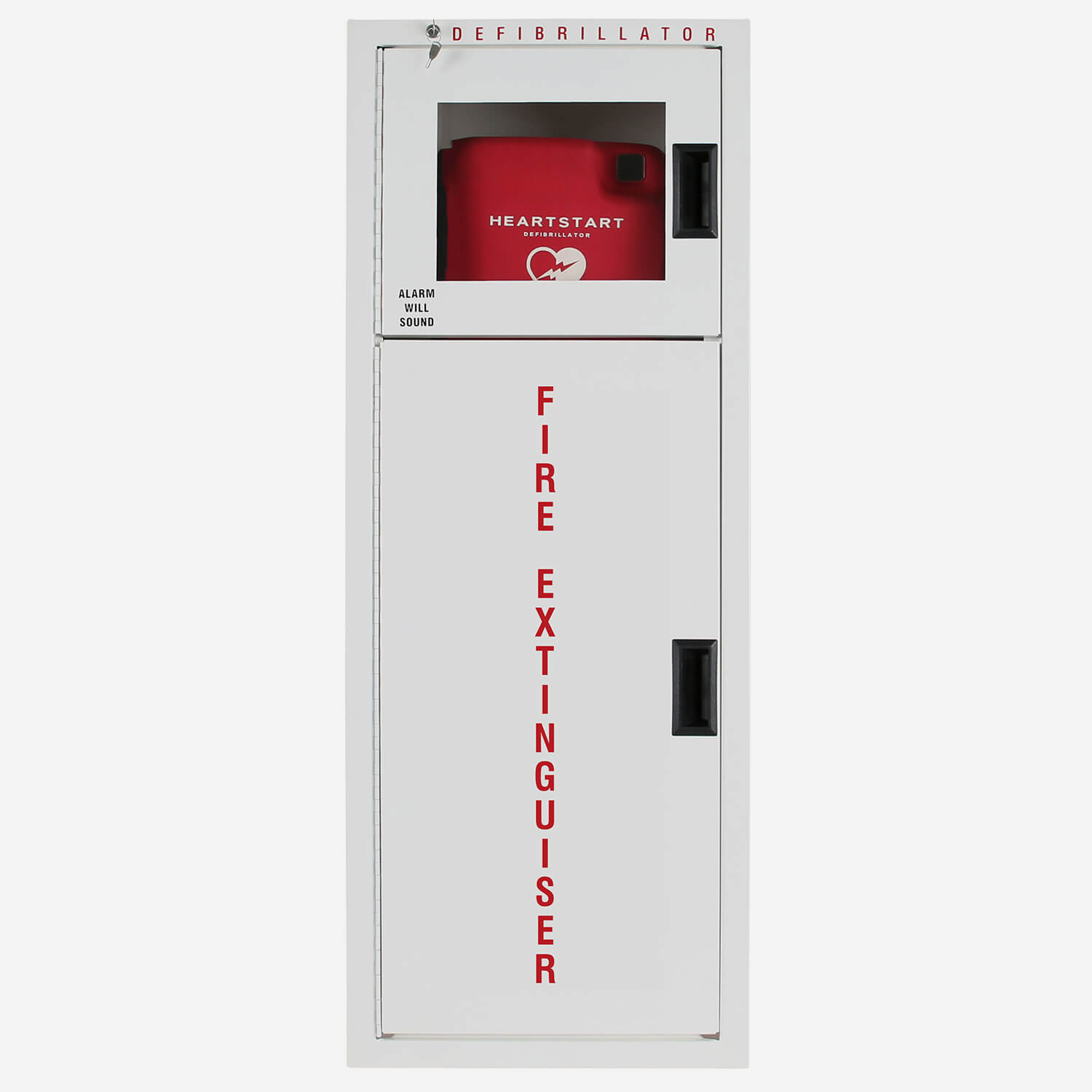

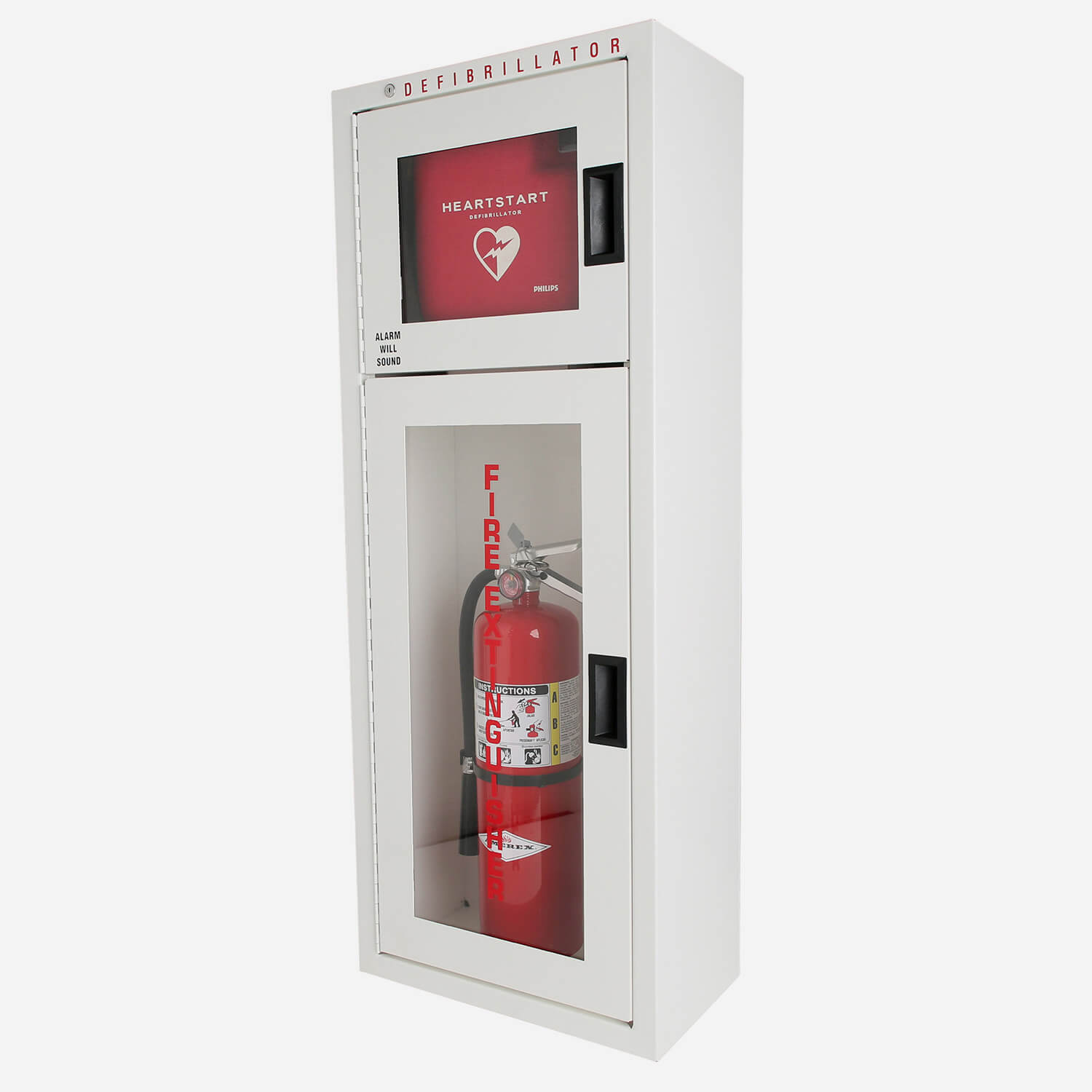

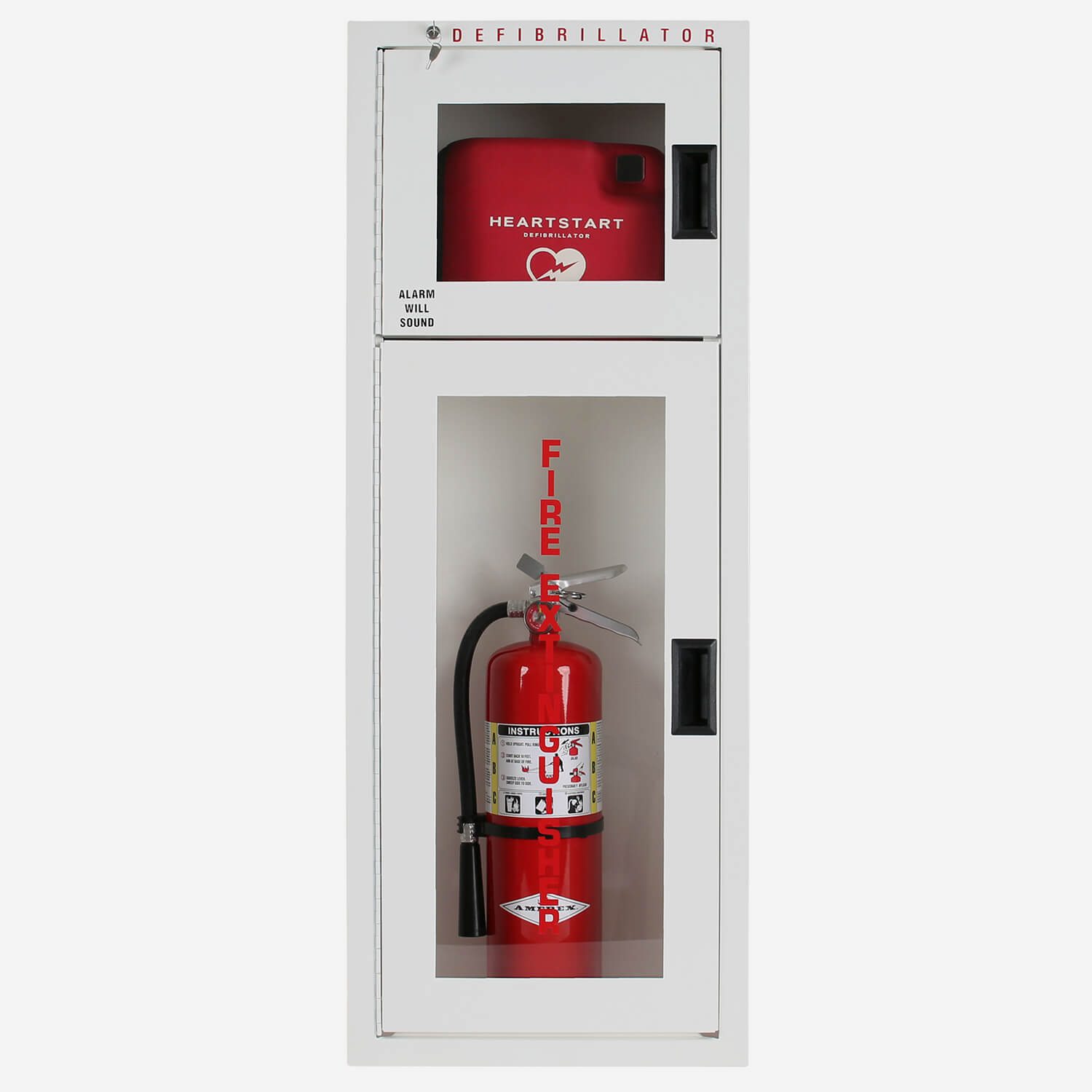

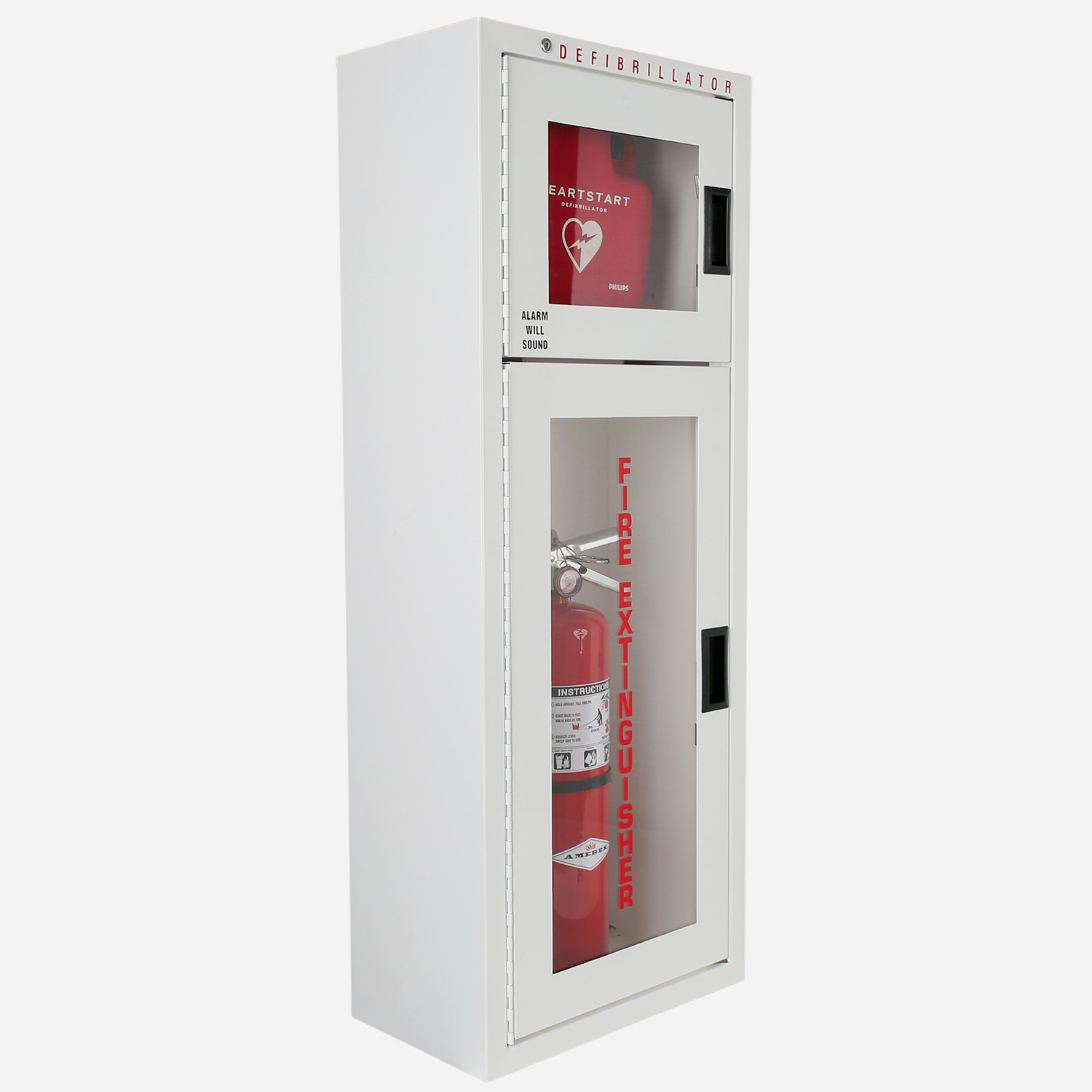

Surface Automated External Defibrillator and Fire Extinguisher Cabinet
AED CABINETS are fabricated of Galvannealed Steel 18 gauge, 22 gauge tubular steel door and continuous steel hinge. All components are powdercoated with an electrostatically-applied, thermally fused, recoatable white polyester finish.
Clear acrylic glazing door panels provided. Flush pull handle unlatches the door to open.
A 120 dB alarm with on/off keyed switch to discourage meddling is provided. Alarm indicates there is an emergency and someone is removing the AED.
Black die cut lettering ALARM WILL SOUND and red die cut lettering DEFIBRILLATOR on top section; Red die cut lettering FIRE EXTINGUISER
SURFACE MOUNT cabinets include:9224 Defibrillator and Fire Extinguisher Cabinet Section to house a AED and up to a 20 lbs dry chemical fire extinguisher or a 2-1/2 gallon pressurized water fire extinguisher Cabinet Size: 16" side-to-side x 42" height x 9-1/4" front to back
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Automated External Defibrillator Cabinets [AED Cabinet only 9020, 9120, 9022, 9122, 9023, 9123, 9024, 9124; With Section for Extinguisher 9220, 9222, 9223, 9224] Galvanneeled Steel Construction; Also available with Aluminum or Stainless Steel Frame/Door | 0 | 3 MB |
Specifications
| Cabinet Style | Alta |
| Material | Galvannealed Steel |
| Inside Box Dimension | 16 x 42 x 9.25” |
| Mounting | Surface |
| Door Style | -AT | Full Tempered Safety Glass, -F | Flush Solid Metal, -A | Full Clear Acrylic Panel(s) with Flush Pull Handle(s), -A-FP | Clear Acrylic Glazing for AED Door/Solid Metal for Extinguisher Door, Flush Pull Handles |
| Lettering | DEFIBRILLATOR, FIRE EXTINGUISHER, ALARM WILL SOUND |
| Capacity | 2.5 Gallon Pressurized Water Fire Extinguisher, Defibrillator, 20 Lbs Dry Chemical Extinguisher |
| Options | -LT LED Alarm Lights, -SB Siren Strobe 120 dB Alarm |
| Optional Finish | Aluminum, Stainless Steel |
Models

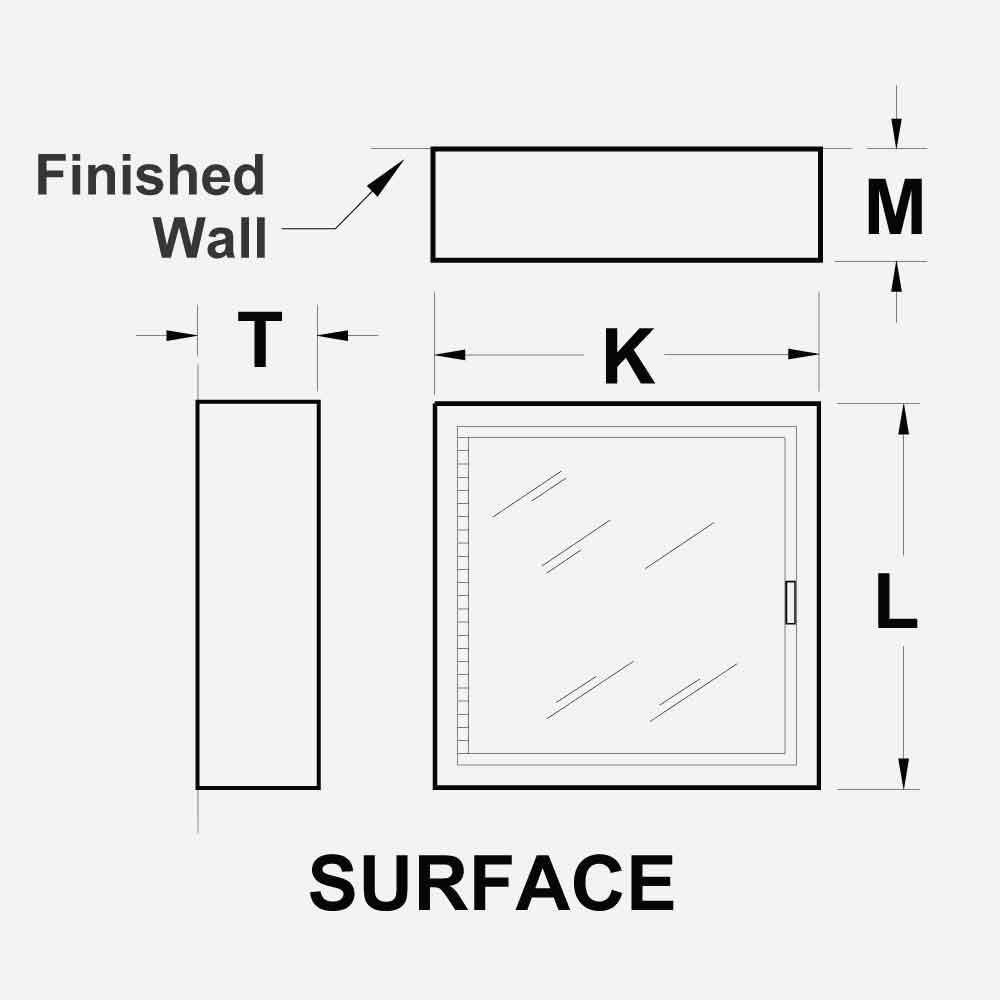

9224 surface mount cabinet Box Dimension Side-to-Side: 16" Height: 42" Front-to-Back: 9-1/4" Outside Frame Dimension Side-to-Side: 16" Height: 42" Wall Opening none Optional Finish9244 | Aluminimum 9264 | Stainless Steel
