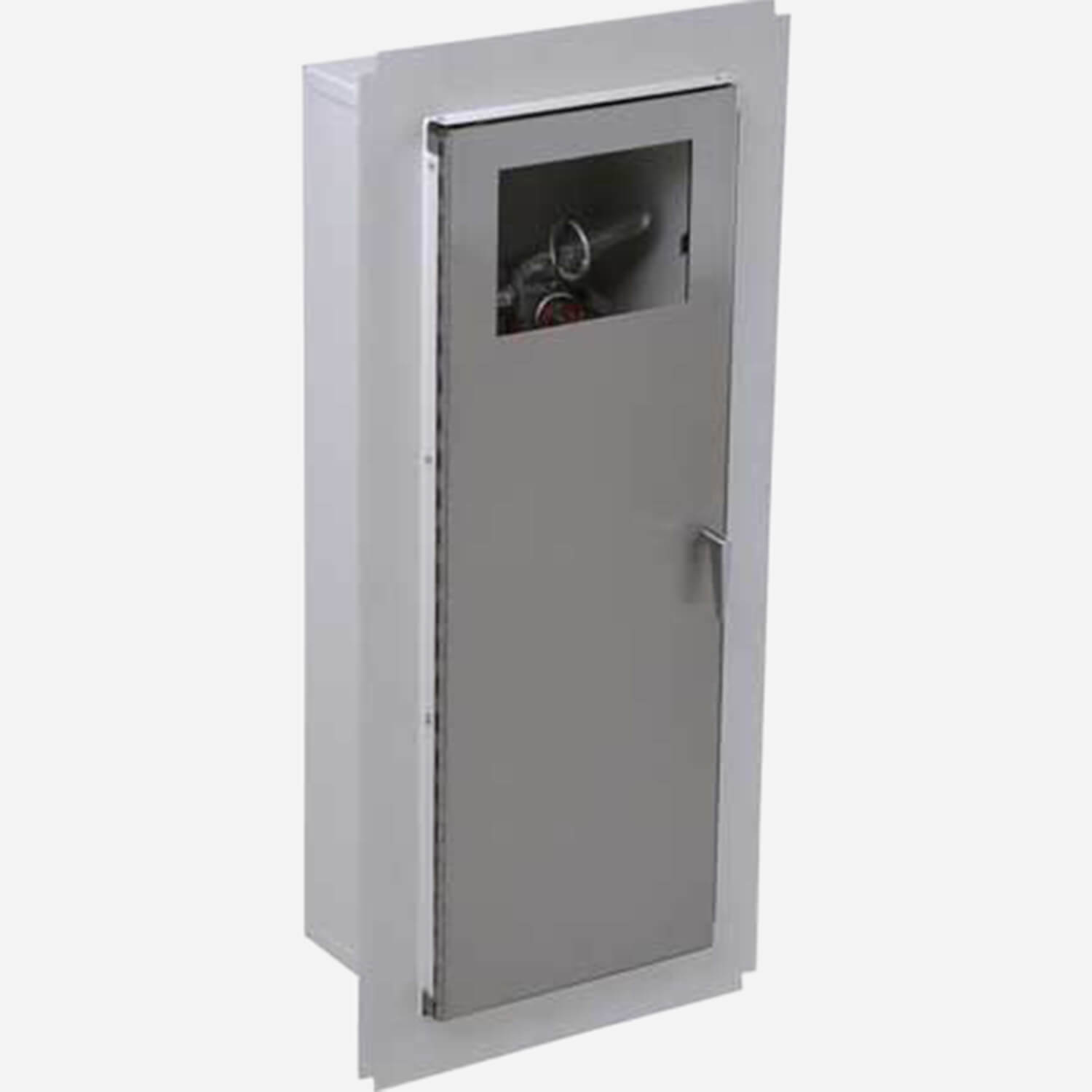

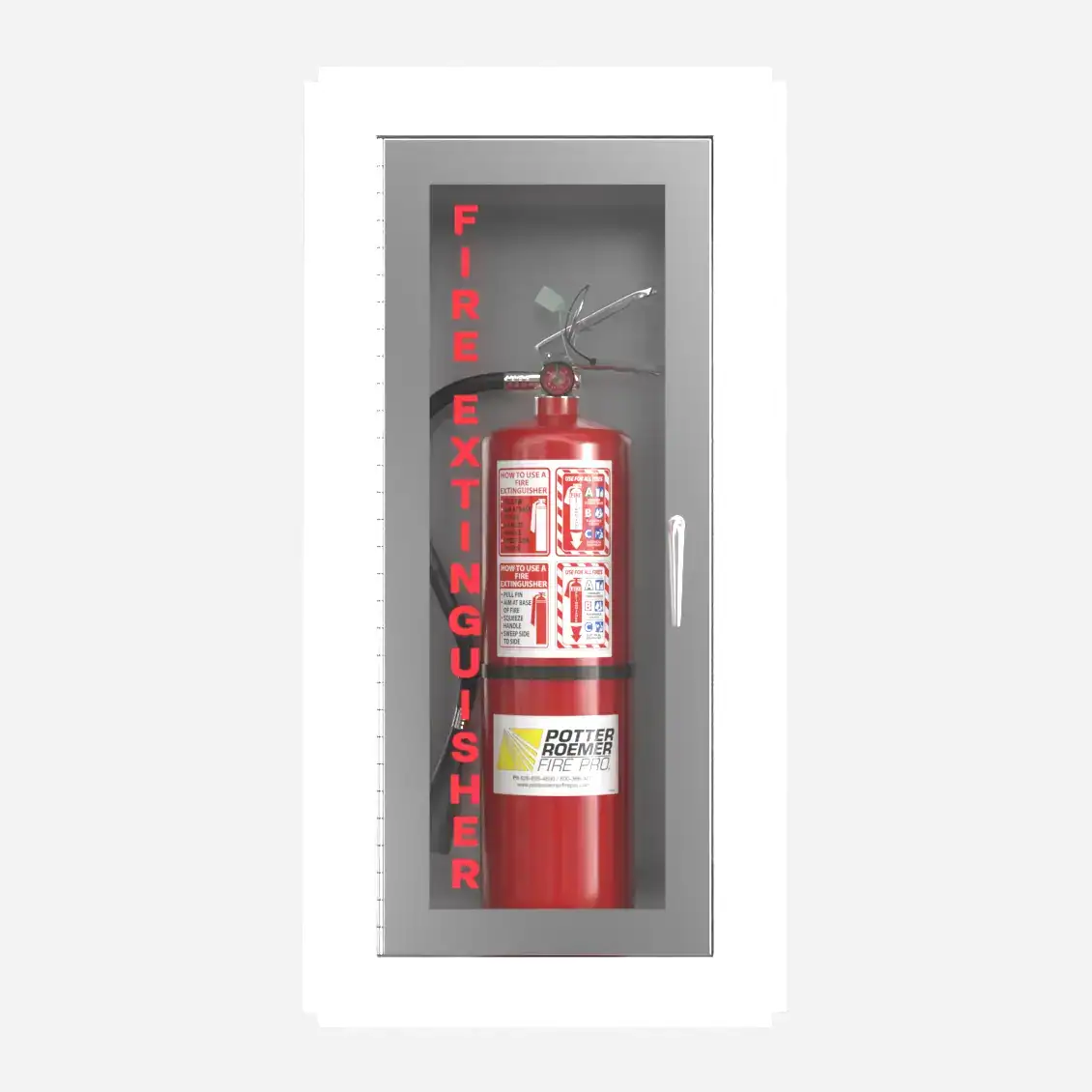

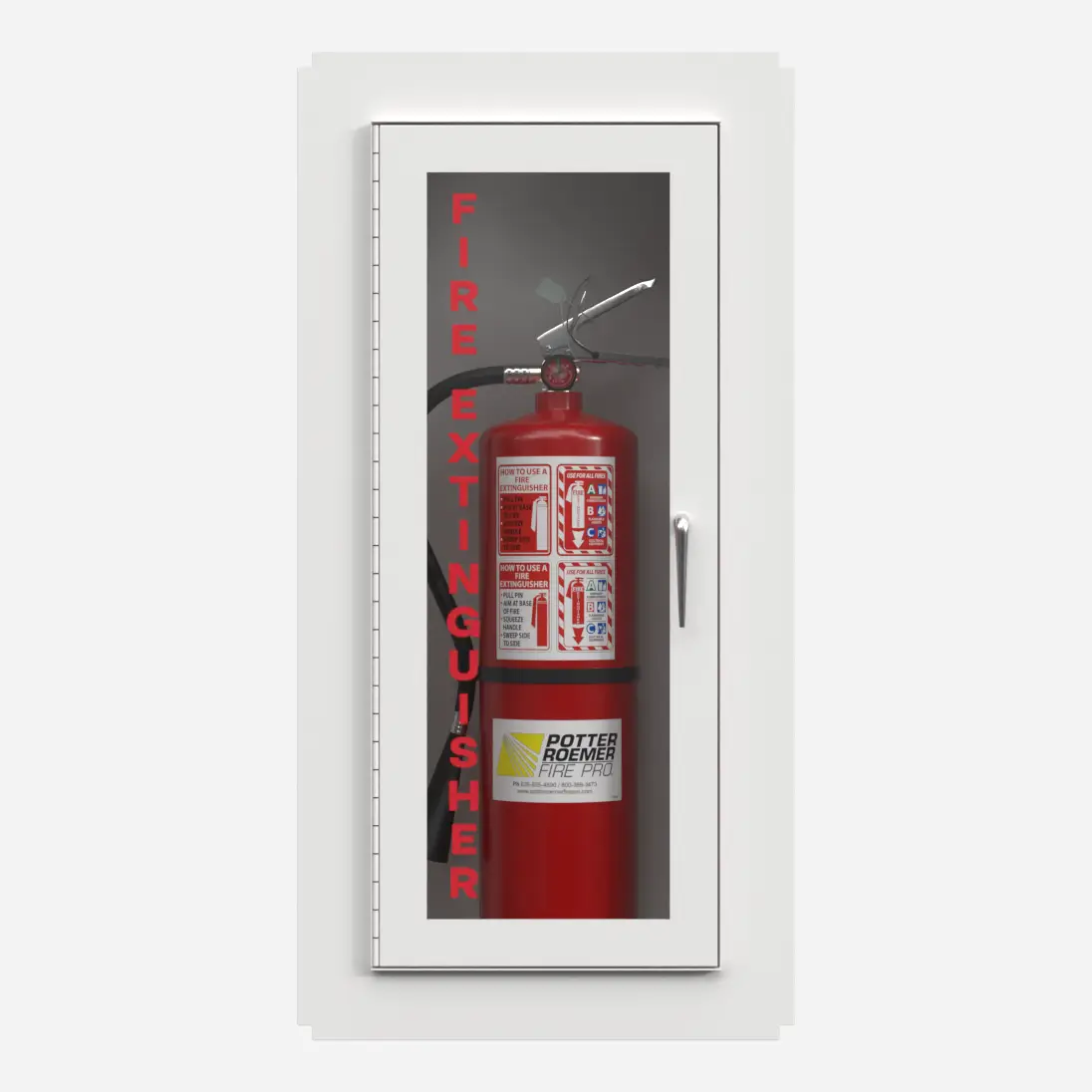

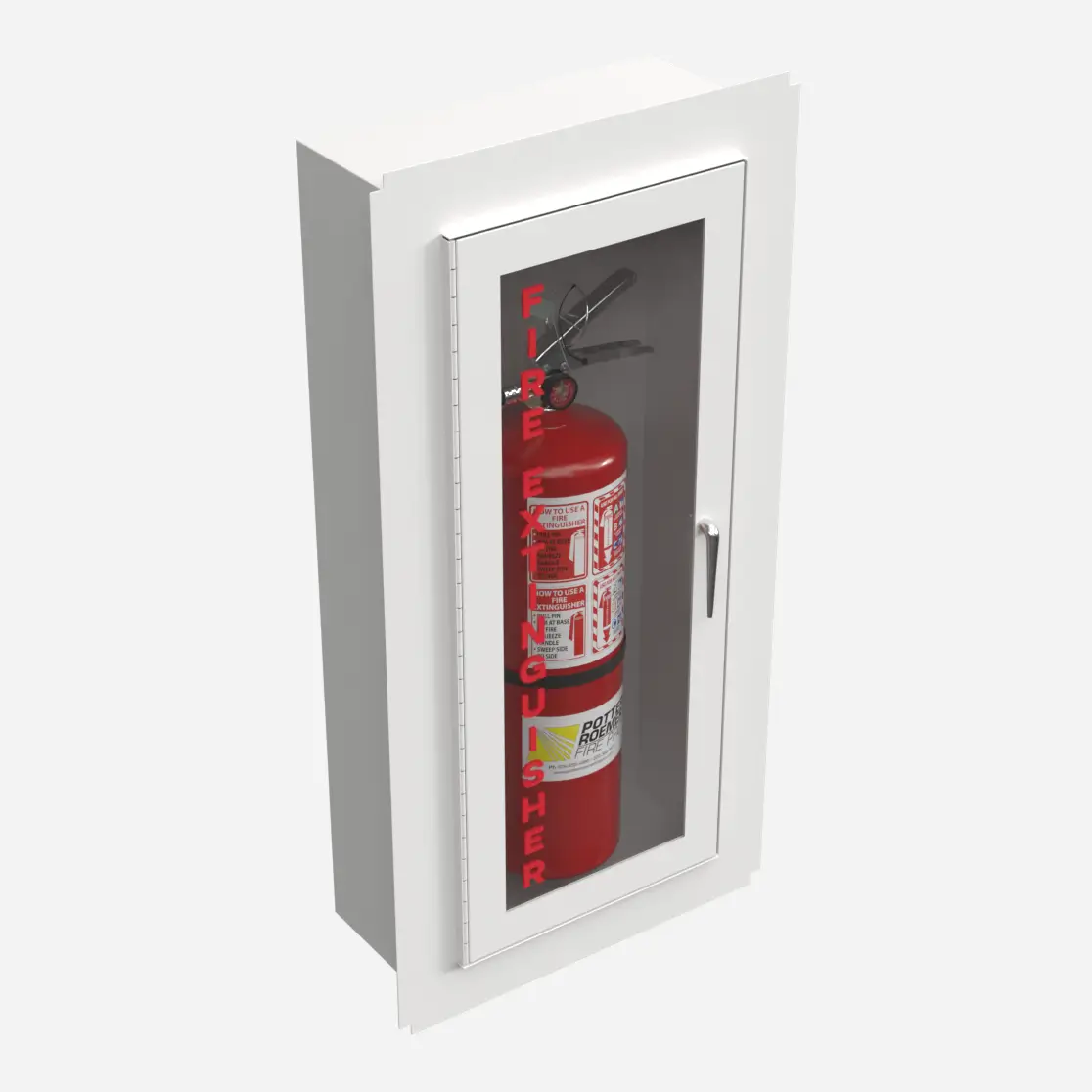

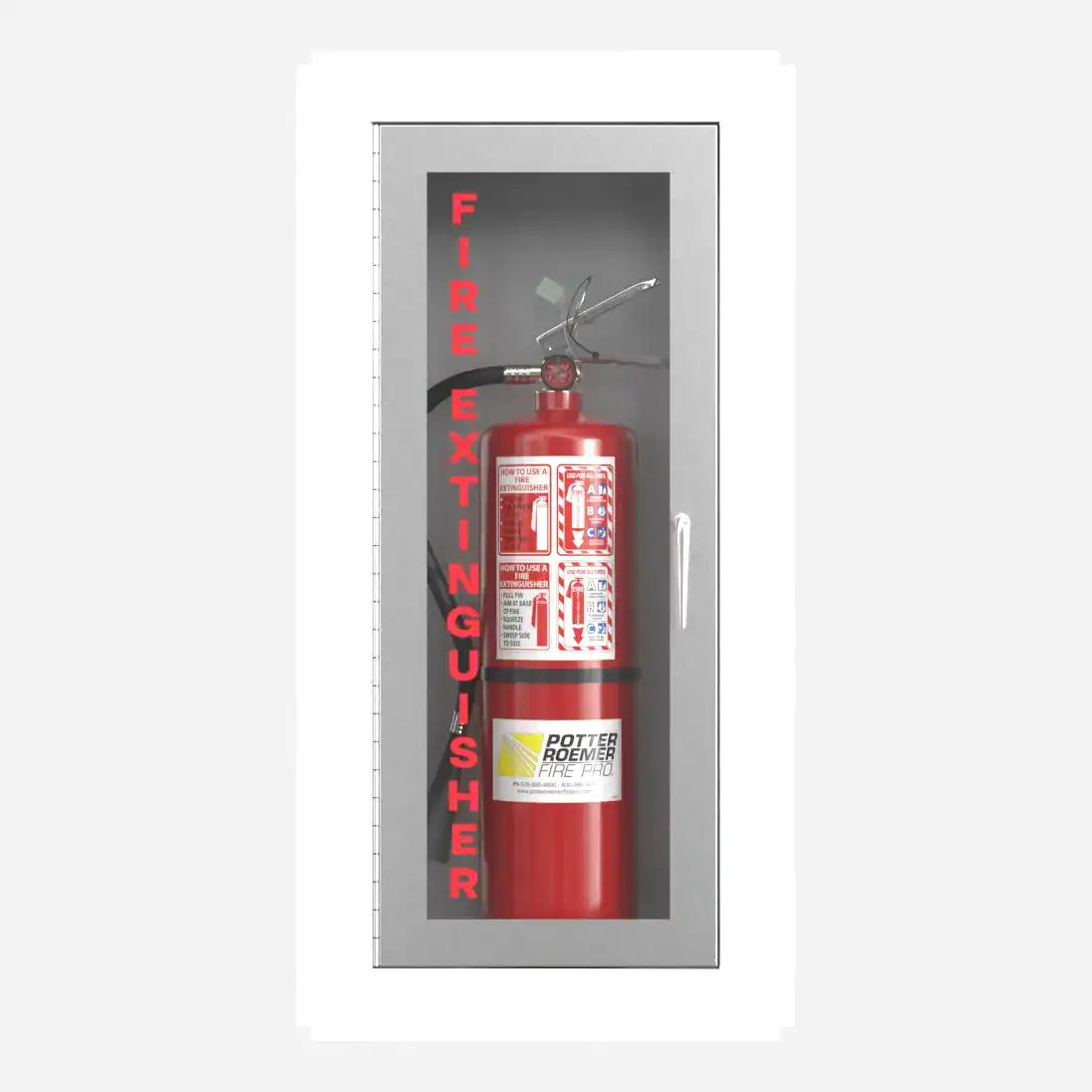

Trimless Alta Fire Extinguisher Cabinets
This trimless fire extinguisher cabinet is constructed from galvannealed steel with an electrostatically applied thermally-fused polyester coating with recoatable white finish and a continuous hinge.
SPECIAL INSTALLATION INSTRUCTIONS FOR TRIMLESS CABINETS Trimless cabinets MUST BE installed PRIOR to finished wall surface. The trimless frame will be drywalled over (0.625” or 15.875 mm thickness recommended) to effect a finished surface. Only the door and hinge will be visible after wall is finished.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Alta Style Fire Extinguisher Cabinets [ Models 7007-7029 | Steel - Galvanneal steel with recoatable white polyester finish; Models 7030-7049 | Aluminum - Clear anodized finish; Models 7050-7069 | Stainless Steel - #304 Stainless steel with #4 finish; Model 7070-7089: Brass - Polished finish, clear polyester coated] | 0 | 236 KB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB | ||
| | Brochure Architectural Fire Cabinets - Includes Alta 7000 Series, Buena 7100 Series, Dana 7200 Series, Loma 7300 Series; Extinguisher/ Valve Cabinets Alta 8000 Series, Buena 8100 Series, Dana 8200 Series, Loma 8300 Series | 0 | 3 MB |
Specifications
| Material | Galvannealed Steel |
| Lettering | FIRE EXTINGUISHER (see options) |
| Mounting | Trimless |
| Cabinet Style | Alta |
| Inside Box Dimension | 9 x 24 x 6.25", 12 x 27 x 8.5" |
| Capacity | 3002, 3005, 3005-3, 3010, 3020, 3202, 3260, 3262, 3302, 3305-PK, 3310-PK, 3320-PK, 3405, 3410 |
| Accessibilty | ADA Compliant |
| ADA Models | All models in this series |

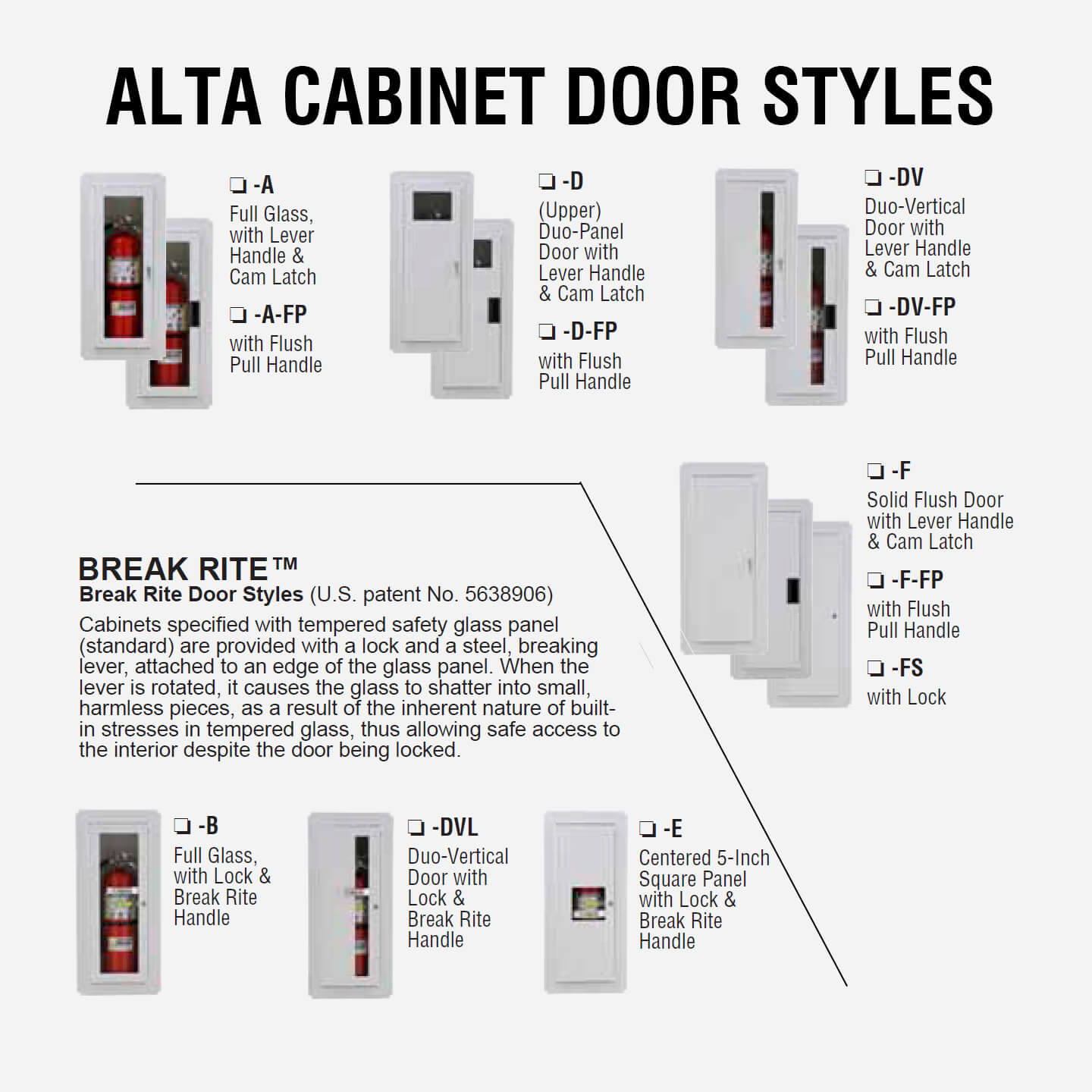

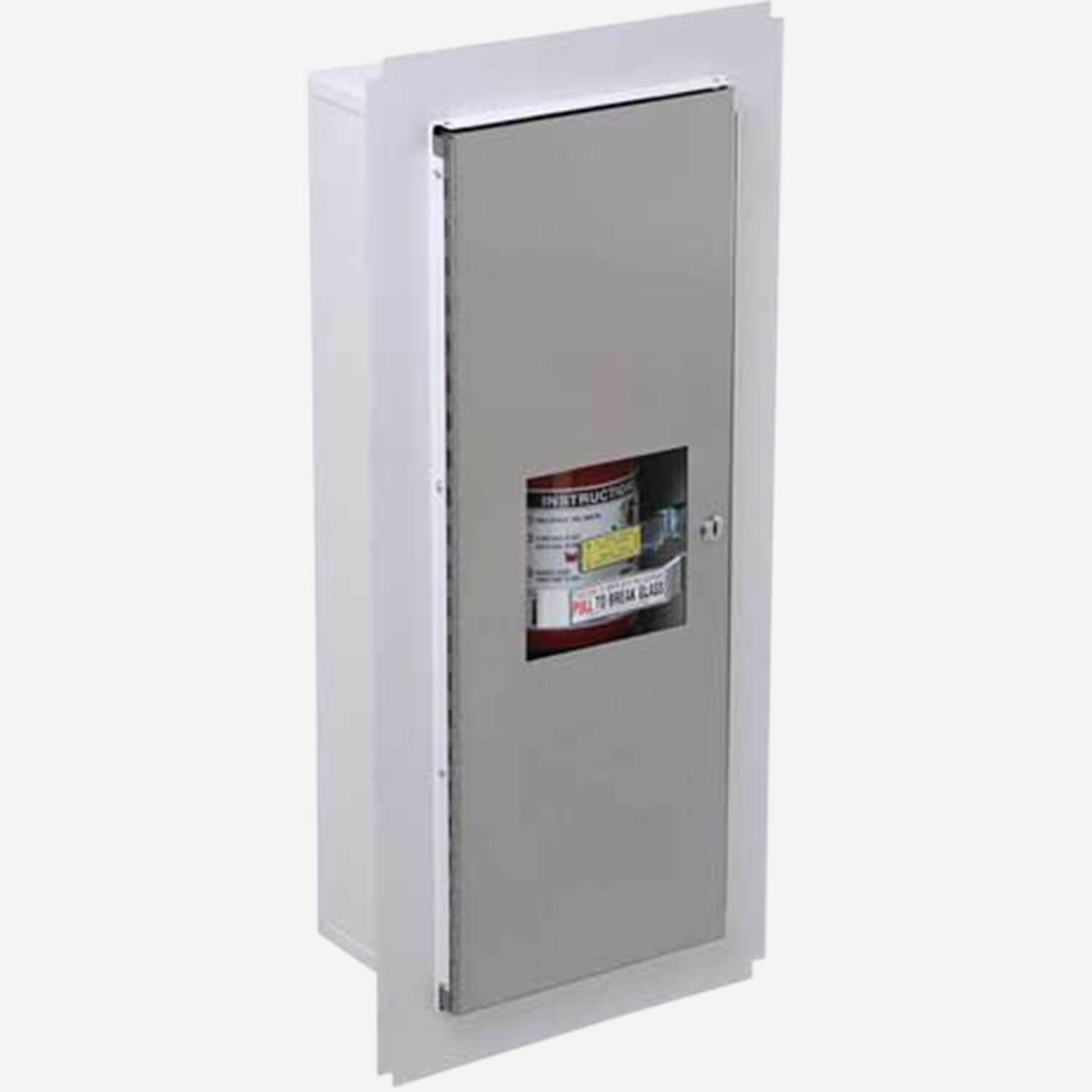

| Door Style | -A | Full Glass w/ Tempered Safety Glass, -A-FP | Full Glass w/ Tempered Safety Glass & Flush Pull Handle, -D | Duo-Panel w/ Tempered Safety Glass, -DV | Duo-Vertical Panel w/ Tempered Safety Glass, -DV-FP | Duo-Vertical Panel w/ Tempered Safety Glass & Flush Pull Handle, -F | Flush Solid Metal, -F-FP | Flush Solid Metal & Flush Pull Handle, -FS | Flush Solid Metal w/ Lock, -B | Break-Glass w/lock & Break Rite® Handle, -DVL | Duo-Vertical Panel with Lock, TSG & Break Rite® Handle, -E | Tempered Safety Glass (25 sq. in.) w/ Break Rite® Handle, -D-FP |Duo-Panel w/Tempered Safety Glass & Flush Pull Handle |
| Door/Frame Finish | -SS | Stainless Steel (304 with #4 Finish - STD), -AL | Aluminum (Clear Anodized Finish - STD), -PB | Brass (Polished Finish - STD) |
| Fire Rated | Not necessary |
Models
The box of the cabinet is manufactured of Galvannealed Steel with an electrostatically applied, thermally-fused polyester coating with recoatable white finish. The door and frame are constructed from materials as follows:

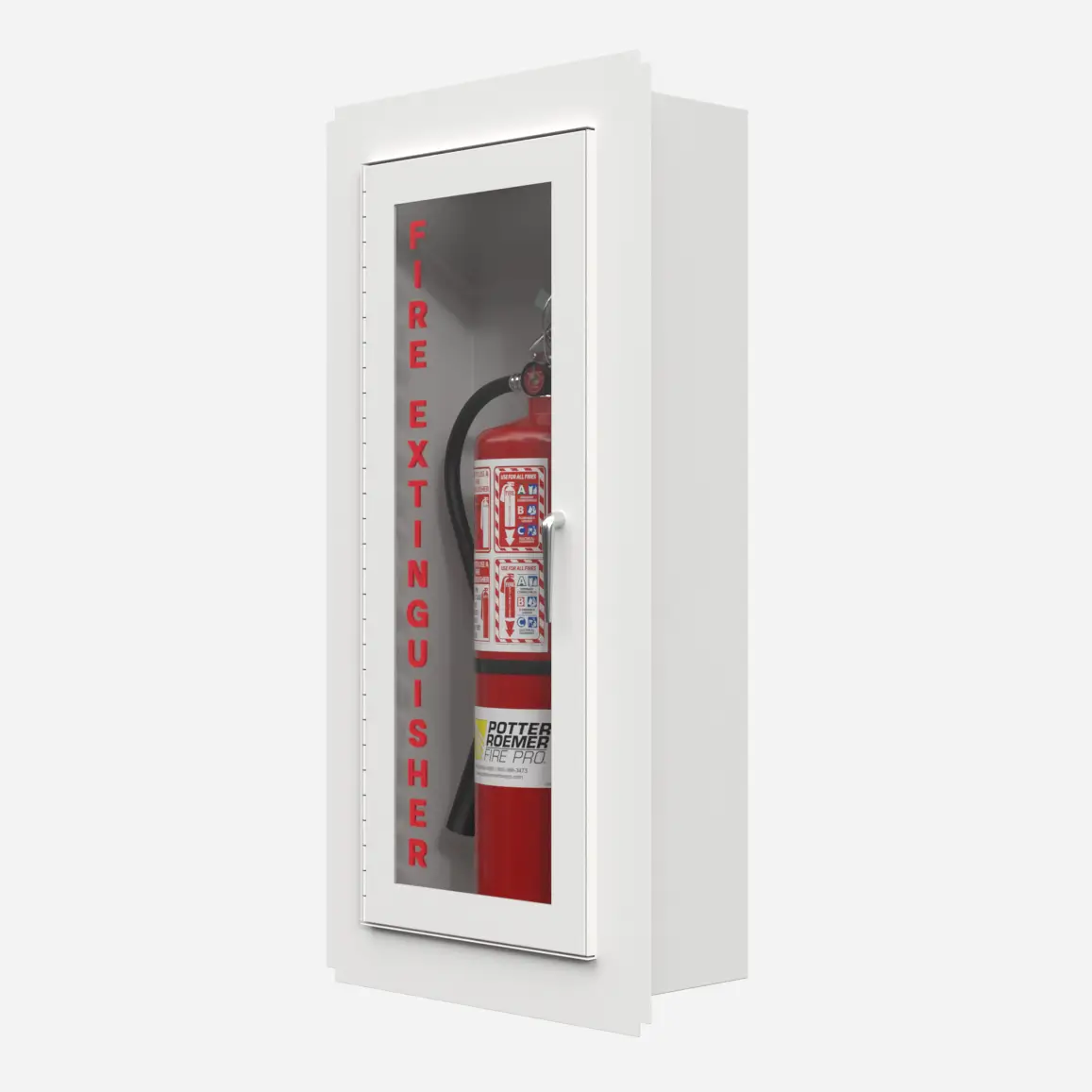

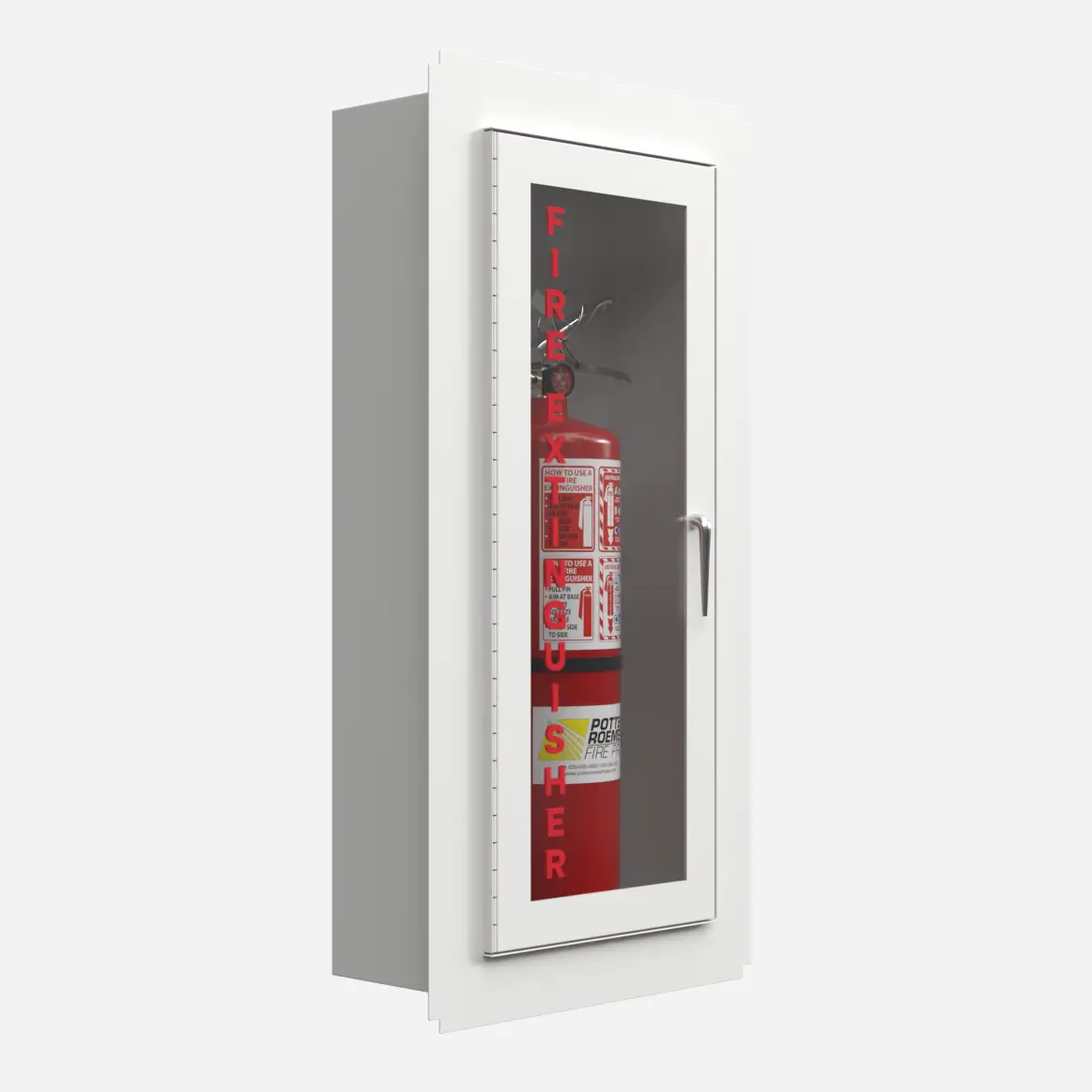

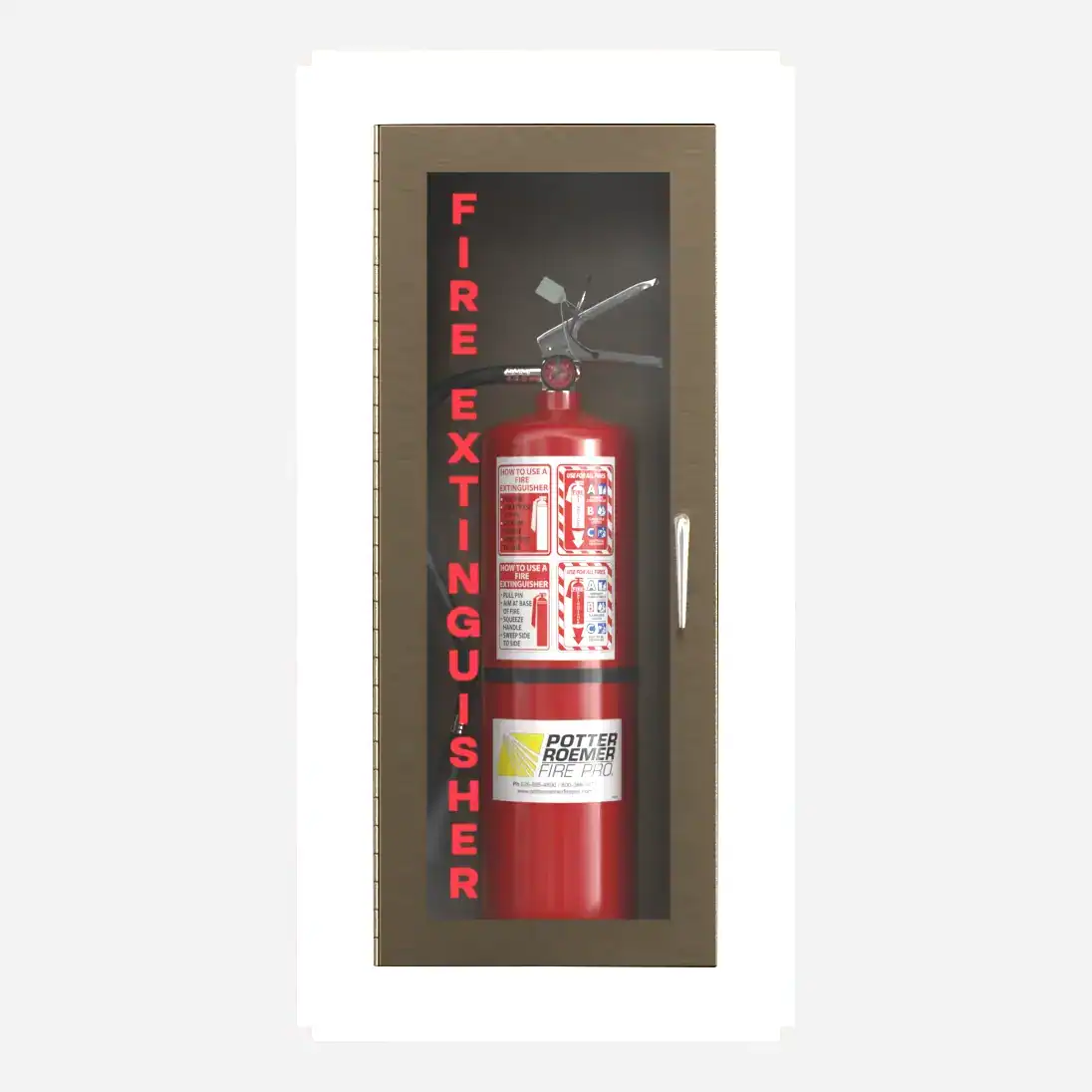

Model 7021 and 7026 | Galvannealed steel with recoatable white polyester finish; Model 7041 and 7046 | Aluminum with clear anodized finish; Model 7061 and 7066 | #304 Stainless Steel with #4 finish; Model 7081 and 7086 | Polished Brass with a clear polyester coated finish
