Fire Rated Trimless Buena Fire Extinguisher Cabinet

Contact a Representative
Model FRC7121 thru FRC7186
Submittal
Submittal FRC7100 Series Cabinets (pdf)
Model FRC7121 thru FRC7186

Fire Rated Trimless Buena Fire Extinguisher Cabinet

SPECIAL INSTALLATION INSTRUCTIONS FOR TRIMLESS CABINETS Trimless cabinets MUST BE installed PRIOR to finished wall surface. The trimless frame will be drywalled over (5/8 inch or 15.875 mm thickness recommended) to effect a finished surface. Only the door and hinge will be visible after wall is finished.

Downloads

Resource Type
Title
Description
Answers
File Size
Action
PDF icon
Submittals
PDF icon
Submittal FRC7100 Series Cabinets (pdf)
Buena Style Fire Extinguisher Cabinets, Fire Rated UL Classified, 7N43 [Models FRC7107-FRC7128 | Steel Frame; Models FRC7130-FRC7148 | Aluminum Frame; Models FRC7150-FRC7168 | Stainless Steel Frame; Models FRC7170-FRC7188 | Brass Frame]0232 KB
PDF icon
Brochures/Flyers
PDF icon
MGI Brands Flyer (pdf)
MGI Brands Flyer (pdf)0718 KB
PDF icon
Brochures/Flyers
PDF icon
Architectural Brochure (pdf)
Brochure Architectural Fire Cabinets - Includes Alta 7000 Series, Buena 7100 Series, Dana 7200 Series, Loma 7300 Series; Extinguisher/ Valve Cabinets Alta 8000 Series, Buena 8100 Series, Dana 8200 Series, Loma 8300 Series03 MB

Specifications

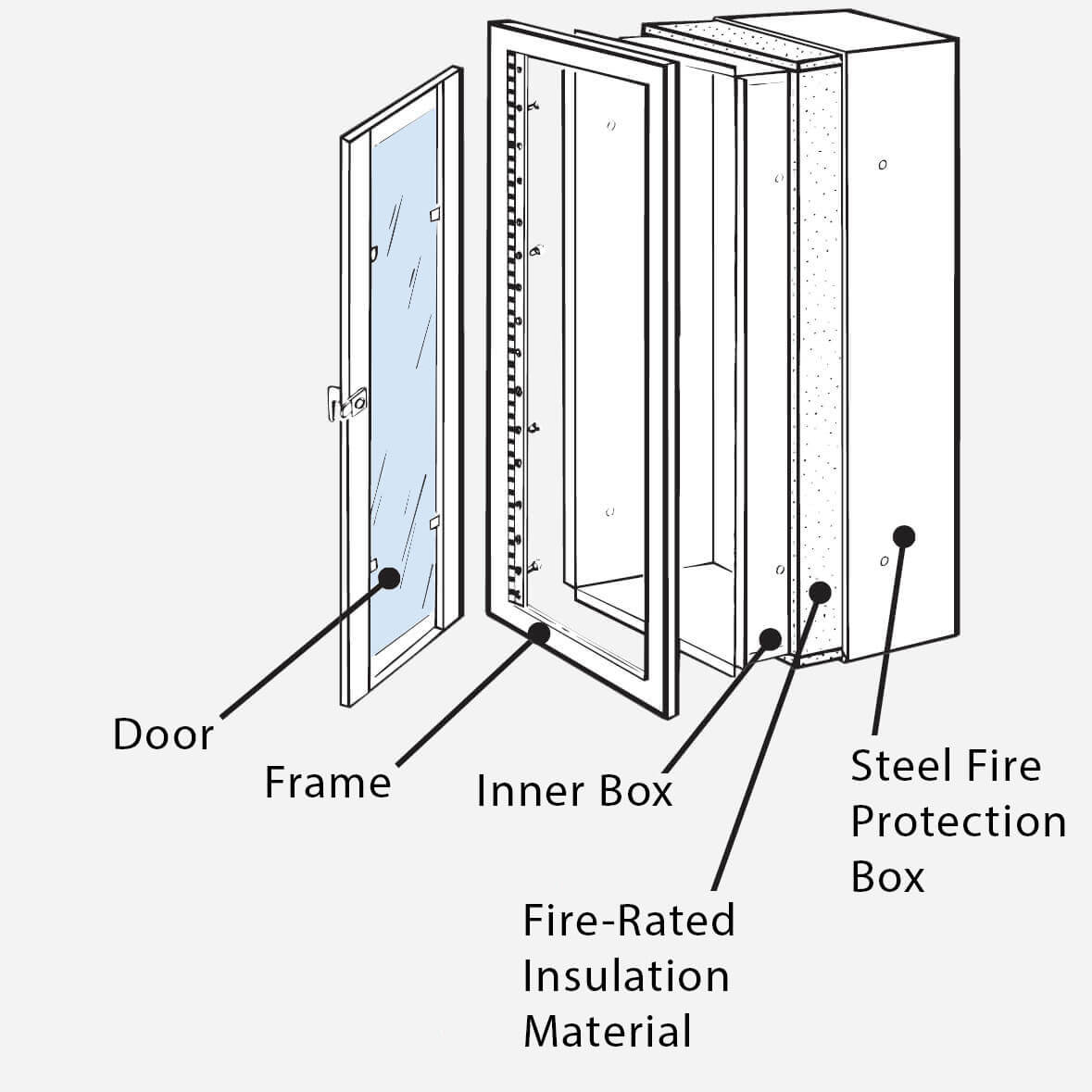

Material22 Gauge Steel Box, Fire Insulation Material
LetteringFIRE EXTINGUISHER (see options)
MountingTrimless
