Fire Rated Trimless Loma Fire Extinguisher Cabinet

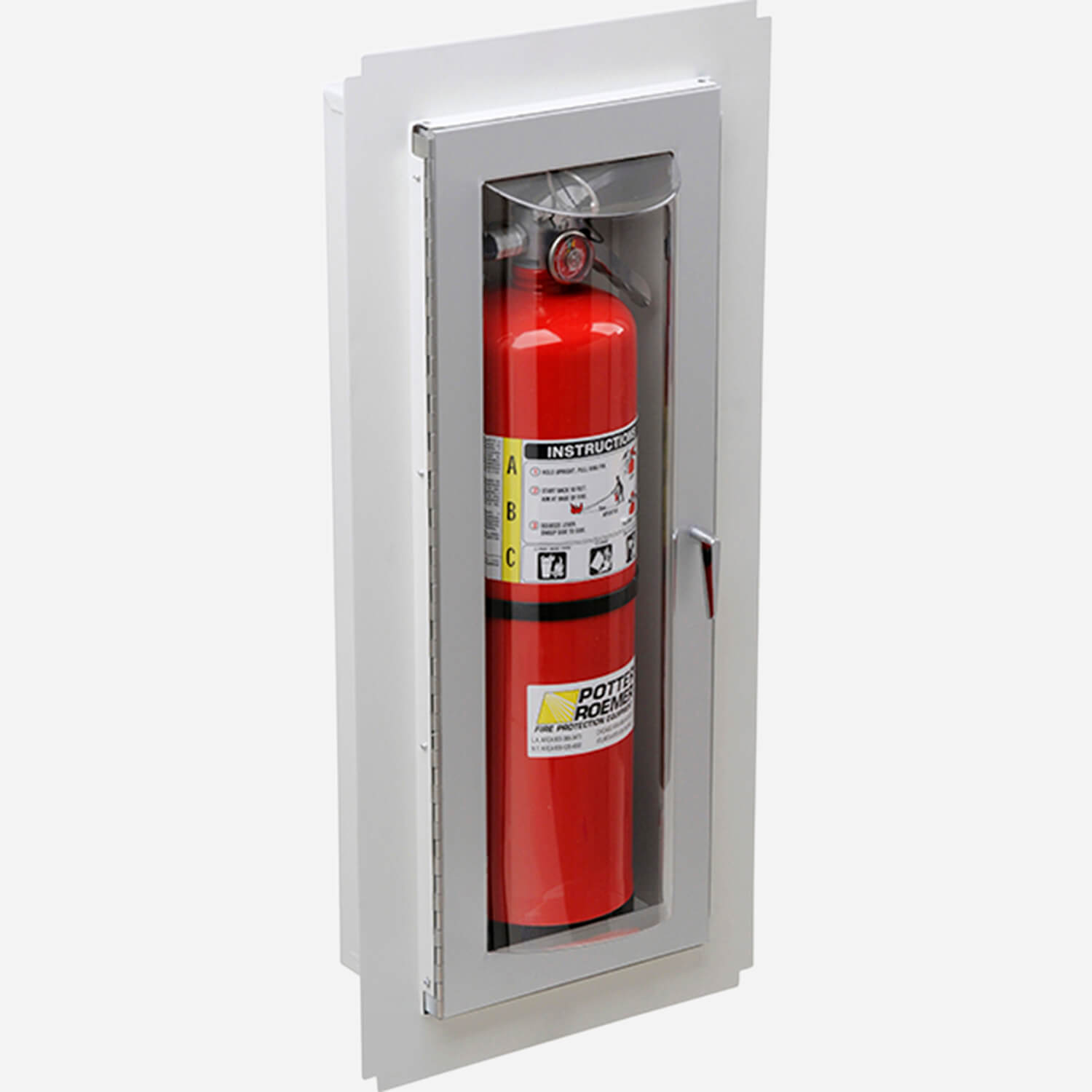

The Loma cabinet features a clear plastic semi-cylindrical bubble window on its door. The bubble provides additional space molded to the contour of the fire extinguisher. This is ideal for structures with limited wall depth.

These Loma cabinets are designed for a recessed installation.

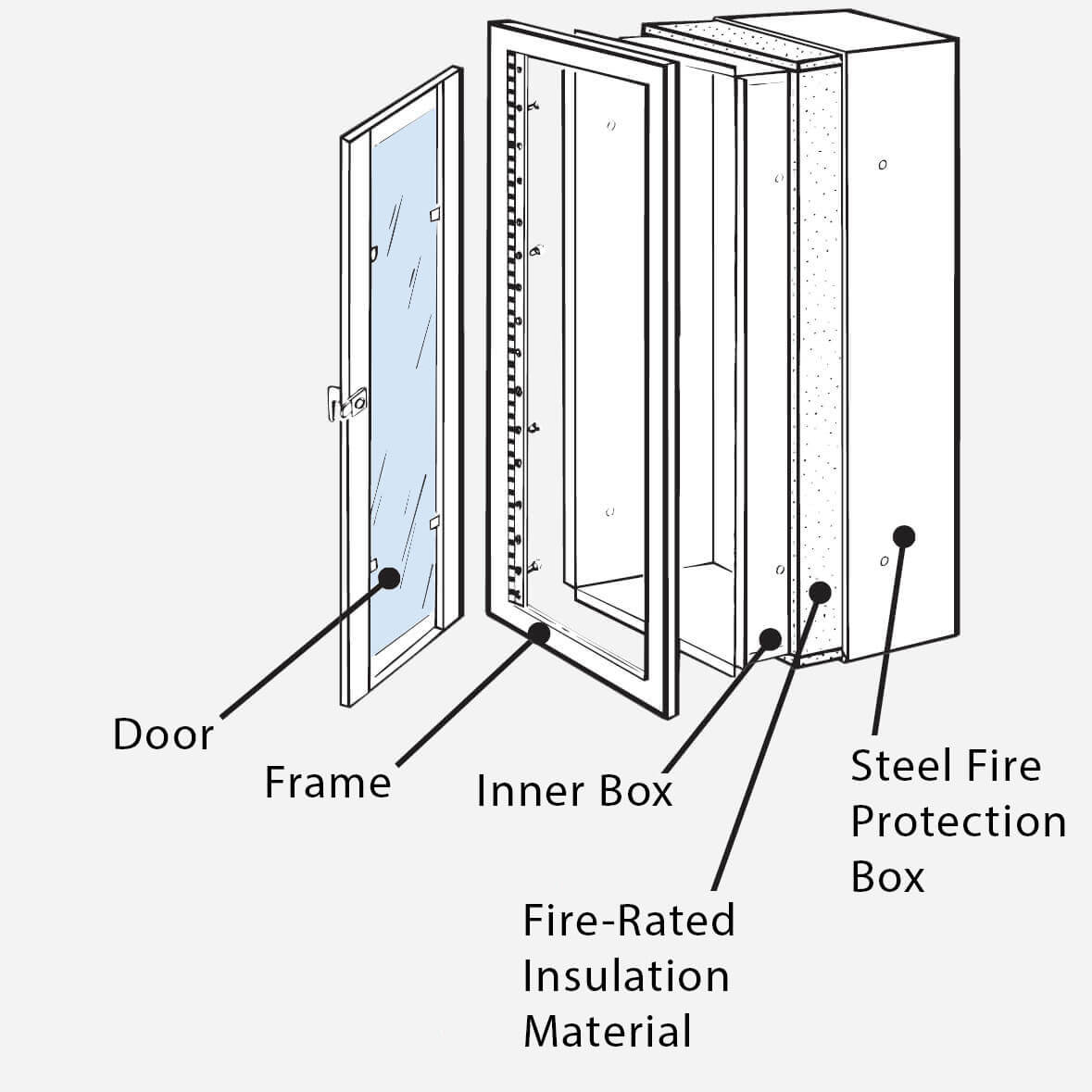

The box portion of the cabinet is manufactured of galvannealed steel with an electrostatically applied, thermally-fused polyester coating with a recoatable white finish. A continuous piano hinge facilitates door opening. Suffix -BA provides a lever handle and cam latch; Suffix -BB provides a scored acrylic insert and cylinder lock.

Trimless cabinets must installed PRIOR to finished wall surface. The trimless frame will be drywalled over (0.625" thickness recommended) to effect a finished surface. Only the door and hinge will be visible after wall is finished.

Potter Roemer FRC fire extinguisher cabinets are UL Classified per the standard for UL 1479 - Penetration Firestop Systems UL File no. R15411; Fire Rating: 2 Hours.

Model 7321, 7326 feature the same galvannealed steel with a recoatable white polyester finish on their door and frame.

Model 7341, 7346 feature an aluminum door and frame - clear anodized finish

Model 7361, 7366 feature a Type 304 stainless steel door and frame - #4 finish

Model 7381, 7386 features a brass door and frame - polished finish, clear
