Trimless Loma Fire Extinguisher Cabinet

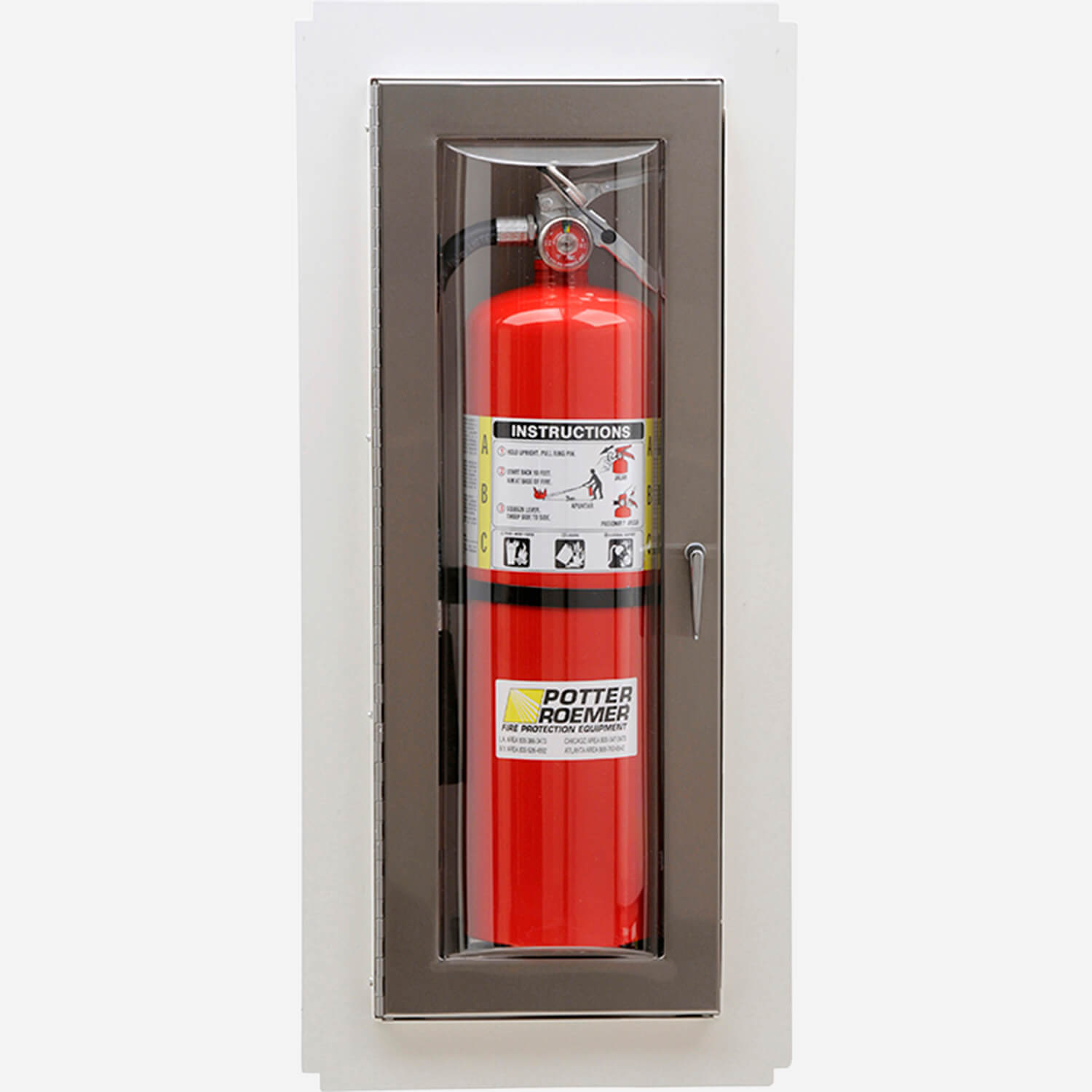

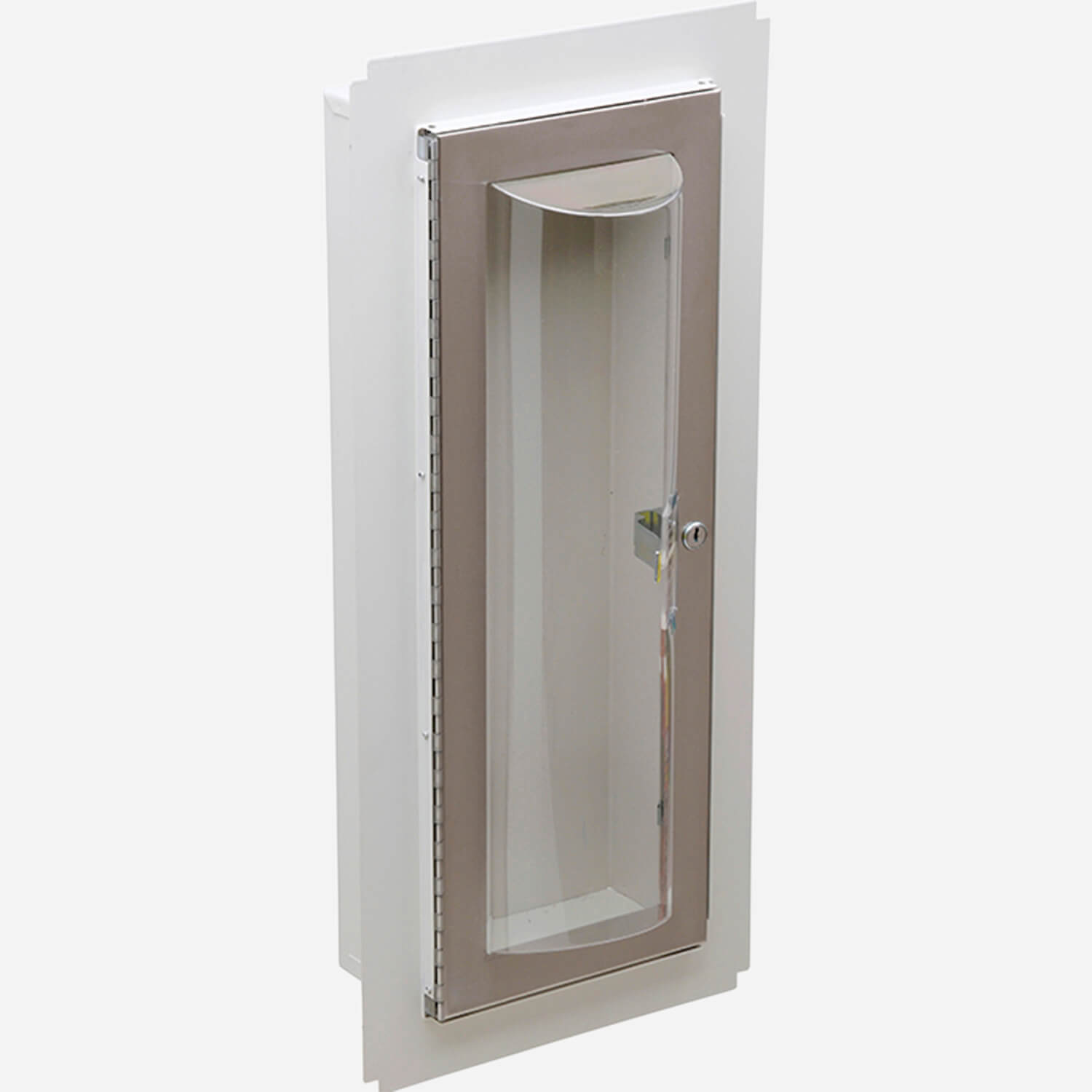

The Loma cabinet features a clear plastic semi-cylindrical bubble window on its door. The bubble provides additional space molded to the contour of the fire extinguisher. This is ideal for structures with limited wall depth.
These Loma cabinets are designed for a recessed installation.
The box portion of the cabinet is manufactured of galvannealed steel with an electrostatically applied, thermally-fused polyester coating with a recoatable white finish. A continuous piano hinge facilitates door opening. Suffix -BA provides a lever handle and cam latch; Suffix -BB provides a scored acrylic insert and cylinder lock.
Trimless cabinets must installed PRIOR to finished wall surface. The trimless frame will be drywalled over (0.625" thickness recommended) to effect a finished surface. Only the door and hinge will be visible after wall is finished.
Model 7321, 7326 feature the same galvannealed steel with a recoatable white polyester finish on their door and frame.
Model 7341, 7346 feature an aluminum door and frame - clear anodized finish
Model 7361, 7366 feature a Type 304 stainless steel door and frame - #4 finish
Model 7381, 7386 features a brass door and frame - polished finish, clear
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Loma Fire Extinguisher Cabinets - features semi-cylindrical bubble windows [Model 7307-7329 | Steel - Galvanneal steel with recoatable white polyester finish; Models 7337-7349 | Aluminum - Clear anodized finish; Models 7357-7369 | Stainless Steel - #304 Stainless steel with #4 finish; Models 7377-7389 | Brass - Polished finish, clear polyester coated] | 0 | 289 KB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB | ||
| | Brochure Architectural Fire Cabinets - Includes Alta 7000 Series, Buena 7100 Series, Dana 7200 Series, Loma 7300 Series; Extinguisher/ Valve Cabinets Alta 8000 Series, Buena 8100 Series, Dana 8200 Series, Loma 8300 Series | 0 | 3 MB |
Specifications
| Material | 22 Gauge Steel Box |
| Lettering | FIRE EXTINGUISHER (see options) |
| Inside Box Dimension | 12 x 27 x 4.75" |
| Capacity | 3002, 3005, 3005-3, 3302, 3305, 3305-3, 3006, 3010, 3306, 3310, 3020, 3202, 3320, 3410 |
| Door Style | -BA | Full Bubble with Lever Handle & Cam Latch, -BB | Break Bubble with Cylinder Lock, -6 | Clear Bubble, -7 | Bronze Bubble, -9 | Smoke Bubble |
| Mounting | Trimless |
