Model 5025-600 thru 5027-600
Flush 316 Stainless Steel Inlet Connection - 600 PSI

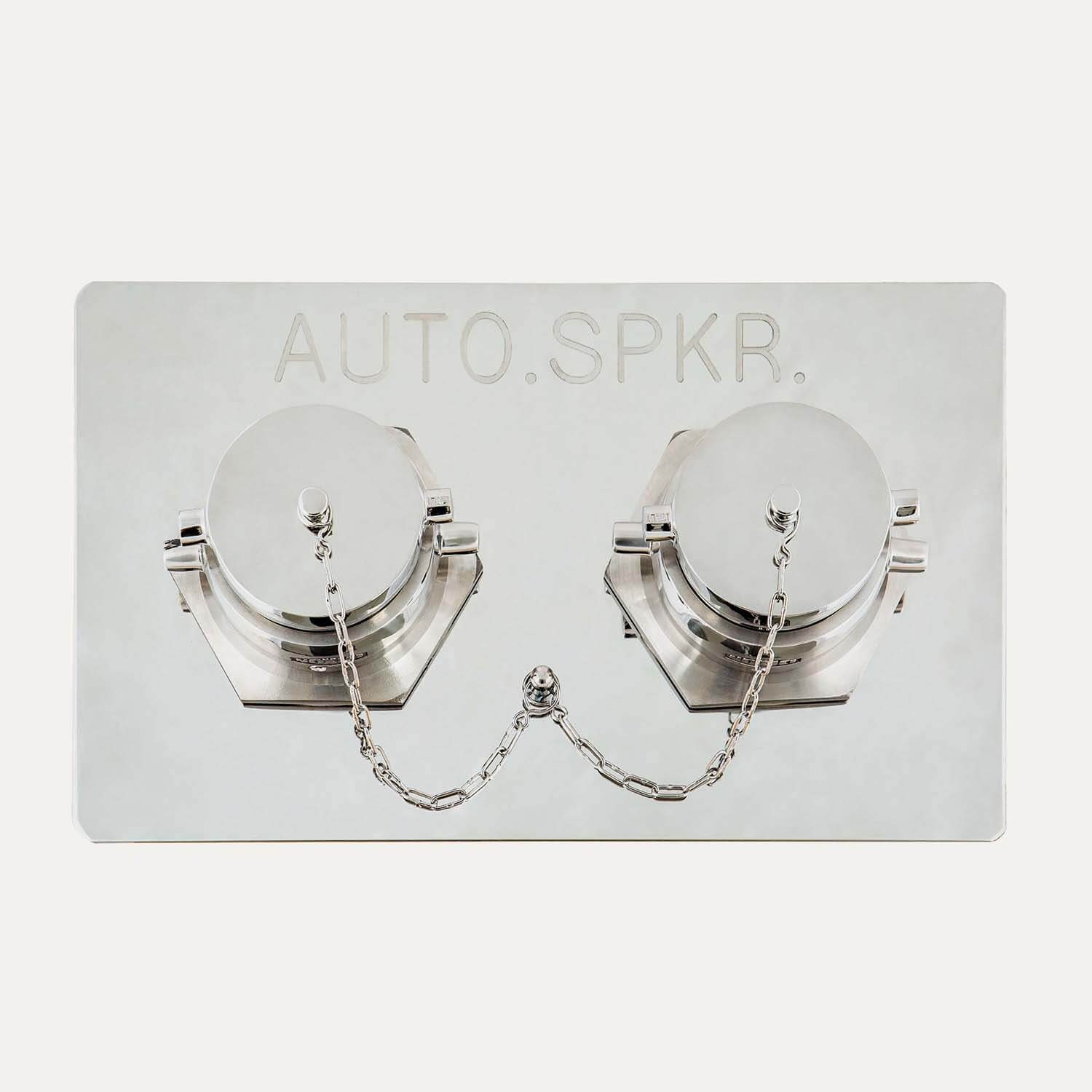

Used as an Auxiliary Inlet Connection. 600 PSI RATED, Manufactured of 316 stainless steel. Complete with stainless steel wall plate, stainless steel swivel inlets, and plugs w/chains. Style and lettering as selected.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Flush 316 Stainless Steel Inlet Connection - 600 PSI [5025-600 | 6" Grooved Back Outlet Body; 5026-600 | 6" Threaded Bottom Outlet Body; 5027-600 | 6" Threaded Top Outlet Body] | 0 | 262 KB | ||
| | Morris Group International Brands can provide solutions in every room of a building. | 0 | 6 MB |
Specifications
| Material | Type 316 Stainless Steel |
| Optional Finish | -D | Polished Chrome |

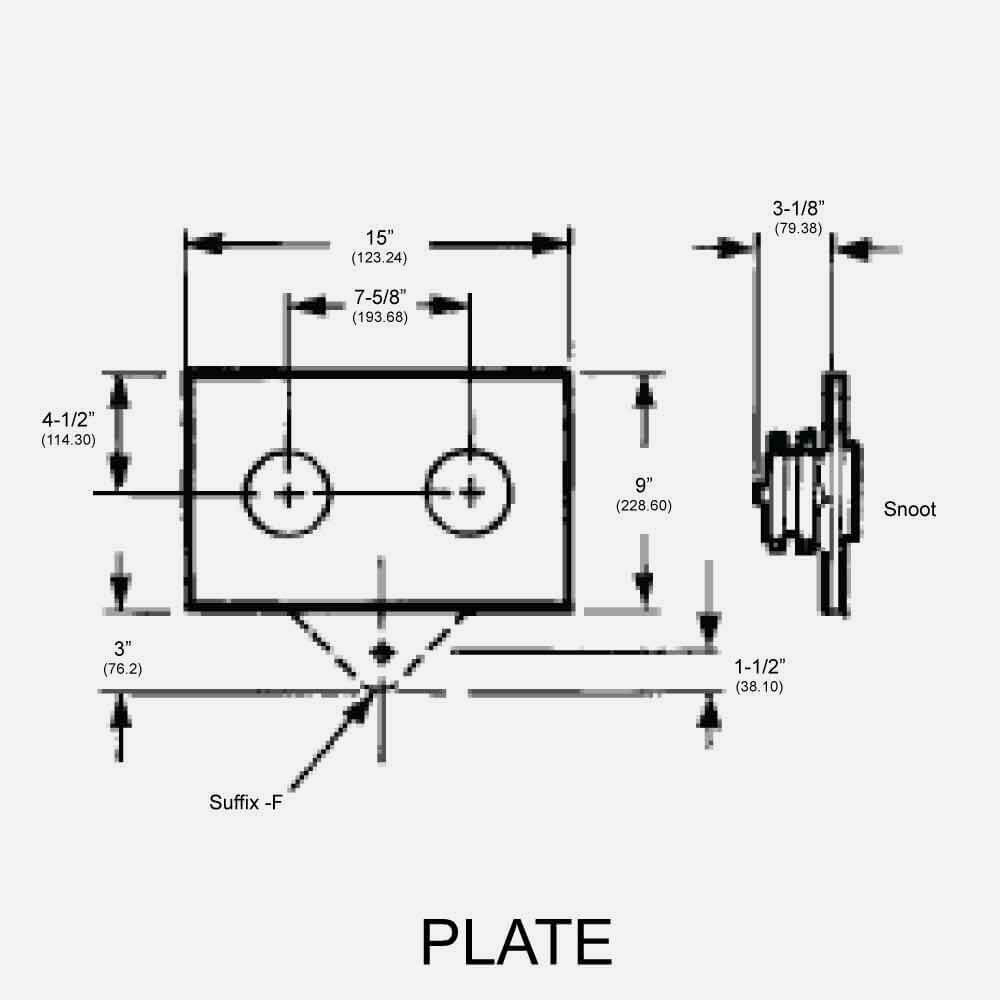

| Options | -F | Sillcock with Flange Plate |
| Lettering | AUTO SPKR, STANDPIPE, DRY STANDPIPE, AUTO SPKR STANDPIPE |
| Inlet | 2.5" Female |
| Outlet | 6" Grooved, 6" Threaded |
| No of Inlets | 2 |
| Outlet Location | Back, Top, Bottom |
Models
Typical models are shown below

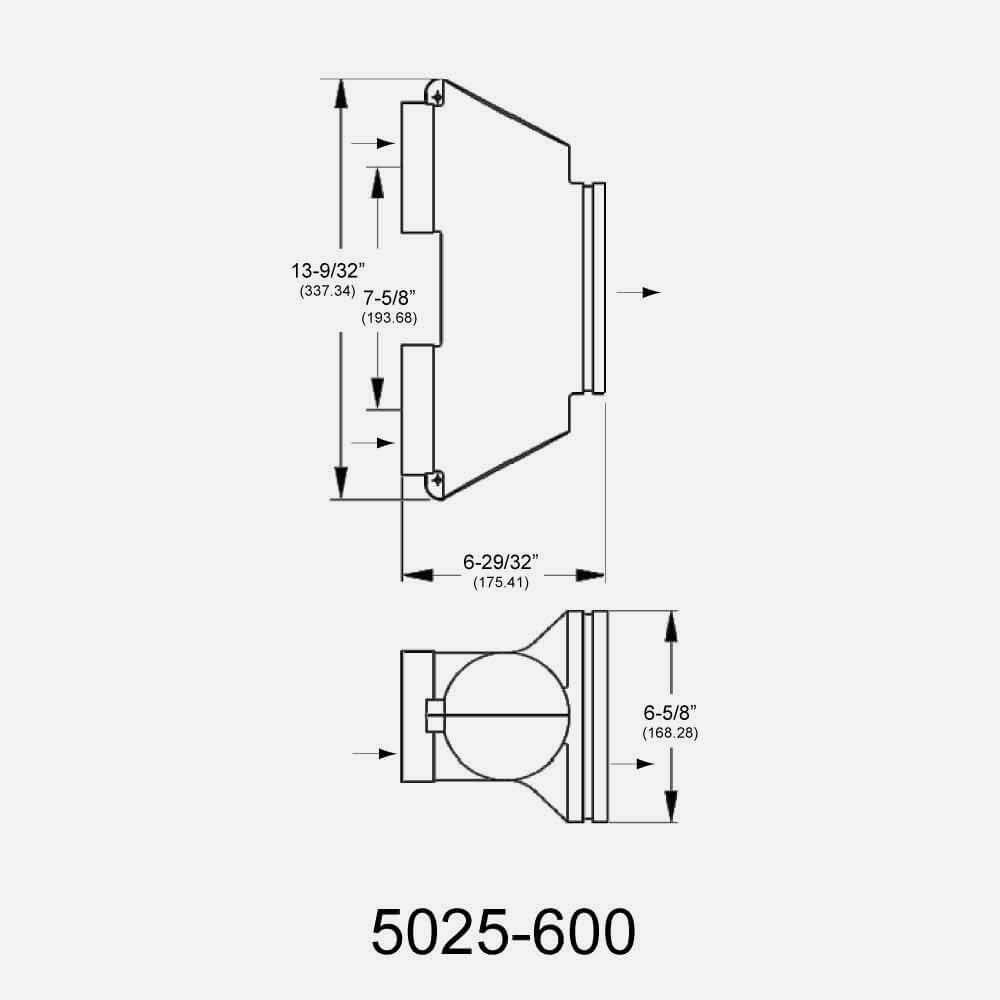

5025-600 Body Two 2-1/2" Female NPT Inlets 6" Grooved Back Outlet

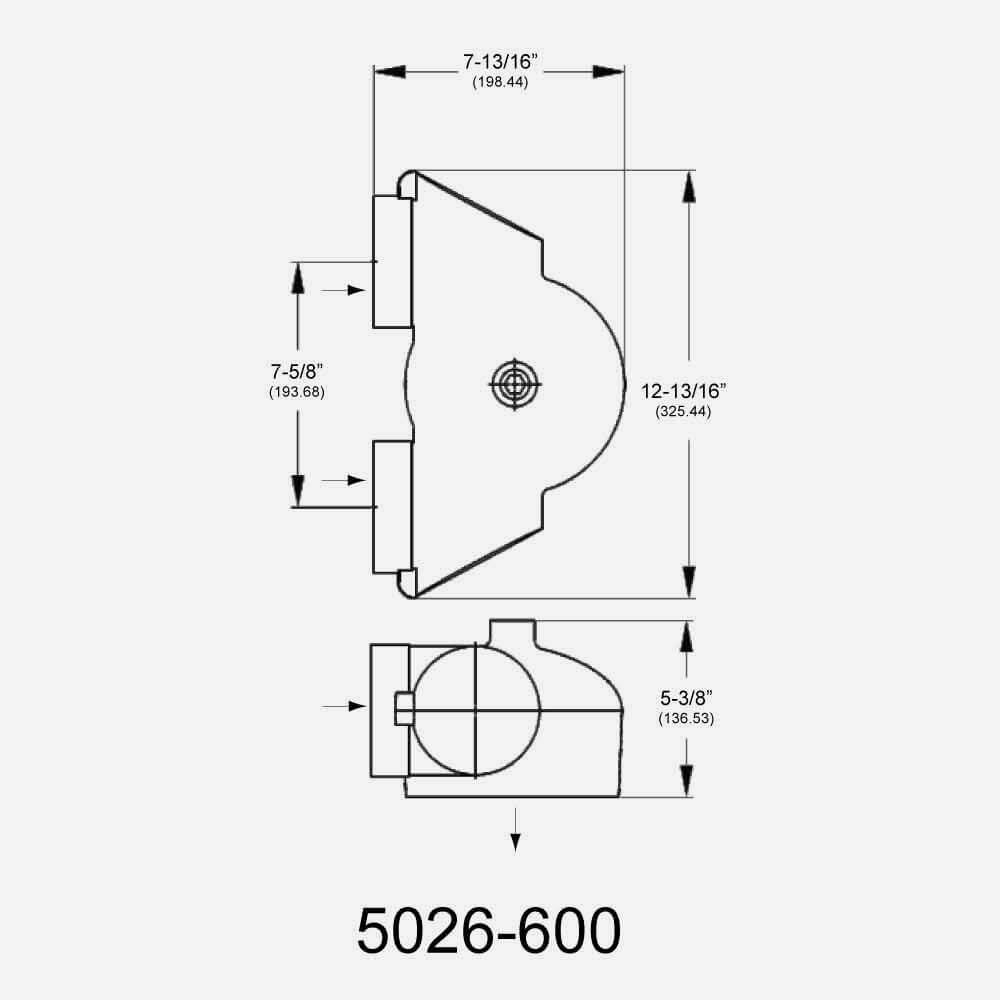

5026-600 Body Two 2-1/2" Female NPT Inlets 6" Threaded Bottom Outlet
5027-500 Body Two 2-1/2" Female NPT Inlets 6" Threaded Top Outlet
