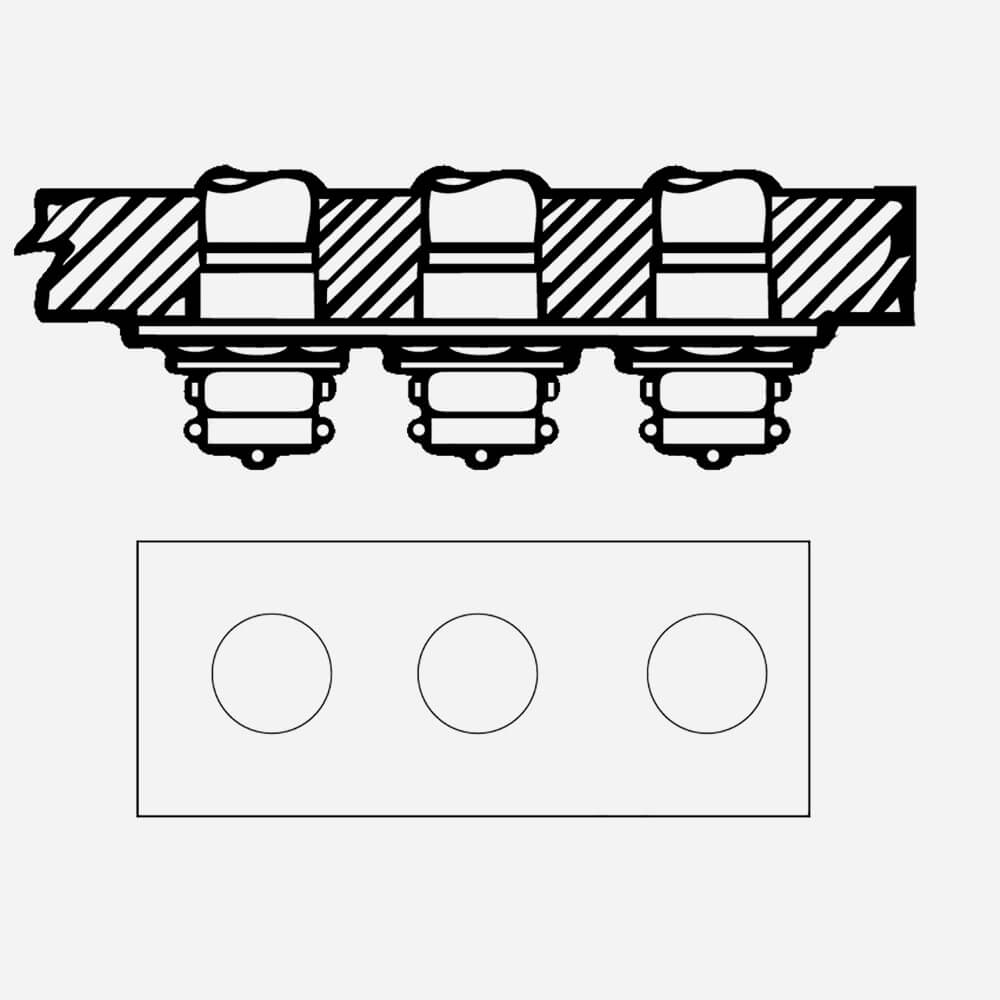

Flush Steel Body Inlet Connection Clapper Snoot Type - Three-Way
Used as an Auxiliary Inlet Connection.
Red thermally-fused polyester coated steel body. Type and size of outlet and number of inlets as selected by model number. Polished brass plate with lettering as selected. U/L listed polished brass double female clapper snoots with rigid 3" (76.2 cm) NPT outlet x 2-1/2" (6.4 cm) pin lug hose thread inlet swivels, and pin lug plugs and chains.
5592 Series provides 3 inlets. Variation in vertical, horizontal, side outlet, back outlet, angled outlet. Outlet is 6" unless specified with Option -4 (for 4" outlet).
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Flush Steel Body Inlet Connection Clapper Snoot Type [5587, 5588 | Two-Way; 5592 | Three-Way; 5589 | Four-Way; 5590, 5591 | Six-Way] | 0 | 781 KB |
Specifications
| Material | Steel Body, Red Polyester Powder Coating |
| No of Inlets | 3 |
| Inlet | 3" Female NPT |
| No of Outlets | 1 |
| Outlet | 6", 4" |

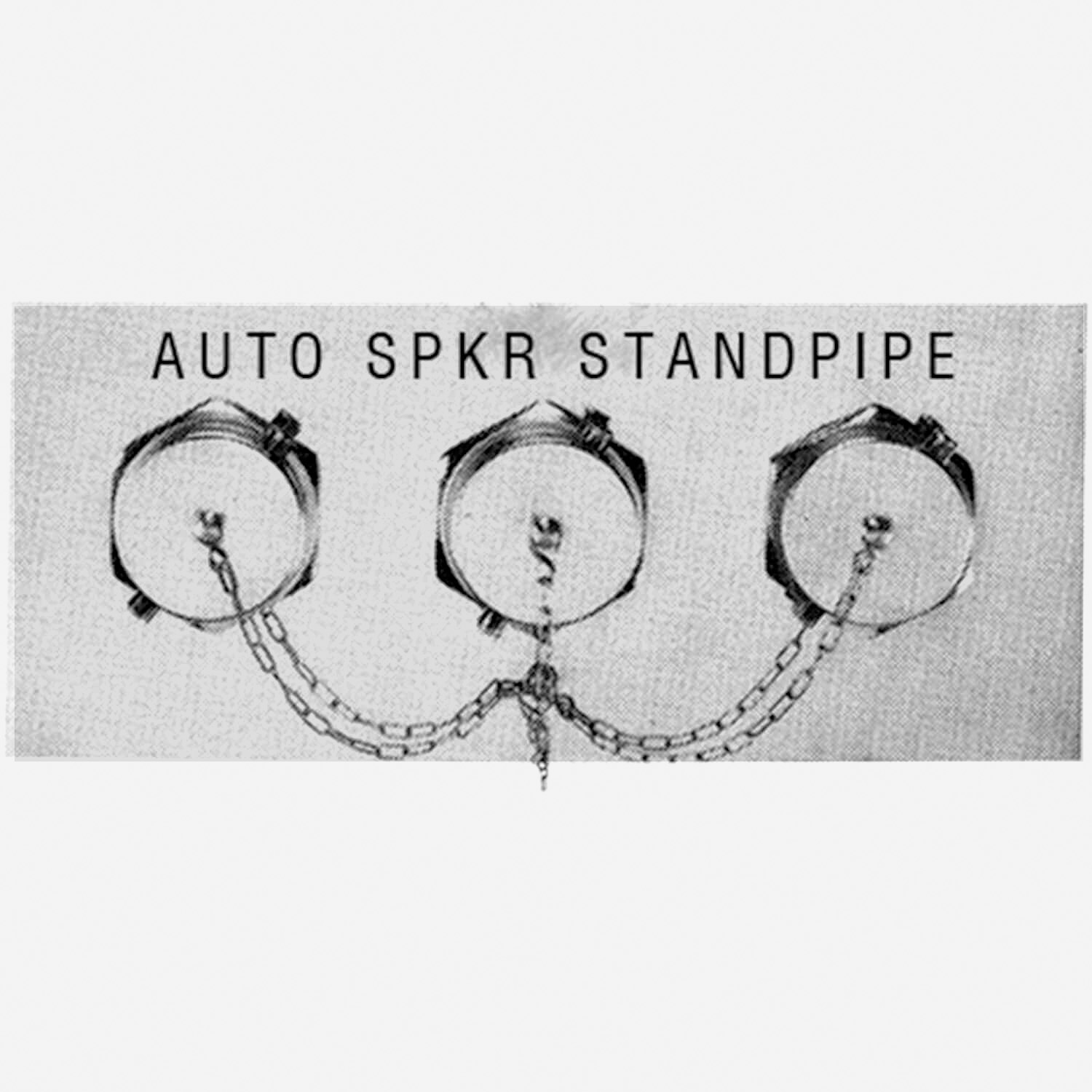

| Lettering | STANDPIPE, DRY STANDPIPE, AUTO SPKR, AUTO SPKR STANDPIPE |
| Optional Finish | -D | Polished Chrome |
| Options | -F | Sillcock with Flange Plate, -GRV | Grooved Outlet, -FLG | Flanged Outlet |
| Thread | NST |
Models
Vertical Configuration (shown from right side)

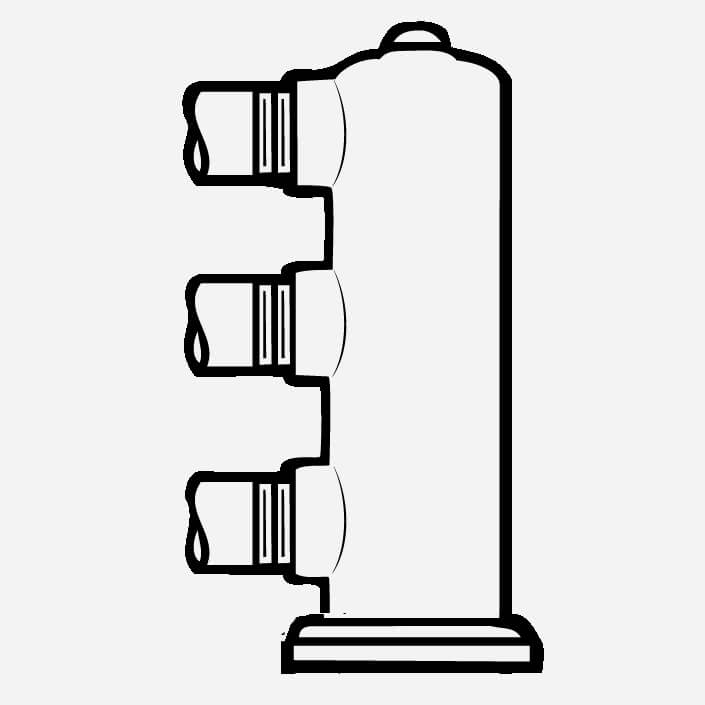

5592-01 | 6" End Outlet

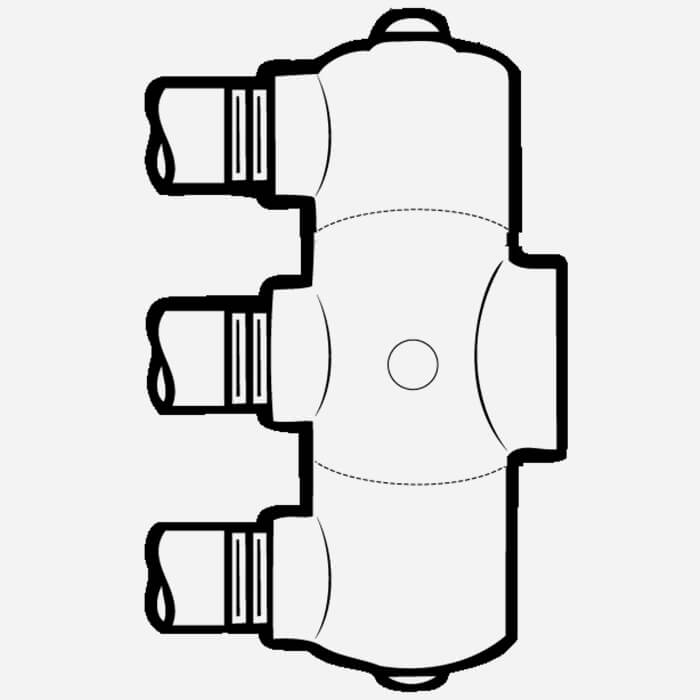

5592-03 | 6" Back Outlet

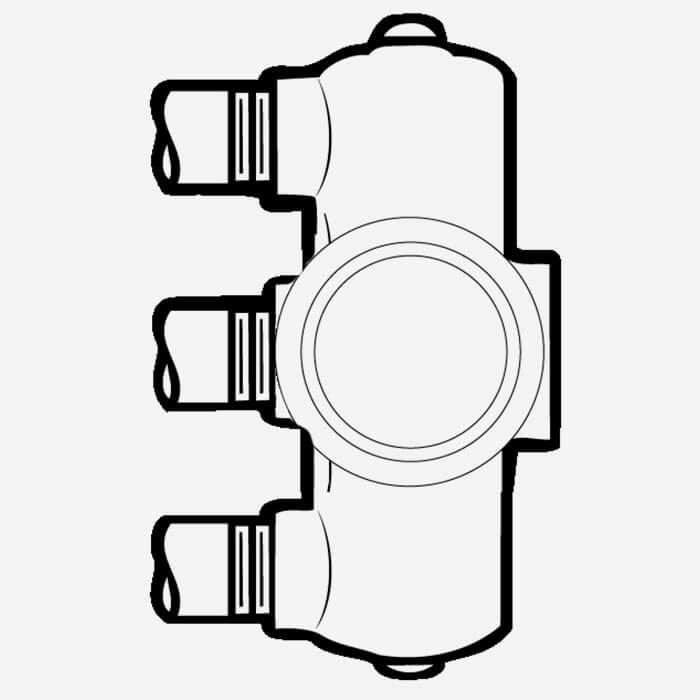

5592-05 | 6" Angle Outlet
Horizontal Configuration (shown from top)

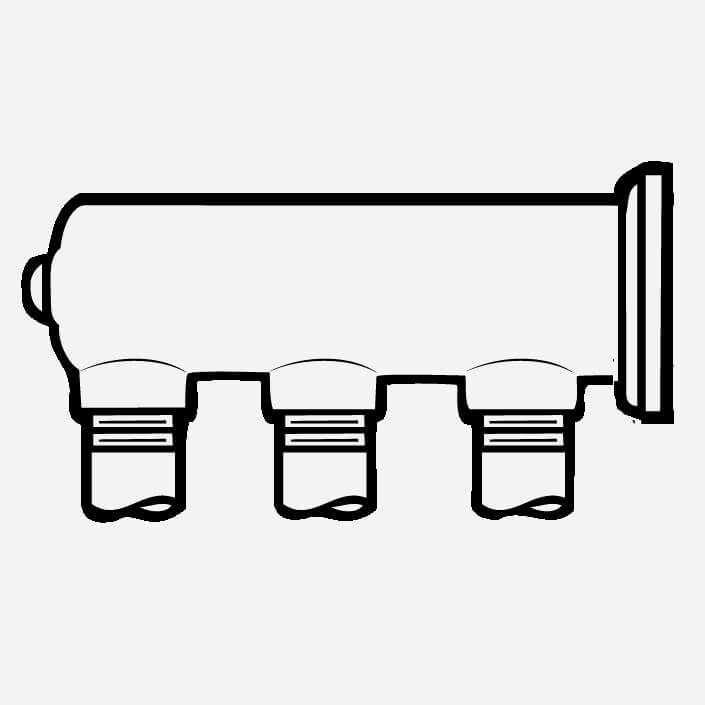

5592-02 | 6" End Outlet

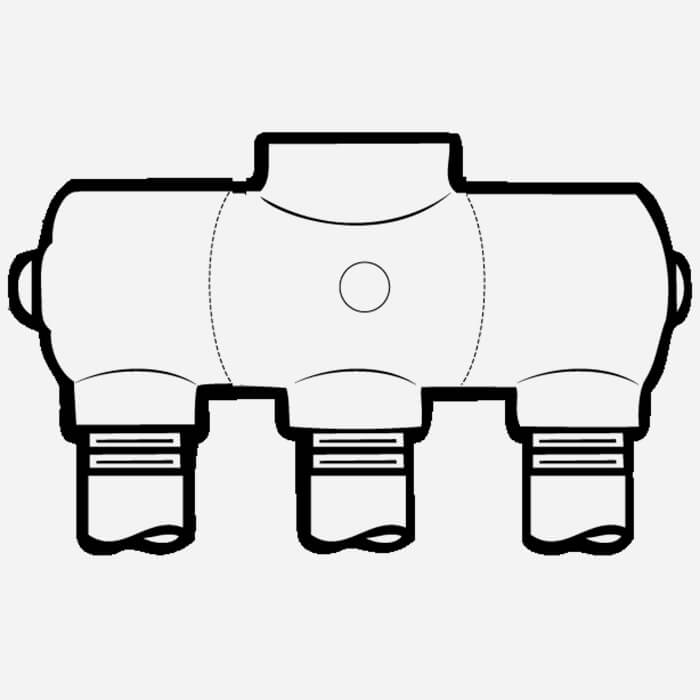

5502-04 | 6" Back Outlet

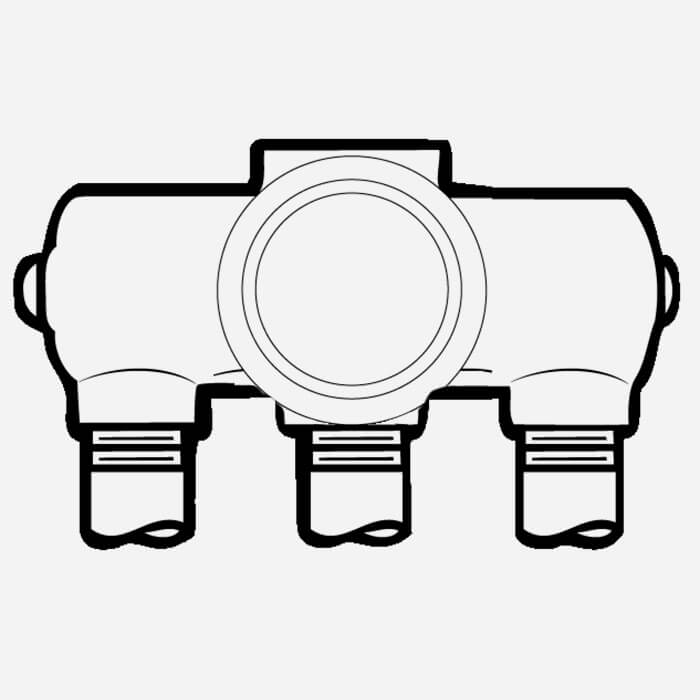

5502-06 | 6" Angle Outlet
Option -4 | 4" Outlet
