Model 5937 and 5938

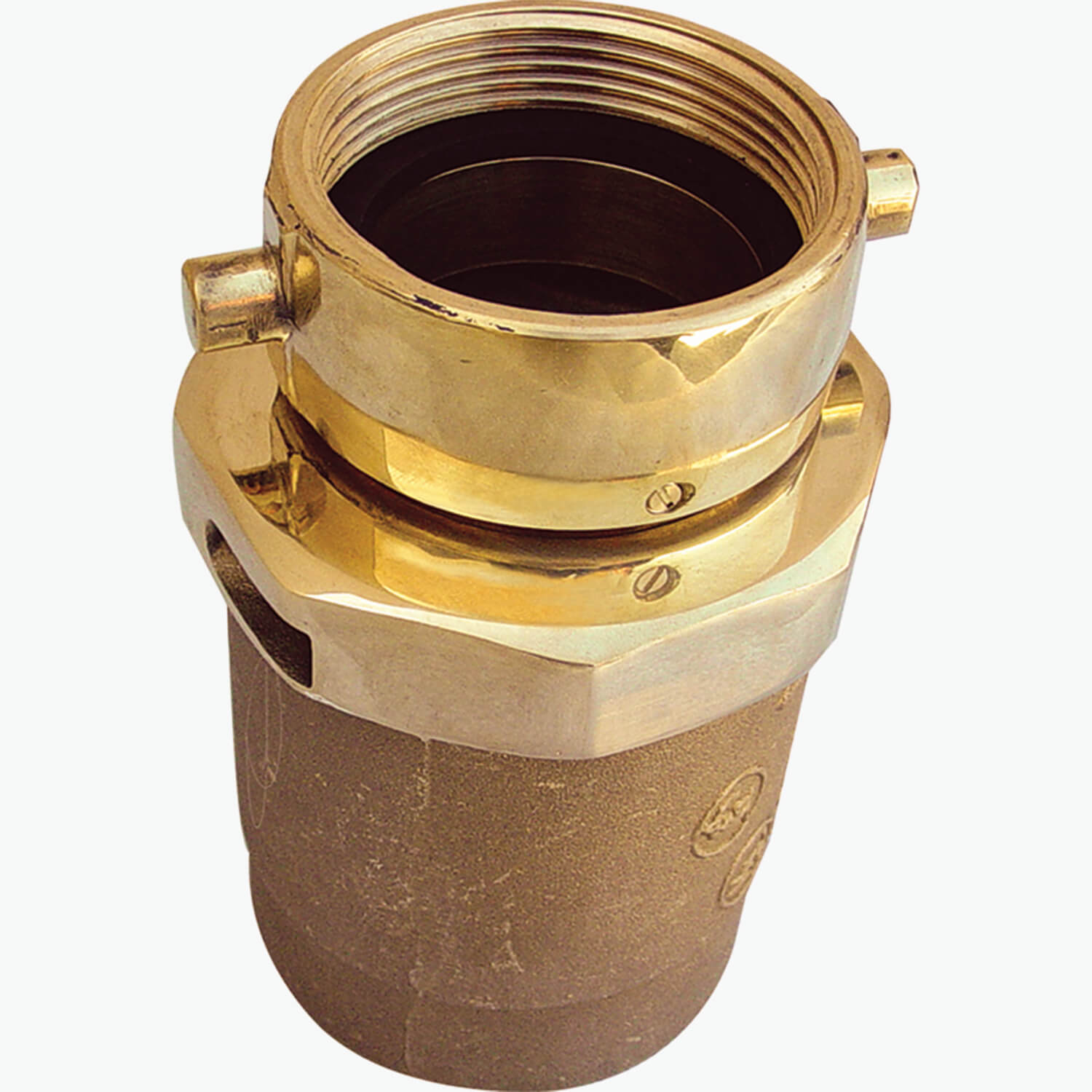

Clapper Type Check Snoot with Pin Lug Swivel
This check snoot with pin lug swivel is used to connect fire hose to multiple inlet fire department connections. It acts as a check valve against an excess backflow of water. It is a cast brass connection with polished brass exposed parts. Model 5937 has a 2.5” female hose inlet and 3” female NPT outlet. Model 5938 is a 2.5” female hose inlet with a 3” male NPT outlet.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Connection Accessories [ 5900-GRV, 5900-6-GRV | Grooved Adapter; 5902, 5903, 5905, 5911, 5912, 5913, 5915, 5922, 5923, 5925 | Open Snoots; 5930, 5933, 5935, 5936 | Spring Check Snoot; 5937, 5938 | Clapper Check Snoots] | 0 | 5 MB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 9 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB | ||
| | Hoja de data de Conexiones Serie 5902-5953 - Conexiones del Deparamento de Bomberos | 0 | 6 MB |
Specifications
| Material | Cast Brass Polished where Exposed |
| Optional Finish | -D | Polished Chrome |
| Inlet | 2.5" Female Hose Thread |
| Outlet | 3" Female NPT, 3" Male NPT |
| UL | UL Listed, 300 psi rated |
| UL Models | All models in this series |
