Exposed Brass Inlet Connection Clapper Type - Three-Way Clapper

Model 5755 and 5756

Submittal

Submittal 5751 thru 5756 Connection (pdf)

Model 5755 and 5756

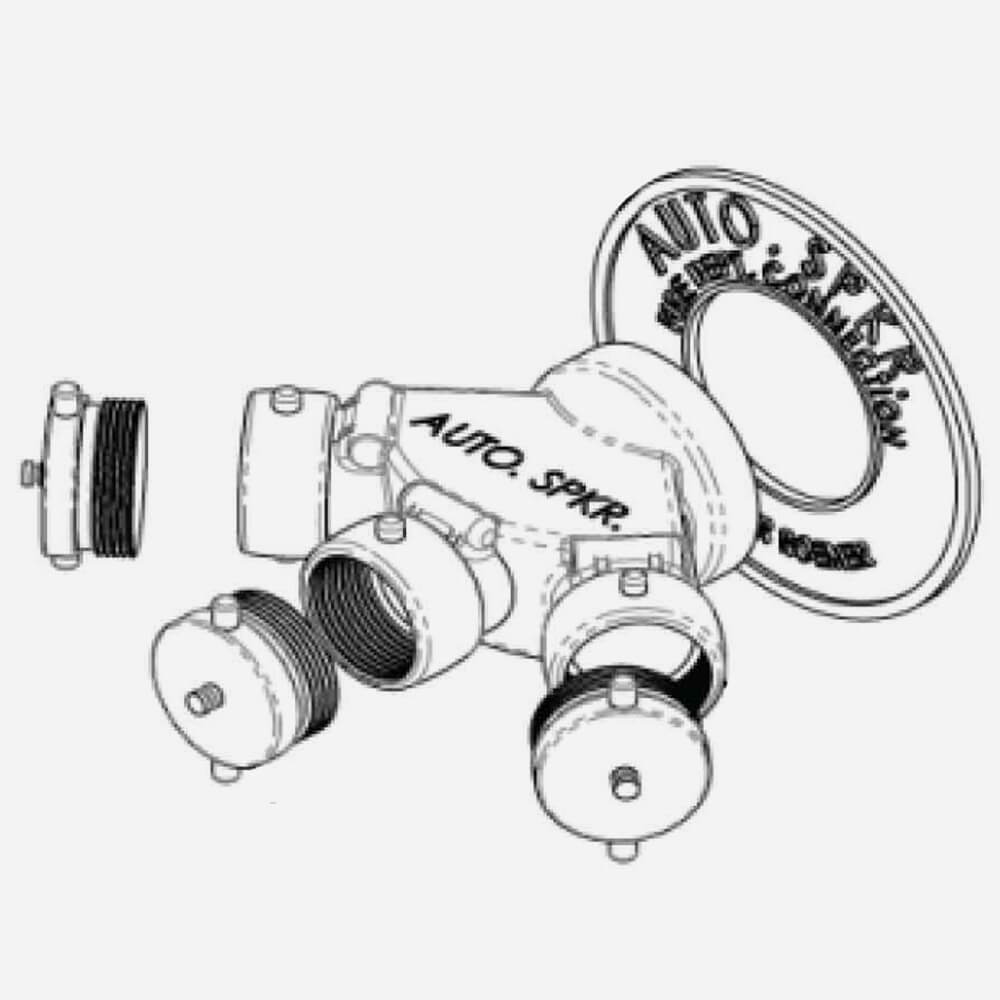

Cast brass inlet body with clappers, pin lug swivels and plugs and chains. Cast brass round wall plate with lettering as selected.

5755 feature three 2-1/2" NST Female Inlets and 4" NPT Female Outlet.

5756 feature three 2-1/2" NST Female Inlets and 6" NPT Female Outlet.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

	Resource Type	Title	Description	Answers	File Size	Action
	Submittals	Submittal 5751 thru 5756 Connection (pdf)	Exposed Brass Inlet Connection Clapper Type [5751SC \| Two-Way Single Clapper; 5751, 5752, 5753, 5754 \| Two-Way Double Clapper; 5755, 5756 \| Three-Way Triple Clapper]	0	601 KB

Can't find what you are looking for? Get in touch

Shows specifications for standard configuration. Configuration options may change specifications.

Material	Cast Brass Body
No of Inlets	3
Inlet	2.5" NST Female
No of Outlets	1
Outlet	4" Female NPT, 6" Female NPT
Outlet Location	Back
Pressure	300 PSI
Optional Finish	-B \| Polished Brass, -C \| Rough Chrome Finish, -D \| Polished Chrome
Options	-F \| Sillcock with Flange Plate
Lettering	AUTO SPKR, STANDPIPE, DRY STANDPIPE, AUTO SPKR STANDPIPE
Thread	NST

Variations as shown

5755 Three-Way 2-1/2" NST Female Inlets 4" Female NPT Outlet

5756 Three-Way 2-1/2" NST Female Inlets 6" Female NPT Outlet
