Model 5902 thru 5905
Female x Male Open Snoot

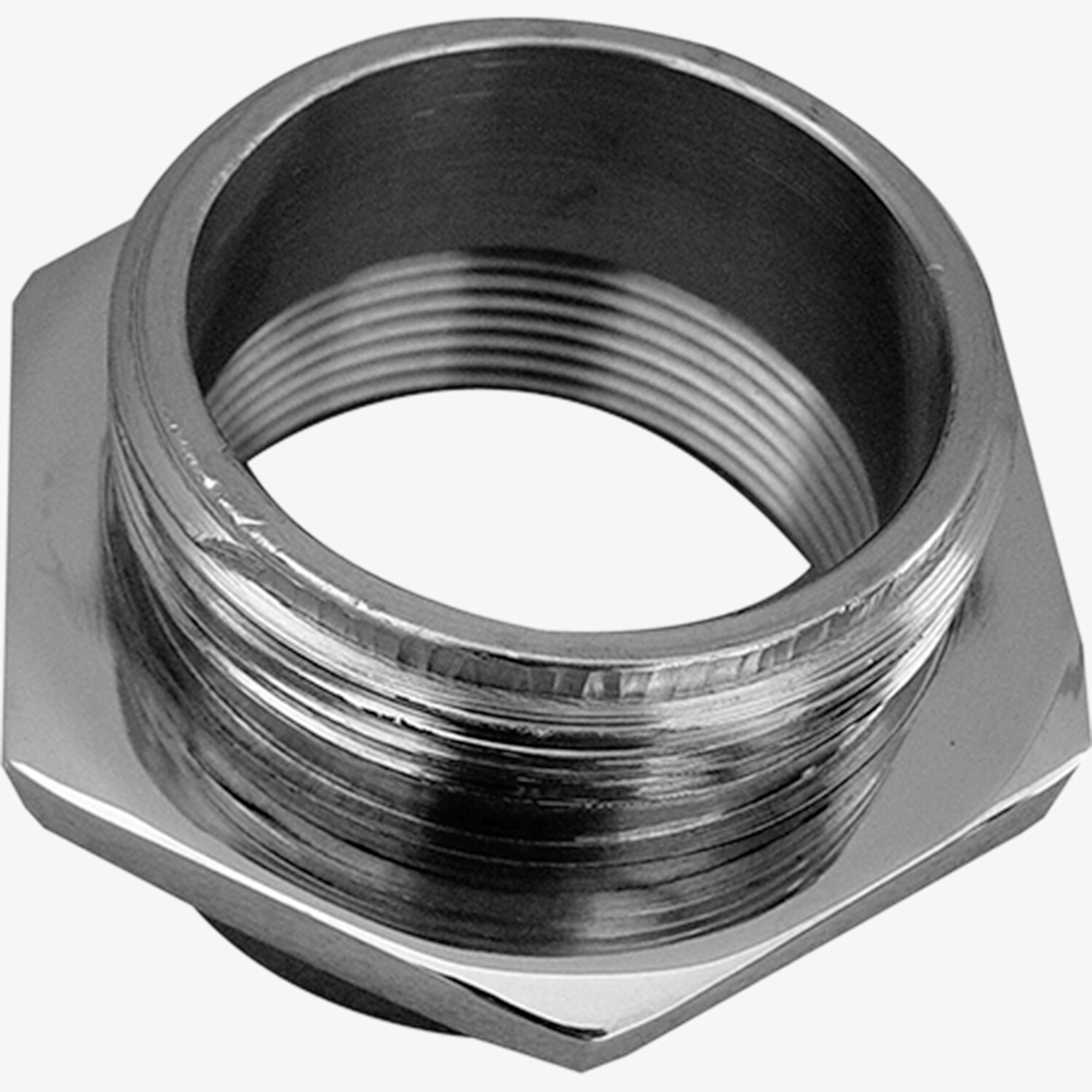

This open snoot is used to connect a fire hose to a standpipe or sprinkler system. It is a cast brass connection with a 2.5 or 3” female inlet and a 2.5 or 3” male outlet. Model 5902 has a 2.5 NPT inlet and a 2.5” hose outlet. Model 5903 has a 3” NPT inlet and 2.5” hose outlet. Model 5905 has a 3” NPT inlet and 3” hose outlet.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Connection Accessories [ 5900-GRV, 5900-6-GRV | Grooved Adapter; 5902, 5903, 5905, 5911, 5912, 5913, 5915, 5922, 5923, 5925 | Open Snoots; 5930, 5933, 5935, 5936 | Spring Check Snoot; 5937, 5938 | Clapper Check Snoots] | 0 | 5 MB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 9 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB | ||
| | Hoja de data de Conexiones Serie 5902-5953 - Conexiones del Deparamento de Bomberos | 0 | 6 MB |
Specifications
| Material | Cast Brass Polished where Exposed |
| Optional Finish | -D | Polished Chrome |
| Inlet | 2.5" Female NPT, 3" Female NPT |
| Outlet | 2.5" Male Hose Thread, 3" Male Hose Thread |
