Model 5022-500 and 5023-500
Flush Inlet Connection - Clapper Body - 500 PSI

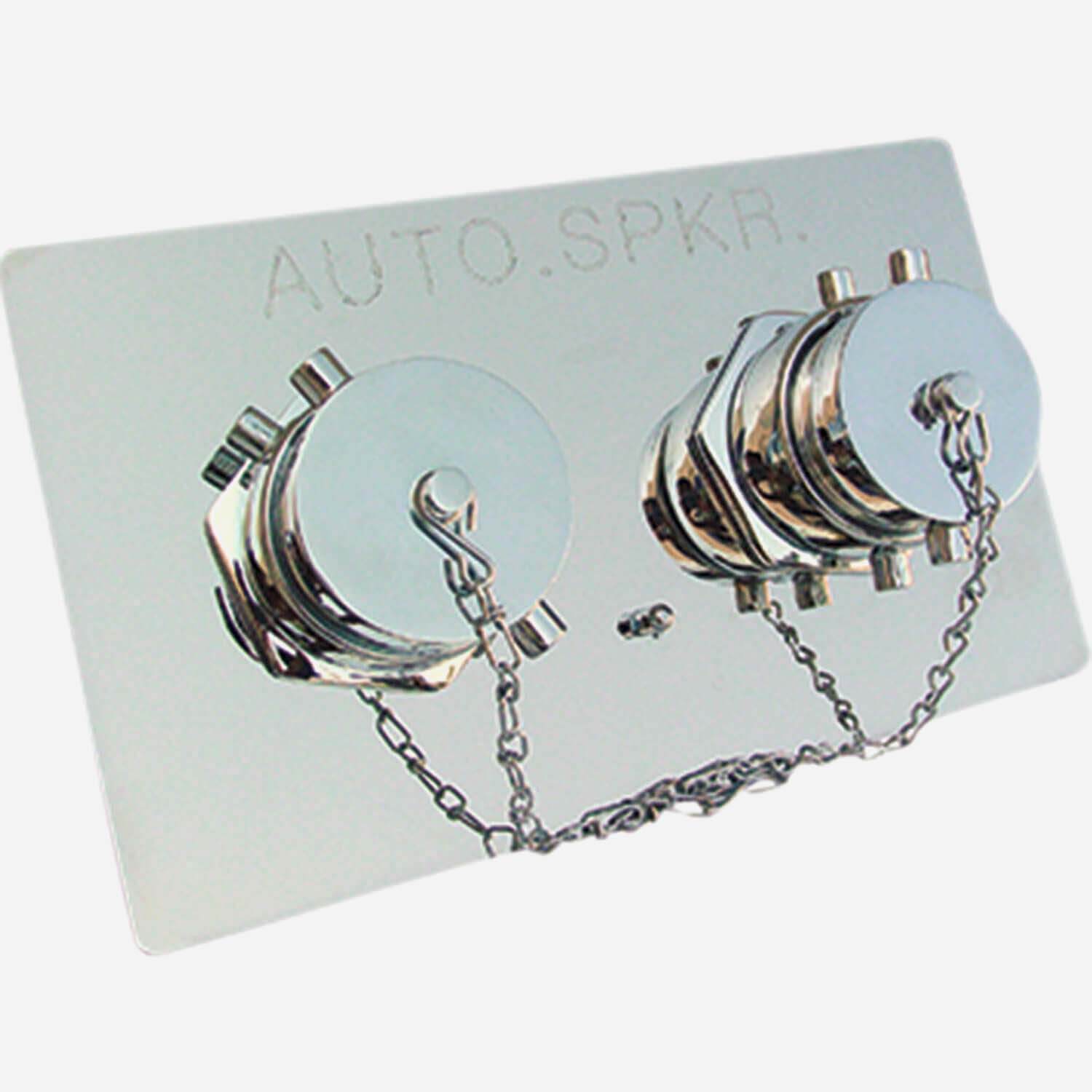

TWO-WAY INLET, 316 Stainless Steel two-way inlet body with side mounted internal clappers. Satin stainless steel wallplate with lettering as selected. Two satin stainless steel double female snoots with rigid ends N.P.T. x pin lug threaded swivels with plugs and chains. Rated working pressure 500 psi.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Flush 316 Stainless Steel Inlet Connection Clapper Type - 500 PSI [5022-500 | 4" Female NPT Bottom Outlet x Two 2-1/2" Female NPT Inlets; 5023-500 | 4" Female NPT Top Outlet x Two 2-1/2" Female NPT Inlets] | 0 | 836 KB | ||
| | Morris Group International Brands can provide solutions in every room of a building. | 0 | 6 MB |
Specifications
| Material | Type 316 Stainless Steel |
| Inlet | 2.5" Female NPT |
| Outlet | 4" Female NPT |
| Pressure | 500 PSI |
| Lettering | AUTO SPKR, STANDPIPE, DRY STANDPIPE, AUTO SPKR STANDPIPE |

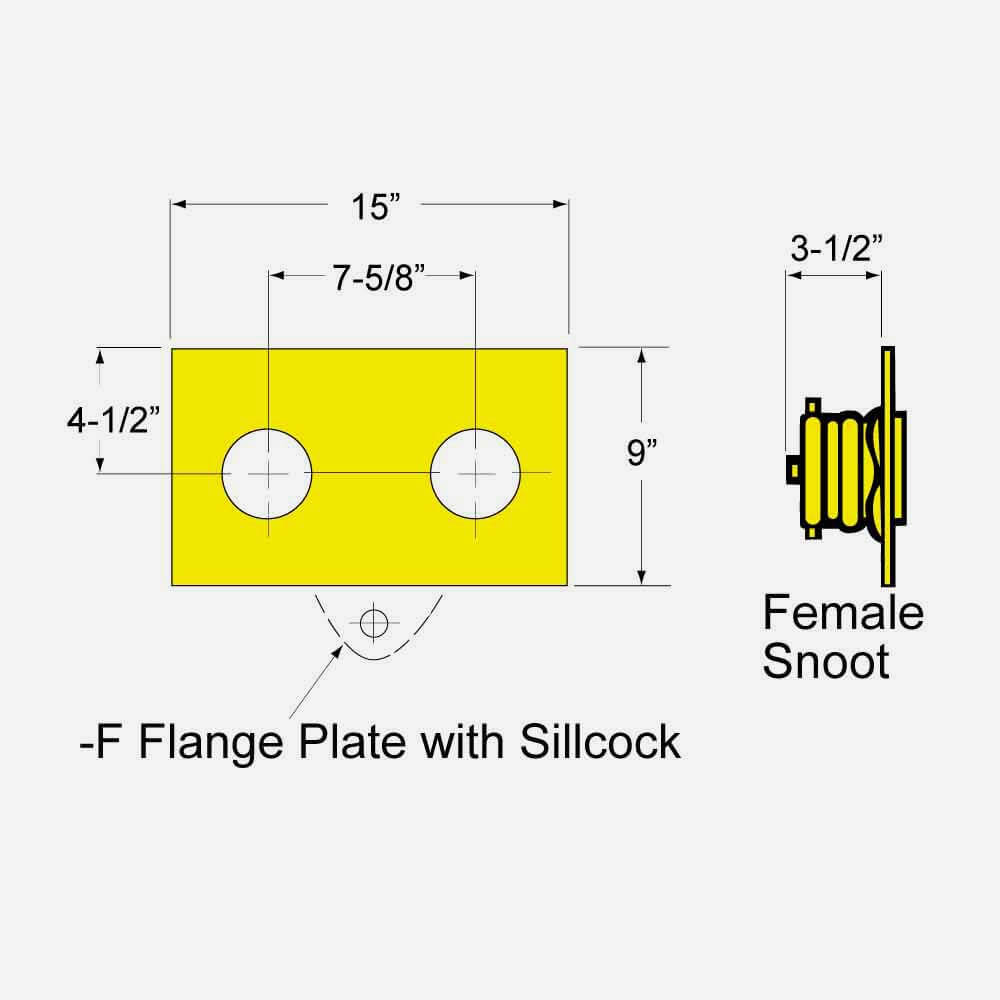

| Options | -F | Sillcock Flange Plate |
| Optional Finish | -D High Polish Stainless Steel |
| Thread | NST, Other to be specified by Customer |
| No of Inlets | 2 |
| Outlet Location | Top, Bottom |
Models
Typical models are shown below

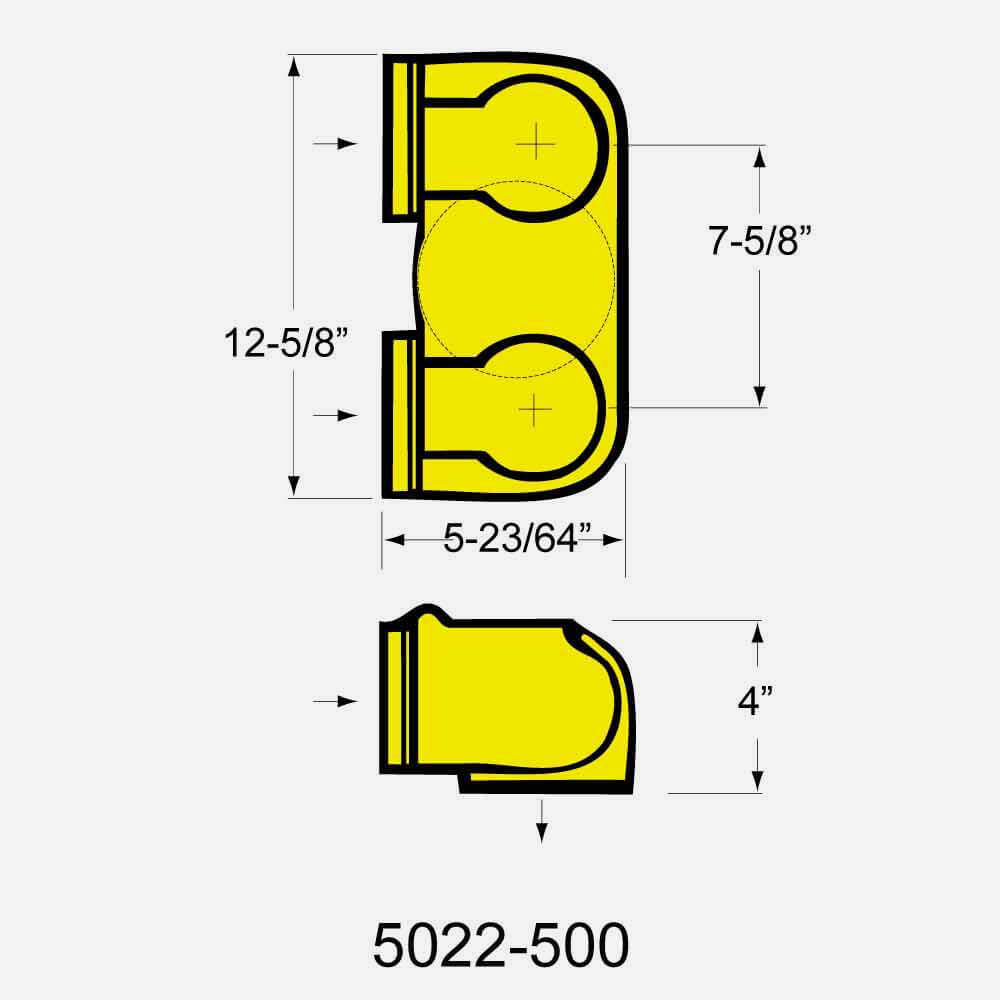

5022-500 Body Two 2-1/2" Female NPT Inlets 4" NPT Female Bottom Outlet

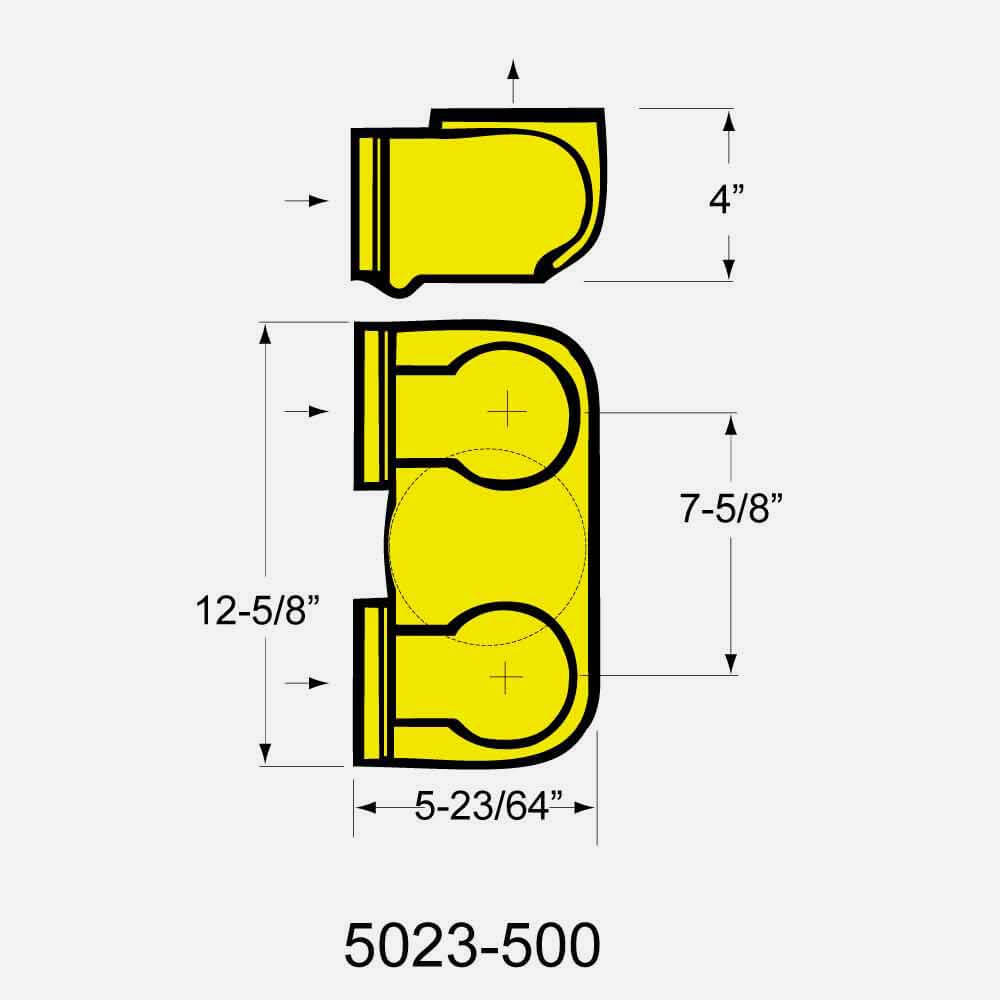

5023-500 Body Two 2-1/2" Female NPT Inlets 4" NPT Female Top Outlet
