Model 5864
Four-Way Flush Fire Pump Test Connections

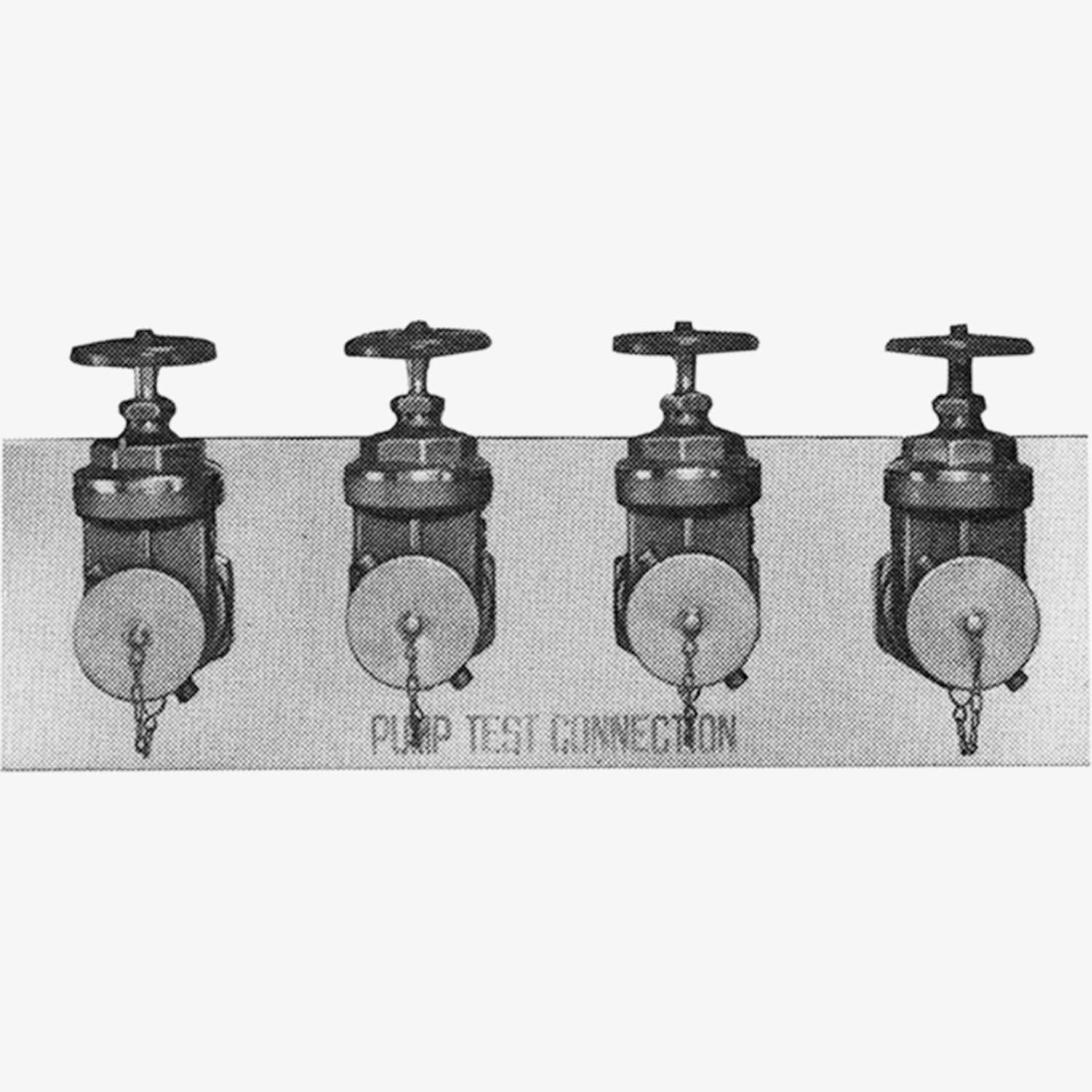

This four-way flush fire pump test connection mounts flush to the wall and provides access to test the flow capacity of up to four fire pumps. Each outlet is capable of a minimum flow of 250 GPM. Gate valves provide unrestricted waterway and control of individual outlets. It has a cast brass body with a brass plate lettered PUMP TEST CONNECTION. Brass NRS hose gate valves are supplied with every other valve having a loose bonnet as required for installation. It has a 3” (7.6 cm) female NPT inlet by 2 1/2”(6.4 cm) male hose thread outlet with caps and chains.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Flush Brass Pump Test Connection [5862 | 4" Two-Way End Inlet Steel Body; 5863 | 6" Three-Way End Inlet Brass Body; 5864 | 6" Four-Way End Inlet Brass Body; 5865 | 8" Six-Way End Inlet Brass Body] | 0 | 713 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 9 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB |
Specifications
| Material | Cast Brass Body |
| Optional Finish | -B | Polished Brass, -C | Rough Chrome, -D | Polished Chrome, -SS | Stainless Steel Plate, -1 | Ductile Iron Body Thermally-fused Red Polyester Coating, -1.5 | Steel Body Thermally-fused Red Polyester Coating |
| Lettering | PUMP TEST CONNECTION |
| No of Outlets | 4 |
| No of Inlets | 1 |
| Inlet Location | End, Angle, Back, Angle Square, Back Square, See Options |
| GPM | 1000 |
| Inlet | 6" |
| Outlet | 2.5" Male |
| Options | -2 | With Back Inlet, -3 | With Angle Outlet, -4 | With Back Inlet and Square Body, -5 | With Angle Inlet and Square Body, -6 | With Male Snoots Caps and Chain, -7 | With Male Snoots Caps Chain Removeable Swivel Hose Gate Valves |
