Four-Way Free-Standing Fire Pump Test Connections

Name: Four-Way Free-Standing Fire Pump Test Connections
Brand: Potter Roemer
SKU: 5868

Contact a Representative

Model 5868

Submittal

Submittal 5866 thru 5869 Connection (pdf)

Model 5868

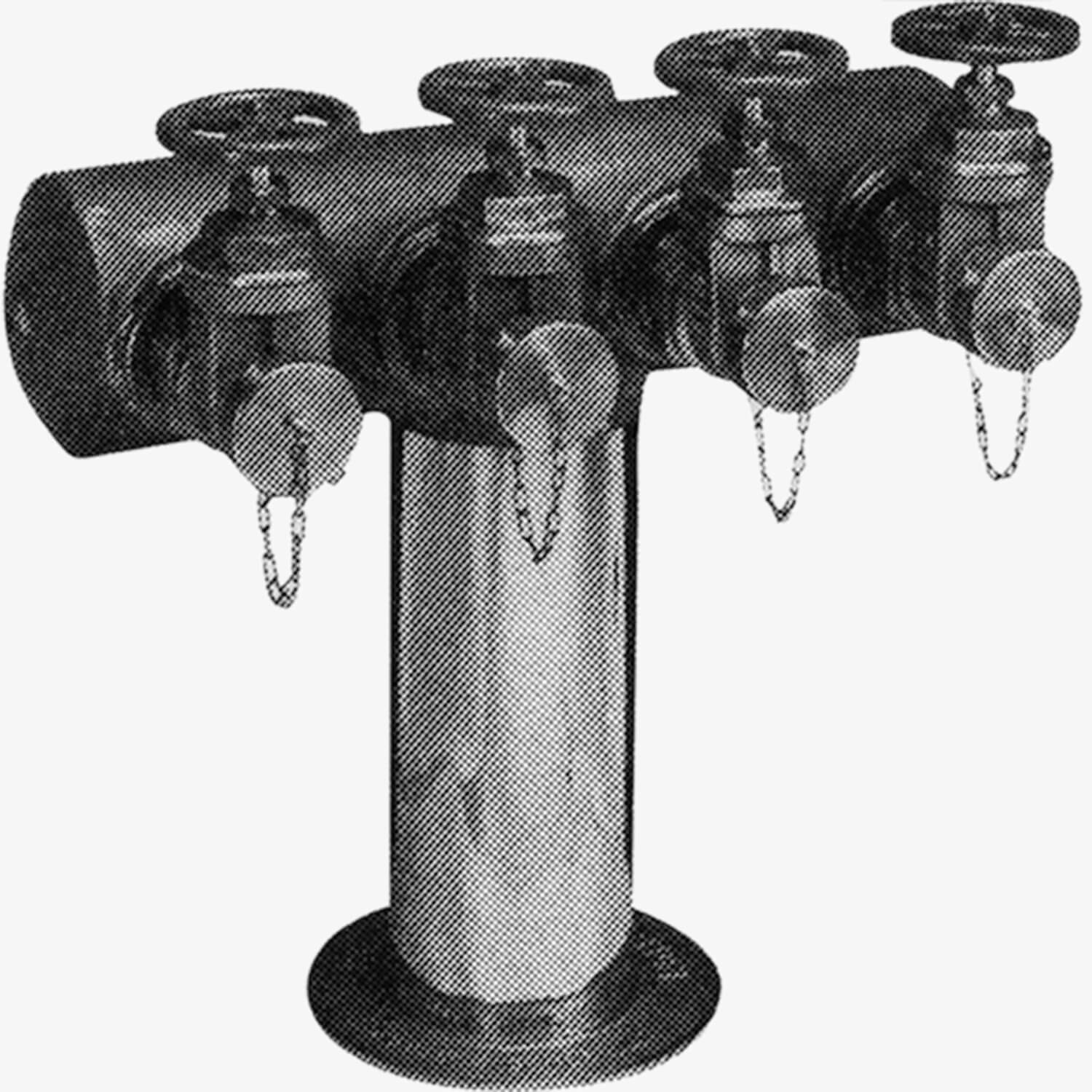

Four-Way Free-Standing Fire Pump Test Connections

This four-way freestanding fire pump test connection can be used to test the flow capacity of up to four pumps at a time. Each outlet is capable of a minimum flow of 250 GPM. Gate valves provide unrestricted waterway and control of individual outlets. This test connection has a cast brass angle inlet body. Brass NRS hose gate valves are supplied with every other valve having a loose bonnet as required for installation. It has a female NPT inlet x 2.5” male hose threaded outlet with 2.5” caps and chains. It has an 18” long polished brass cover sleeve and brass identification plate lettered PUMP TEST CONNECTION.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Submittals	Submittal 5866 thru 5869 Connection (pdf)	Free-Standing Pump Test Connection [5866 \| 4" Two-Way; 5867 \| 6" Three-Way; 5868 \| 6" Four-Way; 5869 \| 8" Six-Way]	722 KB
Brochures/Flyers	MGI Corporate Brochure (pdf)	Who we are, Our History, Morris Group International Today	27 MB
Brochures/Flyers	MGI Brands Flyer (pdf)	MGI Brands Flyer (pdf)	718 KB
Brochures/Flyers	Potter Roemer Mechanical Brochure (pdf)	Potter Roemer Mechanical Products - Pressure Reducing Valve, Hose & Gate Valves, Flush Connection, Wall & Freestanding Connections, Hydrants, Roof Connections, Pump Test Connection, Hose Rack Assemblies, Hose & Storage, Nozzles, Hose Cabinets, Extinguisher Cabinets, Valve Cabinets, Fire Pro Products [L# L1001700, Feb 2026]	2 MB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Material	Cast Brass Body, Brass Cover Sleeve, Brass Base Plate, Brass Valve
Optional Finish	-B \| Rough Brass Body with Polished Brass Trim, -C \| Rough Chrome Body with Polished Chrome Trim, -B \| Red Glossy Polyester Coated Ductile Iron Body with Polished Brass Trim, -C \| Red Glossy Polyester Coated Ductile Iron Body with Polished Brass Trim
Lettering	PUMP TEST CONNECTION
No of Outlets	4
No of Inlets	1
Inlet Location	Bottom
Radius of Body Swing	14.5"
GPM	250 per Outlet
Inlet	6"
Outlet	2.5" Male
Height	23.625", 29"
Options	-5 \| With Angle Inlet and Square Body, -6 \| With Male Snoots Caps and Chain, -7 \| With Male Snoots Caps Chain Removeable Swivel Hose Gate Valves
