Model 5775, 5776, 5780, 5781

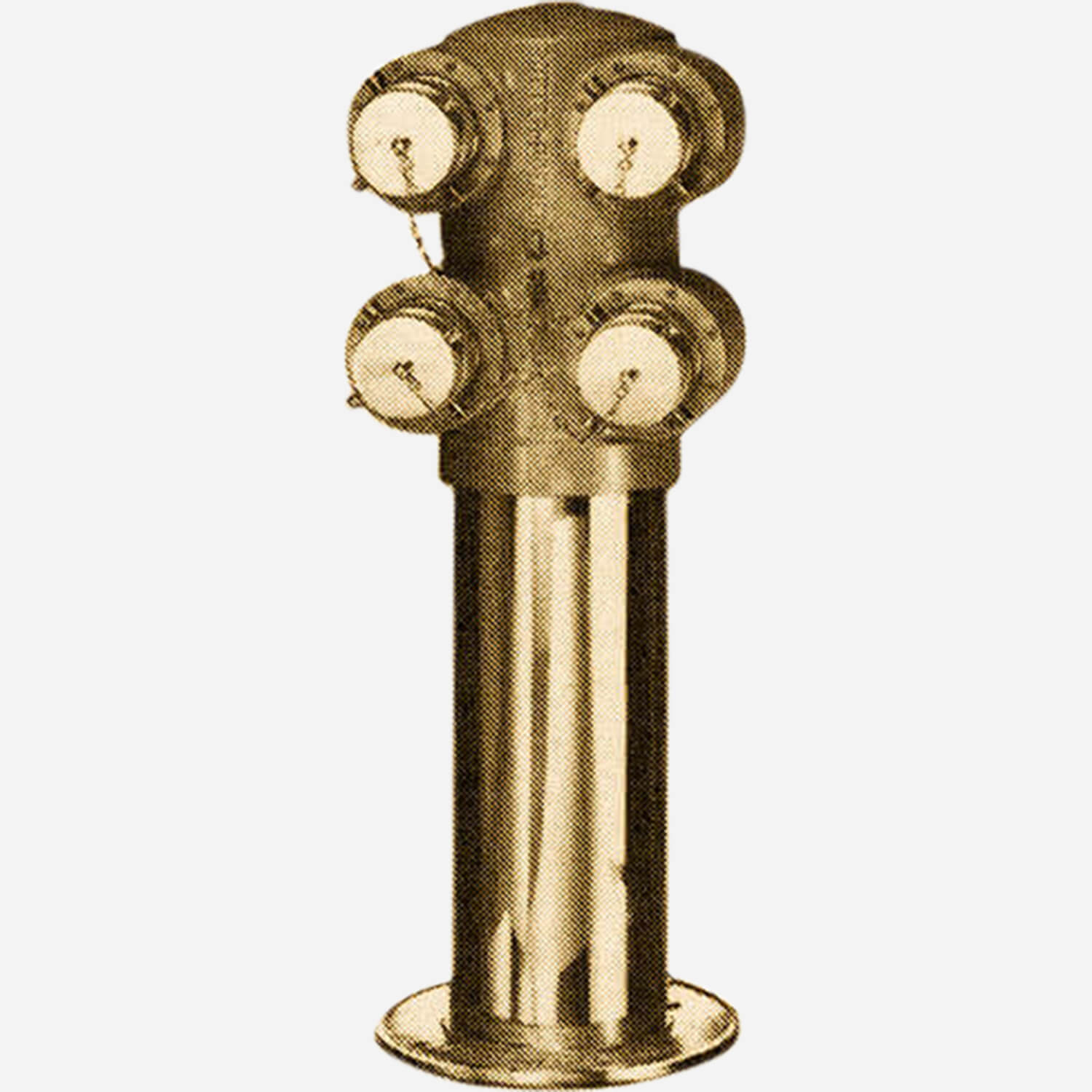

Four-Way Square Free-Standing Inlet Connection with Clapper Body
This four-way freestanding fire department connection features four inlets in a 2 x 2 format with a single outlet directed into the grade. This connection is for use in supplementing the facility’s fire department water supply. It has an 18" long polished brass cover sleeve, cast brass identification baseplate, cast brass plugs, and chains on each pin log and swivel.
5775 | Brass Body, Clapper Snoots
5776 | U/L Listed Ductile Iron Body, Clapper Snoots
5780 | Brass Clapper Body
5781 | U/L Listed Ductile Iron Clapper Body
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Free-Standing Brass/Ductile Inlet Connection [5761SC | Two-Way Single Clapper; 5761, 5762, 5763, 5764 Two-Way Double Clapper; 5775, 5776, 5780, 5781 | Four-Way Square; 5778, 5785, 5786 | Four-Way Linear; 5791, 5792 |Six-Way] | 0 | 1 MB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 9 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB |
Specifications
| Material | Cast Brass Body, Ductile Iron Body, Brass Base Plate, Brass Cover Sleeve, Cast Brass Pin Lug Plug |
| Optional Finish | -B | Red Glossy Polyester Coated Ductile Iron Body with Polished Brass Trim, -B | Polished Brass Body Polished Brass Trim on Brass Model, -C | Rough Chrome Body Polished Chrome Trim on Brass Model, -C | Red Glossy Polyester Coated Ductile Iron |
| Lettering | AUTO SPKR, STANDPIPE, DRY STANDPIPE, AUTO SPKR STANDPIPE |
| No of Outlets | 1 |
| Outlet Location | Bottom |
| No of Inlets | 4 |
| Radius of Body Swing | 8" |
| GPM | 1000 |
| Inlet | 2.5" |
| Outlet | 6" |
| Height | 34", 23.625" |
