Model 5406 thru 5436
Four-Way Square Flush Clapper Inlet Type Fire Dept. Connection

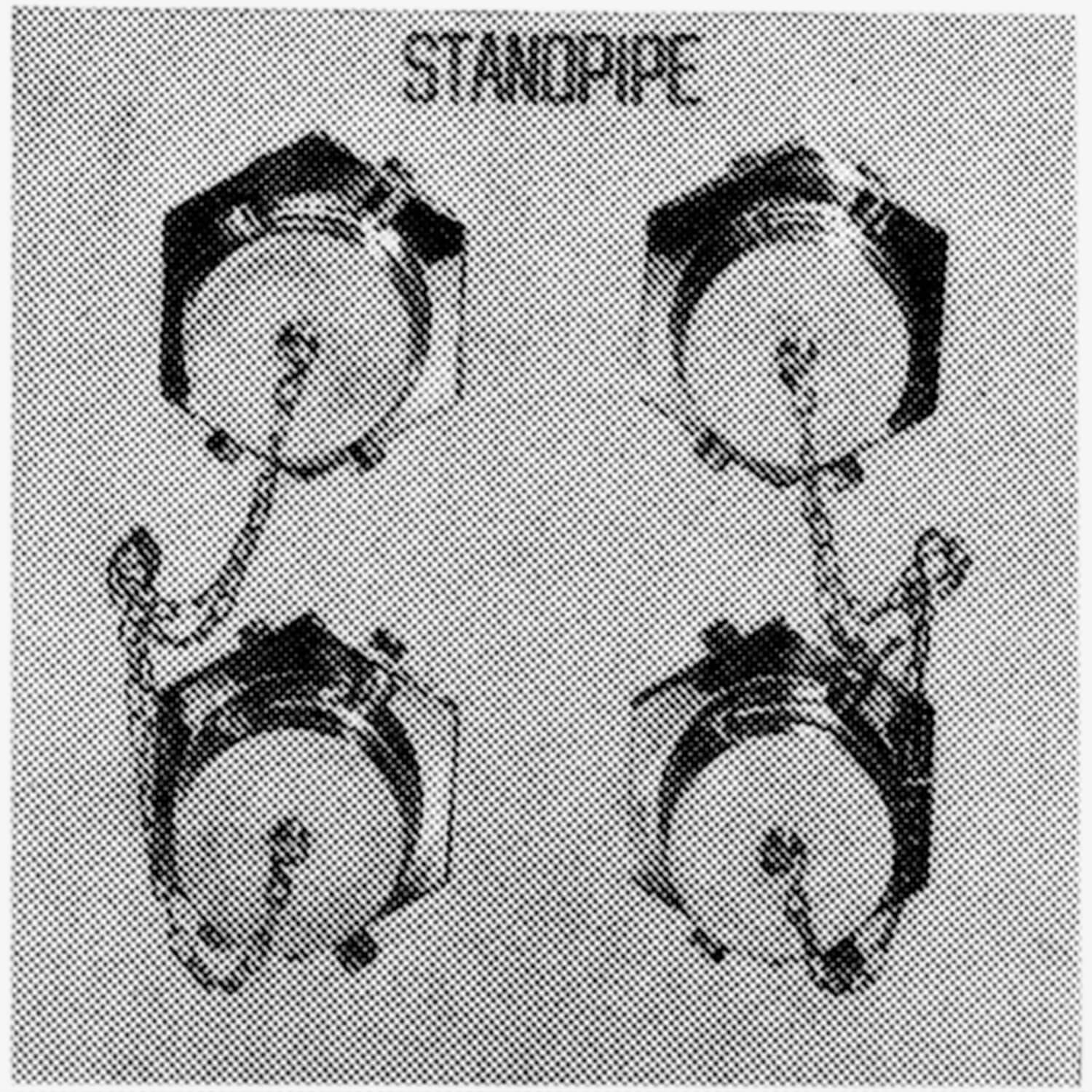

This flush four-way square clapper inlet type connection is constructed from brass or ductile iron with drop clappers. It comes in a 6” size with a back or angle outlet. It has a Polished brass plate with lettering as selected and Polished brass double female snoots with rigid end 3” N.P.T. x 2-1/2” pin lug hose thread swivels pin lug plugs and chains. Outlet location as selected by suffix letters.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Flush Brass/Ductile Iron Inlet Connection Clapper Type [5114, 5134, 5154, 5116, 5136, 5156 | Two-Way; 5206, 5226, 5246, 5216, 5236, 5256 | Four-Way Linear; 5306, 5326, 5346, 5308, 5328, 5348 | Six-Way; 5406, 5426, 5416, 5436 | Four-Way Square] | 0 | 842 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 9 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB |
Specifications
| Material | Brass Body, Ductile Iron Body |
| Optional Finish | -D | Polished Chrome, -SS | Polished Stainless Steel Plate |
| Lettering | AUTO SPKR, STANDPIPE, DRY STANDPIPE, AUTO SPKR STANDPIPE |
| No of Outlets | 1 |
| Outlet Location | Back, Top, Bottom |
| No of Inlets | 4 |
| UL Models | 5416, 5436T, 5436B |
| GPM | 500 thru 1500 |
| Outlet | 6" |
| UL | UL Listed |
| Options | -H | Horizontal Back Outlet, -V | Vertical Back Outlet, -HT | Horizontal Angle Outlet on Top, -HB | Horizontal Angle Outlet on Bottom, -VL | Vertical Angle Outlet on Left Side, -VR | Vertical Angle Outlet on Right Side |
