Model 5845 thru 5848
Free-Standing Fire Dept Outlet Connection

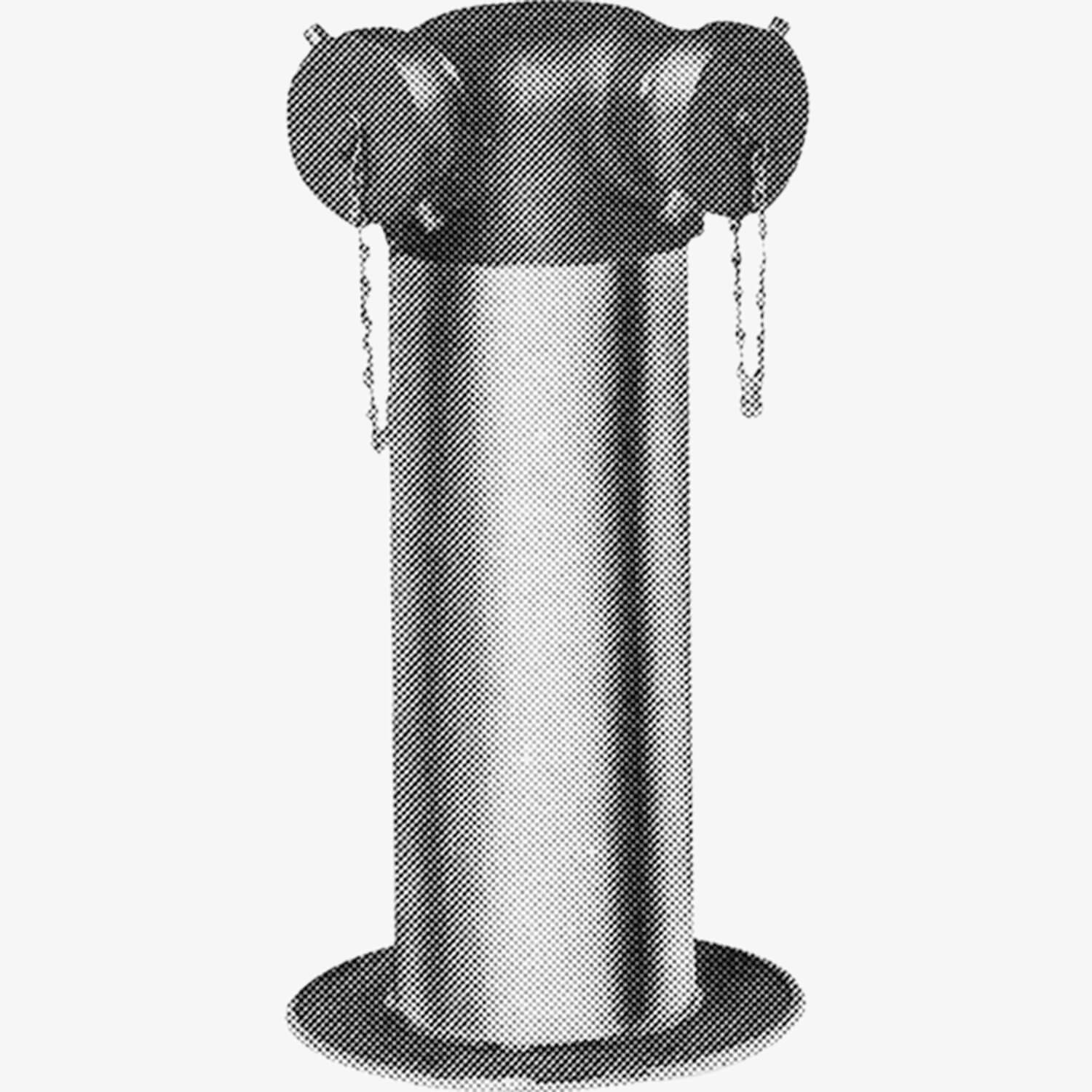

This free-standing fire department outlet connection is used as an auxiliary water supply by the fire service. It can be specified with a two-way outlet (Models 5845 and 5846) suitable for when water demand is under 750 GPM/2839 LPM or with a three-way outlet (Model 5848) suitable for when water demand is under 1000 GPM\3785 LPM. It has a cast brass back angle body with male hose threads that have caps and chains. It has an 18” long polished brass cover sleeve and cast brass plate lettered HYDRANT. Inlet size and number of outlets is selected by model number.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Exposed Brass Outlet Connection [5840, 5841 | Two-Way Exposed Hydrant; 5843 | Thre-Way Exposed Hydrant; 5845, 5846 | Two-Way Free-Standing Hydrant; 5848 | Three-Way Free-Standing Hydrant] | 0 | 534 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 9 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB |
Specifications
| Material | Cast Brass Body, Cast Brass Pin Lug Plug, Brass Base Plate, Brass Cover Sleeve |
| Optional Finish | -B | Polished Brass, -C | Rough Chrome, -D | Polished Chrome |
| Lettering | HYDRANT |
| No of Outlets | 2, 3 |
| No of Inlets | 1 |
| Inlet Location | Bottom |
| Radius of Body Swing | 7.25" |
| GPM | Under 750, Under 100 |
| Inlet | 4", 6" |
| Outlet | 2.5" Male Hose Thread |
| Height | 24", May be specified, 23.625" |
