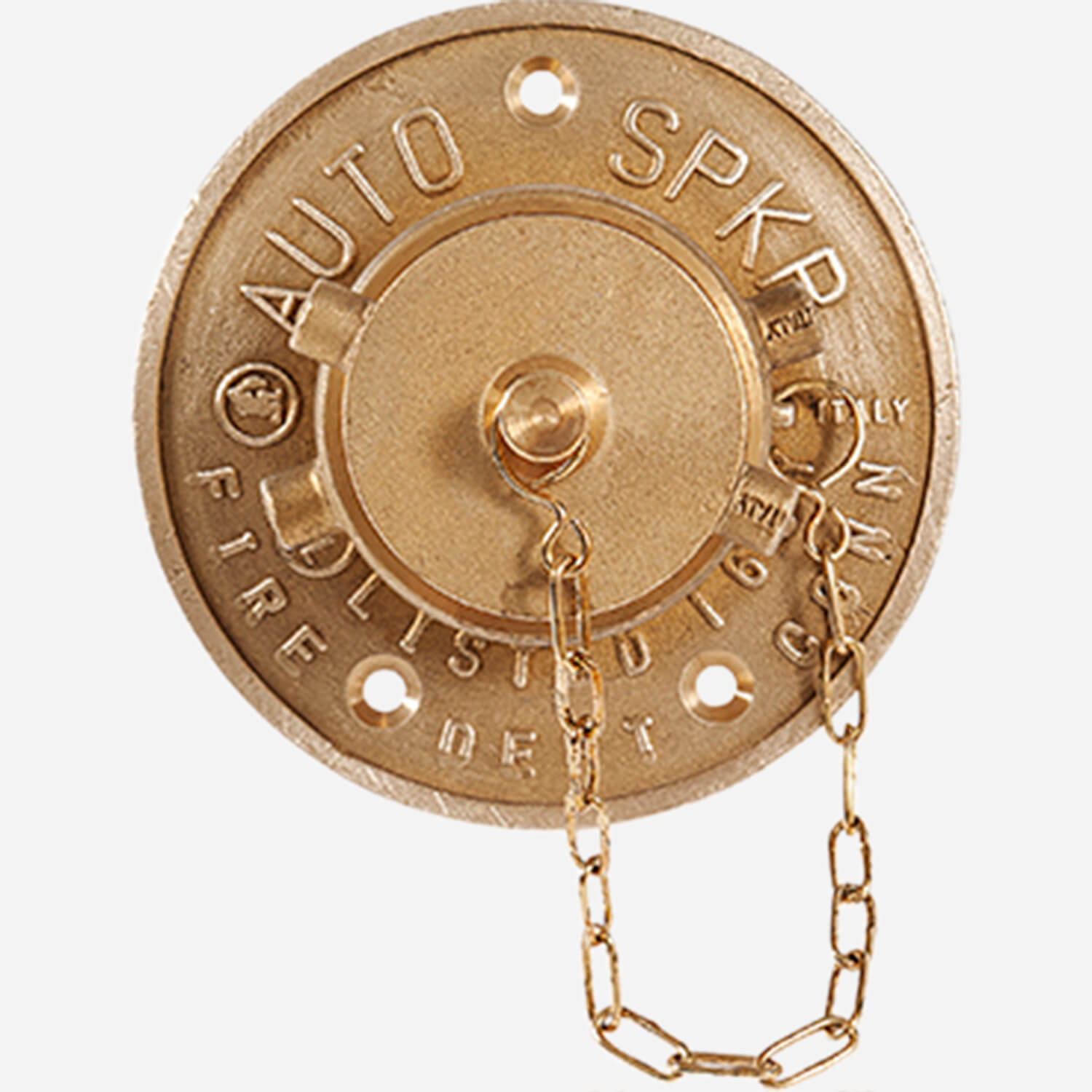

Model 5005
4.5" Round Plate Single Inlet Flush Fire Dept. Connection
This single inlet flush fire department connection is used as an auxiliary inlet connection to supplement the fire protection water supply. It provides unobstructed waterway. The flush design is desirable when appearance is a factor. The connection features a 4.5" (114.3 mm) round brass plate lettered AUTO SPKR. It has female NPT threads x pin lug hose thread swivel pin lug plug and chain.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Single Inlet Connection [5005 | 4.5" Round Plate; 5011, 5012, 5013 | 8" Round Plate ; 5016, 5017, 5018 | 8" Square Plate] | 0 | 751 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 9 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB |
Specifications
| Material | Brass Plate, Polished Brass Snoot, Cast Brass Pin Lug Plug |
| Optional Finish | -B | Polished Brass, -C | Rough Chrome, -D | Polished Chrome |
| Inlet | 1.5" Female NST |
| Outlet | 1.5" Female NPT |
| Lettering | AUTO SPKR, STANDPIPE |
| No of Outlets | 1 |
| Outlet Location | Back |
| No of Inlets | 1 |
| UL | UL Listed |
