Model 5011 thru 5013

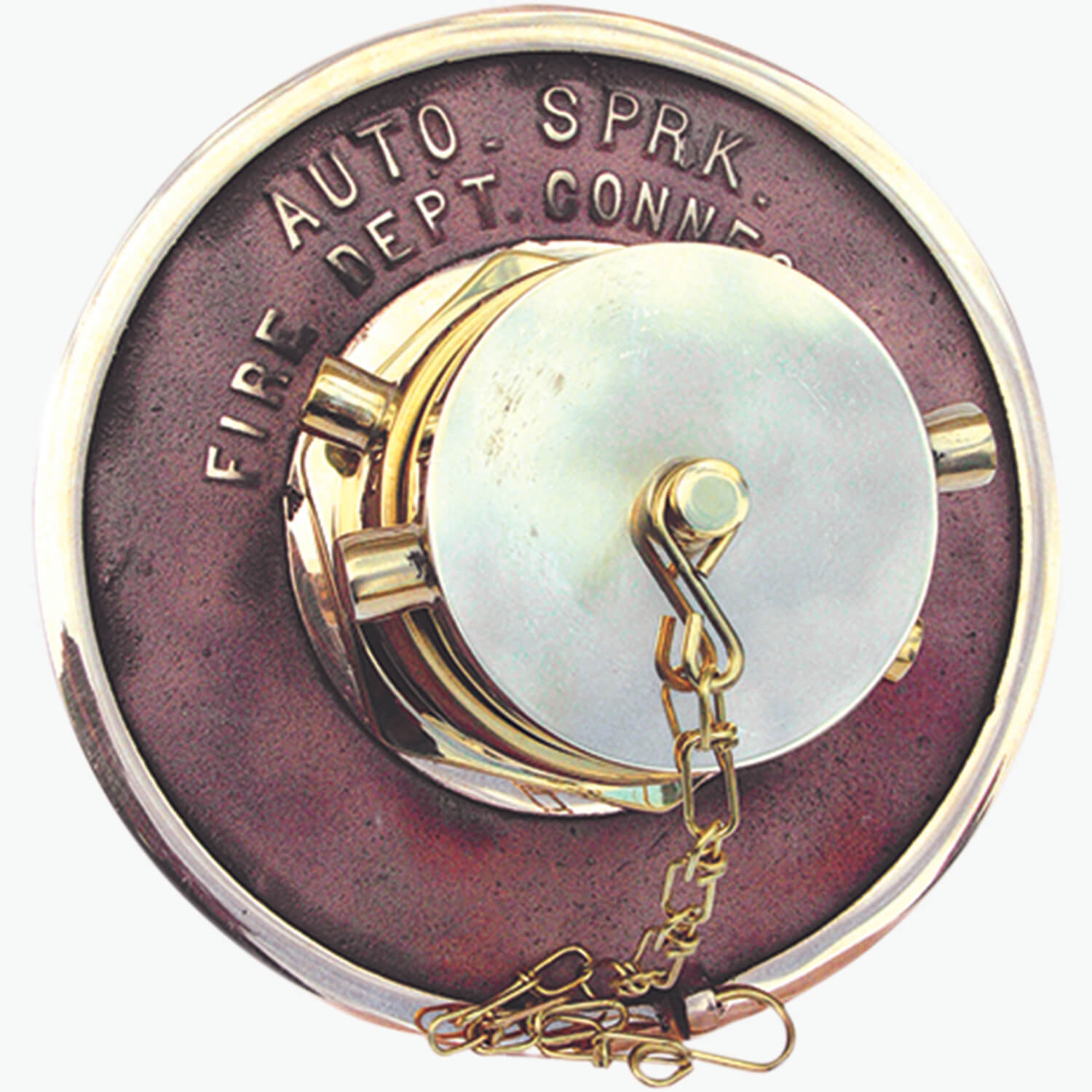

8" Round Plate Single Inlet Flush Fire Dept. Connection
This Single Inlet Flush Fire Department Connection features an 8" (203.2 mm) round brass plate lettered AUTO SPKR. with female NPT threads x pin lug hose thread swivel. The connection has a pin lug plug and chain.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Single Inlet Connection [5005 | 4.5" Round Plate; 5011, 5012, 5013 | 8" Round Plate ; 5016, 5017, 5018 | 8" Square Plate] | 0 | 751 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 9 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB |
Specifications
| Material | Polished Brass Snoot, Polished Plate |
| Optional Finish | -D | Polished Chrome |
| Lettering | AUTO SPKR, STANDPIPE |
| No of Outlets | 1 |
| Outlet Location | Back |
| No of Inlets | 1 |
| Inlet | 2.5" Pin Lug Hose Thread Swivel, 3" Pin Lug Hose Thread |
| Outlet | 2.5" Female NPT, 3" Female NPT |
