Model 5791 and 5792

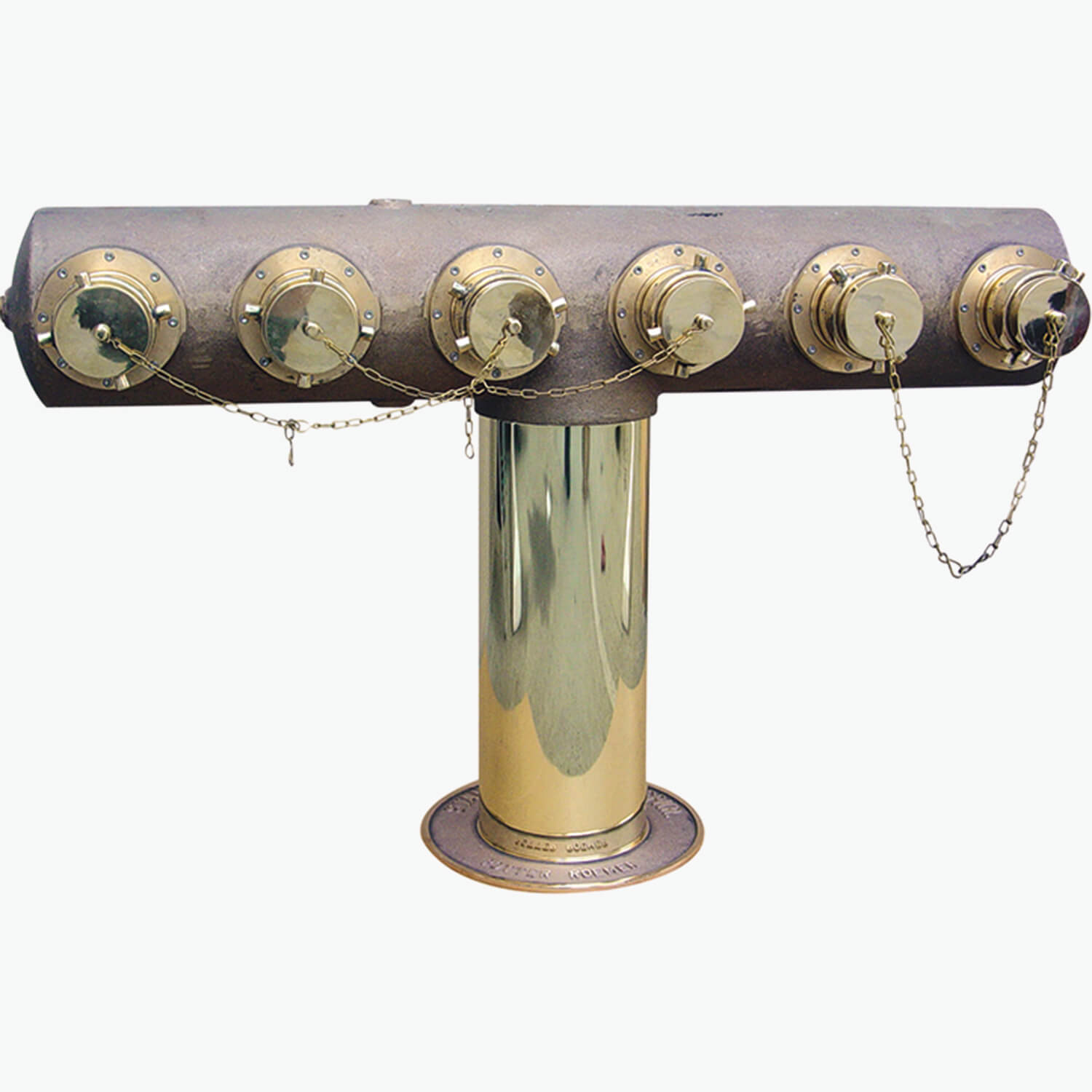

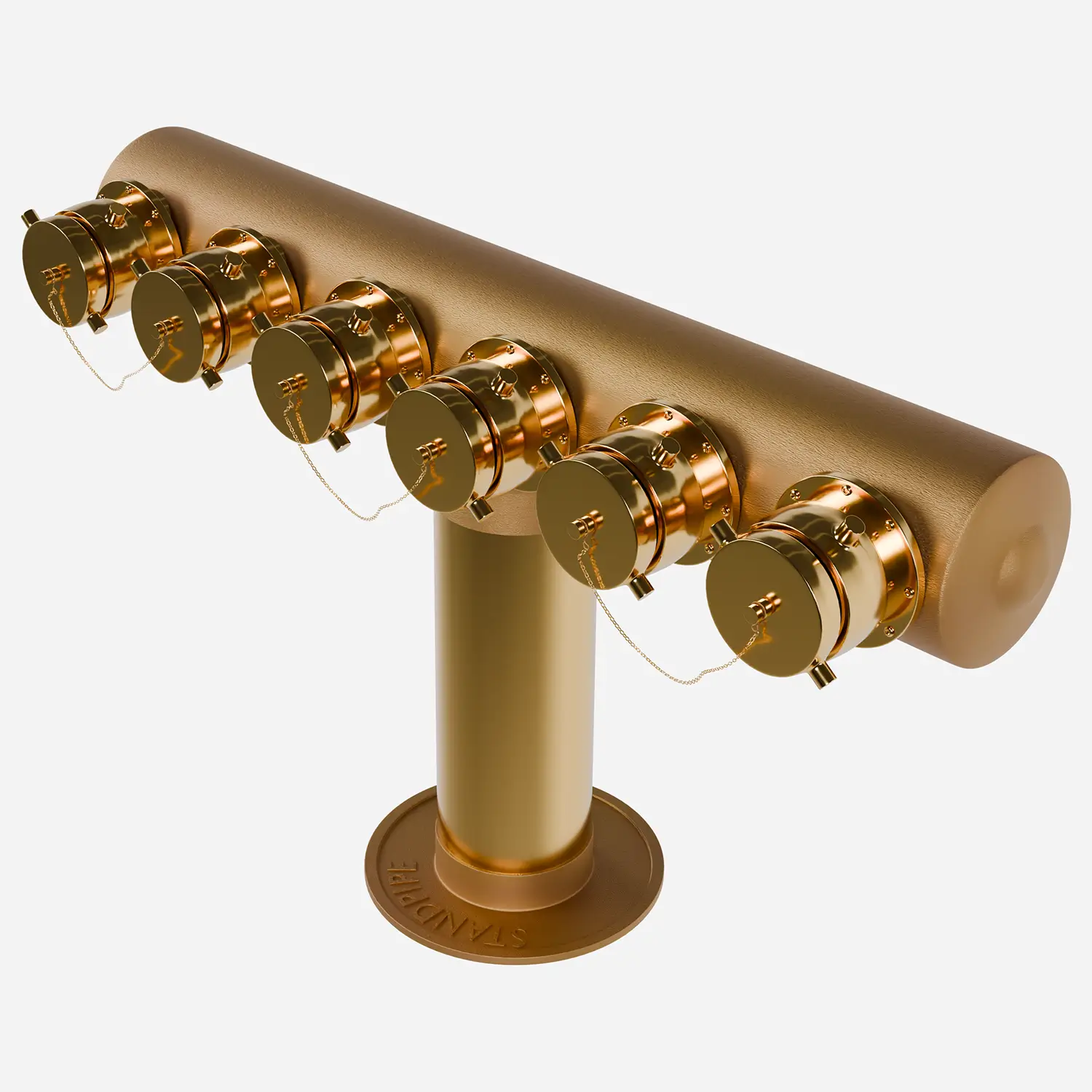

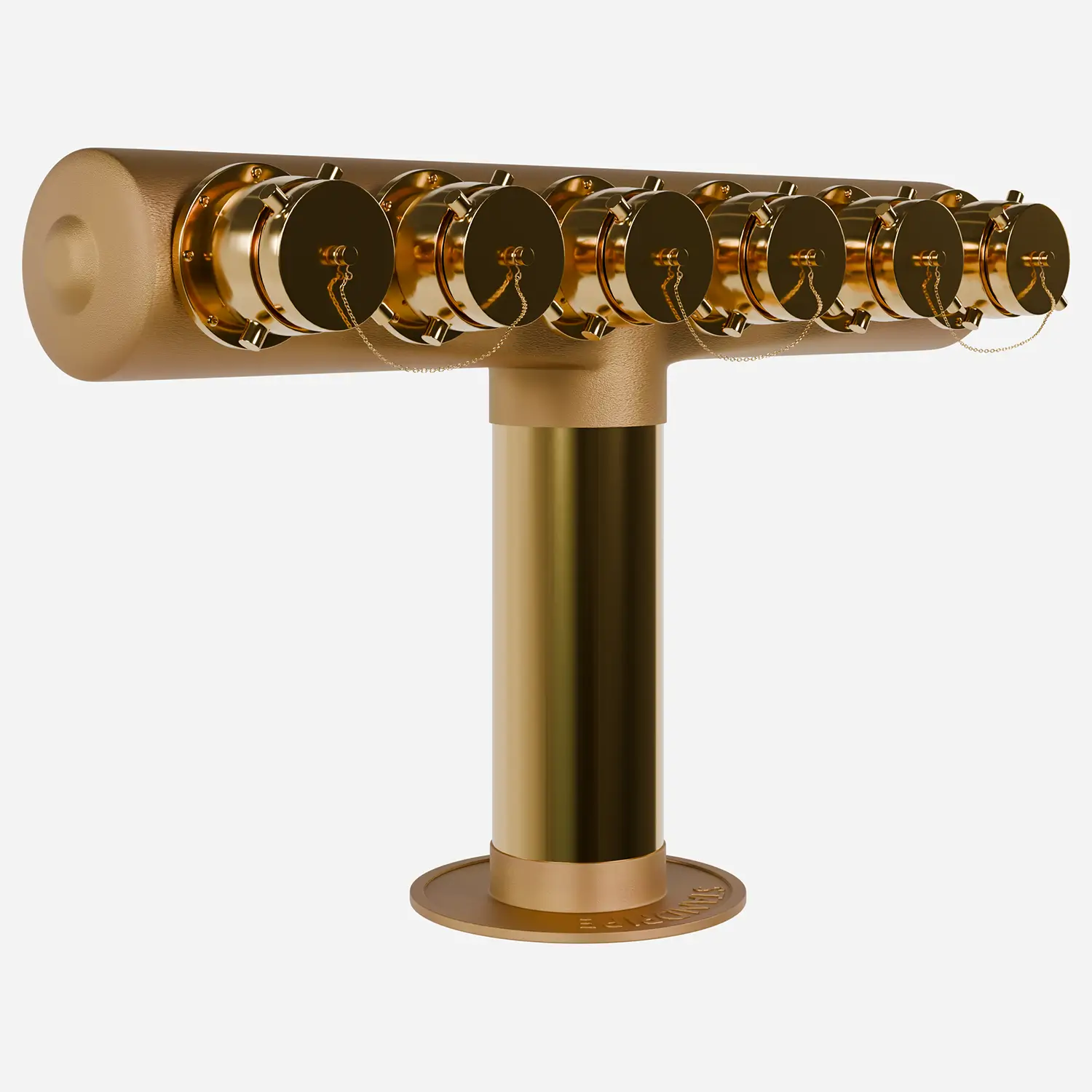

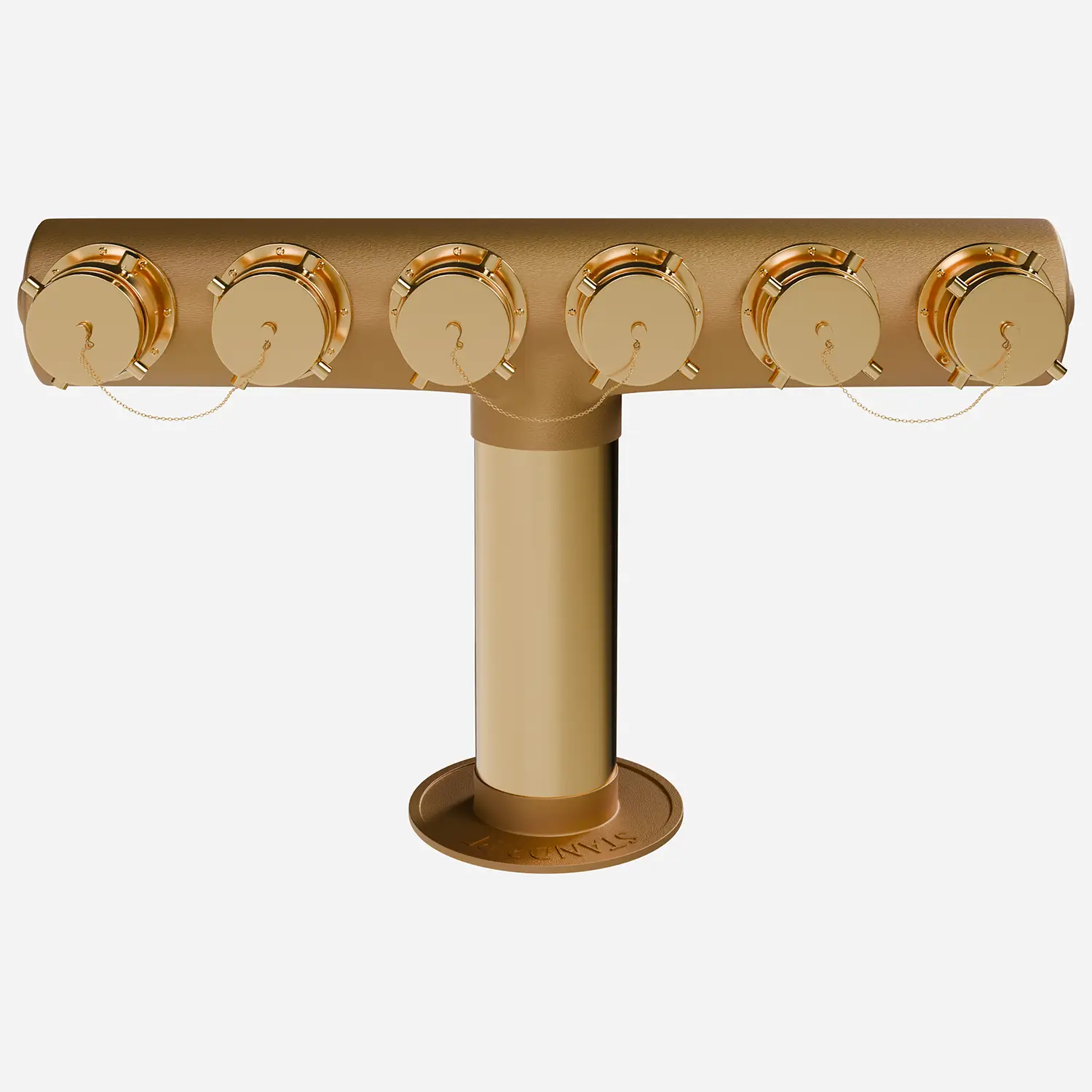

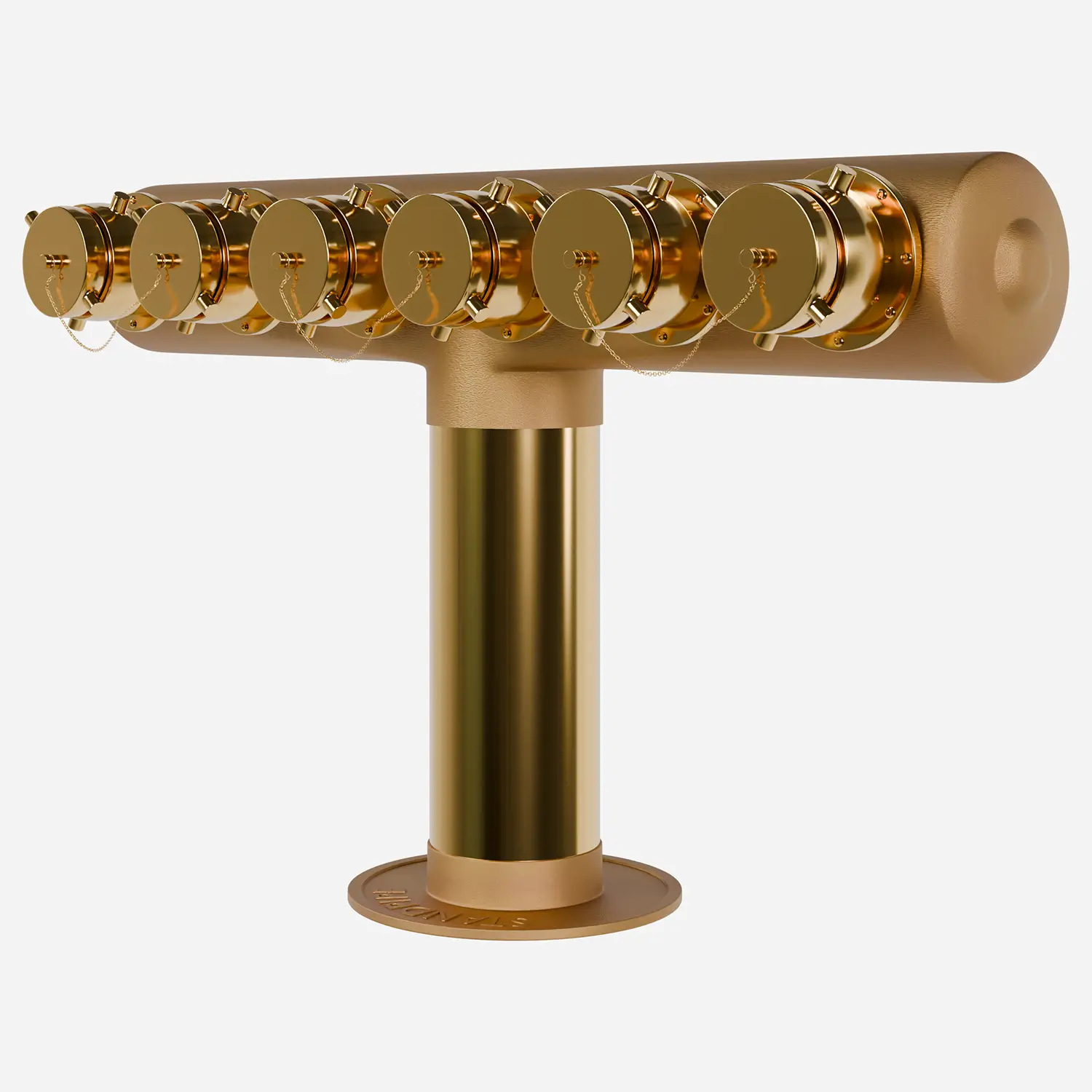

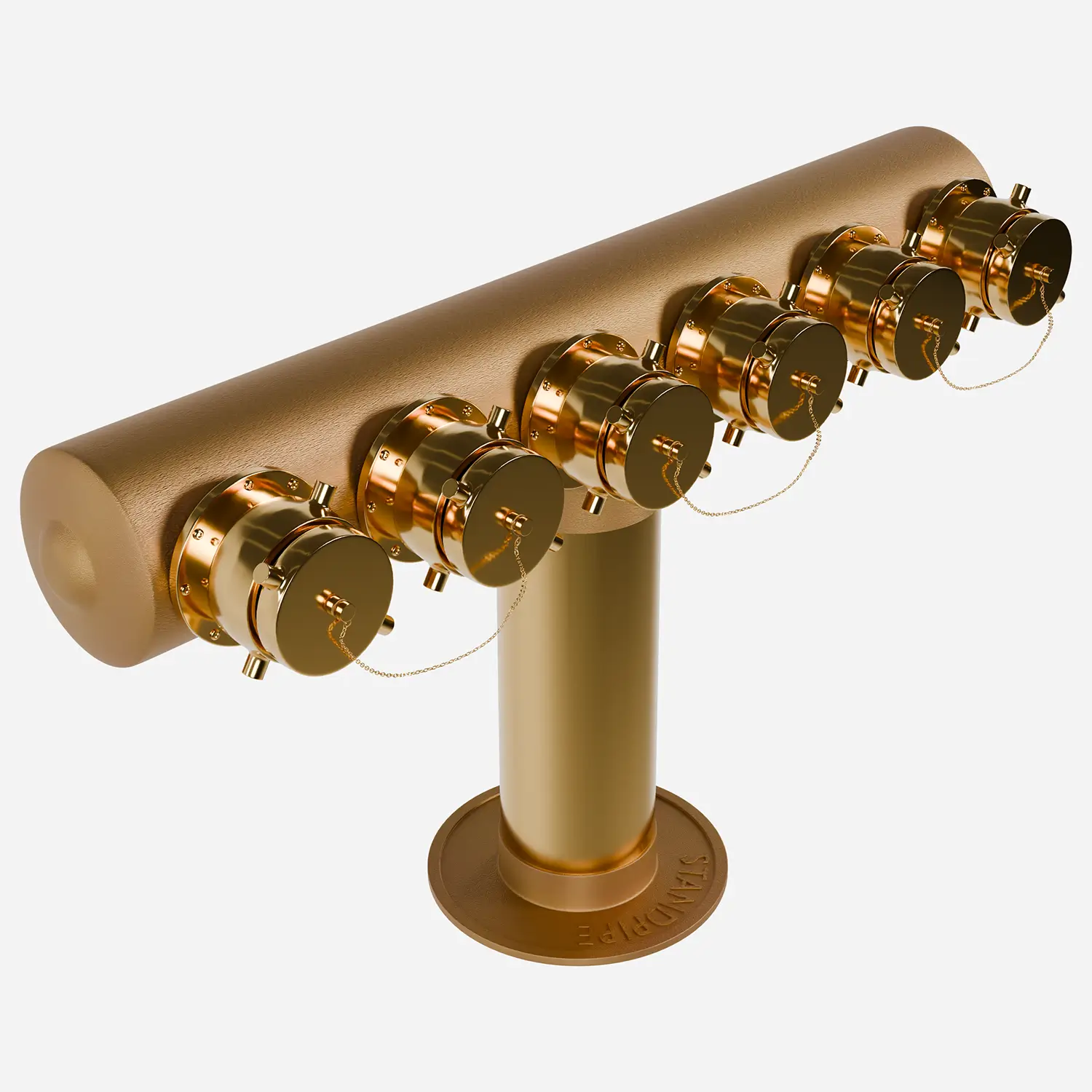

Six-Way Free-Standing Inlet Connection with Clapper Brass Body

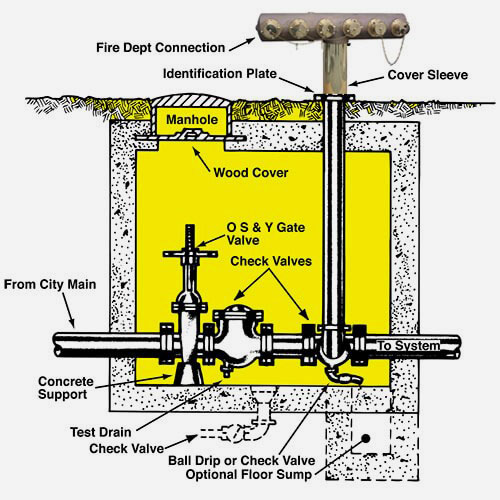

This six-way freestanding fire department connection features six inlets in a single row with a single outlet directed into the grade. It is intended for use in supplementing the facility’s fire department water supply. The connection features a clapper body constructed from cast brass with a polished brass cover sleeve and brass base plate. Model 5791 has a 6” outlet and a 2.5” inlet. Model 5792 has an 8” outlet and a 2.5” inlet.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Free-Standing Brass/Ductile Inlet Connection [5761SC | Two-Way Single Clapper; 5761, 5762, 5763, 5764 Two-Way Double Clapper; 5775, 5776, 5780, 5781 | Four-Way Square; 5778, 5785, 5786 | Four-Way Linear; 5791, 5792 |Six-Way] | 0 | 1 MB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 9 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB |
Specifications
| Material | Cast Brass Body, Brass Base Plate, Brass Cover Sleeve, Cast Brass Pin Lug Plug |
| Optional Finish | -C | Rough Chrome Body Polished Chrome Trim on Brass Model |
| Lettering | AUTO SPKR, STANDPIPE, DRY STANDPIPE, AUTO SPKR STANDPIPE |
| No of Outlets | 1 |
| Outlet Location | Bottom |
| No of Inlets | 6 |
| Radius of Body Swing | 25" |
| GPM | 1500 |
| Inlet | 2.5" |
| Outlet | 6", 8" |
| Height | 26.5", 23.625" |
