Model 5930 thru 5936

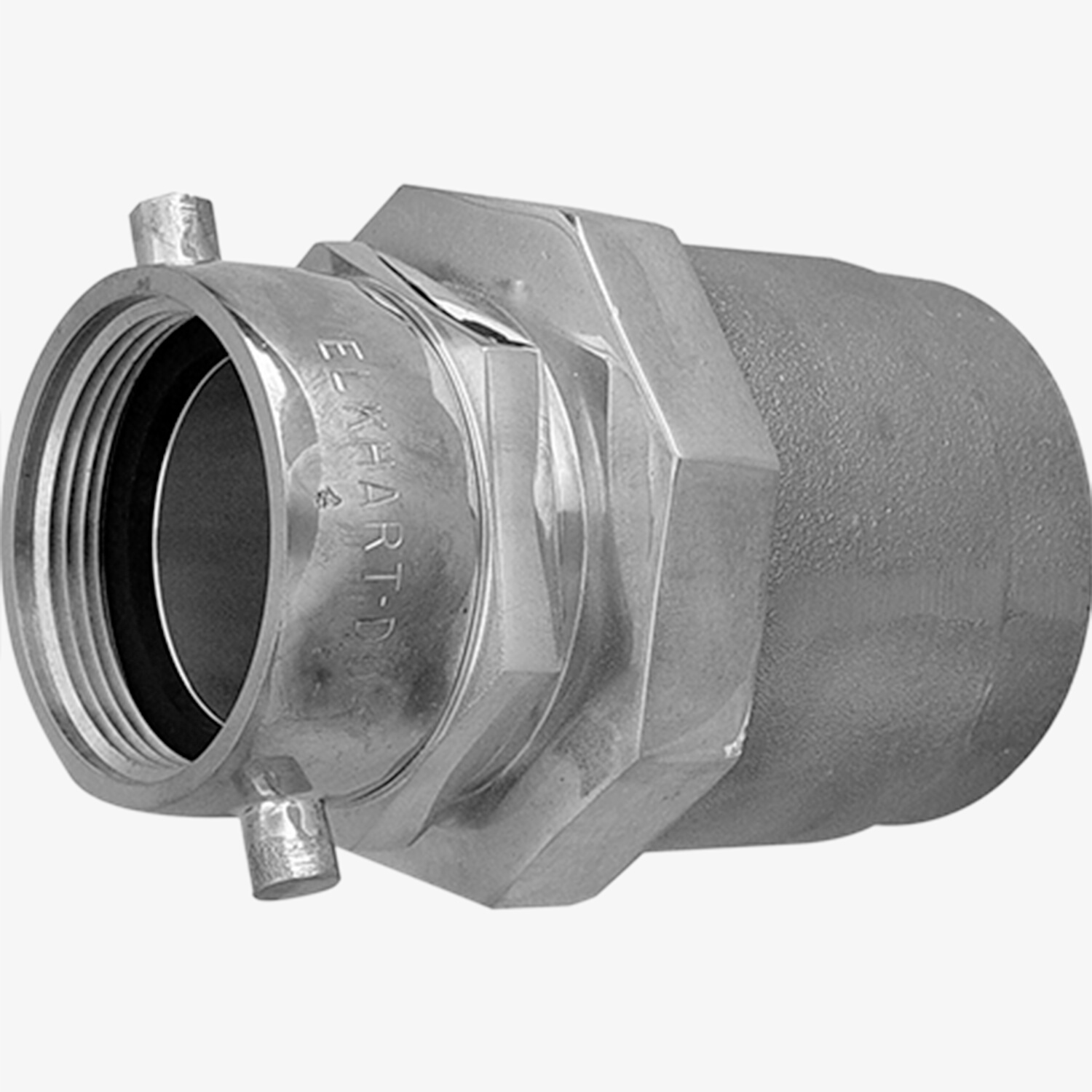

Spring Type Check Snoot with Pin Lug Swivel
This check snoot with pin lug swivel is used to connect fire hose on multiple inlet fire department connections. It acts as a check against excess backflow water. It is a cast brass connection with polished brass exposed parts. Model 5930 has a 2.5” female hose inlet and a 3” female NPT outlet. Model 5933 has a 3” female hose inlet and a 3” female NPT outlet. Model 5935 has a 2.5” female hose inlet and a 3” NPT outlet. Model 5936 is a 3” female hose inlet and a 3” male NPT outlet.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Connection Accessories [ 5900-GRV, 5900-6-GRV | Grooved Adapter; 5902, 5903, 5905, 5911, 5912, 5913, 5915, 5922, 5923, 5925 | Open Snoots; 5930, 5933, 5935, 5936 | Spring Check Snoot; 5937, 5938 | Clapper Check Snoots] | 0 | 5 MB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 9 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB | ||
| | Hoja de data de Conexiones Serie 5902-5953 - Conexiones del Deparamento de Bomberos | 0 | 6 MB |
Specifications
| Material | Cast Brass Polished where Exposed |
| Optional Finish | -D | Polished Chrome |
| Inlet | 2.5" Female Hose Thread, 3" Female Hose Thread |
| Outlet | 3" Female NPT, 3" Male NPT |
