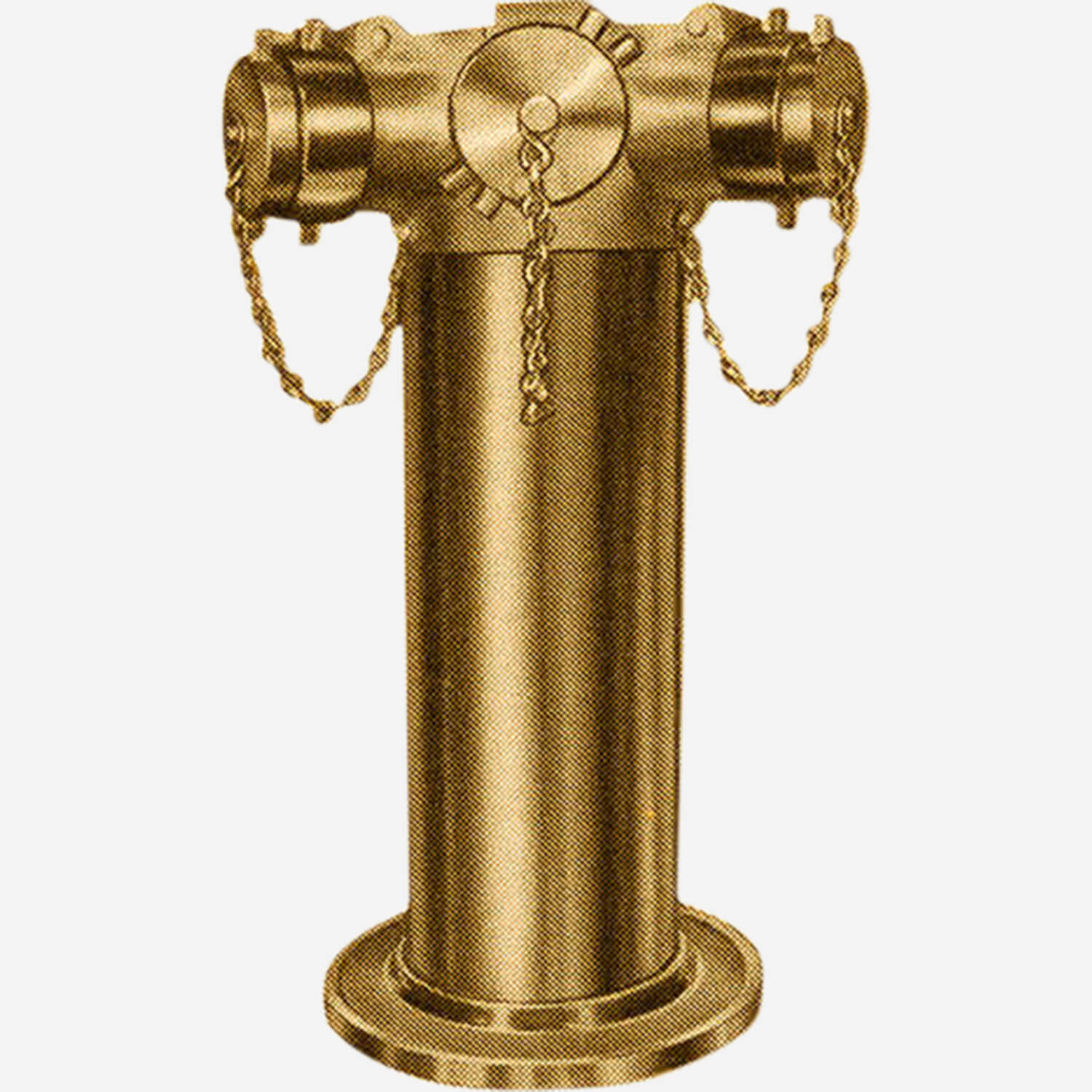

Model 5771 and 5773
Three-Way Free-Standing Fire Dept Inlet Brass Body Connection with Clappers

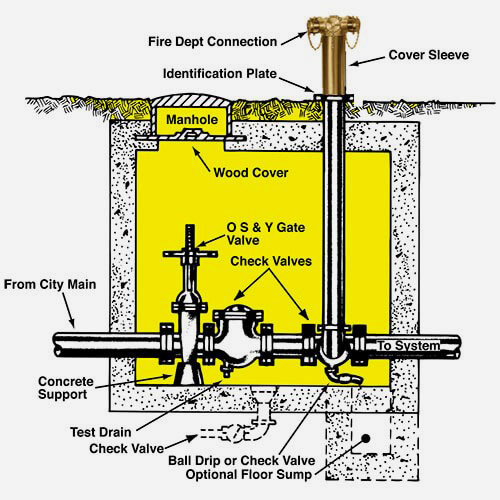

These three-way fire department connections feature three inlets with a single outlet directed into the grade. They are intended to supplement the facility’s fire department water supply. The connection is constructed from cast brass or a red glossy polyester coated ductile iron. It has an 18” long polished brass cover sleeve cast brass identification baseplate cast brass pin lug plugs and chains on each pin lug swivel.
Model 5771 has a 4” outlet and a 2.5” inlet.
Model 5773 has a 6” outlet and a 2.5” inlet.
The connection is rated for 750 GPM.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Free-Standing Brass/Ductile Inlet Connection [5761SC | Two-Way Single Clapper; 5761, 5762, 5763, 5764 Two-Way Double Clapper; 5775, 5776, 5780, 5781 | Four-Way Square; 5778, 5785, 5786 | Four-Way Linear; 5791, 5792 |Six-Way] | 0 | 1 MB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 9 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB |
Specifications
| Material | Cast Brass Body, Brass Base Plate, Brass Cover Sleeve, Cast Brass Pin Lug Plug |
| Optional Finish | -B | Polished Brass Body Polished Brass Trim on Brass Model, -C | Rough Chrome Body Polished Chrome Trim on Brass Model, -D | Polished Chrome |
| Lettering | AUTO SPKR, STANDPIPE, DRY STANDPIPE, AUTO SPKR STANDPIPE |
| No of Outlets | 1 |
| Outlet Location | Bottom |
| No of Inlets | 3 |
| Radius of Body Swing | 8" |
| GPM | 750 |
| Inlet | 2.5" |
| Outlet | 4", 6" |
| Height | 24", 23.625" |
