Model 5740 thru 5746

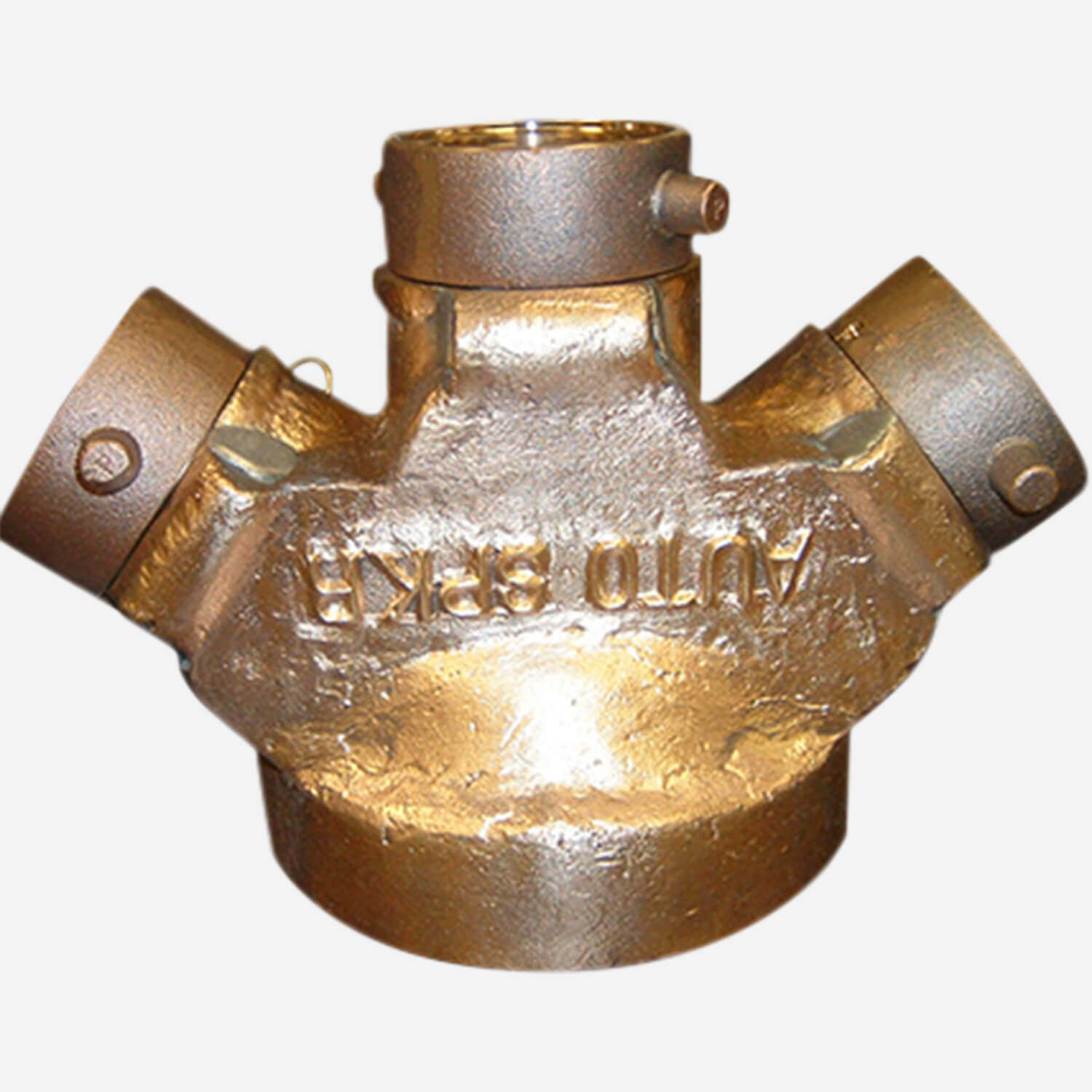

Three-Way Exposed Fire Dept Inlet Connection with Triple Clapper
This Three-Way Exposed Fire Department Inlet Connection with Double Clapper is intended for use as an auxiliary inlet connection providing 750 GPM/2839 LPM minimum (Ref. NFPA 14) to supplement the fire protection water supply. Drop clappers provide unobstructed waterway. Exposed design is an economical method of satisfying fire dept inlet requirements. The connection has a cast brass three-way inlet body drop clappers and pin lug swivels. Back or angle outlet and size as selected by model number. Lettering as selected.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Exposed Brass Inlet Connection Clapper Type [5710, 5715 | Two-Way Single Clapper; 5721,5722, 5723, 5724, 5731,5732, 5733, 5734 | Two-Way Double Clapper; 5740, 5741,5745, 5746 | Three-Way Triple Clapper] | 0 | 2 MB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 9 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB |
Specifications
| Material | Cast Brass Body |
| Optional Finish | -B | Polished Brass, -C | Rough Chrome, -D | Polished Chrome |
| Lettering | AUTO SPKR, STANDPIPE |
| No of Outlets | 1 |
| Outlet Location | Back, Angle |
| No of Inlets | 3 |
| GPM | 750 |
| Inlet | 2.5" |
| Outlet | 4", 6" |
