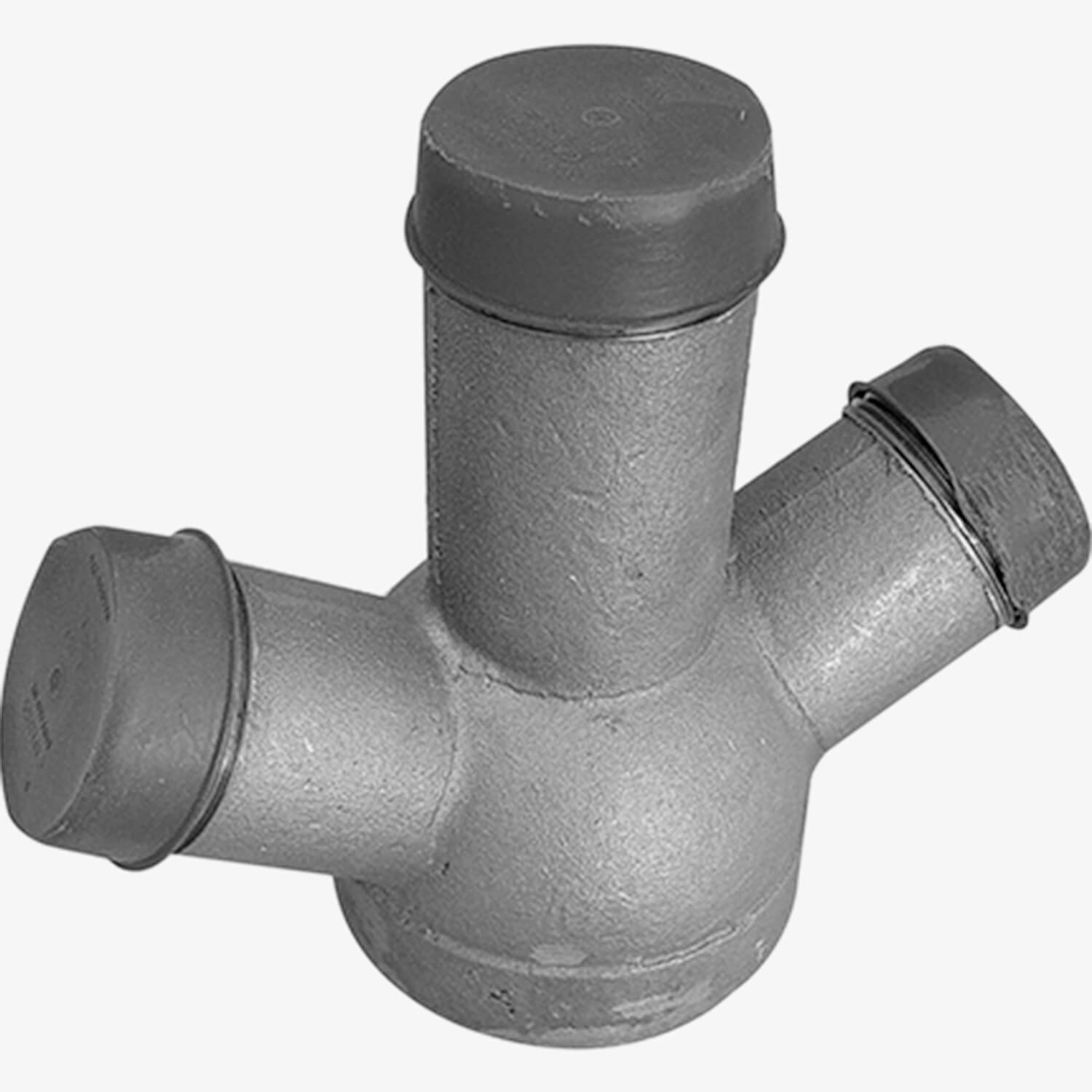

Model 5881 thru 5887
Three-Way Male Roof Fire Dept Outlet Connections
This three-way male roof fire department connection is used as a standpipe roof outlet connection by the fire service. It provides 250 GPM\946 L per minute minimum per outlet. It can be used with straight angle close valves to provide water control. This connection has a cast brass body with a female NPT and three male NPT outlets.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Roof Outlet Connection [5871, 5872, 5873, 5874 | Two-Way Back Inlet; 5876, 5877, 5878, 5879 | Two-Way Angle Inlet; 5881, 5882, 5883, 5884 | Three-Way Back Inlet; 5886, 5887 | Three-Way Angle Inlet; 5890, 5892 | Three-Way Outlet] | 0 | 757 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 9 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB |
Specifications
| Material | Cast Brass Body |
| No of Outlets | 3 |
| No of Inlets | 1 |
| Inlet Location | Angle, Back |
| GPM | 250 per Outlet |
| Inlet | 4" Female NPT, 6" Female NPT |
| Outlet | 2.5" Male NPT, 3" Male NPT |
| Options | -M | With Male Hose Thread |
