Model 5587 thru 5588

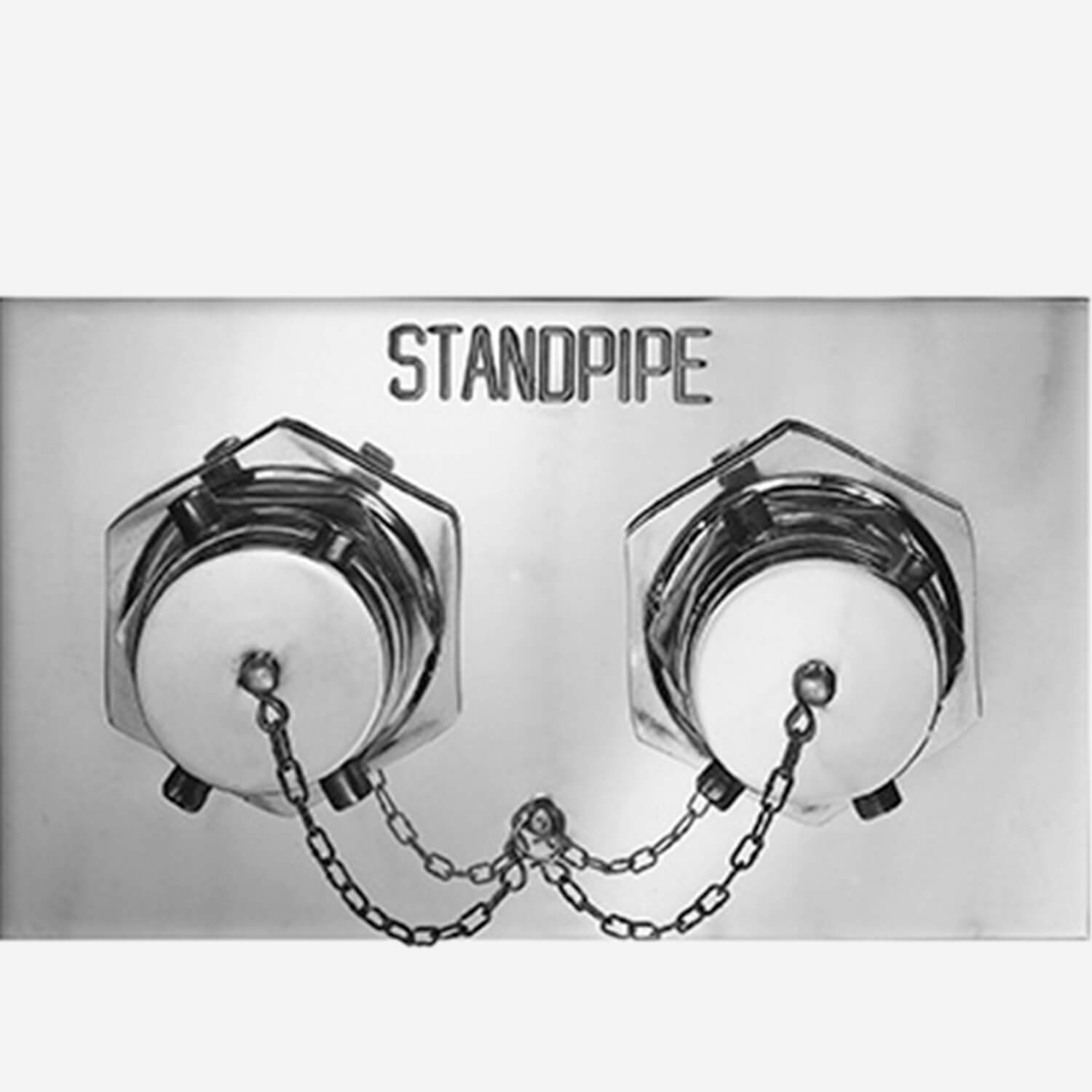

Two-Way Flush Clapper Snoot Steel Inlet Type Fire Dept. Connection
This two-way flush clapper snoot type fire department connection is intended for use as an auxiliary inlet connection to supplement the fire department’s water supply. It has a steel body with a thermally-fused red polyester coating. It can have a 4” or 6” end back or angle outlet. The polished brass plate has lettering as selected. Includes U/L listed polished brass double female clapper snoots with rigid end 3” (76.2 cm) NPT x 2.5” (6.4 cm) pin lug hose thread swivels pin lug plugs and chains.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Flush Steel Body Inlet Connection Clapper Snoot Type [5587, 5588 | Two-Way; 5592 | Three-Way; 5589 | Four-Way; 5590, 5591 | Six-Way] | 0 | 781 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 9 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB |
Specifications
| Material | Steel Body |
| Optional Finish | -D | Polished Chrome, -SS | Polished Stainless Steel Plate |
| Lettering | AUTO SPKR, STANDPIPE, DRY STANDPIPE, AUTO SPKR STANDPIPE |
| No of Outlets | 1 |
| Outlet Location | End, Angle, Back |
| No of Inlets | 2 |
| UL Models | All models in this series |
| Outlet | 4", 6" |
| UL | UL Listed |
| Options | -F | Sillcock with Flange Plate, -SP | Spring Check Snoots, -SP-G | Spring Check Snoots with 3" Female Hose Threat Inlet, -GR | Grooved Outlet |
