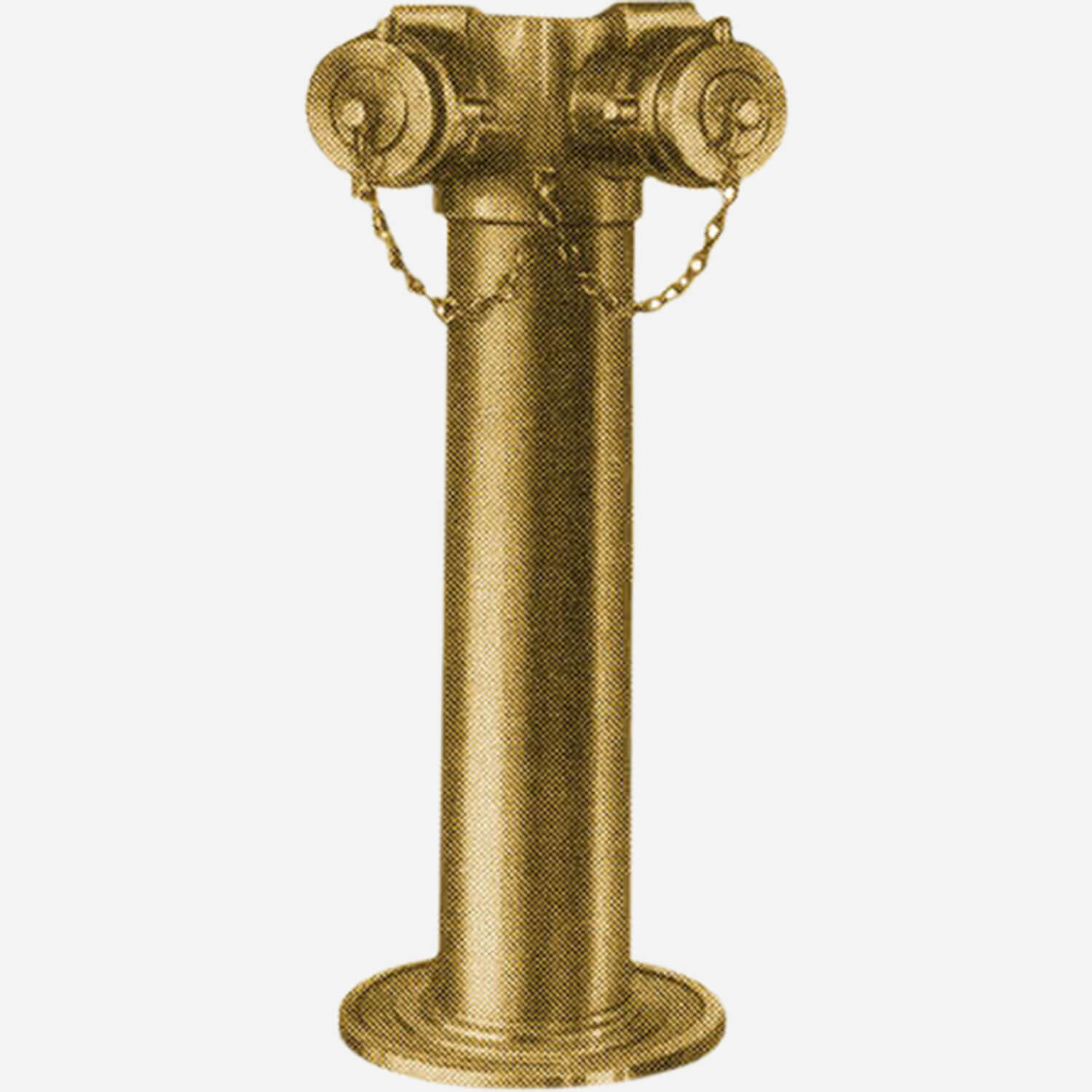

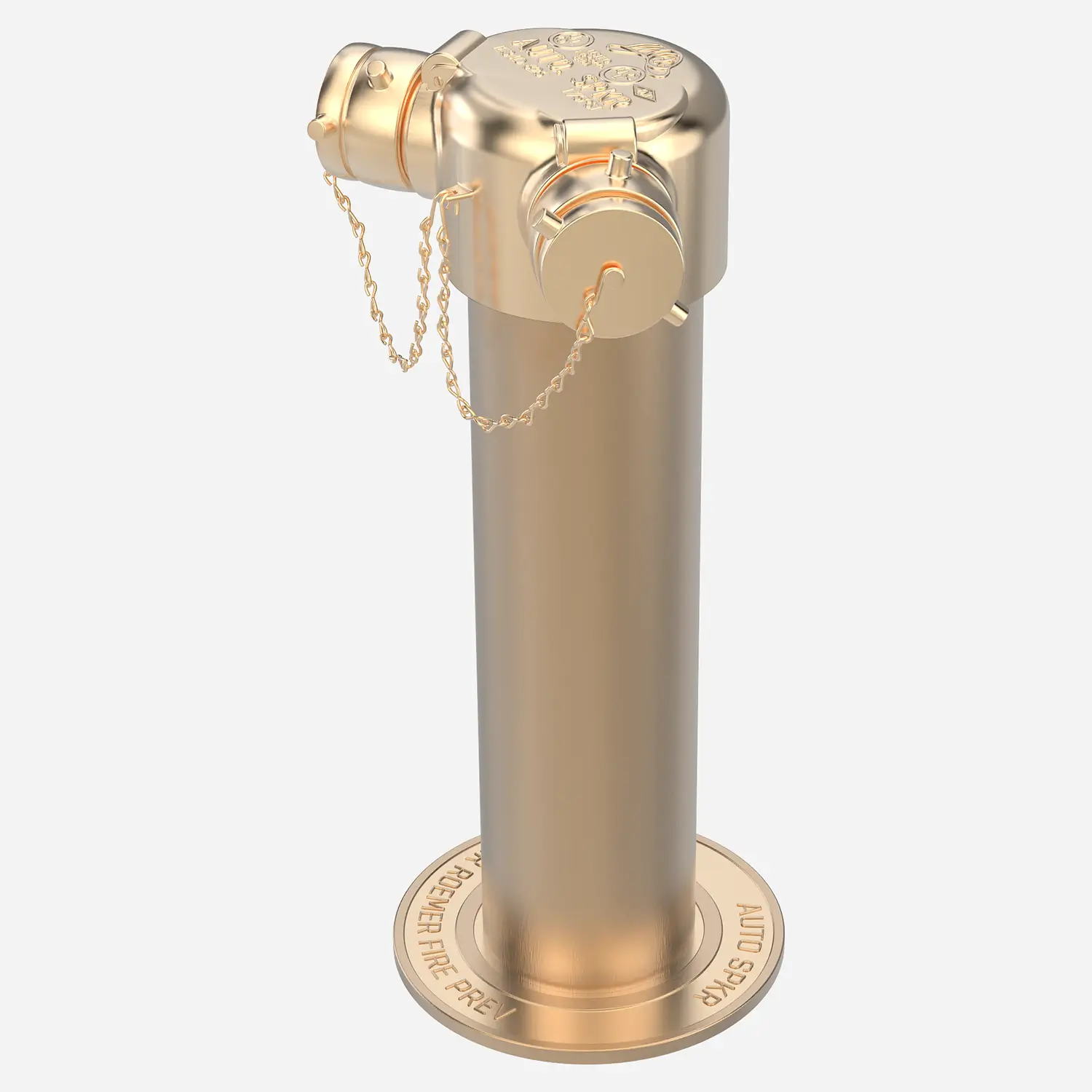

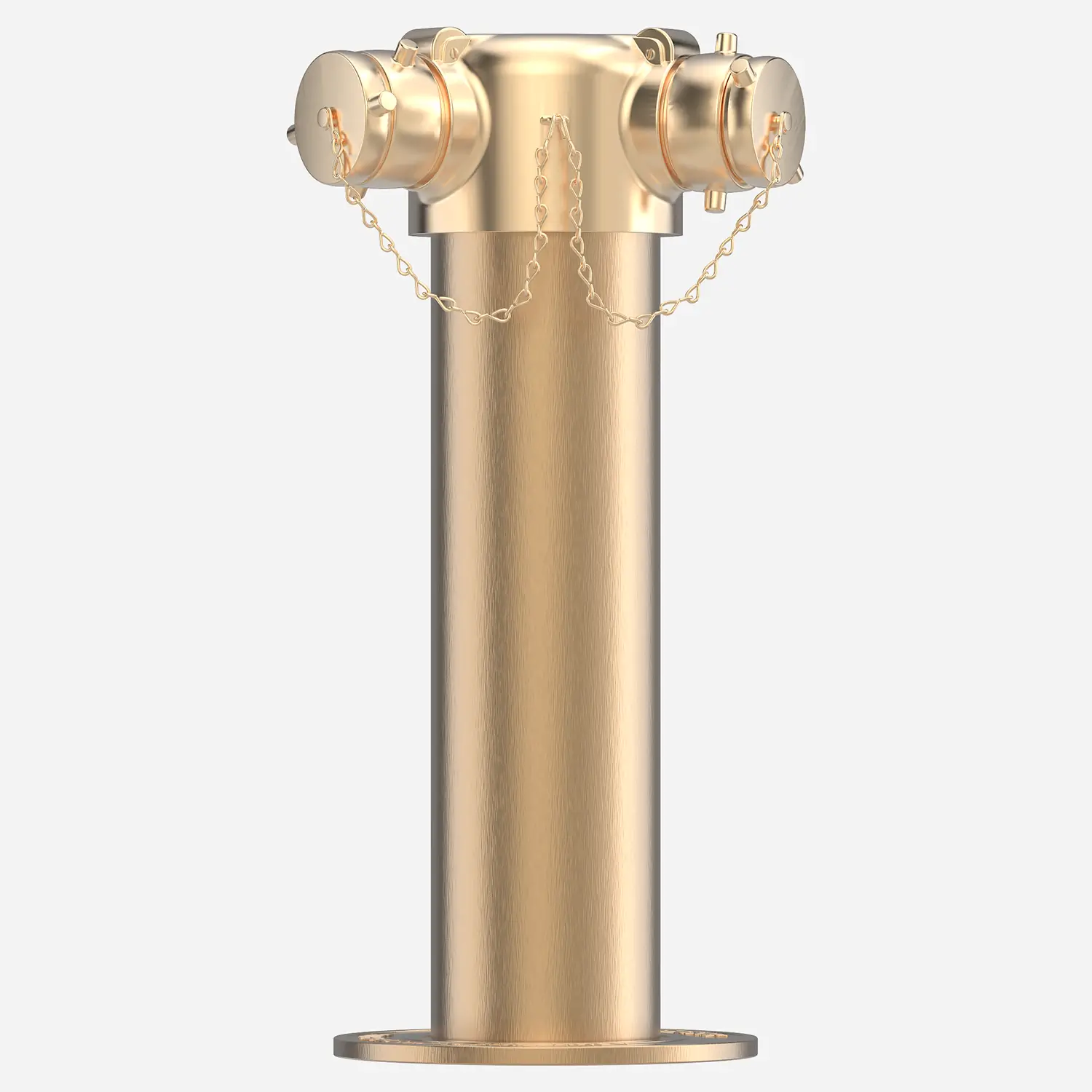

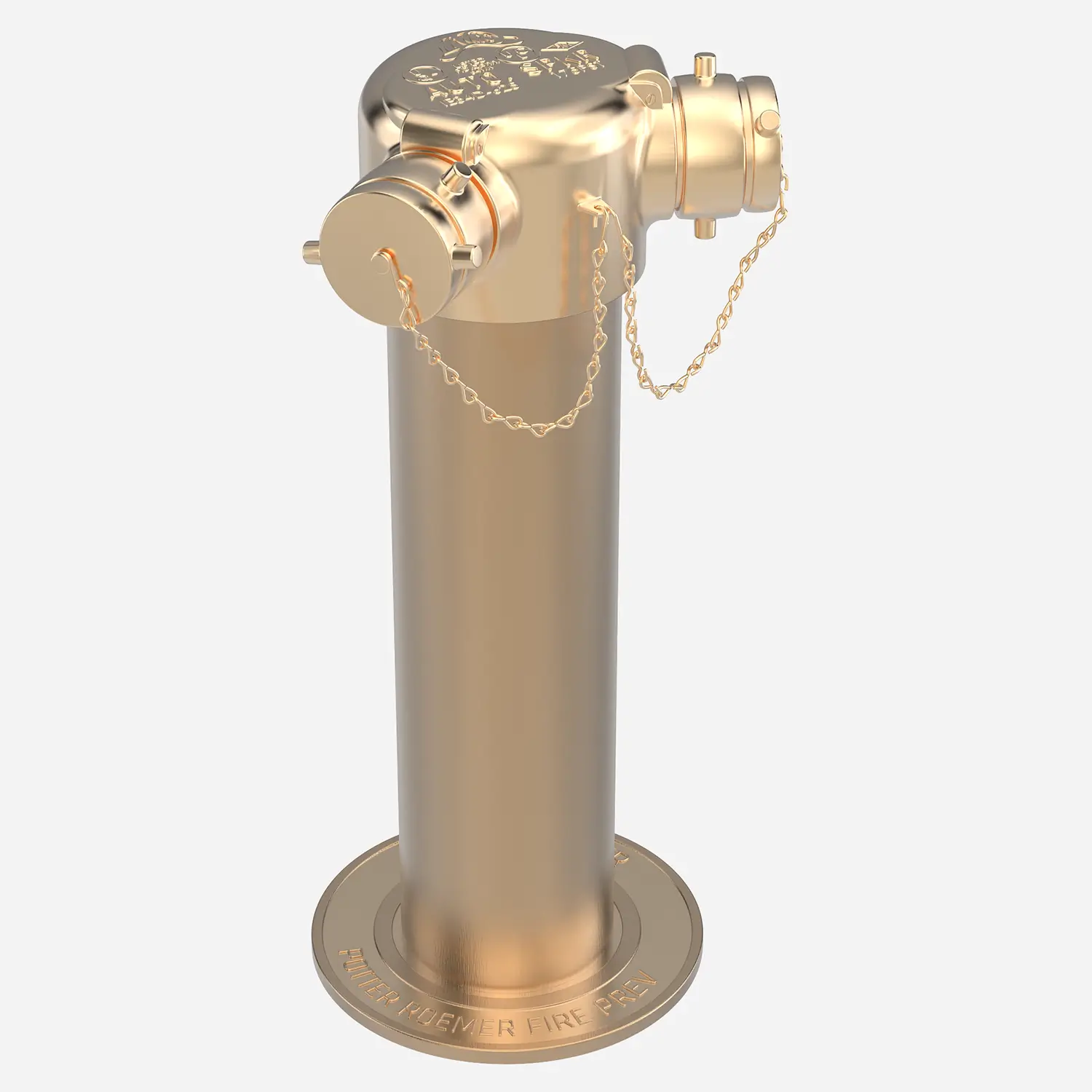

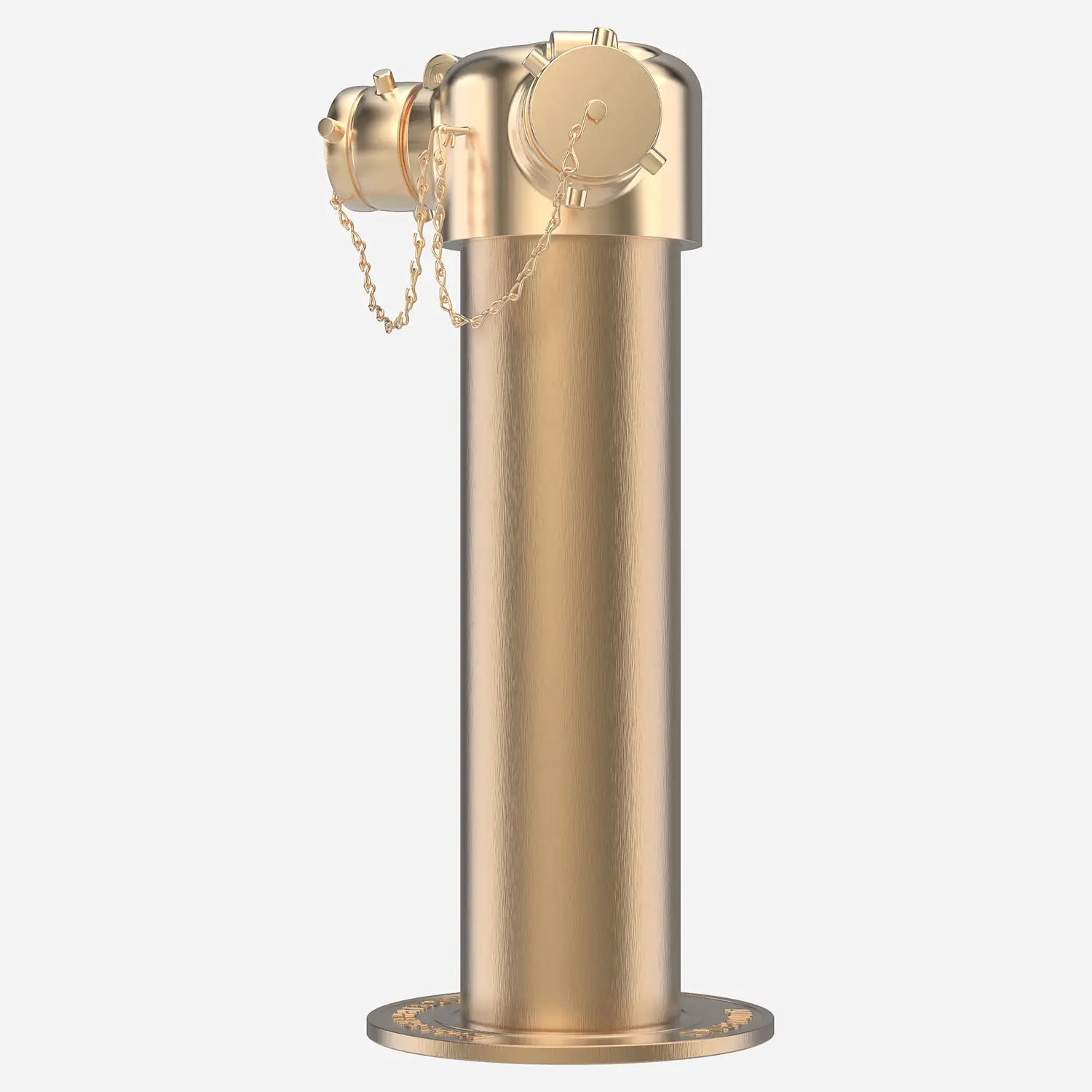

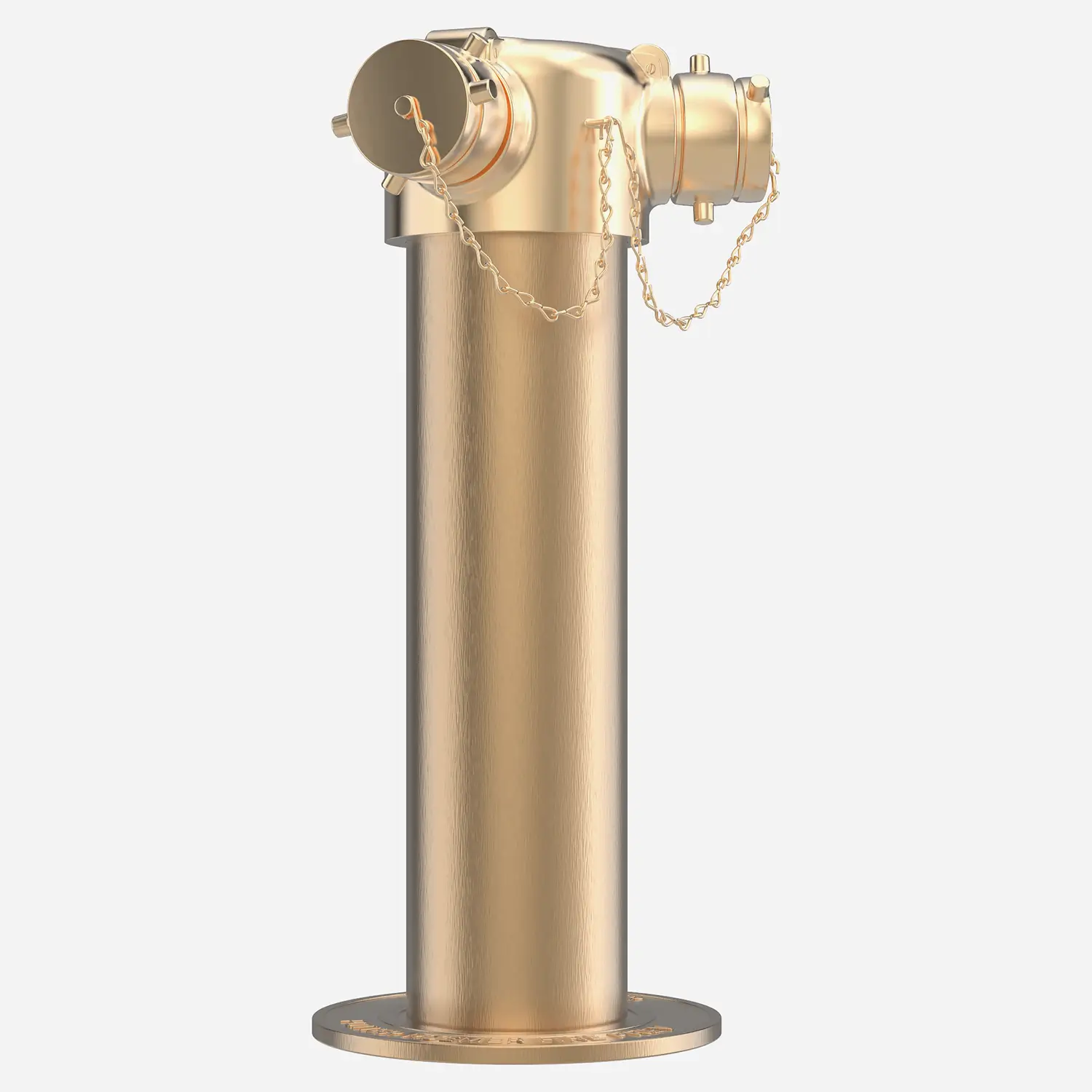

Two-Way Free-Standing Fire Dept Inlet Brass Body Connection with Clappers

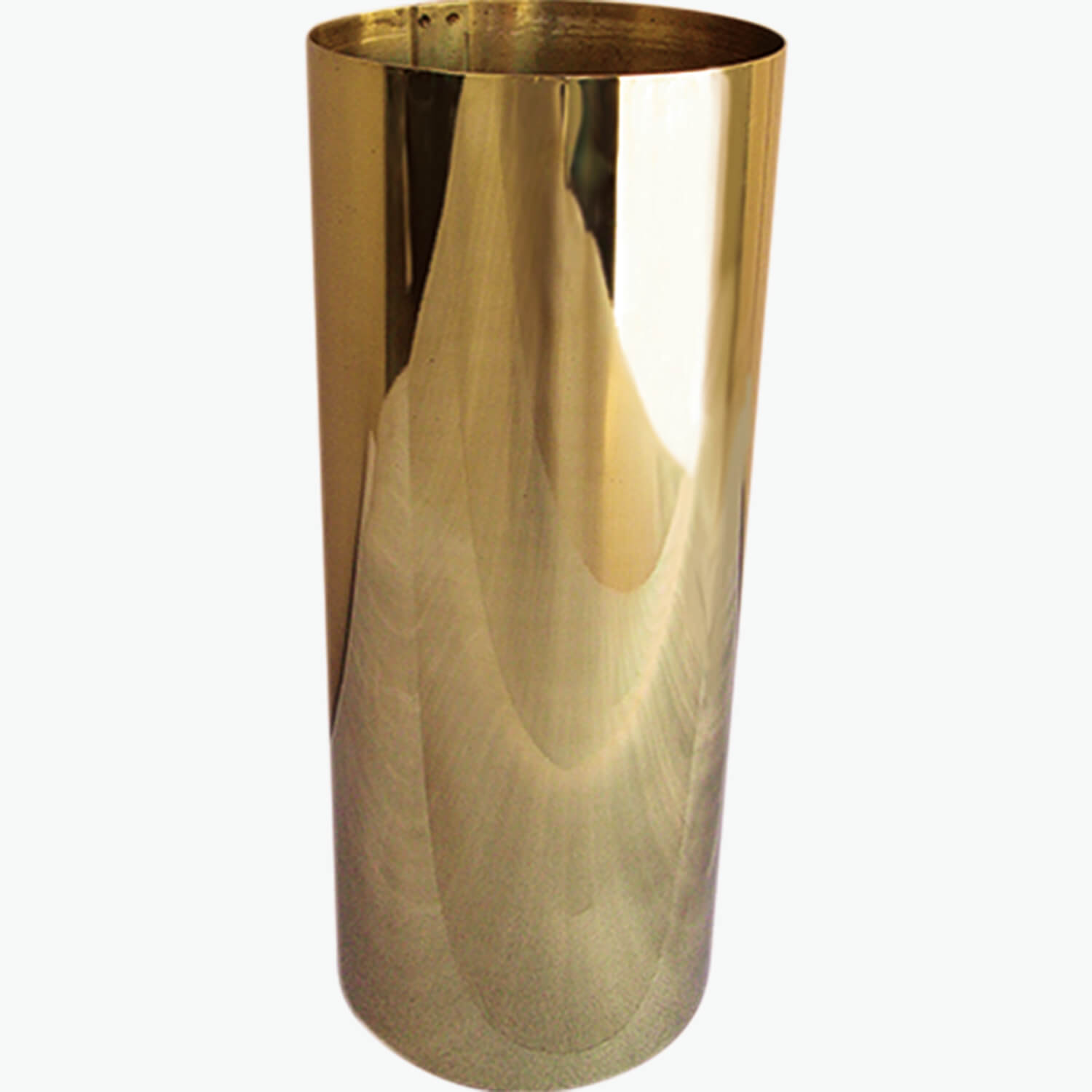

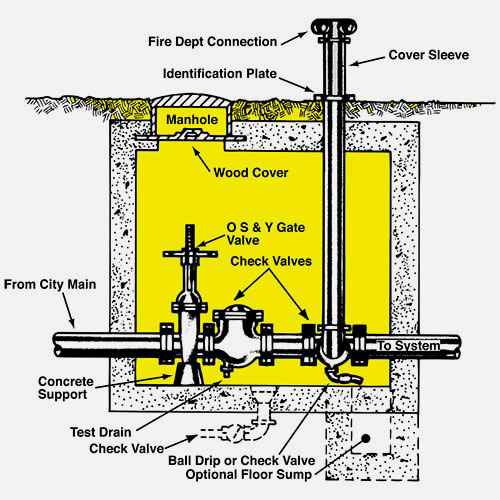

This two-way free-standing fire department connection features two inlets with a single outlet directed into the grade. These connections are used to supplement a facility’s fire department water supply. The freestanding design is used on exterior fire lines piped vertically through the grade. The body is constructed from cast brass or red glossy polyester coated ductile iron. It has an angle body an 18” long polished brass cover sleeve cast brass identification baseplate cast brass pin lug plugs and chains on each pin lug swivel. Model 5761 is 4”x 2.5” x 2.5” in size. Model 5762 is 4” x 3” x 3” in size. Model 5763 is 6”x 2.5”x 2.5” in size. Model 5764 is 6” x 3” x 3” in size.
