Model 5522 thru 5538

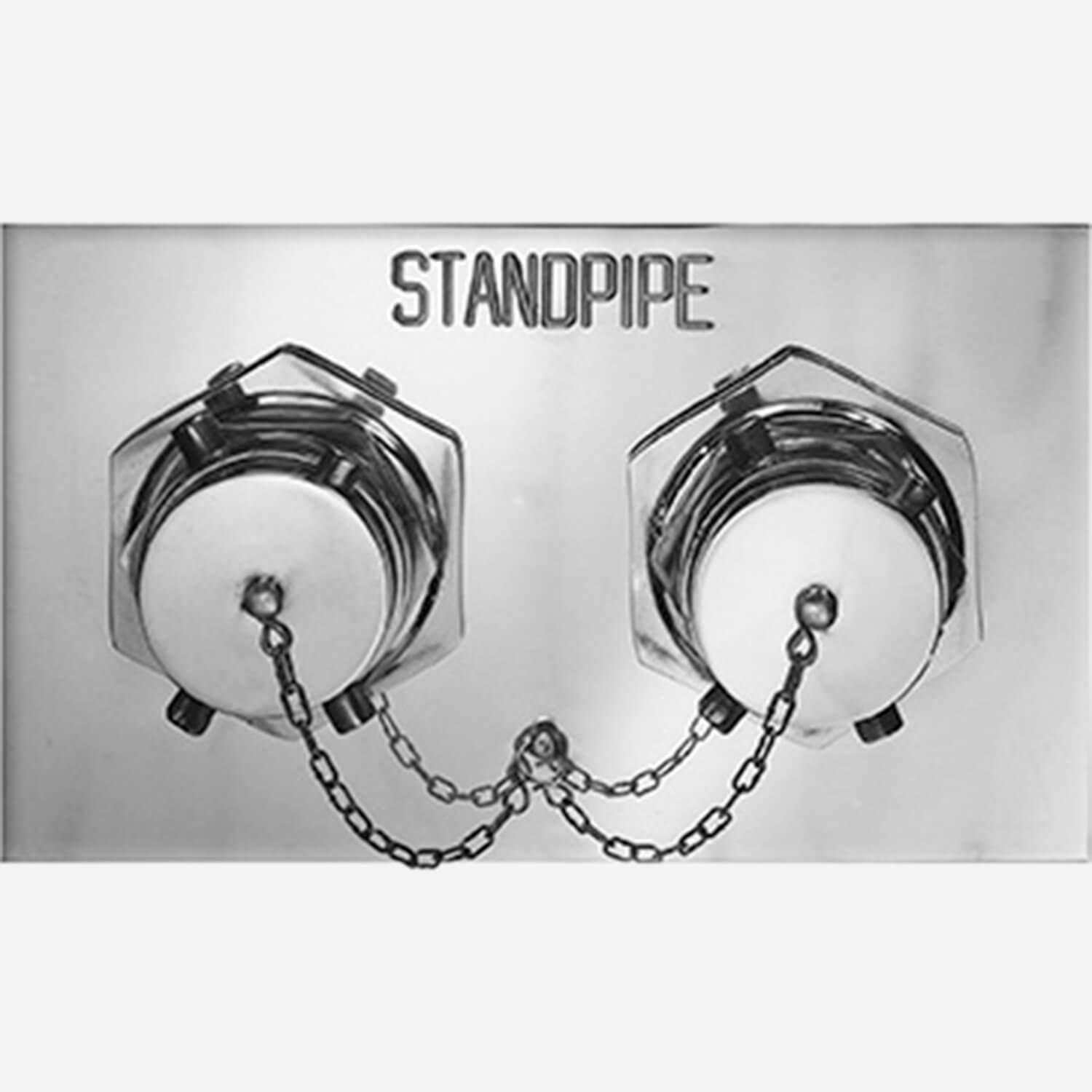

Two-Way Flush Clapper Snoot Inlet Type Fire Dept. Connection
This two-way flush clapper snoot type inlet connection for use on fire department connections has a ductile iron body and polished brass plate with lettering as selected. It has a U/L listed polished brass double female clapper snoots with rigid end 3” (76.2 cm) NPT x 2.5” (6.4 cm) pin lug hose thread swivels pin lug plugs and chains. The connection can be horizontal or vertical with a 4” or 6” back end or angle outlet.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Flush Brass/Ductile Iron Inlet Connection Clapper Snoot Type [5522 thru 5528, 5532 thru 5538 | Two-Way; 5541 thru 5548, 5551 and 5552 | Four-Way Linear; 5561 thru 5569 | Six-Way; 5581 thru 5586| Four-Way Square] | 0 | 734 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 9 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB |
Specifications
| Material | Brass Body, Ductile Iron Body |
| Optional Finish | -D | Polished Chrome, -SS | Polished Stainless Steel Plate |
| No of Inlets | 2 |
| No of Outlets | 1 |
| Outlet | 4", 6" |
| Outlet Location | End, Angle, Back |
| Thread | NST |
| Lettering | AUTO SPKR, STANDPIPE, DRY STANDPIPE, AUTO SPKR STANDPIPE |
| Options | -F | Sillcock with Flange Plate, -SP | Spring Check Snoots, -SP-G | Spring Check Snoots with 3" Female Hose Threat Inlet |
