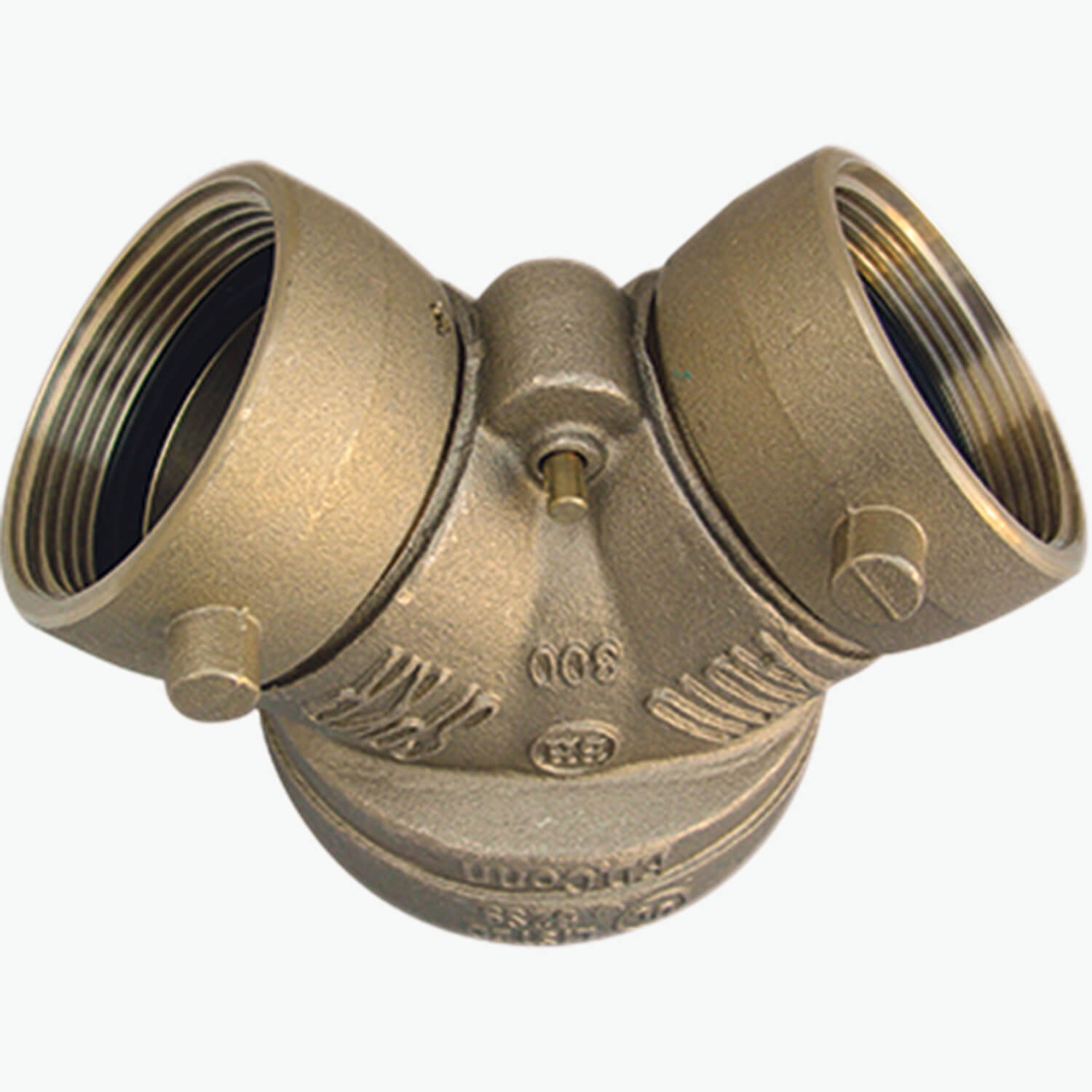

Model 5710 thru 5715
Two-Way Exposed Inlet Fire Dept. Connection with Single Clapper
This two-way exposed fire department inlet connection with single clapper is intended for use as an auxiliary inlet connection providing a minimum 500 GPM (1892 LPM) (Ref. NFPA 14) to supplement the fire protection water supply. The swing clapper provides an unobstructed waterway. The exposed design is an economical method of satisfying fire dept inlet requirements. Lettering as selected. Size 4” x 2-1/2” x 2-1/2. Model 5710 has a back outlet. Model 5715 has an angle outlet.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Exposed Brass Inlet Connection Clapper Type [5710, 5715 | Two-Way Single Clapper; 5721,5722, 5723, 5724, 5731,5732, 5733, 5734 | Two-Way Double Clapper; 5740, 5741,5745, 5746 | Three-Way Triple Clapper] | 0 | 2 MB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 9 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB |
Specifications
| Material | Cast Brass Body |
| Optional Finish | -B | Polished Brass, -C | Rough Chrome, -D | Polished Chrome |
| Lettering | AUTO SPKR, STANDPIPE |
| No of Outlets | 1 |
| Outlet Location | Back, Angle |
| No of Inlets | 2 |
| GPM | 500 |
| Inlet | 2.5" |
| Outlet | 4" |
| FM | FM Compliant |
| UL | UL Listed, UL File #EX4078 (Model S201B) |
| Pressure | 300 PSI |
