Model 5721 thru 5734

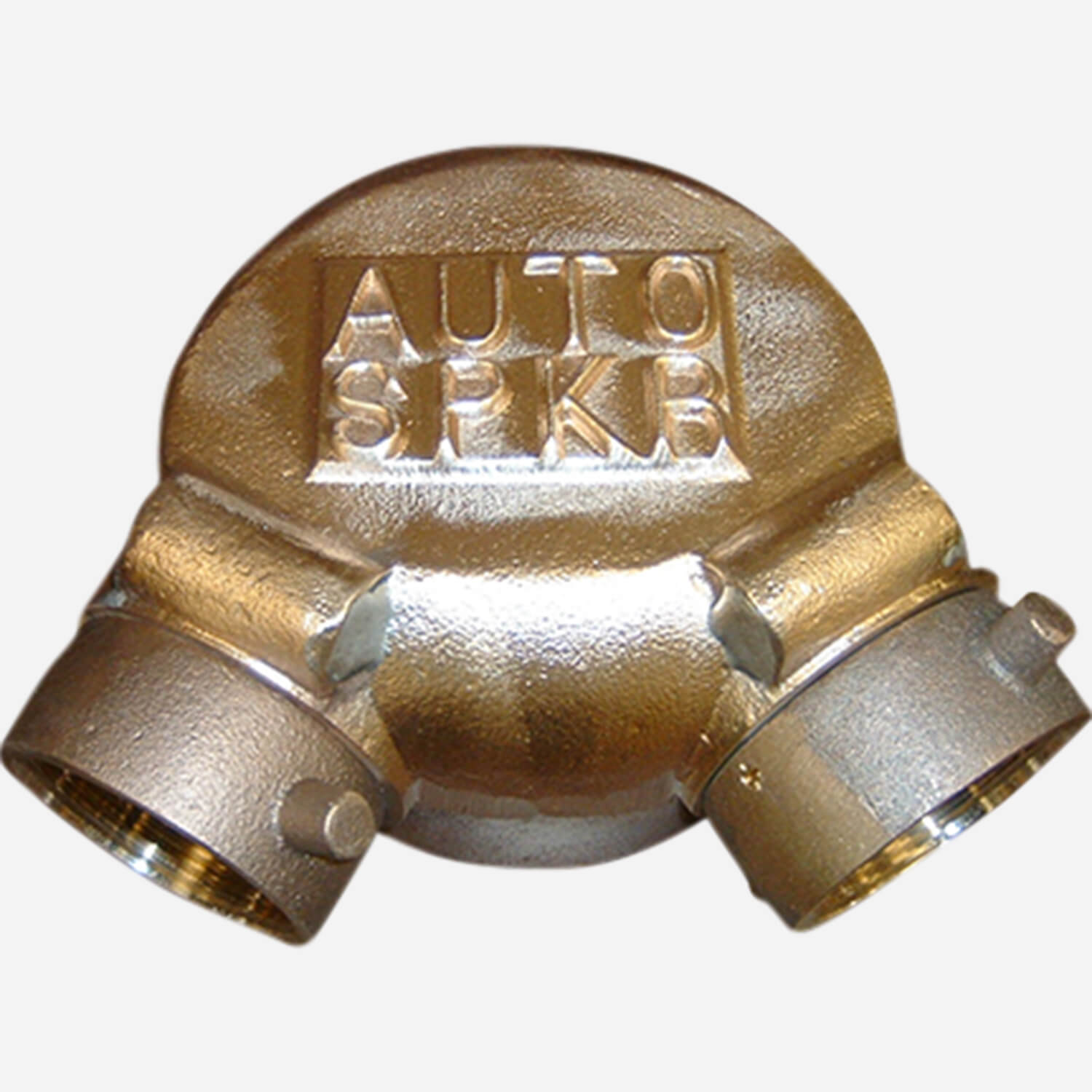

Two-Way Exposed Fire Dept Inlet Connection with Double Clapper
This two-way exposed fire department inlet connection with double clapper is intended for use as an auxiliary inlet connection providing 500 GPM/1892 LPM minimum (Ref. NFPA 14) to supplement the fire protection water supply. Drop clappers provide unobstructed waterway. Exposed design is an economical method of satisfying fire dept inlet requirements. Cast brass two-way inlet body drop clappers and pin lug swivels. Back or angle outlet with sizing specified by model number. Lettering as selected.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Exposed Brass Inlet Connection Clapper Type [5710, 5715 | Two-Way Single Clapper; 5721,5722, 5723, 5724, 5731,5732, 5733, 5734 | Two-Way Double Clapper; 5740, 5741,5745, 5746 | Three-Way Triple Clapper] | 0 | 2 MB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 9 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB |
Specifications
| Material | Cast Brass Body |
| Optional Finish | -B | Polished Brass, -C | Rough Chrome, -D | Polished Chrome |
| Lettering | AUTO SPKR, STANDPIPE |
| Inlet | 2.5", 3" |
| No of Inlets | 2 |
| Outlet | 4", 6" |
| No of Outlets | 1 |
| Outlet Location | Back, Angle |
| GPM | 500 |
| UL | UL Listed, UL File #EX3314 (Model A105) |
| UL Models | All models in this series |
| Pressure | 175 PSI |
