Model 5021 thru 5027

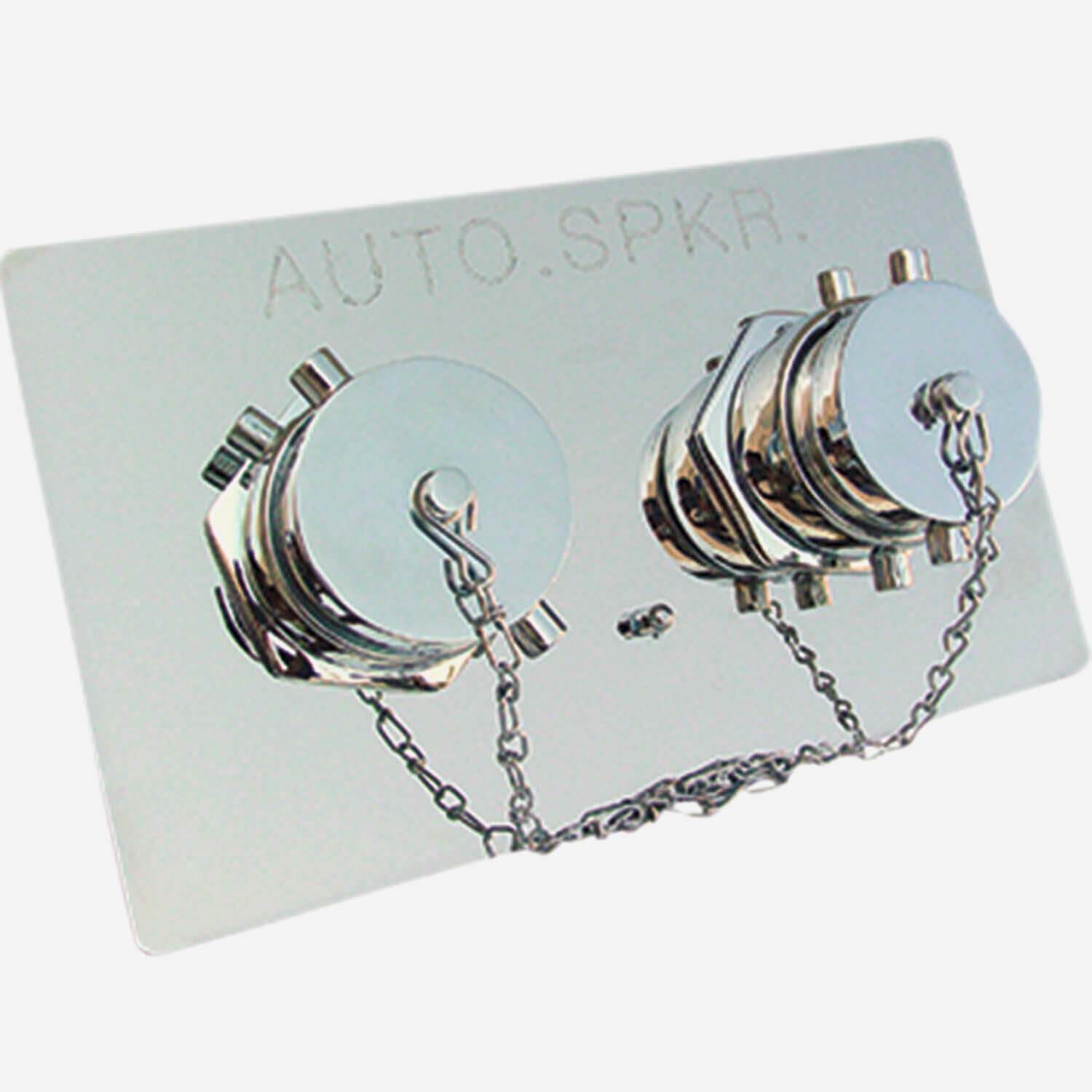

Two-Way Flush Brass Inlet Connection with Drop Clappers
This two-way flush fire department connection is intended for use as an auxiliary inlet connection to supplement the fire protection water supply. The connection has drop clappers to provide an unobstructed waterway and a flush design which is desirable when appearance is a factor. The connection is constructed from cast brass with a polished brass plate with lettering as selected. It has polished brass 2.5 inch (6.4 cm) double female snoots with rigid end NPT x pin lug hose thread swivels pin lug plugs and chains.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Flush Brass Inlet Connection with Drop Clappers [5021, 5022, 5023 | 4" Outlet 2-Inlets; 5025, 5026, 5027 | 6" Outlet 2-Inlets; 5031, 5032, 5033 | 6" Outlet 3-Inlets ] | 0 | 958 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 9 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB |
Specifications
| Material | Cast Brass Body, Polished Brass Plate, Polished Brass Snoot, Cast Brass Pin Lug Plug |
| Optional Finish | -D | Polished Chrome, -SS | Polished Stainless Steel Plate |
| Lettering | AUTO SPKR, STANDPIPE, DRY STANDPIPE, AUTO SPKR STANDPIPE |
| No of Outlets | 1 |
| Outlet Location | Back, Bottom, Top |
| No of Inlets | 2 |
| Inlet | 3" Pin Lug Hose Thread, 2.5" Pin Lug Hose Thread Swivel |
| Outlet | 4" Female NPT, 6" Female NPT |
| Options | -F | Sillcock with Flange Plate |
| UL | UL Listed |
| UL Models | 5021, 5022, 5023, 5025, 5021-G, 5022-G, 5023-G |
