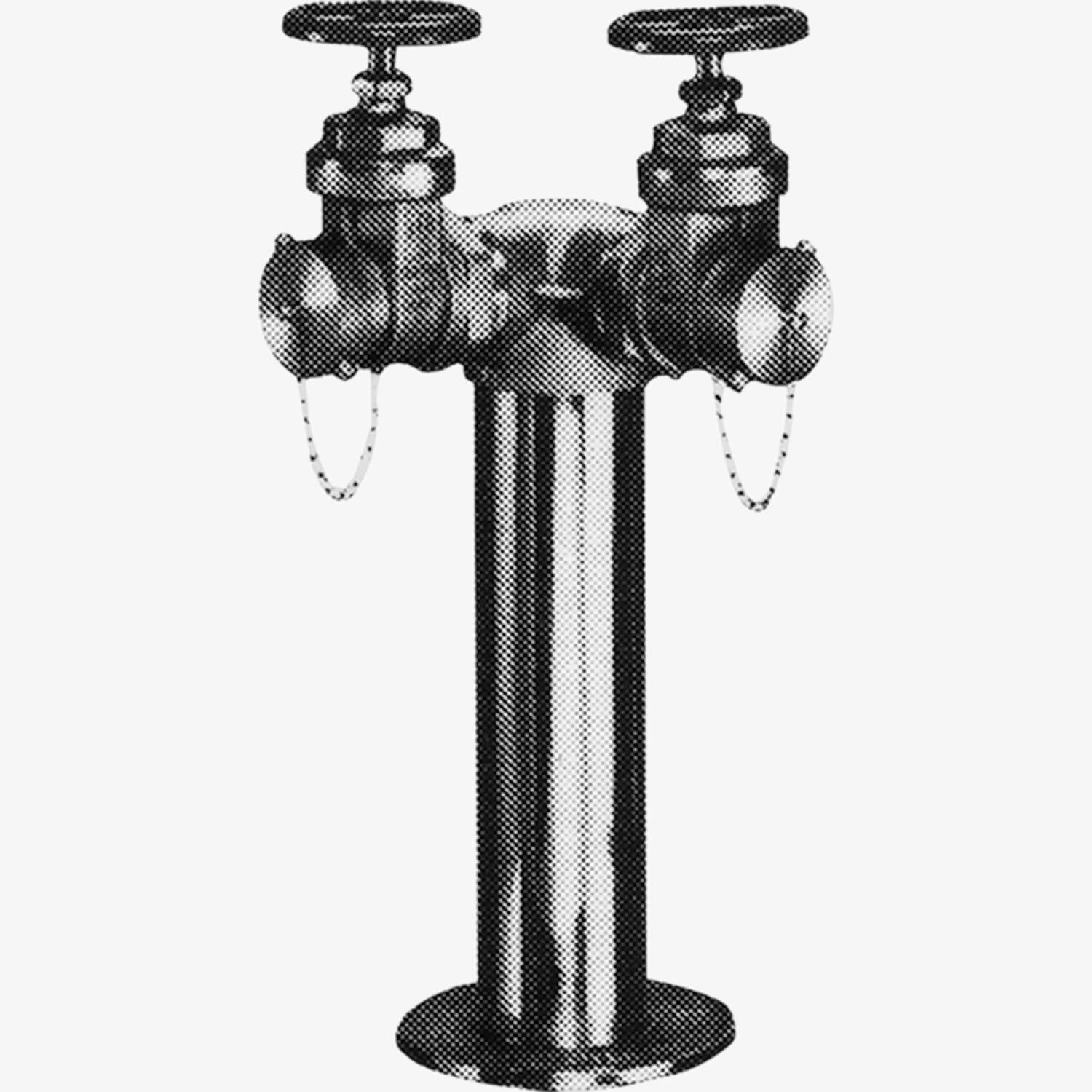

Model 5866
Two-Way Free-Standing Fire Pump Test Connections
This two-way freestanding fire pump test connection is used to test the flow capacity of fire pumps. Each outlet is capable of a minimum flow of 250 GPM. Gate valves provide unrestricted waterway and control of individual outlets. The connection has a cast brass angle inlet body. Brass NRS hose gate valves are supplied with every other valve having a loose bonnet is required for installation. It has a female NPT inlet x 2 .5” male hose threaded outlet with 2.5” caps and chains an 18” long polished brass cover sleeve and brass identification plate lettered PUMP TEST CONNECTION.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Free-Standing Pump Test Connection [5866 | 4" Two-Way; 5867 | 6" Three-Way; 5868 | 6" Four-Way; 5869 | 8" Six-Way] | 0 | 722 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 9 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB |
Specifications
| Material | Cast Brass Body, Brass Cover Sleeve, Brass Base Plate, Brass Valve |
| Optional Finish | -B | Rough Brass Body with Polished Brass Trim, -C | Rough Chrome Body with Polished Chrome Trim, -1.5 | Steel Body Thermally-fused Red Polyester Coating |
| Lettering | PUMP TEST CONNECTION |
| No of Outlets | 2 |
| No of Inlets | 1 |
| Inlet Location | Bottom |
| Radius of Body Swing | 6.5" |
| GPM | 250 per Outlet |
| Inlet | 4" |
| Outlet | 2.5" Male |
| Height | 23.625", 28" |
| Options | -6 | With Male Snoots Caps and Chain, -7 | With Male Snoots Caps Chain Removeable Swivel Hose Gate Valves |
