Model 5871 thru 5879

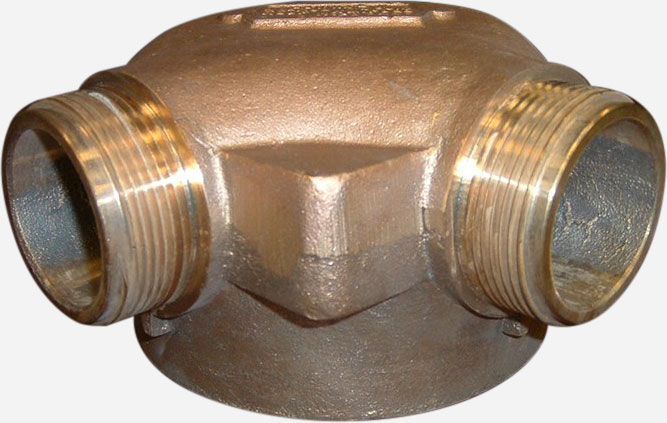

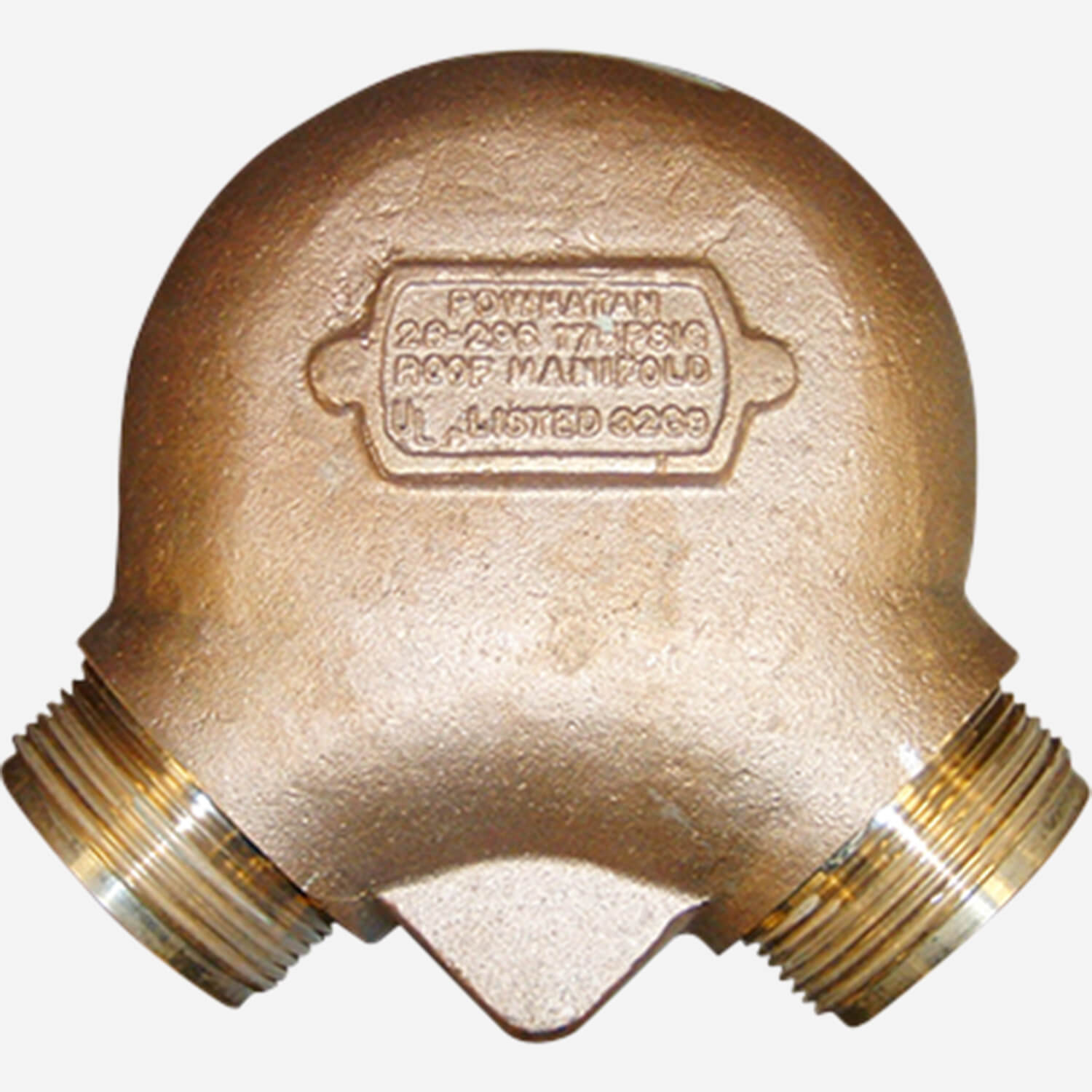

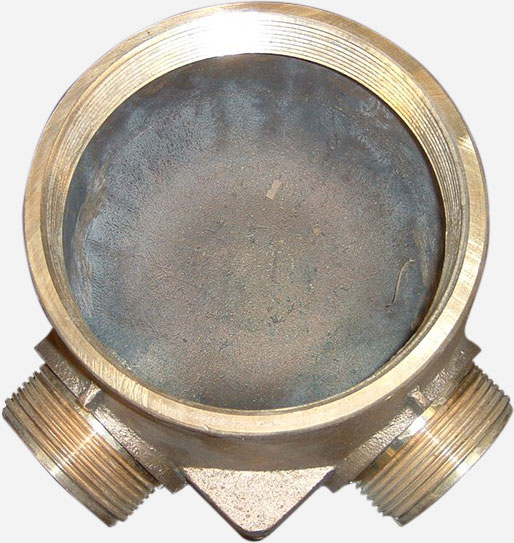

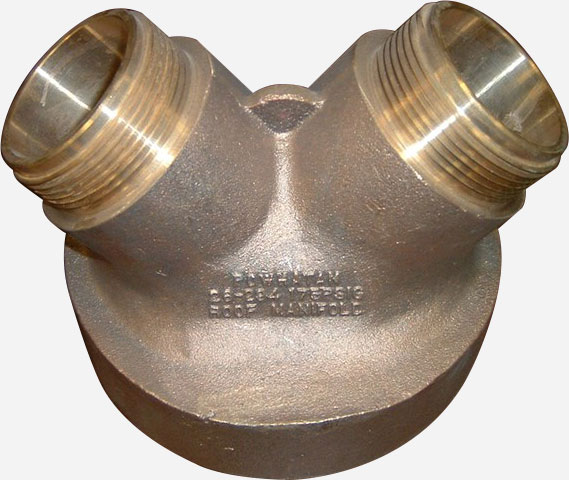

Two-Way Male Roof Fire Dept Outlet Connections
This two-way male roof fire department outlet connection is used as a standpipe roof outlet connection by the fire service. It provides 250 GPM\946 LPM minimum per outlet. It can be used with straight or angle hose valves to provide water control. This connection has a cast brass body with a female NPT inlet and male NPT outlets.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Roof Outlet Connection [5871, 5872, 5873, 5874 | Two-Way Back Inlet; 5876, 5877, 5878, 5879 | Two-Way Angle Inlet; 5881, 5882, 5883, 5884 | Three-Way Back Inlet; 5886, 5887 | Three-Way Angle Inlet; 5890, 5892 | Three-Way Outlet] | 0 | 757 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 9 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB |
Specifications
| Material | Cast Brass Body |
| No of Outlets | 2 |
| No of Inlets | 1 |
| Inlet Location | Angle, Back |
| GPM | 250 per Outlet |
| Inlet | 4" Female NPT, 6" Female NPT |
| Outlet | 2.5" Male NPT, 3" Male NPT |
| Options | -M | With Male Hose Thread |
