Pentagonal Hydrant House

Contact a Representative
Model 6010
FM Compliant
Submittal
Submittal 6010 Hydrant Equipment House (pdf)

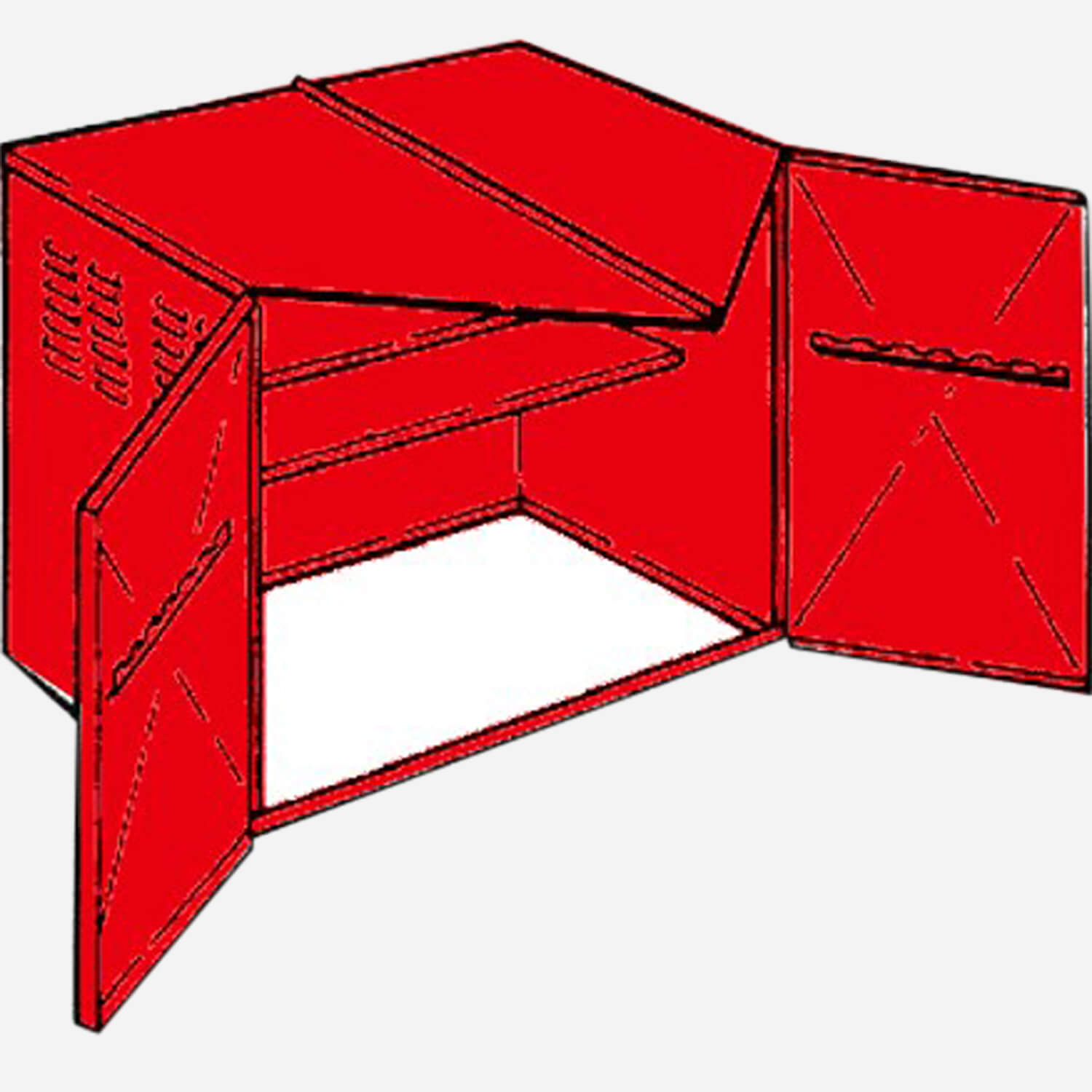

6010 Preview
Model 6010

Pentagonal Hydrant House

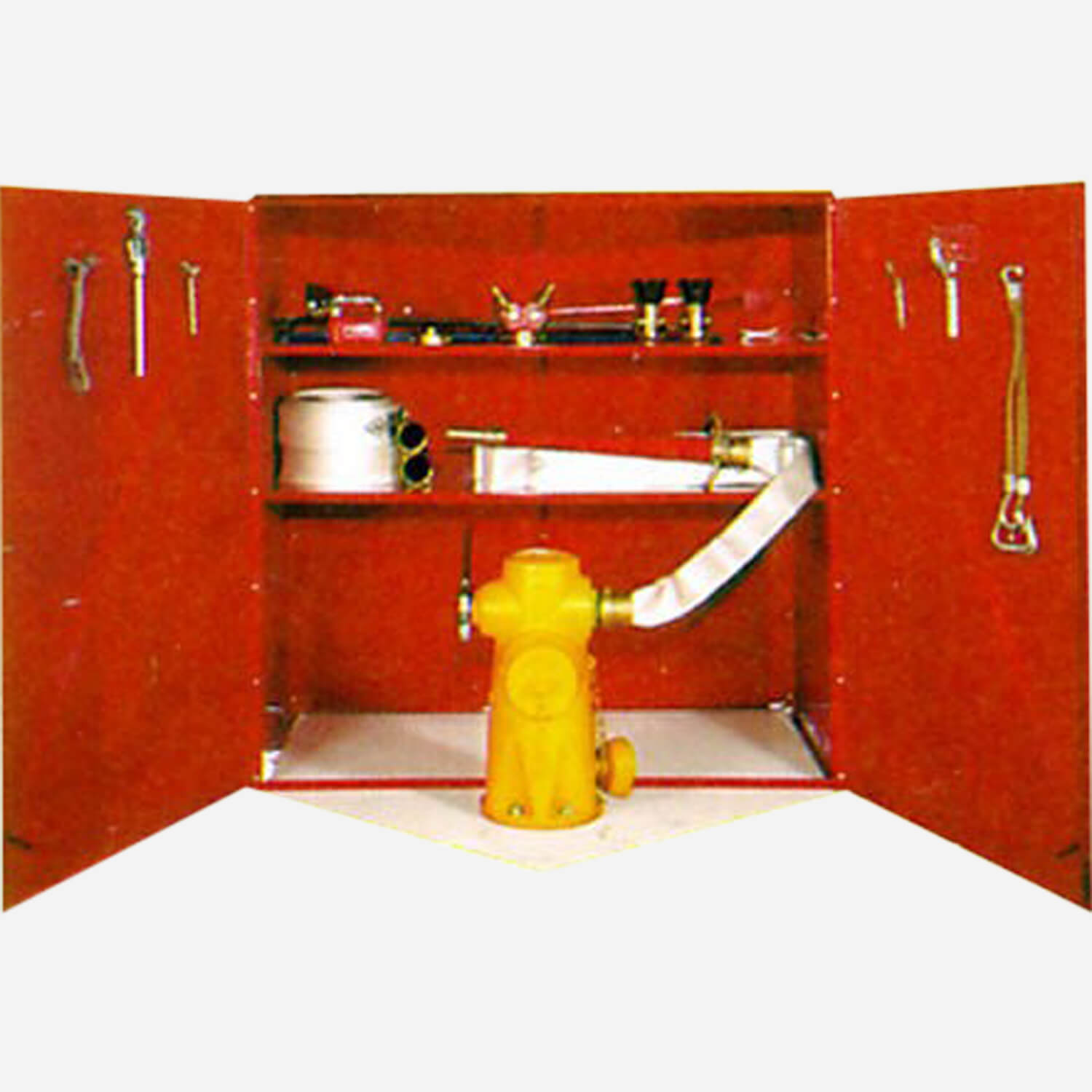

This pentagonal hydrant house is used to cover and protect outside hydrants and related hose and equipment at industrial locations. The box is 18 ga. electro-galvanized steel powder-coated with an electrostatically-applied thermally-fused red polyester finish. It features interlocking assembly construction with two shelves doors with continuous steel hinge (brass pin) equipment brackets corner hold down brackets and padlock hasp. It has 4 inch (10.2 cm) high Fire Hose lettering and two sets of louvers on each side for ventilation.

Downloads

Resource Type
Title
Description
File Size
Action
PDF icon
Submittals
PDF icon
Submittal 6010 Hydrant Equipment House (pdf)
Pentagon Hydrant House [6010 | 58-1/2" Side-to-Side x 52-1/4" Front-to-Back x 58-3/4" Height Storage Unit]2 MB
PDF icon
Brochures/Flyers
PDF icon
MGI Corporate Brochure (pdf)
Who we are, Our History, Morris Group International Today27 MB
PDF icon
Brochures/Flyers
PDF icon
MGI Brands Flyer (pdf)
MGI Brands Flyer (pdf)718 KB
PDF icon
Brochures/Flyers
PDF icon
Potter Roemer Mechanical Brochure (pdf)
Potter Roemer Mechanical Products - Pressure Reducing Valve, Hose & Gate Valves, Flush Connection, Wall & Freestanding Connections, Hydrants, Roof Connections, Pump Test Connection, Hose Rack Assemblies, Hose & Storage, Nozzles, Hose Cabinets, Extinguisher Cabinets, Valve Cabinets, Fire Pro Products [L# L1001700, Feb 2026]2 MB

Specifications

Material18 Gauge Galvanized Steel Red Glossy Polyester Coating
Optional Finish-AL | Aluminum with Red Glossy Polyester Coating
Height58.75", 23.625"
Width12.25", 11", 30", 58.5"
Depth52.25"
Door StyleFront Opening
FMFM Compliant, Contact Potter Roemer for details
